Description
Put your ducting port exactly where the room needs it
This kit lets you add a clean, reinforced ducting port anywhere on a grow tent or O:Door installation instead of working around the sockets the manufacturer gave you. Each kit pairs a flange mounting bracket with the matching cutting tool, so the opening is cut to size in one pass and the surrounding fabric is supported rather than stressed. Sizes run 4", 5" and 6" for DF16 (16mm) poles and 6", 8" and 10" for DF25 (25mm) poles. Correctly fitted, the flange supports equipment weighing up to 5kg.
Key Benefits
- Ports where you want them - design the duct run around your kit rather than bending ducting to reach a fixed hole.
- Reinforced opening - the flange spreads load into the frame so the fabric does not tear at the cut edge.
- Supports up to 5kg - enough to carry ducting, spigots or a light baffle when installed properly.
- Cutting tool included - gives a true circular opening sized to the duct rather than a ragged scissor cut.
- Six size and pole combinations - 4" to 10" across 16mm and 25mm pole frames.
- Upgrade path - lets an existing tent take a larger extraction system or extra passive intakes.
The Trouble with Cutting Holes in Tent Fabric
Slicing a hole straight into tent material is quick and regrettable. The edge frays, the cut concentrates load onto a single point, light leaks through the gap and any weight hanging off it drags the fabric out of shape within weeks. A flange turns the same opening into a structural fitting - the bracket ties into the frame, the cut is round and sized, and ducting attaches to something that can actually hold it.

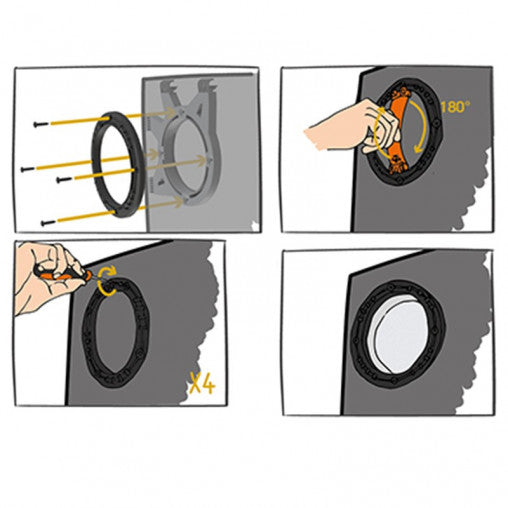

How to Use
- Choose your duct size, then match the kit to your tent pole diameter - 16mm or 25mm.
- Fit the flange bracket to the tent frame before cutting anything.
- Use the supplied cutting tool to create the circular opening.
- Fit ducting, a spigot or a light baffle to the finished port.

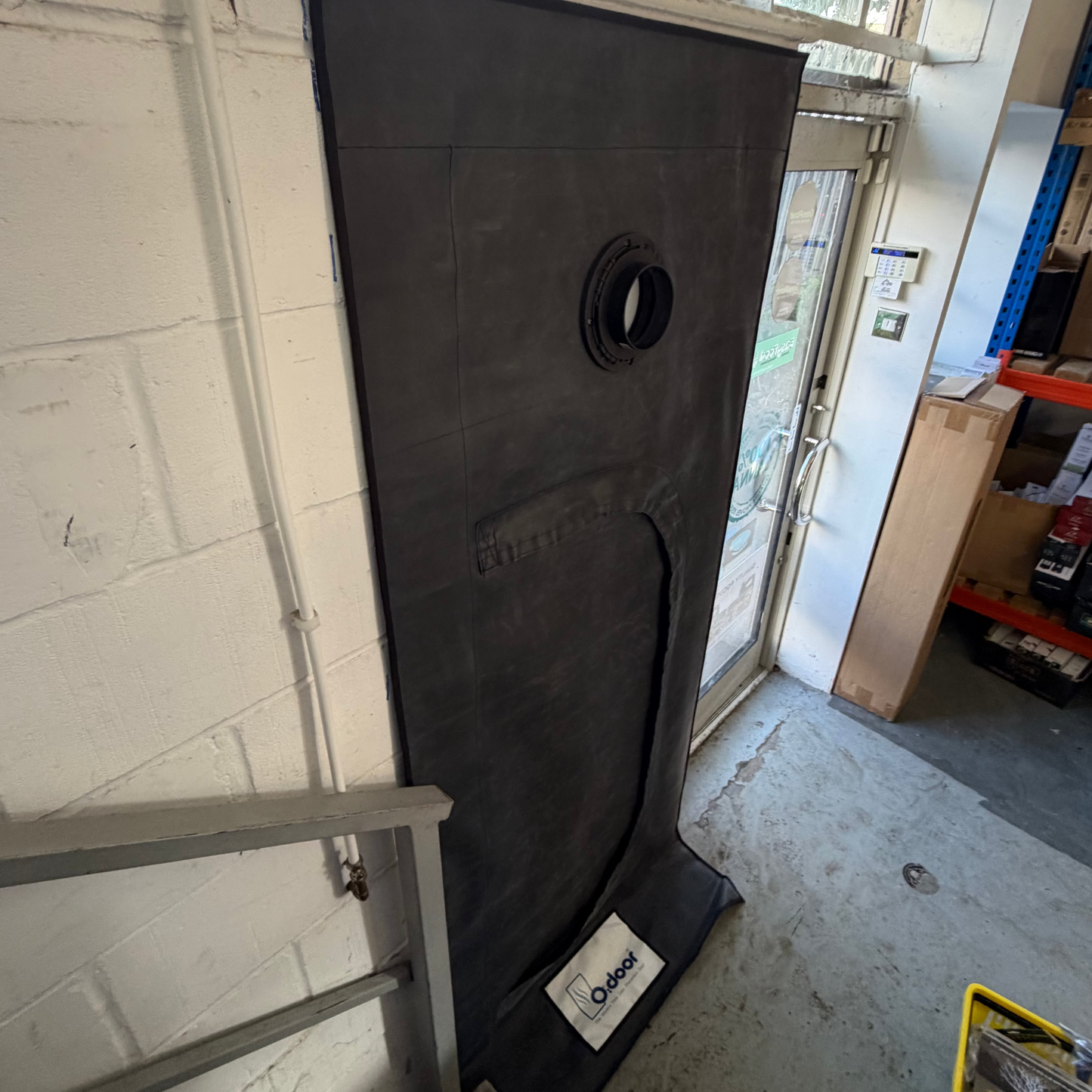

- Fitting to an O:Door instead? Just pick the duct size - pole options are for tents only.
Specifications
| DF16 kits | 4", 5" and 6" for 16mm tent poles |
|---|---|
| DF25 kits | 6", 8" and 10" for 25mm tent poles |

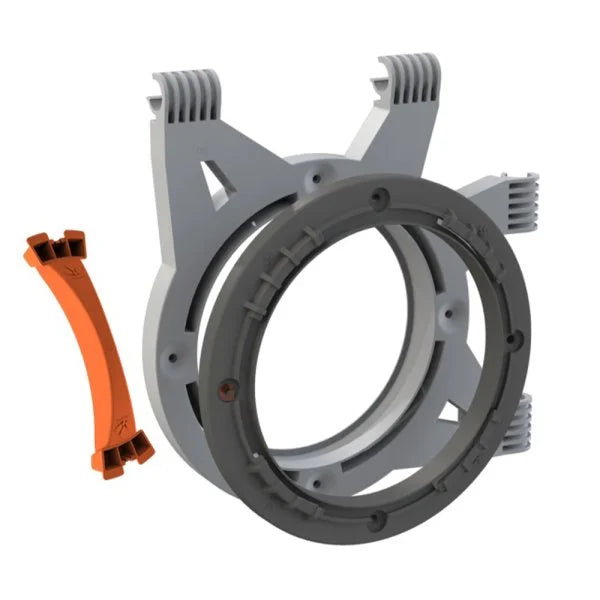

| Includes | Flange mounting system and cutting tool |
| Load capacity | Up to 5kg when correctly installed |
| Compatible with | Secret Jardin grow tents and O:Door installations |
| Typical uses | Extraction ports, passive intakes, spigots, light baffles |
