Base stations and hubs
The controller everything else plugs into: Hydro-X, Aqua-X, Green-X and Tent-X.

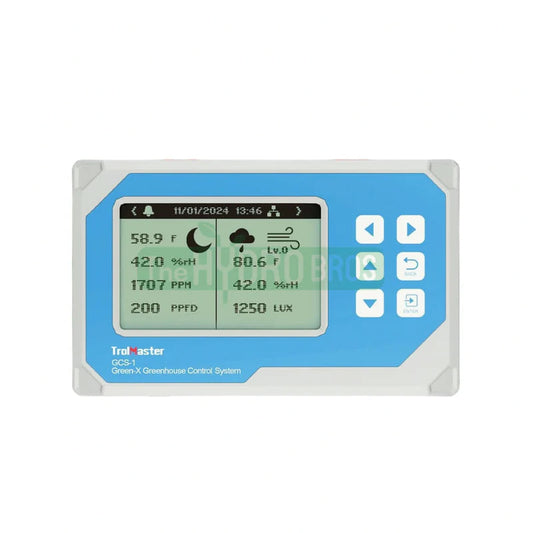

TrolMaster Green-X GCS-1 Greenhouse Base Station
- System type Modular greenhouse automation base station
- Included sensor MBS-GH 4-in-1 (temperature, humidity, CO2, day/ni...
- Monitored parameters temperature, humidity, CO2, light/PPFD; expandabl...
- Lighting control PPFD monitoring, iLink-style light connection via...
- Connectivity RJ12 with T-splitter for chaining sensors and mod...
- Power 12V DC adapter (included)
- Compatibility TrolMaster Green-X sensors and device modules
- EC fan control up to 4 EFC-1 adaptors
- Motor control up to 4 AC or DC motor controllers
- Sensor cable 4 ft M12 cable (MBS-GH)
- Irrigation outputs up to 96 across 8 control boards
- Max load per device station 10A at 100-240V AC per plug-in module
- Output current 3A total, max 1.1A per RJ12 jack
- Display backlit LCD, 256 x 160
- Dimensions 165.6 x 96 x 41.5 mm
- Operating temperature 0-50°C (32-122°F)
- Weight 0.78 kg

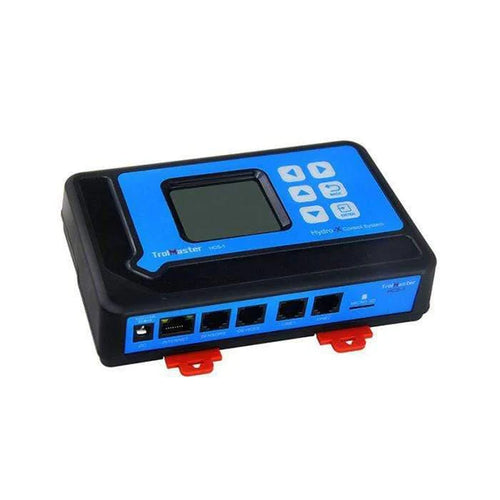

TrolMaster Hydro-X HCS-1 Base Station – 3-in-1 Controller
- Input voltage 100–240V AC, 50/60Hz
- Maximum HID fixtures 256 x 2 channels
- Maximum device connection distance 1000m
- Ingress protection IP20
- Certifications ETL / FCC
- Controls 4 temp, 2 humidity, 2 CO2, 9 timer devices

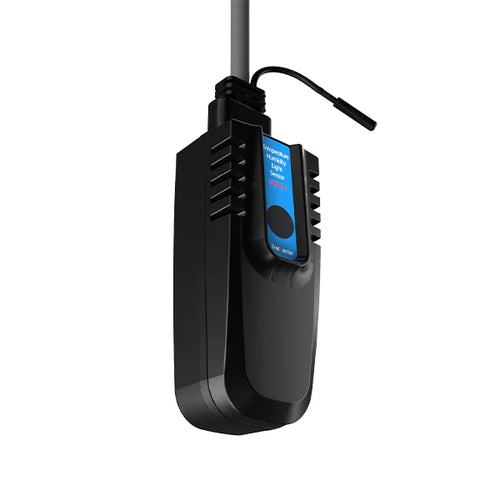

- Sensor MBS-TH 3-in-1 with 16 ft RJ12 cable
- Max load per device station 10A at 100-240V AC per plug-in module
- App free TrolMaster app, iOS and Android
- Display backlit 128 x 128 LCD, 6 buttons
- Power supply 100-240V AC, 50/60 Hz, 0.5A; 12V adapter
- Dimensions 275 x 164 x 62 mm
- Setpoint ranges 40-100°F, 20-99% RH, 400-2500 PPM
- Smoke / water detectors up to 5 each per controller
- Weight 1.08 kg

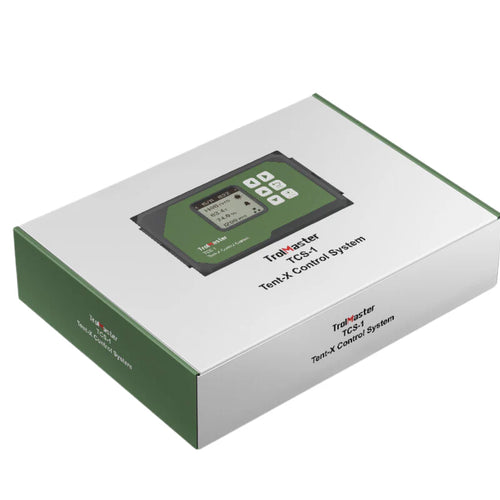

TrolMaster Tent-X TCS-1 Smart Grow Tent Controller
- Power input 100 to 240 V AC, 50/60 Hz
- Sensor ports 1 (expandable with AMP-3 sensor board)
- DS module support up to 4 device station modules
- EC fan control up to 2 EC fans with EFC-1 adaptors
- Maximum device control distance up to 1 km
- Certifications CE, ETL, FCC
- Controls up to 4 DS modules (temp/humid/CO2/timer)
- Sensor MBS-TH 3-in-1 with 16 ft RJ12 cable
- Max load per device station 10A at 100-240V AC per plug-in module
- App free TrolMaster app for phone control
- Display backlit 128 x 128 LCD, button control
- Power adapter 12V DC plug-in adapter, included
- Dimensions 165.6 x 96 x 41.5 mm
- Lighting channels 2, up to 256 fixtures per channel
- Operating temperature 0-50°C (32-122°F)
- Weight 0.243 kg

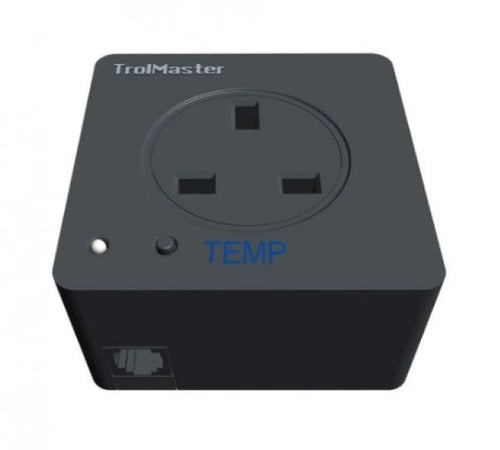

Device and expander stations

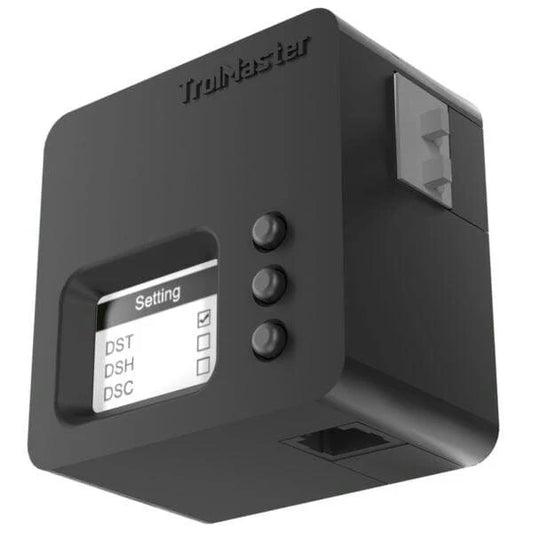

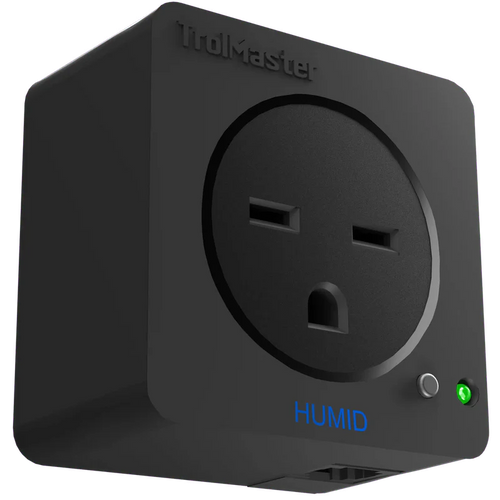

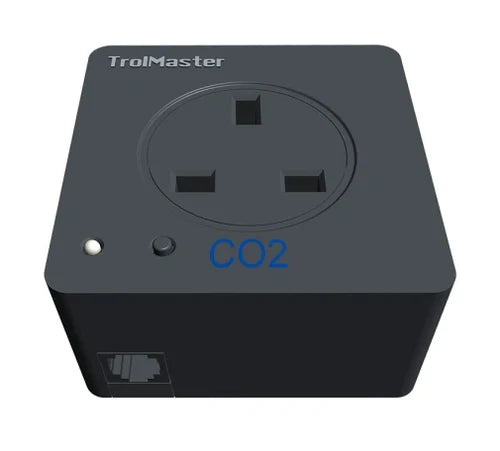

Sockets and low-volt stations that switch one piece of kit each.

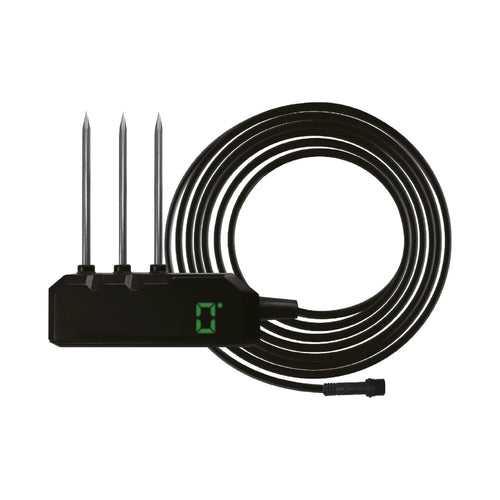

Sensors, probes and detectors

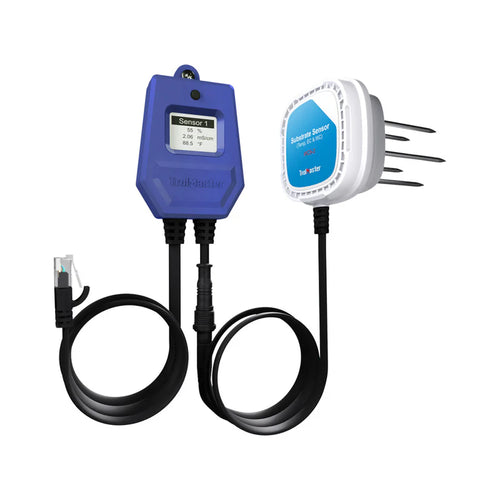

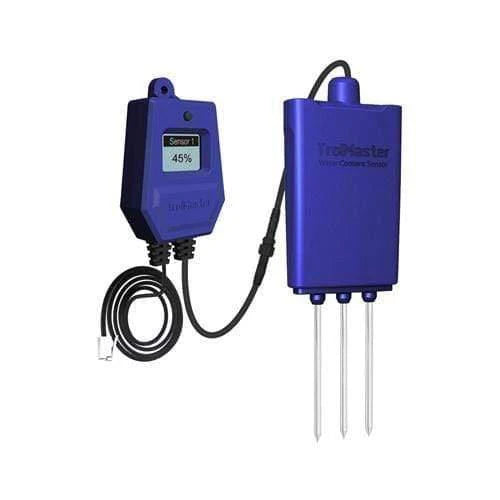

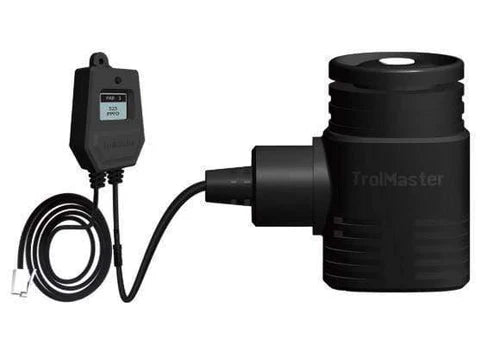

Temperature, humidity, CO2, PAR, EC, pH, water content and leaks.
Standalone digital controllers
Plug-in units that run on their own, with no base station involved.

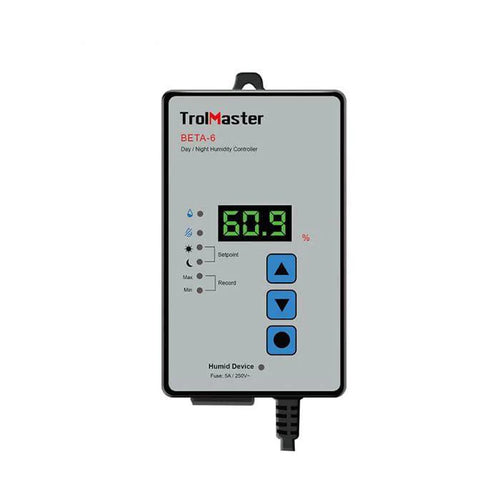

TrolMaster BETA-6 Day/Night Digital Humidity Controller
- Input Voltage 120V AC
- Output Switch Relay
- Fuse Rating 6A / 250V
- Maximum Load 10A
- Humidity Control Range 20-90% RH
- Humidity Deadband 5%
- Remote Probe Cable 16ft
- Power Cord Length 1.8m
- Dimensions 275mm (L) x 87mm (W) x 94mm (H)
- Controls humidifiers or dehumidifiers, day/night
- Sensor remote humidity probe on a 16 ft cable
- Maximum humidity ≤90% RH
- Display digital display with built-in photocell
- Operating temperature 0-40°C (32-104°F)
- Weight 0.74 kg

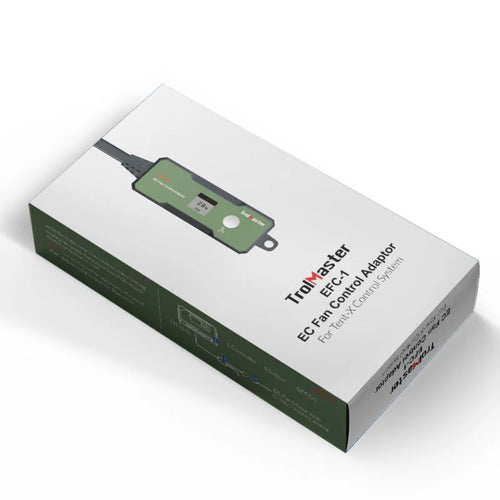

TrolMaster EFC-1 EC Fan Controller – For Tent-X System
- Function EC fan speed controller module
- Compatible system TrolMaster Tent-X control system
- Output signals PWM and 0-10V
- Connection RJ12, plug-and-play
- Fan assignment F1 exhaust, F2 intake
- Dual-fan setup Second EFC-1 via Y-splitter or SPH-1 splitter on ...
- Sensor none - uses the Tent-X room sensor
- Maximum current 0.1A
- Max output 0-10V, or PWM at 50 mA
- Display LCD showing PWM / 0-10V mode
- Included cable RJ12 to female barrel cable
- Power supply 12V from the Tent-X controller
- Dimensions 156 x 83 x 30 mm
- Operating temperature 0-50°C (32-122°F)
- Weight 0.08 kg
Adaptors, cables and enclosures

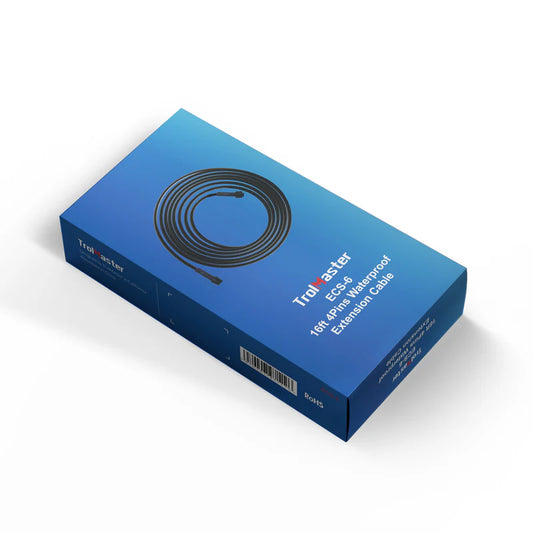

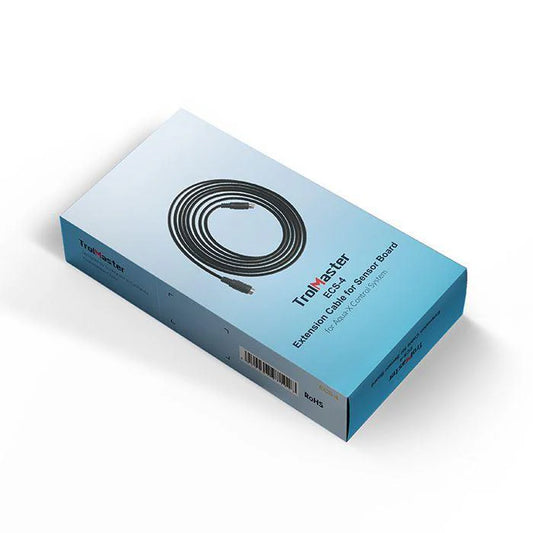

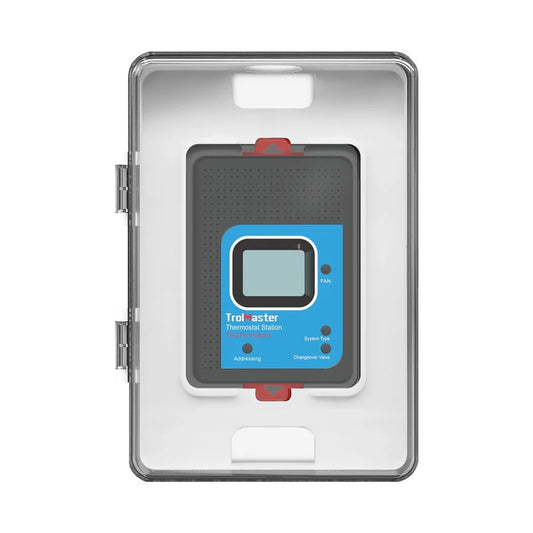

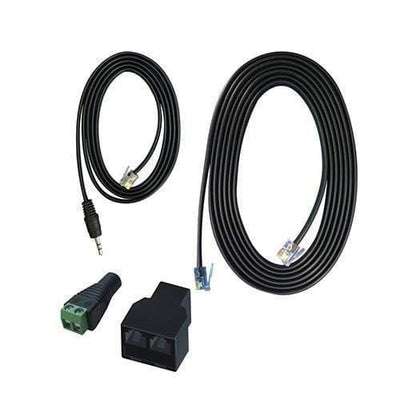

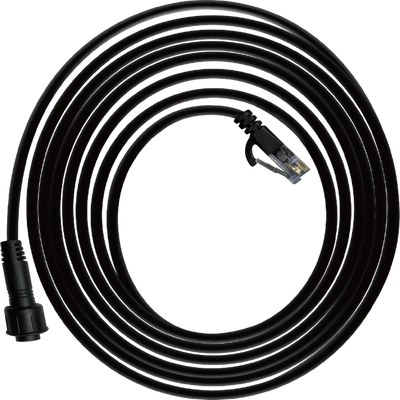

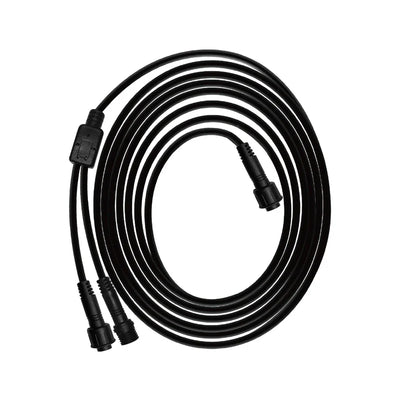

Lighting adaptors, RJ12 leads, splitters and weatherproof boxes.
The full range
TrolMaster environmental controllers

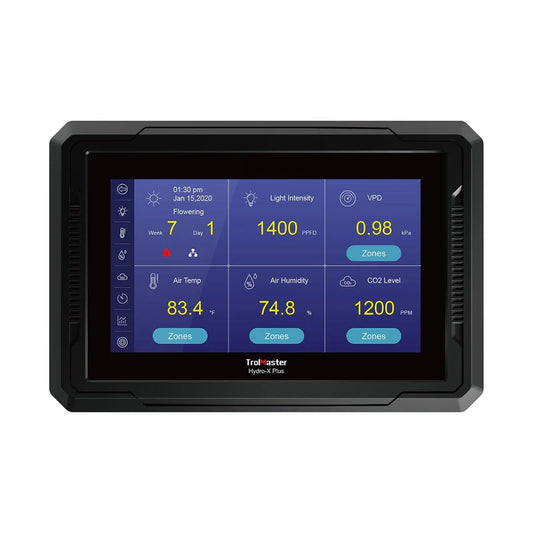

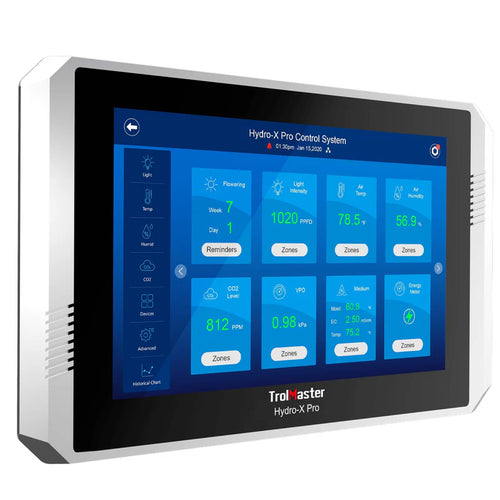

TrolMaster's Hydro-X and Aqua-X ranges give you one system monitoring and controlling lights, climate, CO2 and irrigation instead of juggling separate timers and controllers that do not talk to each other. The Hydro-X Plus Controller (HCS-3, £1,859) is the central brain; everything else is a modular station or sensor that plugs into it, so you build the system around what you actually need to monitor rather than buying one fixed box.
Building a TrolMaster setup

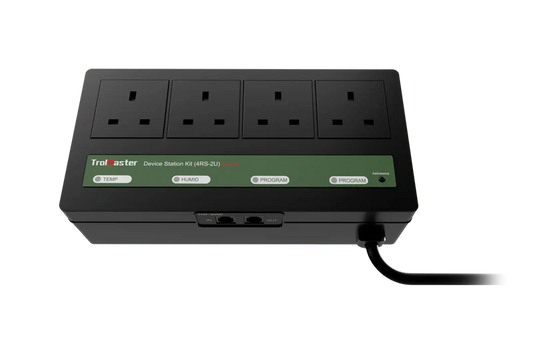

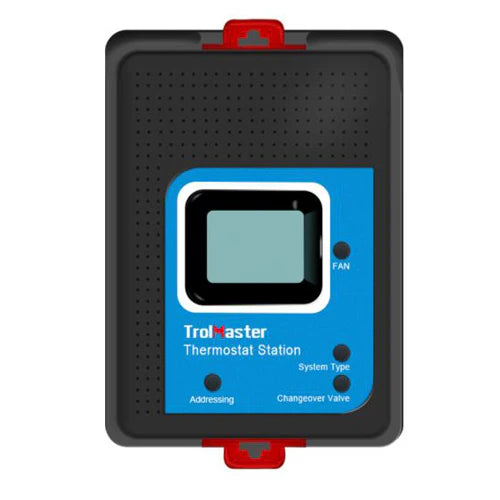

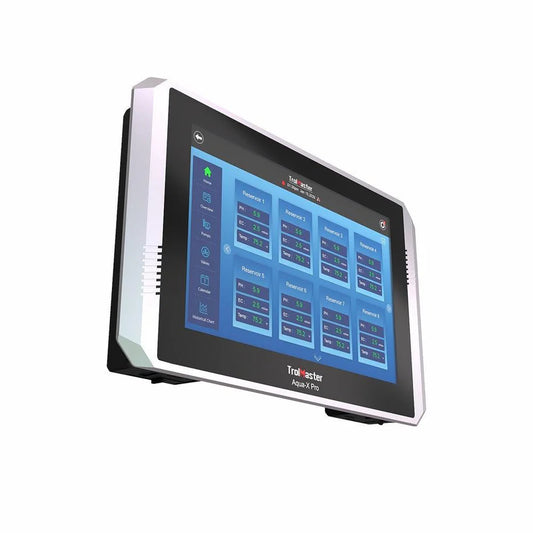

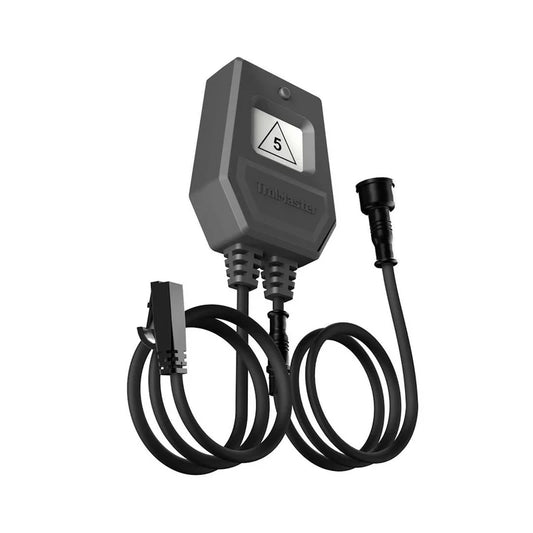

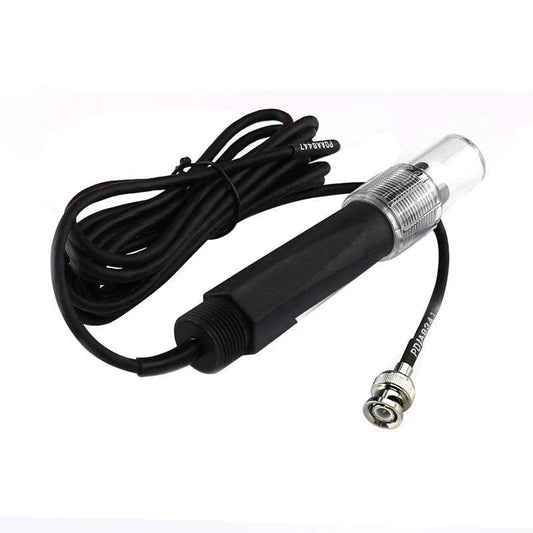

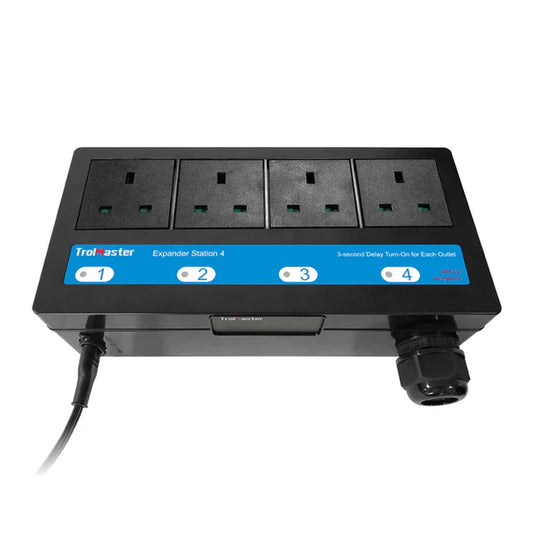

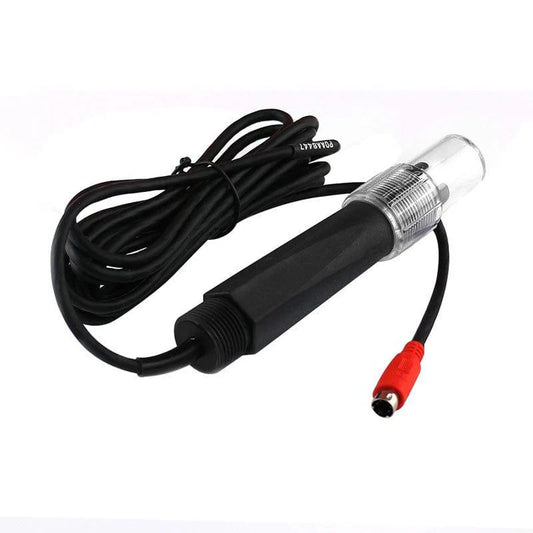

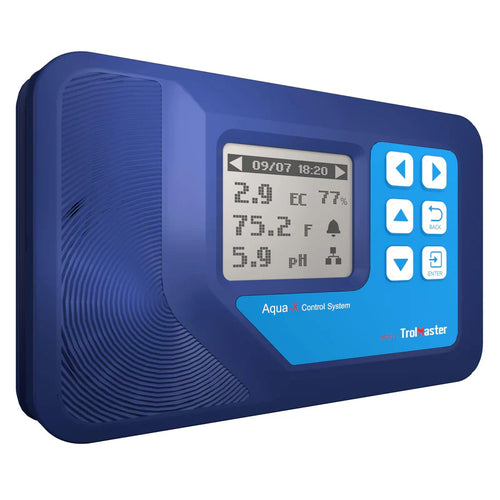

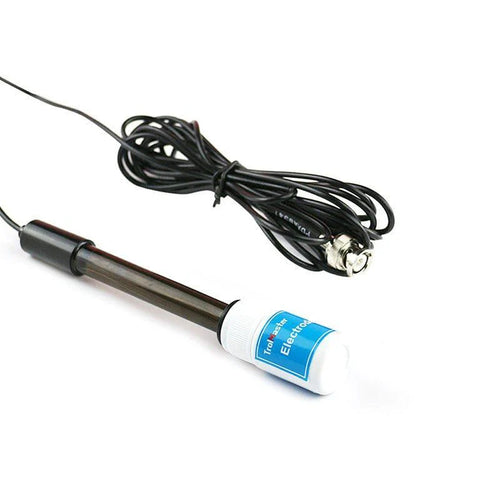

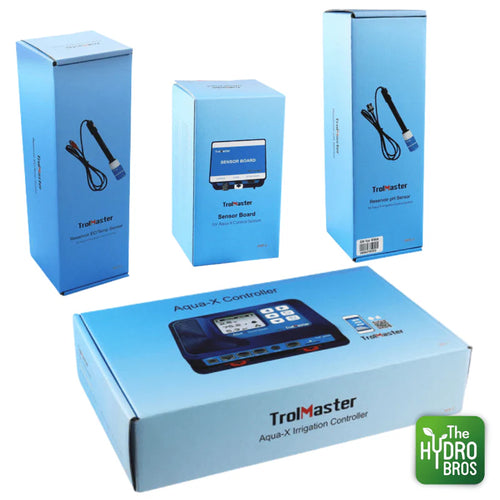

For irrigation, the Aqua-X Pro Irrigation Control System (NFS-2, £2,600) pairs with inline EC/temp (PCT-2, £295) and pH sensors (PPH-2, £265) to automate feeding based on real readings rather than a fixed schedule, with a water detector (WD-2, £70) to flag leaks before they flood a room. On the climate side, the Green-X Base Station (GCS-1, £595) and Thermostat Station (TS-2, £121) handle heating and cooling, and expander stations (from £245) add extra relay outputs as your room grows. This is a serious investment aimed at multi-light rooms rather than a single tent, and most growers here start with one or two stations and expand.
Not sure which stations you need for your room? Call 020 3488 0419 and we will talk through a build that matches your setup, from a single tent to a full commercial room. Free UK delivery over £60.
