Description
Multi-Zone Irrigation and Crop Steering From One 7-Inch Touchscreen

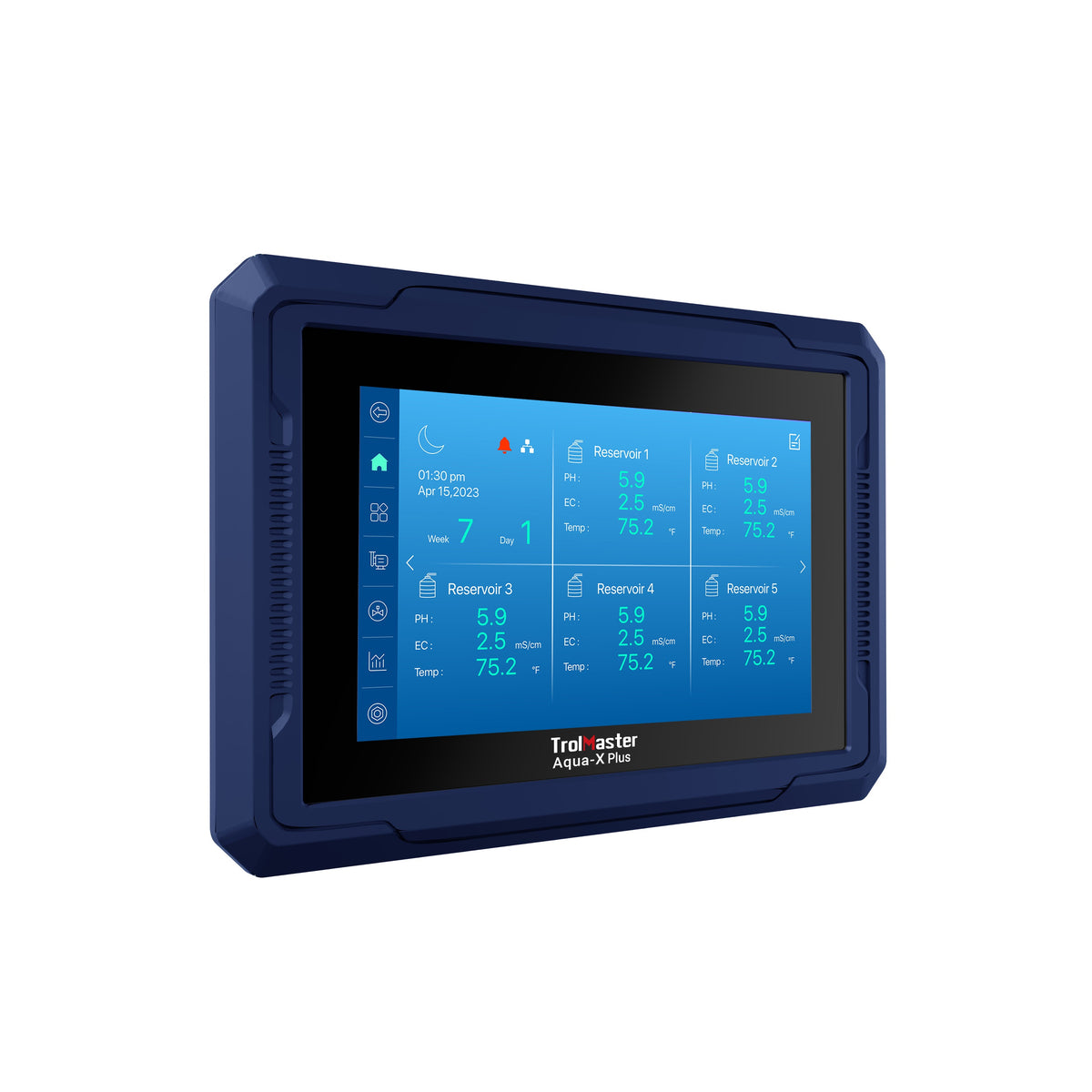

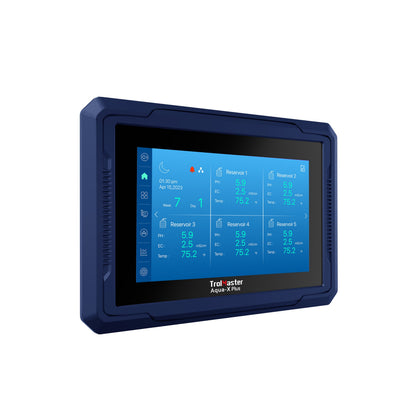

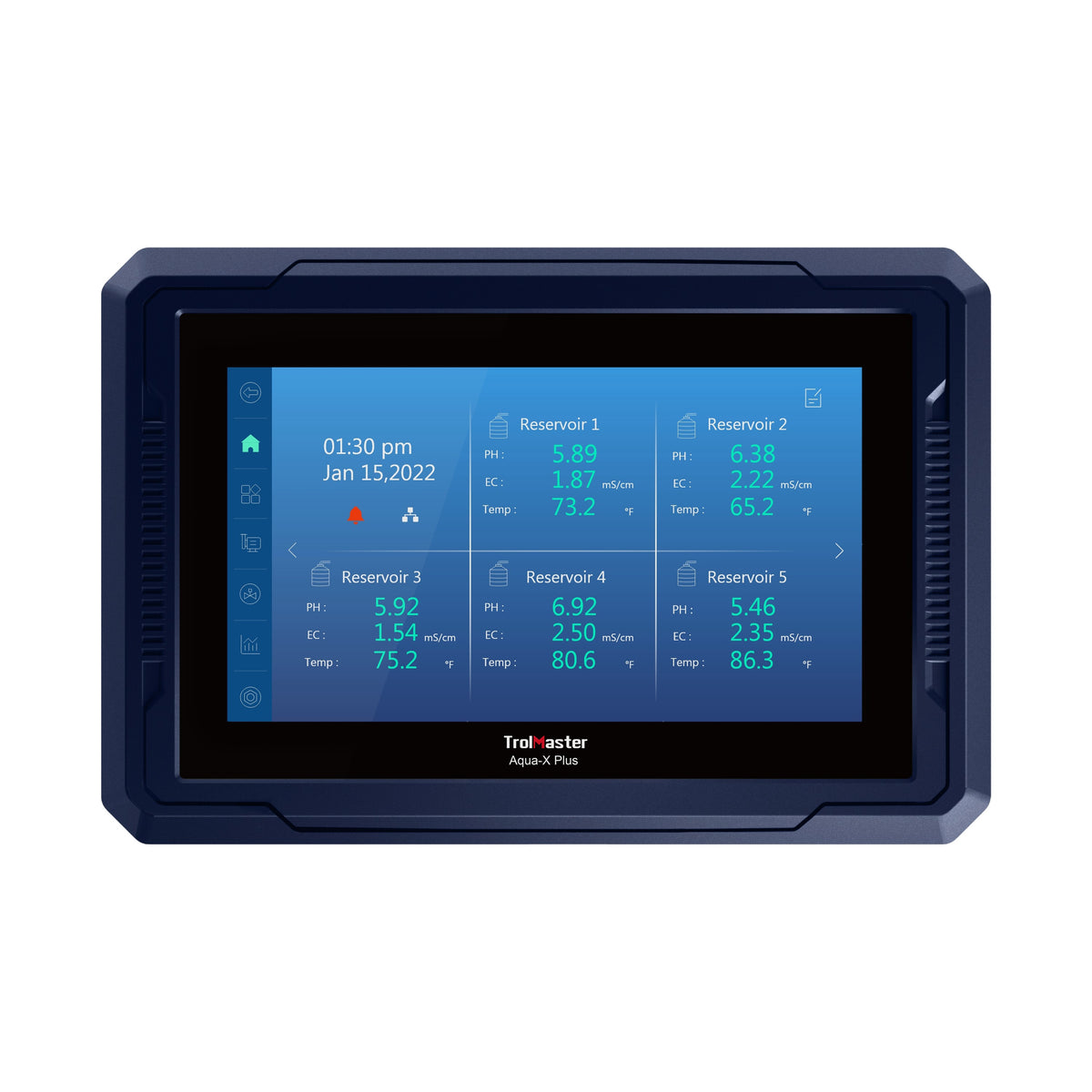

The TrolMaster Aqua-X Plus (NFS-3) is the upgraded, professional-grade version of the Aqua-X irrigation controller. Its 7-inch 800 × 480 touchscreen runs multi-zone pump and solenoid scheduling, it can control up to 240 devices in total and it monitors up to 25 sensors: nutrient pH, EC and temperature, plus substrate water content (WC%), temperature and EC. The AMP-3 sensor board comes in the box, so pH and EC probes plug straight in, and a standard CAT5 cable connects it to your router for the free TM+ Pro app on iOS and Android.
What's Included
- Aqua-X Plus NFS-3 controller

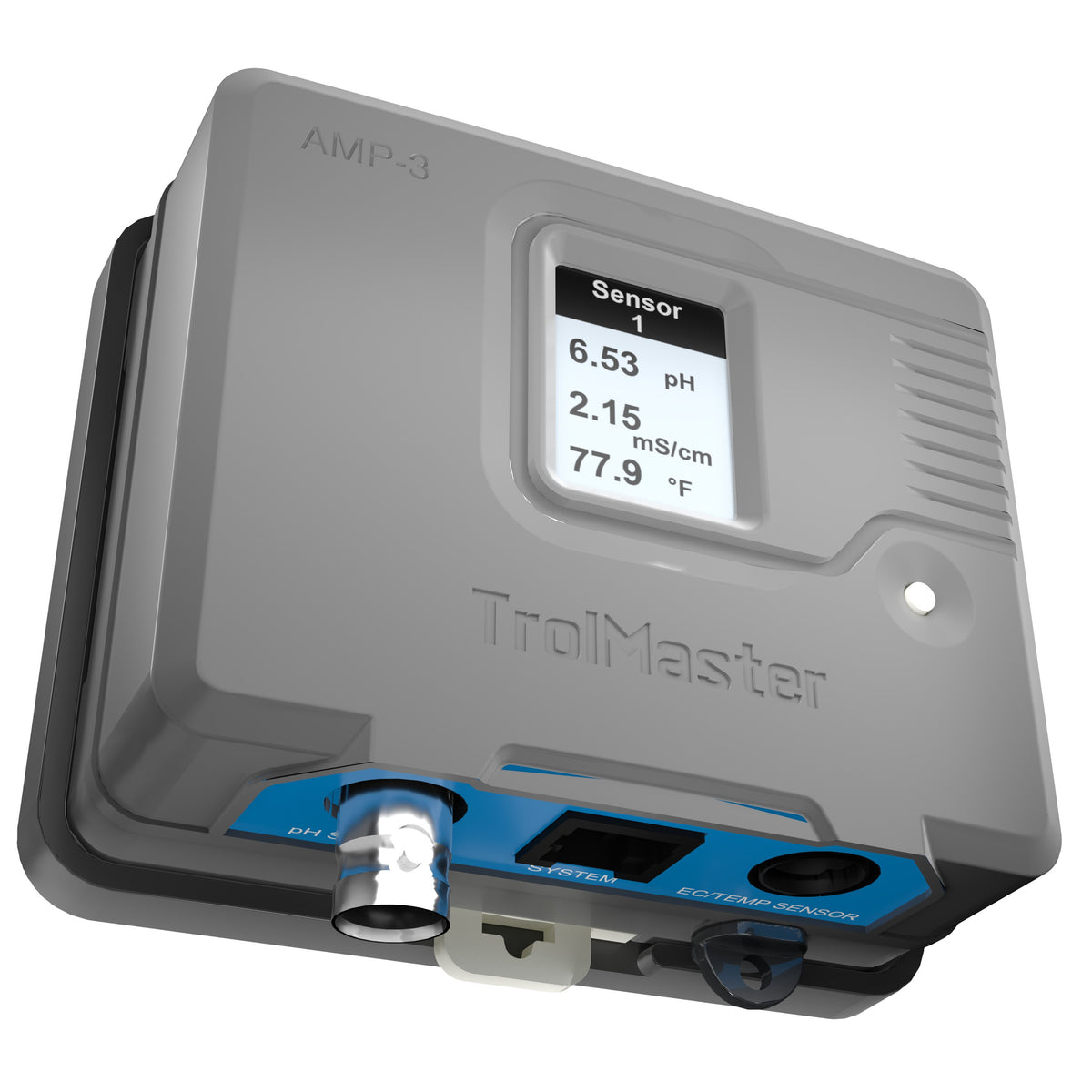

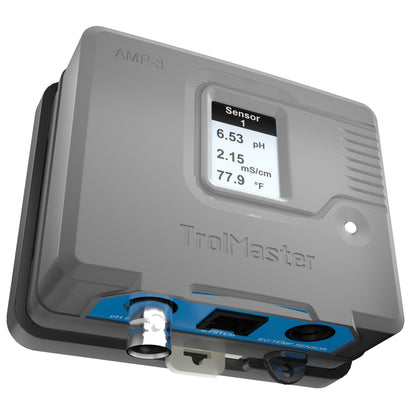

- AMP-3 sensor board
- 12V power adapter
- RJ12 cable set
- Mounting plate
Key Benefits
- Crop steering built in – pair it with TrolMaster water content sensors and irrigate on real substrate dry-back rather than fixed timers alone
- Multiple Pump Link – link different pumps to different valves for complex feed and irrigation layouts
- Room to expand – up to 5 sensor boards, 20 water detectors, 20 water content sensors, 15 flow meters and 10 each of valve and pump control modules
- Alarms and history – logs readings on screen and in the app, saves to micro-SD, and alerts you when a reading leaves its set range
- Plug-and-play wiring – RJ12 daisy chain or an SPH-1 hub, with devices and sensors up to 300 m from the controller
Fixed Timers and Missed Irrigation Failures
A timer waters on the clock whether the substrate needs it or not, and a blocked dripper or failed pump can go unnoticed until plants wilt. Measuring water content and EC in the root zone lets the NFS-3 irrigate from real dry-back, steer plants towards vegetative or generative growth, and raise an alert the moment a sensor or water detector shows something has gone wrong, so nutrient uptake and root health stay on track.
How to Use
- Mount the controller on its plate in a dry spot and power it from the 12V adapter
- Connect the AMP-3 sensor board and your control modules (OA6-24 valve boards, DSP and DSV-1 stations) by RJ12 daisy chain or an SPH-1 hub
- Fit sensors – PPH and PCT pH and EC probes on the AMP-3, water content sensors in the substrate and WD water detectors where you want leak or run-off checks
- Network – plug a CAT5 cable into your router and pair the TM+ Pro app
- Programme zones, pump links, alarms and crop steering targets on the touchscreen
Technical Specifications
- Model: NFS-3 Aqua-X Plus irrigation control system
- Display: 7in LCD touchscreen, 800 × 480
- Power: 12V adapter, 100–240V AC 50/60Hz input
- Maximum output current: 3A
- Total devices: up to 240
- Sensors monitored: up to 25 – pH, EC, temperature, substrate WC%, substrate temperature, substrate EC
- Capacity: sensor boards 5 · water detectors (WD-1/2) 20 · water content sensors (WCS-1/2) 20 · valve modules 10 · pump modules 10 · flow meters (DFM-1/2/3) 15

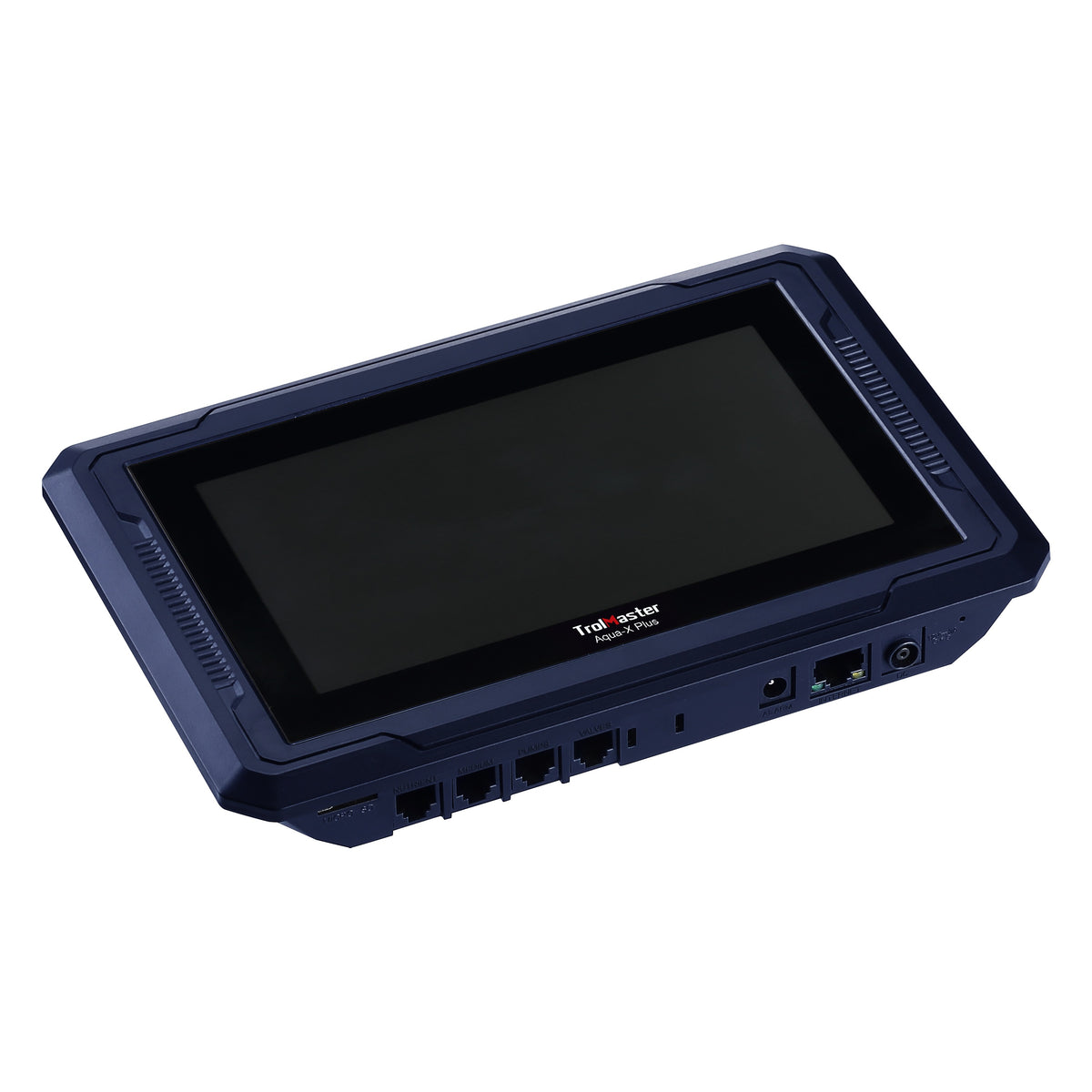

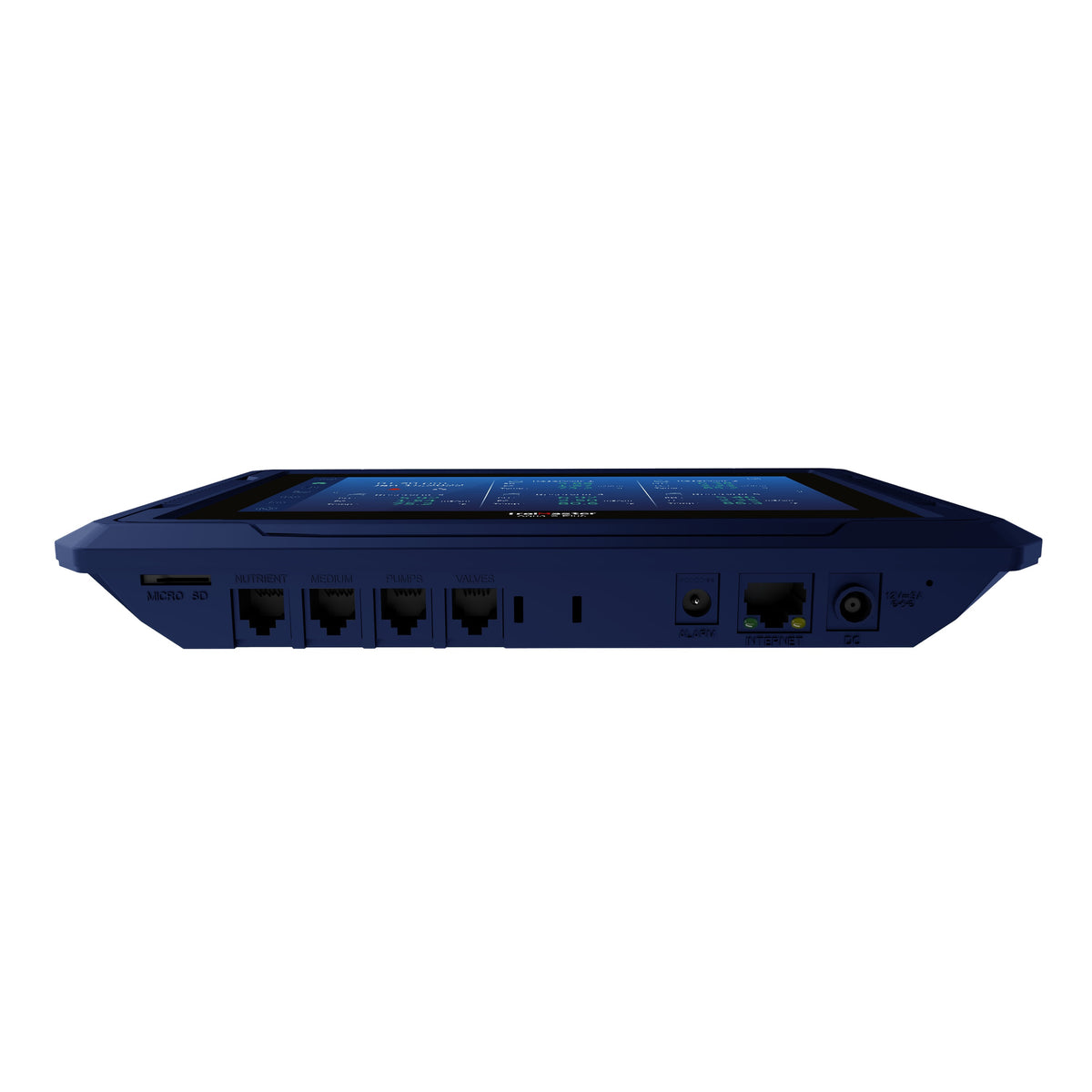

- Device connection: RJ12 daisy chain; up to 300 m (1,000 ft) to devices and sensors
- Network: CAT5 to router; free TM+ Pro app (iOS and Android)
- Data: micro-SD save, copy, import and export; on-screen history
- Certification: ETL / FCC
- Ingress protection: IP20 – indoor, dry location
- Working environment: 0–40°C, up to 90% RH
- Controller size: 220 × 148 × 35 mm
- Package: 275 × 170 × 95 mm, 1.22 kg
Frequently Asked Questions
How does it differ from the Aqua-X and the Aqua-X Pro?
The Aqua-X (NFS-1) is the entry controller and comes with a water detector set. The Aqua-X Plus (NFS-3) adds the 7in touchscreen, crop steering, Multiple Pump Link and a far larger device and sensor capacity. The Aqua-X Pro (NFS-2) is TrolMaster's flagship for the largest multi-room installations.
Are pH and EC probes included?
No. The AMP-3 sensor board is included; the pH (PPH) and EC/temperature (PCT) probes that plug into it are bought separately.
Does it need the internet to work?
No. It runs on its own from the touchscreen. Connecting it to your router by CAT5 adds remote monitoring, control and alerts through the free TM+ Pro app.
What does it use to switch valves and pumps?
Control modules on the RJ12 chain: the OA6-24 board drives six 24V AC solenoid valves, and DSP program device stations, the DSV-1 low-volt station and the DSD-1 dry contact station switch pumps and other devices.
