Description
A Leak Alarm and an Irrigation Check in One Detector

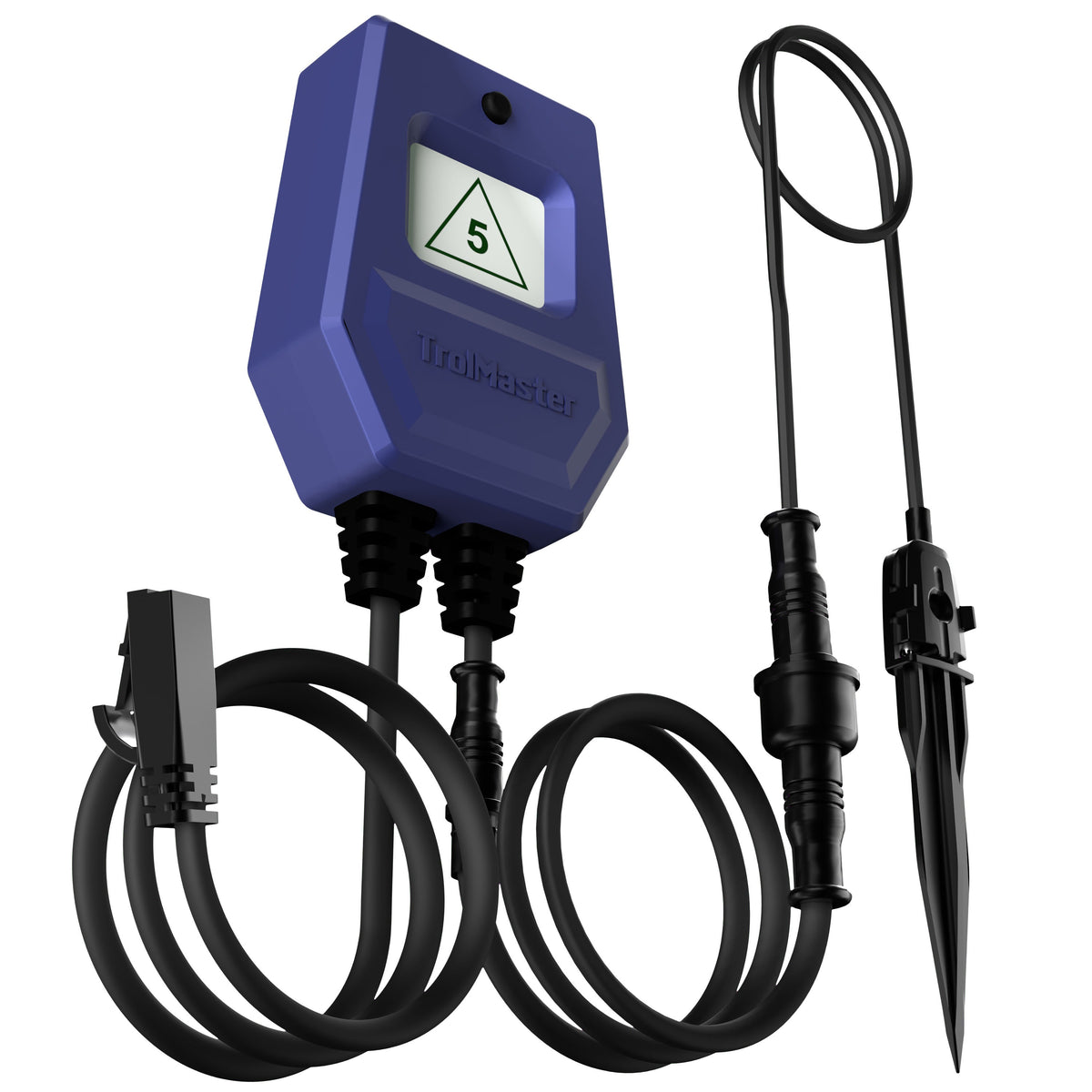

The TrolMaster WD-1 Water Detector works with TrolMaster's Aqua-X and Hydro-X controllers in two ways. As a leak detector, its Touch Spot sits on the floor or near a reservoir, pump or pipe joint and the controller alerts you the moment water reaches it. As a water-verification monitor, it sits where run-off collects or where water enters the growing medium and is assigned to a pump or solenoid on the Aqua-X: every time that output runs, the WD-1 must see water within an adjustable delay, or the controller sends an irrigation failure alert. Up to 25 WD-1 detectors can run on one Aqua-X (NFS-1), and two of them, at the top and bottom of a tank, drive the Auto-Fill function on the Aqua-X Pro.
Key Benefits
- Two jobs in one – leak detection and irrigation verification
- Catches failures early – a failed pump, stuck solenoid or blocked line triggers an alert
- Auto-Fill – a pair of detectors keeps an Aqua-X Pro nutrient tank topped up
- LCD display and addressing button for simple set-up of many detectors

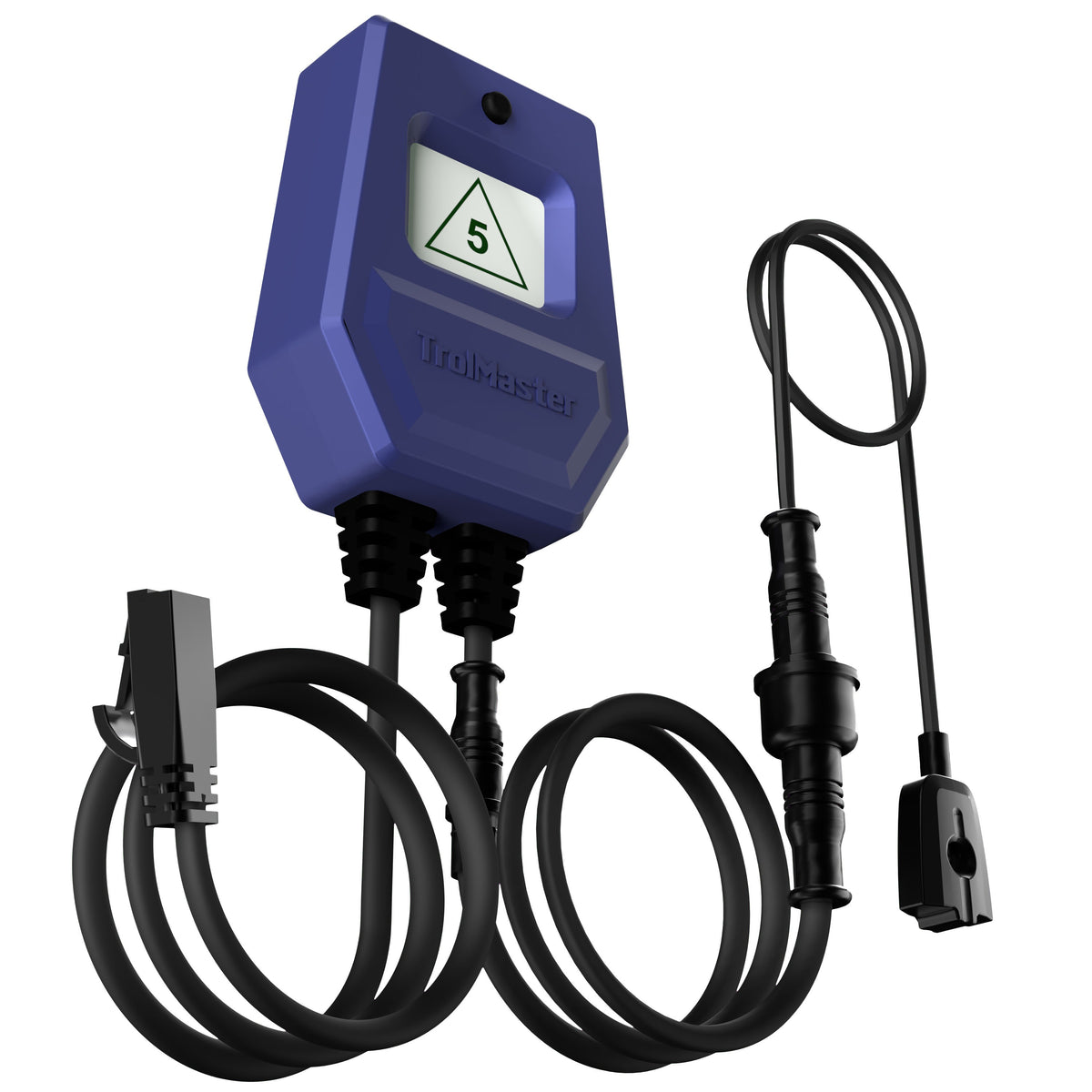

- Touch Spot, T-splitter and 16ft cable included for plug-and-play daisy-chain wiring
How to Use
- Connect the detector into the controller's RJ12 chain with the 16ft cable and T-splitter
- Address it with the button so the controller can tell each detector apart
- Leak duty: lay the Touch Spot on the floor where a leak would first collect
- Verification duty: place it in a run-off tray or where the dripper wets the medium, then assign it to the pump or solenoid and set the delay on the Aqua-X
Technical Specifications

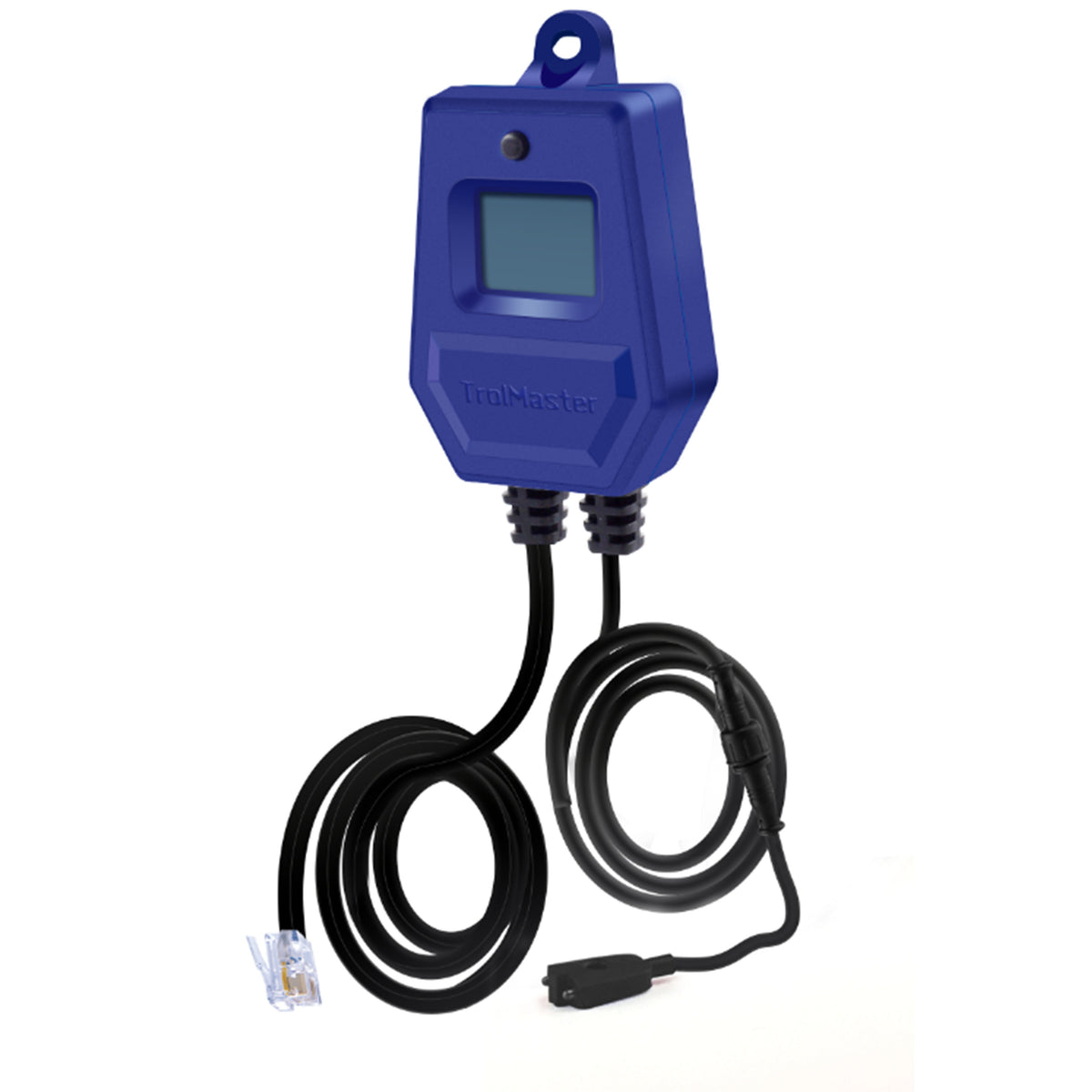

- Model: WD-1 water detector
- Functions: leak detection; irrigation verification (Aqua-X); tank Auto-Fill with two detectors (Aqua-X Pro)
- Detectors per controller: up to 25 on Aqua-X (NFS-1); up to 20 on Aqua-X Plus (NFS-3)
- Display: LCD with addressing button
- Connection: RJ12 daisy chain
- Included: water detector, Touch Spot, RJ12 T-splitter, 16ft RJ12 cable
- Detects: mains, well and nutrient water – not low-TDS reverse osmosis water
- Detector size: approx. 95 × 82 × 54 mm
- Working environment: 0–50°C, up to 90% humidity
- Package: 160 × 86 × 86 mm
Frequently Asked Questions
Will it detect a reverse osmosis water leak?
Possibly not. RO water can contain so few dissolved solids that the detector cannot sense it; it detects mains, well and nutrient-dosed water.
How is it different from the WD-2?
The WD-2 we also sell is a leak-only detector for Hydro-X. The WD-1 adds water-verification of each irrigation event on the Aqua-X, and works for leak detection on Hydro-X and Aqua-X systems.
How many can I connect?
Up to 25 on one Aqua-X (NFS-1) and up to 20 on an Aqua-X Plus (NFS-3).
