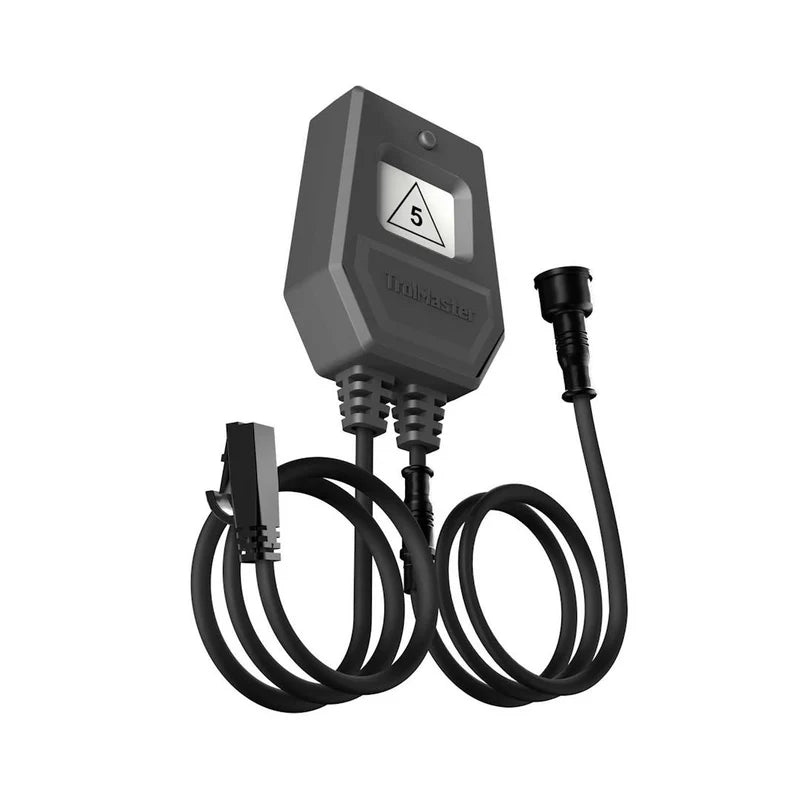

Trolmaster Aqua-X Water detector (WD-2)

The TrolMaster WD-2 Water Detector is designed to provide early leak detection within indoor growing environments. Water leaks from irrigation systems, reservoirs or plumbing can quickly cause damage to equipment and disrupt hydroponic systems. The WD-2 helps protect your grow room by detecting water on the floor and sending an alert through the connected TrolMaster control system.

When connected to a Hydro-X controller, the WD-2 continuously monitors the area where it is installed. If water is detected, the system immediately sends an alert to notify the grower, allowing quick action before the issue escalates. This added protection helps prevent damage to electrical equipment, climate control systems and hydroponic infrastructure.

Leak detection is particularly important in automated irrigation setups where pumps, valves and reservoirs operate continuously during vegetative growth and the flowering stage.

Key Benefits

• Detects water leaks or flooding in grow rooms and hydroponic systems
• Integrates directly with the TrolMaster Hydro-X control system
• Sends alerts when water is detected on the floor or monitored area
• Helps protect equipment and irrigation systems from water damage
• Supports connection of multiple detectors within one control system
• Plug & play installation with RJ12 connectivity
• Ideal for automated indoor growing environments

How It Solves Grow Problems

Water leaks in indoor growing setups can go unnoticed for hours or even days, especially in automated irrigation systems. Leaks from reservoirs, pumps or plumbing can damage electrical equipment, disrupt irrigation cycles and create unsafe conditions inside the grow room.

The WD-2 provides early warning by detecting water as soon as it reaches the sensor. Once detected, the Hydro-X system can notify the grower so the issue can be addressed quickly.

This protection helps maintain stable environmental conditions and prevents costly equipment damage, ensuring hydroponic systems continue operating reliably throughout the entire grow cycle.

Kit Contents

• 1 × Water Detector (WD-2)
• 1 × Touch Spot sensor pad
• 1 × RJ12 T-splitter
• 1 × 16 ft RJ12 cable

How to Use

1. Connect the WD-2 water detector to the Hydro-X controller using the supplied RJ12 cable.

2. Place the Touch Spot sensor pad on the floor or near areas where leaks may occur, such as reservoirs, pumps or irrigation lines.

3. Use the RJ12 T-splitter if connecting multiple sensors within the system.

4. Power on the controller and confirm the sensor is recognised.

5. If water is detected by the sensor pad, the Hydro-X system will automatically send an alert to notify the grower.

Technical Specifications

• Operating Temperature: 0–50°C
• Maximum Humidity: ≤90%
• Dimensions: 160 mm (L) × 86 mm (W) × 86 mm (H)**
