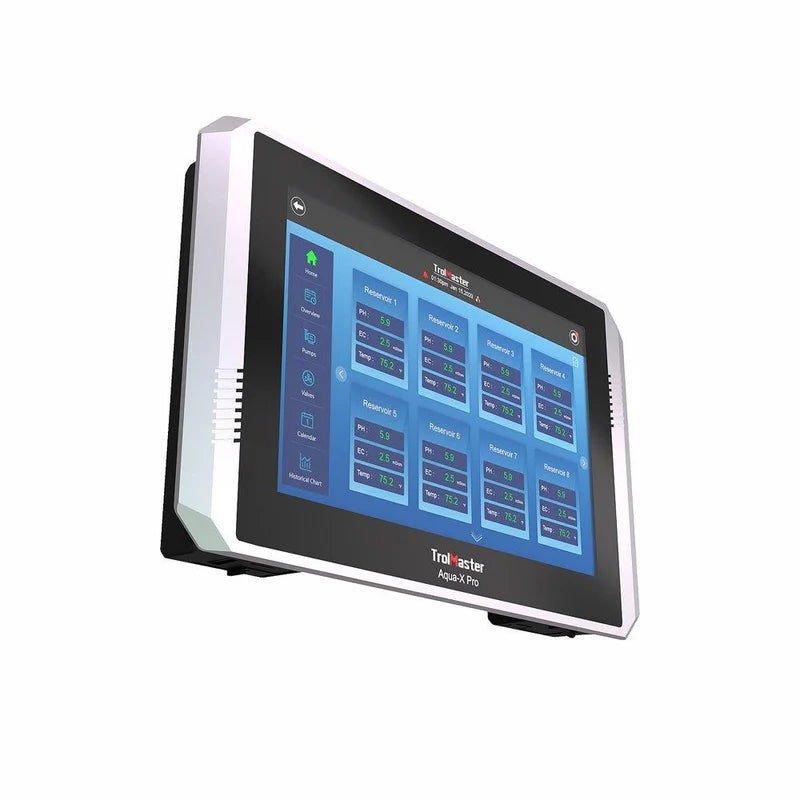

TrolMaster Aqua-X Pro Irrigation Control System (NFS-2)

The TrolMaster Aqua-X Pro (NFS-2) is a professional-grade irrigation control system designed for advanced hydroponic and indoor growing operations. Built for growers who require precise control over irrigation, the Aqua-X Pro can manage pumps, solenoid valves and multiple environmental sensors to maintain optimal root zone conditions throughout the grow cycle.

With its large 10-inch touchscreen interface, the NFS-2 allows growers to monitor irrigation activity, nutrient solution parameters and grow media conditions in real time. The system can track key metrics such as pH, EC/PPM, water temperature and growing medium moisture, helping maintain the stable nutrient environment required for strong root development, healthy vegetative growth and productive flowering.

The Aqua-X Pro also supports advanced irrigation strategies such as feed-on-demand, feed-by-volume and scheduled irrigation events. By integrating sensors and flow meters, the system can automatically adjust irrigation cycles based on real plant and reservoir conditions rather than fixed schedules.

Key Benefits

• Advanced irrigation controller for hydroponics and indoor growing systems
• Large 10″ touchscreen with mobile and web-based monitoring
• Controls pumps and solenoid valves across multiple irrigation zones
• Supports feed-on-demand, feed-by-volume or timer-based irrigation
• Real-time monitoring of pH, EC, temperature and moisture levels
• Customisable irrigation schedules with up to 50 programmable cycles
• Remote alerts and monitoring through the TM+ mobile app

How It Solves Grow Problems

In automated hydroponic systems, inconsistent irrigation or nutrient imbalances can quickly affect plant health. Overwatering, incorrect nutrient strength or fluctuating reservoir conditions can lead to poor nutrient uptake, slow growth and reduced yields.

The Aqua-X Pro provides full visibility and control over the irrigation system. By integrating sensors that measure nutrient solution parameters and root zone moisture, the system allows growers to make data-driven irrigation decisions.

Growers can automate irrigation based on moisture levels, flow measurements or timed schedules. This ensures plants receive the correct amount of water and nutrients exactly when needed, supporting stable root development, improved plant health and higher yields during the flowering stage.

How to Use

1. Install the Aqua-X Pro controller in your grow room or irrigation control area.

2. Connect compatible control boards to manage pumps and solenoid valves.

3. Install sensors such as pH, EC/temperature or moisture probes as required.

4. Configure irrigation schedules or feed strategies through the touchscreen interface.

5. Connect the controller to the internet to monitor irrigation activity via the TM+ mobile app or web interface.

6. Use sensor data and alerts to adjust nutrient delivery and irrigation timing for optimal plant performance.

Technical Specifications

• Input Voltage: 100–240V AC
• Display: 10″ Touchscreen
• Maximum Device Connection Distance: 1000 m
• Maximum Nutrient Sensors (AMP-3, DFM-1, WD-1): 50
• Maximum Medium Sensors (WCS-1, WCS-2): 50
• Maximum Pumps: 50
• Maximum Valves: 50
• Operating Temperature: 32–122°F
• Maximum Humidity: ≤90%
• Certifications: ETL / FCC
• Protection Rating: IP20
