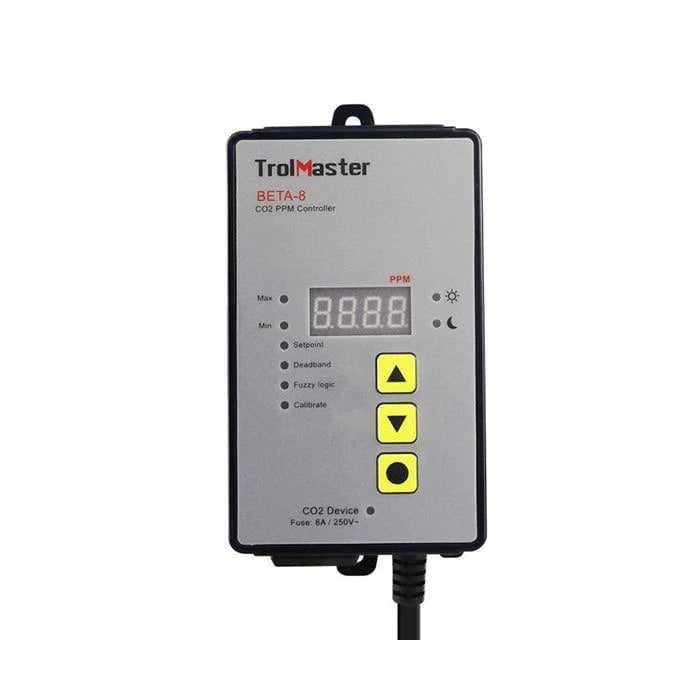

TrolMaster Digital CO2 PPM Controller Beta-8

The TrolMaster Beta-8 Digital CO₂ PPM Controller provides growers with a simple and effective way to manage supplemental CO₂ in indoor growing environments. By monitoring CO₂ levels in real time and automatically controlling CO₂ injection devices such as regulators or generators, the Beta-8 helps maintain optimal conditions for plant growth in grow tents and grow rooms.

CO₂ is a key factor in photosynthesis, and maintaining the correct concentration can significantly improve vegetative growth, plant health and overall yield. The Beta-8 uses a high-quality NDIR (Non-Dispersive Infrared) CO₂ sensor to measure CO₂ levels near the plant canopy and automatically activate CO₂ equipment when levels drop below the set point.

With a built-in photocell that detects day and night cycles, the controller ensures CO₂ supplementation only occurs when grow lights are on. This prevents wasted CO₂ during the dark period and helps maintain efficient indoor growing conditions across hydroponics, coco or soil systems.

Key Benefits

• Automatically controls CO₂ regulators or generators based on real-time CO₂ levels
• Built-in photocell enables CO₂ dosing only during lights-on periods
• High-accuracy NDIR CO₂ sensor for reliable monitoring
• Adjustable CO₂ control range from 400–2000 PPM
• Fuzzy-logic control improves precision for compressed CO₂ systems

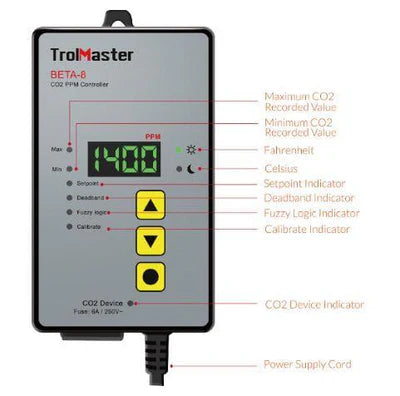

• LED display for easy monitoring and setup

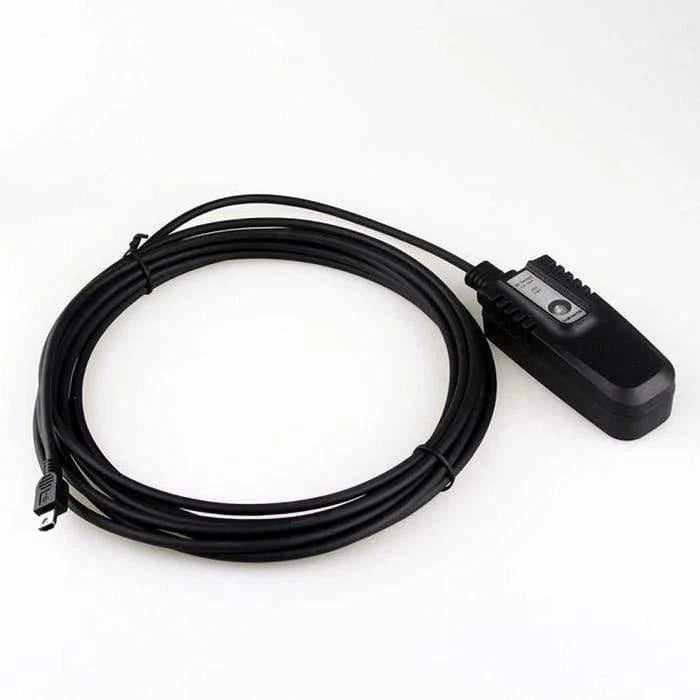

• Sensor includes 16 ft cable for flexible canopy placement

How It Solves Grow Problems

In many indoor growing setups, CO₂ levels quickly drop below optimal levels once plants begin active photosynthesis. Low CO₂ can slow vegetative growth, reduce nutrient uptake and limit yield during the flowering and bloom stage.

The Beta-8 continuously measures CO₂ concentration near the plant canopy and automatically activates CO₂ injection equipment when levels fall below the programmed range. This ensures plants always receive the CO₂ they need for efficient photosynthesis.

The built-in photocell ensures the system only injects CO₂ when grow lights are on, preventing waste and improving efficiency. With stable CO₂ levels, plants can develop stronger growth, improved bud density and higher yields throughout the grow cycle.

How to Use

1. Mount the CO₂ sensor near the plant canopy using the included sensor cable.

2. Connect the sensor to the Beta-8 controller.

3. Plug your CO₂ regulator or generator into the Beta-8 controller outlet (maximum 10A).

4. Set the desired CO₂ PPM target range on the LED display.

5. Adjust the deadband setting to control how tightly the system maintains the CO₂ range.

6. The controller will automatically activate the CO₂ device when levels drop below the set point and stop once the target level is reached.

Technical Specifications

• Input Voltage: 120V AC
• Output Relay Rating: 10A
• Fuse Rating: 6A / 250V
• CO₂ Control Range: 400–2000 PPM
• Deadband Range: 20–200 PPM
• CO₂ Accuracy: ±50 PPM
• CO₂ Sensor Type: NDIR (Non-Dispersive Infrared)
• Power Cord Length: 1.8m
• Dimensions: 275mm (L) × 87mm (W) × 94mm (H)
