Trolmaster Hydro-X - Thermostat Station (TS-2)

The TrolMaster TS-2 Thermostat Station is designed to integrate HVAC systems directly into the Hydro-X environmental control platform, allowing growers to automate heating and cooling within their grow room or grow tent. Stable temperature control is essential in indoor growing, as fluctuations can slow vegetative growth, disrupt nutrient uptake and negatively impact plant development during the flowering stage.

The TS-2 allows the Hydro-X system to control most HVAC systems, including heat pumps and multi-stage HVAC units, without the need for a traditional thermostat. By using day and night temperature setpoints linked to the system’s photocell sensor, the controller can automatically adjust climate settings based on the lighting cycle. This helps maintain a consistent environment that supports healthy plant growth and improved yields.

Key Benefits

• Integrates HVAC systems directly with the Hydro-X environmental controller
• Compatible with most HVAC units, heat pumps and multi-stage systems
• Automated day and night temperature control based on lighting cycle

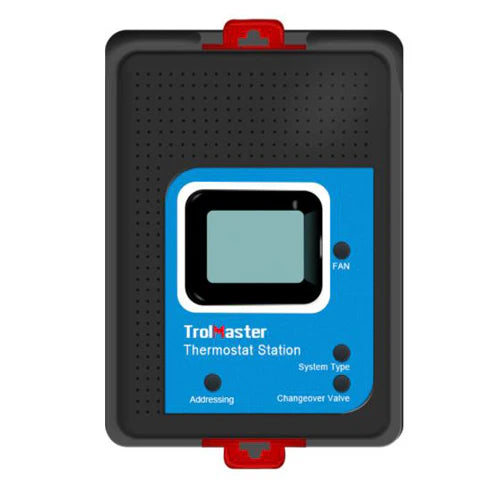

• LCD display for simple setup and on-site monitoring
• Plug & play installation with RJ12 connectivity
• Firmware updates supported via MicroSD slot
• Helps maintain stable grow room temperature for healthier plants

How It Solves Grow Problems

Indoor growing environments often rely on HVAC systems to maintain stable temperatures, especially in larger grow rooms with powerful lighting systems. Without proper integration, HVAC units may run inefficiently or fail to respond quickly to temperature changes inside the grow space.

The TS-2 allows the Hydro-X controller to directly manage HVAC equipment using programmable temperature setpoints. This means the climate system automatically responds to environmental changes detected by sensors within the grow room.

By maintaining consistent temperatures throughout the grow cycle, plants can focus energy on root development, nutrient uptake and healthy canopy growth. Stable environmental control also reduces stress during the flowering stage, helping improve bud density and overall yield.

How to Use

1. Connect the TS-2 Thermostat Station to the Hydro-X controller using the supplied RJ12 cable.

2. Assign the device address within the Hydro-X system settings.

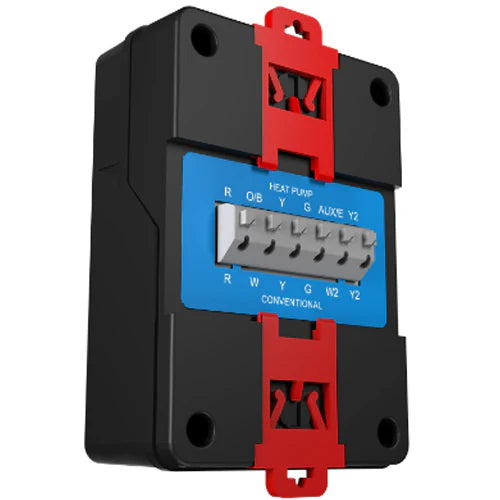

3. Connect the TS-2 wiring terminals to the HVAC system control terminals according to the equipment configuration.

4. Configure day and night temperature setpoints within the Hydro-X controller.

5. The system will automatically control heating or cooling equipment based on environmental readings and lighting cycles.

Technical Specifications

• Output Voltage: 24V
• Maximum Current: 1A
• Input Voltage: 240V AC, 50/60Hz
• Operating Temperature: 0–50°C
• Maximum Humidity: ≤90%
• Dimensions: 160 mm × 86 mm × 86 mm
