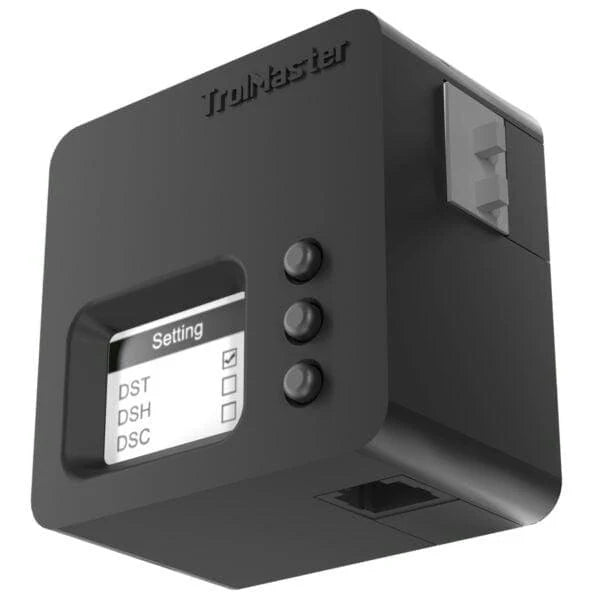

The TrolMaster DSV-1 Low-Volt Station is a versatile control module designed to activate low-voltage devices within a Hydro-X or Hydro-X Pro environmental control system. In advanced indoor growing environments, many automation components such as solenoids, valves and alarm systems operate using low-voltage power. The DSV-1 allows these devices to be integrated directly into the grow room control system, enabling precise automation alongside climate and irrigation controls.
The module can be assigned to operate as a temperature, humidity, CO₂ or timer device within the Hydro-X platform. Once configured, the DSV-1 will automatically activate connected low-voltage equipment when the programmed environmental conditions or schedules are triggered. This flexibility allows growers to expand automation within hydroponics and indoor growing setups, creating a more responsive and efficient grow room environment.
Key Benefits
• Integrates low-voltage devices with Hydro-X and Hydro-X Pro control systems
• Selectable output options including 12V or 24V AC or DC
• Supports solenoids, valves, alarms and other low-voltage equipment
• Assignable as temperature, humidity, CO₂ or timer control module
• LCD display for easy setup and monitoring
• Plug & play installation with RJ12 connectivity
• Expands automation capabilities within indoor growing systems
How It Solves Grow Problems
Many advanced grow room systems rely on low-voltage components such as solenoid valves, warning alarms or auxiliary devices that cannot be directly controlled by standard power outlets. Without proper integration, these devices often require separate control systems, making automation more complicated.
The DSV-1 solves this by allowing low-voltage devices to be controlled directly by the Hydro-X environmental system. Growers can automate additional equipment such as irrigation valves, warning alarms or auxiliary control devices based on environmental conditions or programmed schedules.
This integrated automation helps maintain stable growing conditions throughout vegetative growth and the flowering stage, supporting better plant health, improved nutrient uptake and higher yields.
How to Use
-
Connect the DSV-1 module to a Hydro-X or Hydro-X Pro controller using the RJ12 connection.
-
Assign the module address within the controller interface.
-
Select the desired output configuration (12V or 24V AC or DC).
-
Connect the low-voltage device such as a solenoid valve, alarm or actuator to the DSV-1 output terminals.
-
Configure the module within the controller as a temperature, humidity, CO₂ or timer device.
-
The Hydro-X system will activate the connected device automatically based on the programmed conditions.
Technical Specifications
• Input Voltage: 100–240V AC, 50/60Hz
• Output Voltage: 12V or 24V AC/DC selectable
• Maximum Output Current: 0.5A (DC) / 4.8VA (AC)
• Compatible Systems: Hydro-X (HCS-1) and Hydro-X Pro (HCS-2)
