Automated EC extraction that reads the room and adjusts itself

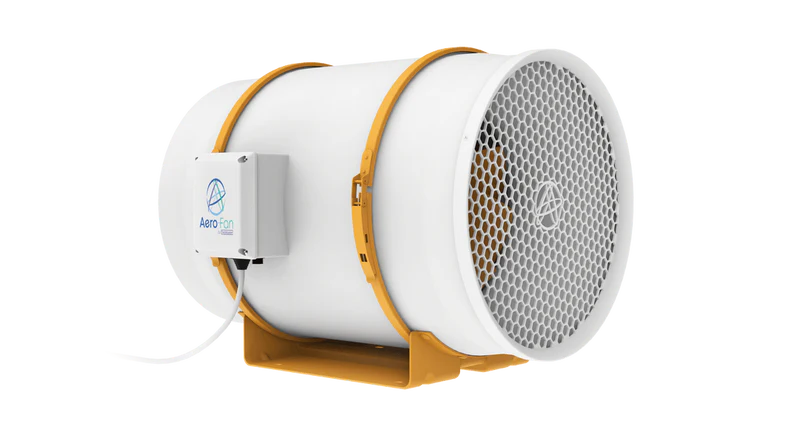

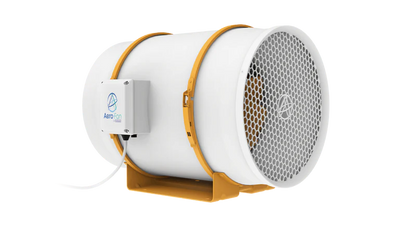

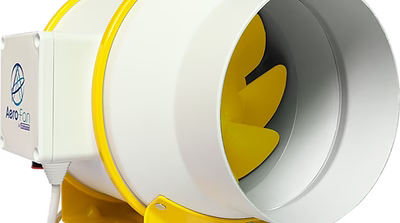

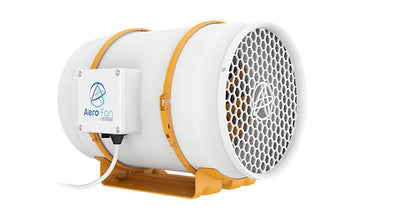

The TrolMaster Aero EC Fan is a high-efficiency inline ventilation fan built to plug straight into TrolMaster's ecosystem, so fan speed tracks real temperature and humidity readings instead of sitting on a fixed dial. Proper air exchange is the foundation of a stable grow room, and the Aero Fan shifts stale, hot, humid air out and fresh air in across vegetative growth and flowering. Available in 150mm (6"), 200mm (8"), 250mm (10") and 315mm (12") sizes, it runs as intake or exhaust and daisy-chains for a fully balanced system.
Key Benefits
- 612 to 2,005 m3/h airflow across the range (360 to 1,180 CFM) to suit tents up to full grow rooms
- Efficient EC motor with 0 to 100% speed control in 1% steps from a TrolMaster FRC-1/FRC-2 remote or Hydro-X/Tent-X controller
- Automatic control when paired with Tent-X, Hydro-X Pro or Hydro-X Plus, adjusting speed to hold your target climate
- Daisy-chain capability to link multiple fans and manage them as a group
- Intake or exhaust use for building balanced positive or negative pressure ventilation
- Long service life with a 50,000-hour mean time to failure rating and IP44 protection
Battling heat and humidity build-up in the canopy?
Poor airflow lets heat and humidity pool in the canopy, and that stagnant air is where weak growth, mould and poor flower development in bloom begin. The Aero EC Fan keeps air moving continuously, and once linked to a TrolMaster controller its speed adjusts automatically to keep temperature and humidity steady rather than swinging between extremes.
How to Use
- Fit the Aero EC Fan as intake or exhaust within your grow tent or grow room ducting.
- Connect it to a compatible controller (Tent-X, Hydro-X Pro or Hydro-X Plus) using the ECS-9 cable.
- Running more than one fan? Daisy-chain them with the included ECS-7 cable.
- Set your speed and environmental targets through the controller interface.
- Fit the optional FRC-1 manual fan control module if you want temporary manual speed adjustment.
- The controller then regulates fan speed automatically to conditions in the grow space.
Technical Specifications
- Voltage: 100 to 277V AC
- Cables: ECS-7 daisy-chain included; ECS-9 for controller/FRC-1 connection
- Rating: IP44, operating range -20C to 60C
- Reliability: 50,000-hour mean time to failure
| By size | 6" - 612m³/hr | 8" - 1162m³/hr |
|---|---|---|
| Airflow | 612 m³/h | 1162 m³/h |
| Power | 66W | 182W |
| Noise | 37 dB | 68.3 dB |
| Control | EC controller compatible | |
| Static pressure | 459 Pa | 735 Pa |
| Weight | 2.03kg | 3.1kg |
| Dimensions | 31.7 x 22.6 x 21cm | 30.7 x 24.3 x 23.4cm |
| By size | 10" - 1650m³/hr | 12" - 2005m³/hr |
|---|---|---|
| Airflow | 1650 m³/h | 2005 m³/h |
| Power | 268W | 268W |
| Noise | 74 dB | 68.3 dB |
| Control | EC controller compatible | |
| Static pressure | 956 Pa | 779 Pa |
| Weight | 6.5kg | 8kg |
| Dimensions | 39.8 x 31 x 28.6cm | 45.4 x 38.6 x 35.7cm |
