How to Set Up a Grow Tent: The Complete Step-by-Step Guide

July 8, 2026

One afternoon, no special tools, no guesswork. Here's the exact order to build a grow tent properly — so it runs cool, quiet and smell-free from day one — plus the temperature and humidity targets to dial in before any plants go in.

The layout Step-by-step Dial in the environment Shopping checklist

The layout you're building

Everything hangs from the roof bars except pots and the intake. Heat rises — so the filter-and-fan chain lives at the top, pulling the hottest, smelliest air out first, while fresh air feeds in low through passive vents. If you want the full sizing logic, read our extractor fan & filter sizing guide.

Step-by-step build

Site the tent

Solid floor, near a power socket, away from bedrooms if noise matters, with somewhere for exhaust air to go (a window, loft space, or just out into a larger room). Leave 30 cm clearance around the tent for airflow and access.

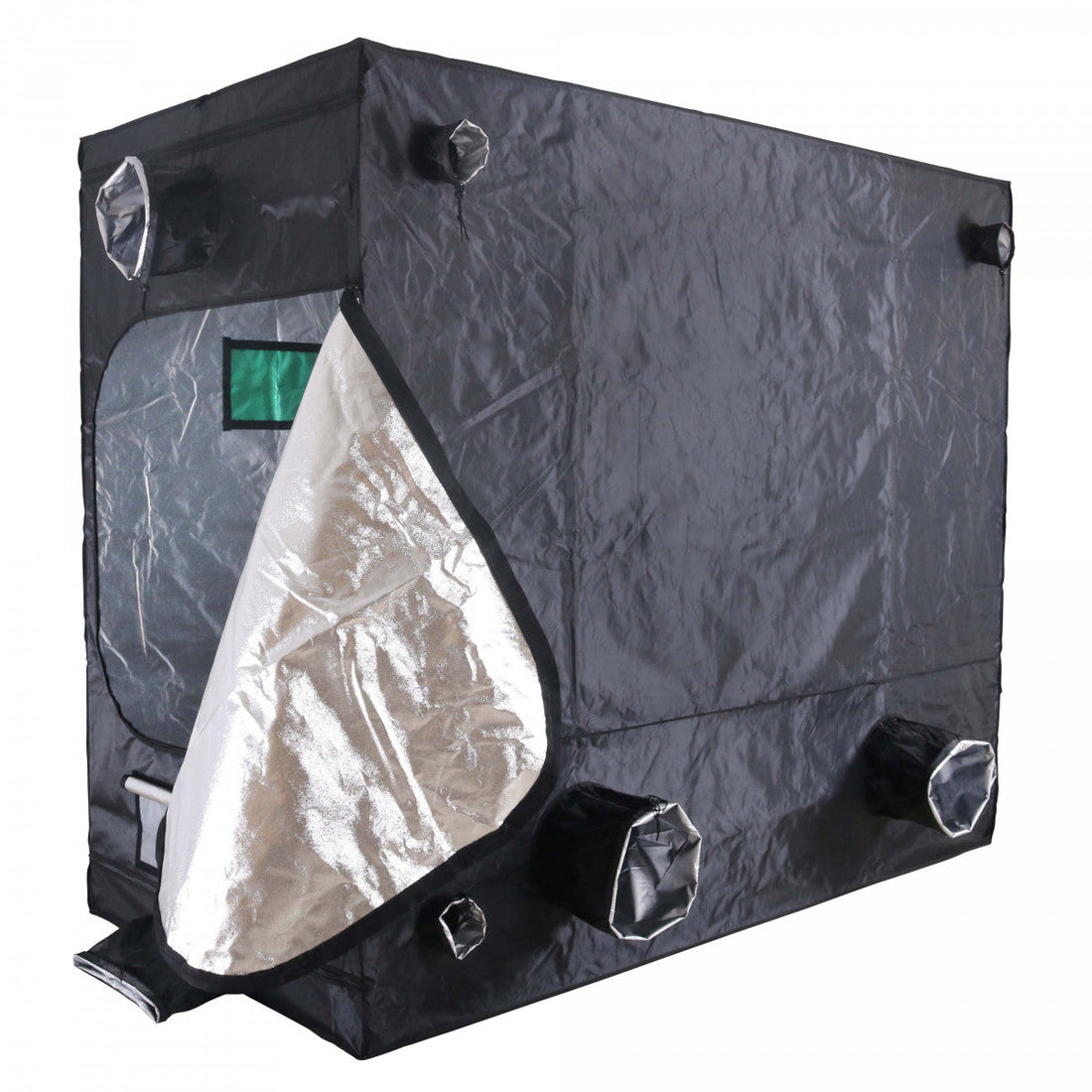

Build frame and skin

Poles are colour- or letter-coded — build the cube, drape the skin BEFORE fitting corner braces, zips to the front. Two people make this a 15-minute job.

Hang the carbon filter

Highest point, back corner, hung from the roof bars on rope ratchets. The filter is the FIRST thing in the chain so every bit of exhaust air gets scrubbed.

Connect fan and ducting

Short duct (or direct-couple) from filter to fan, then duct from fan out through the top vent sock. Seal every joint with a fast clamp and a wrap of silver tape. Keep the run short and straight.

Hang the light on ratchets

Centre of the tent, on its own pair of rope ratchets so you can raise it as plants grow. Route the driver/ballast cable out through a cable port — drivers ideally sit OUTSIDE the tent to shed their heat.

Plug light into timer

One heavy-duty timer per light — cheap mechanical timers weld shut under HPS loads. Set 18 hours on / 6 off for veg. Fan runs 24/7, never on the timer.

Add the clip-on fan

Clipped to a corner pole, aimed to ripple the canopy — not blast it. Gentle constant movement = strong stems and no humid dead spots.

Position the thermo-hygrometer

Probe at canopy height, display by the door so you see temp and humidity every time you open the zip. It's the cheapest insurance in the whole build.

Pots, medium, water gear

Fabric pots on saucers, filled with your medium. Going coco? It's the most forgiving start — our coco feeding guide covers everything from first feed to flush.

Dry-run for 24 hours

Lights and fan on, no plants. Check: temperature holds in range at canopy height, walls bow gently inward, no light leaks after dark, no smell at the exhaust. Fix now, not week 6 of flower.

Dial in the environment

Tape this to the tent:

Stage	Temp (lights on)	Humidity	Light hours
Seedlings / cuttings	22–26 °C	70–80%	18–24 h
Vegetative growth	24–28 °C	50–70%	18 h
Flowering	22–26 °C	40–50%	12 h
Late flowering	20–24 °C	35–45%	12 h

The two numbers that matter most

Keep lights-on temperature between 24–28 °C and never let flowering humidity sit above 55% — that's the mould zone. Your extractor fan speed is the main lever for both.

Shopping checklist

The core build:

BudBox Pro Tent 1.2m

£159.95

Our best-selling size — 1 light, 4 plants

Omega 720W LED

from £139.95

Low heat, low running cost

RVK + Rhino Pro Extraction Kit

from £130.00

Fan, filter, ducting & clamps — pre-matched

Canna Coco Professional+ 50L

£14.95

The small stuff that makes it work:

Heavy Duty Timer

£9.95

One per light — non-negotiable

Clip-on Fan 6"

£11.95

Temp & Humidity Meter

£9.95

Rope Ratchets Set

£11.95

Root Nurse Fabric Pots

from £1.55

Hobby pH Pen

£19.95

Skip the list entirely

Our complete tent kits bundle tent, light and correctly-sized extraction in one box — every part pre-matched.

Shop Complete Tent Kits

Quick answers

How long does a grow tent take to set up?

Plan a relaxed afternoon: 30–45 minutes for the tent frame and skin, an hour for the filter/fan/light chain and cabling, and half an hour to dial in fan speed and check temperatures with the light running.

What size tent should a beginner start with?

The 1.2 × 1.2 × 2m tent is the sweet spot — room for one light and four plants, fits in most spare rooms, and every fan, filter and light size is standard for it. Smaller tents are actually harder to keep cool and stable.

Do I need a circulation fan as well as an extractor?

Yes — they do different jobs. The extractor swaps stale air for fresh; the clip-on fan keeps air moving between plants, which strengthens stems and stops the still, humid pockets where mould starts.

How high should my light hang above the plants?

Follow the manufacturer's chart, but as a rule of thumb: LEDs around 30–45 cm above the canopy (dimmed down for seedlings), 600W HPS around 40–60 cm. Rope ratchets make daily adjustment a 5-second job — you'll raise the light every few days in veg.

Why are my tent walls sucking inwards?

That's negative pressure — mostly a good sign, it means all air is leaving through your carbon filter. If the bowing is severe, open more passive intake vents at the bottom or ease the fan speed down a notch.
