Description
A trusted fan-and-filter pairing for reliable extraction
The RVK Fan + Rhino Pro Extraction Kit is a complete ventilation package for grow tents and grow rooms, pairing a Systemair RVK inline fan with a Rhino Pro carbon filter - two industry-standard products matched to work together. The backward-curved RVK impeller pulls hot, humid, stale air out efficiently, while the Rhino Pro's high-grade activated carbon strips odours on the way through, holding a clean, stable environment across vegetative growth and flowering.

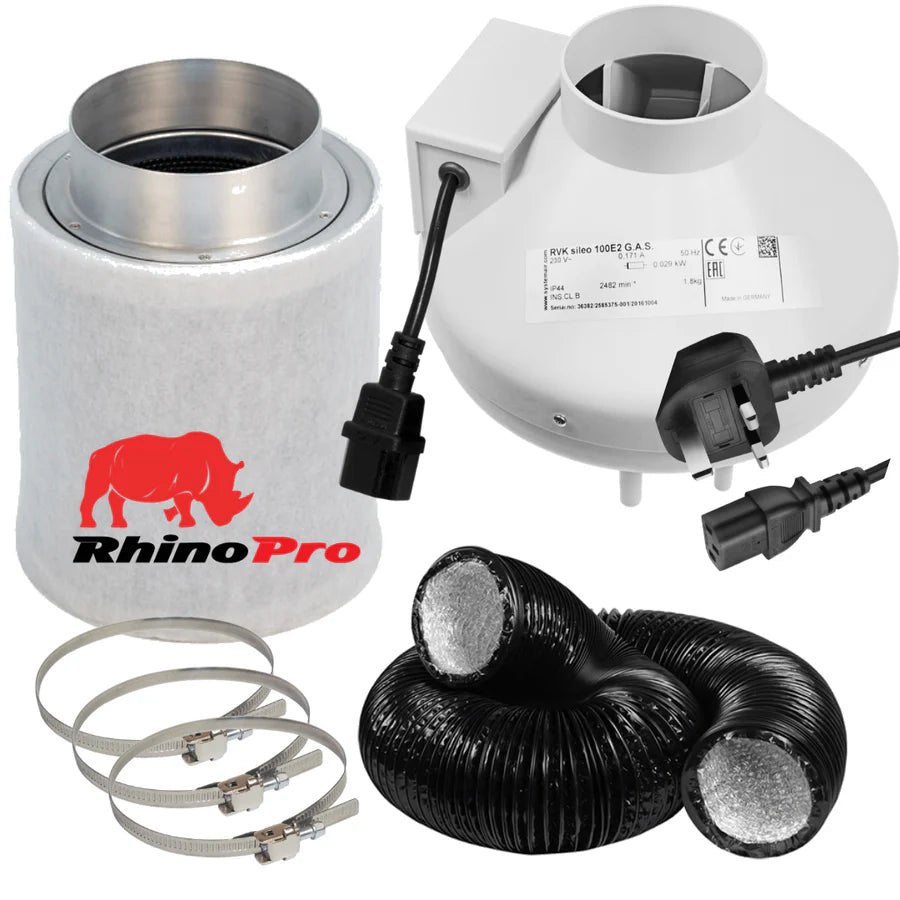

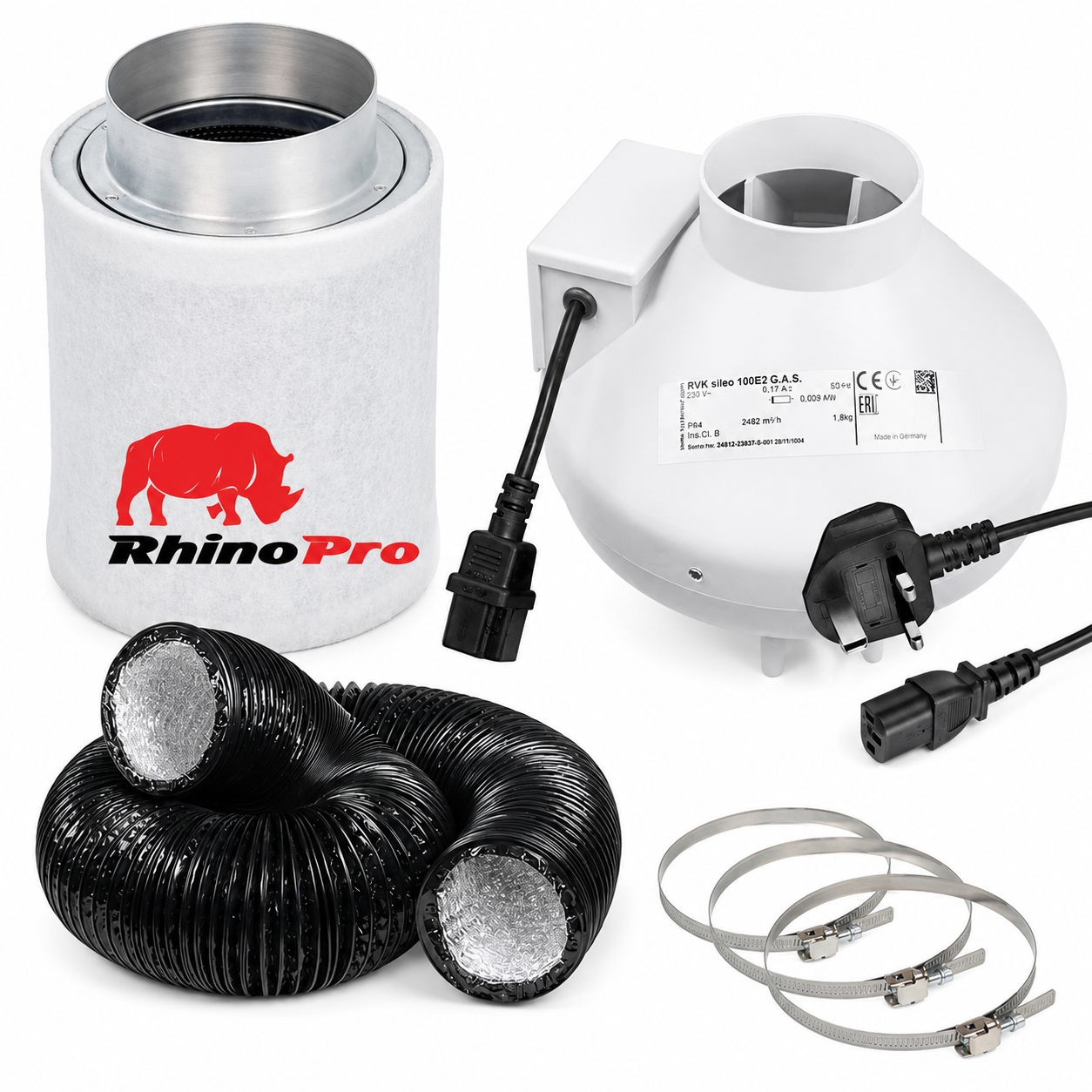

What's Included

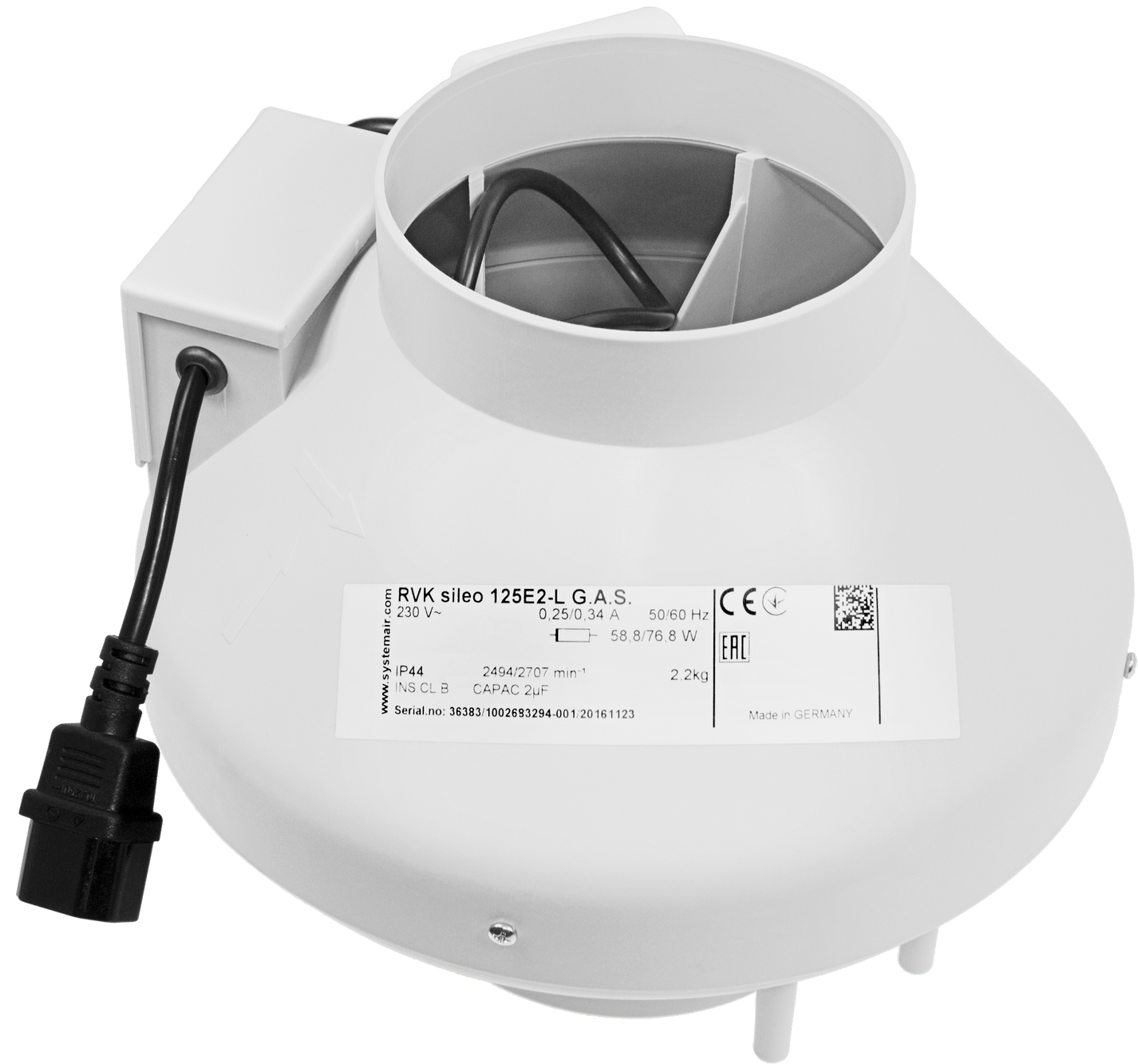

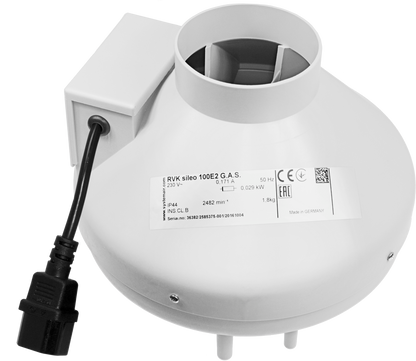

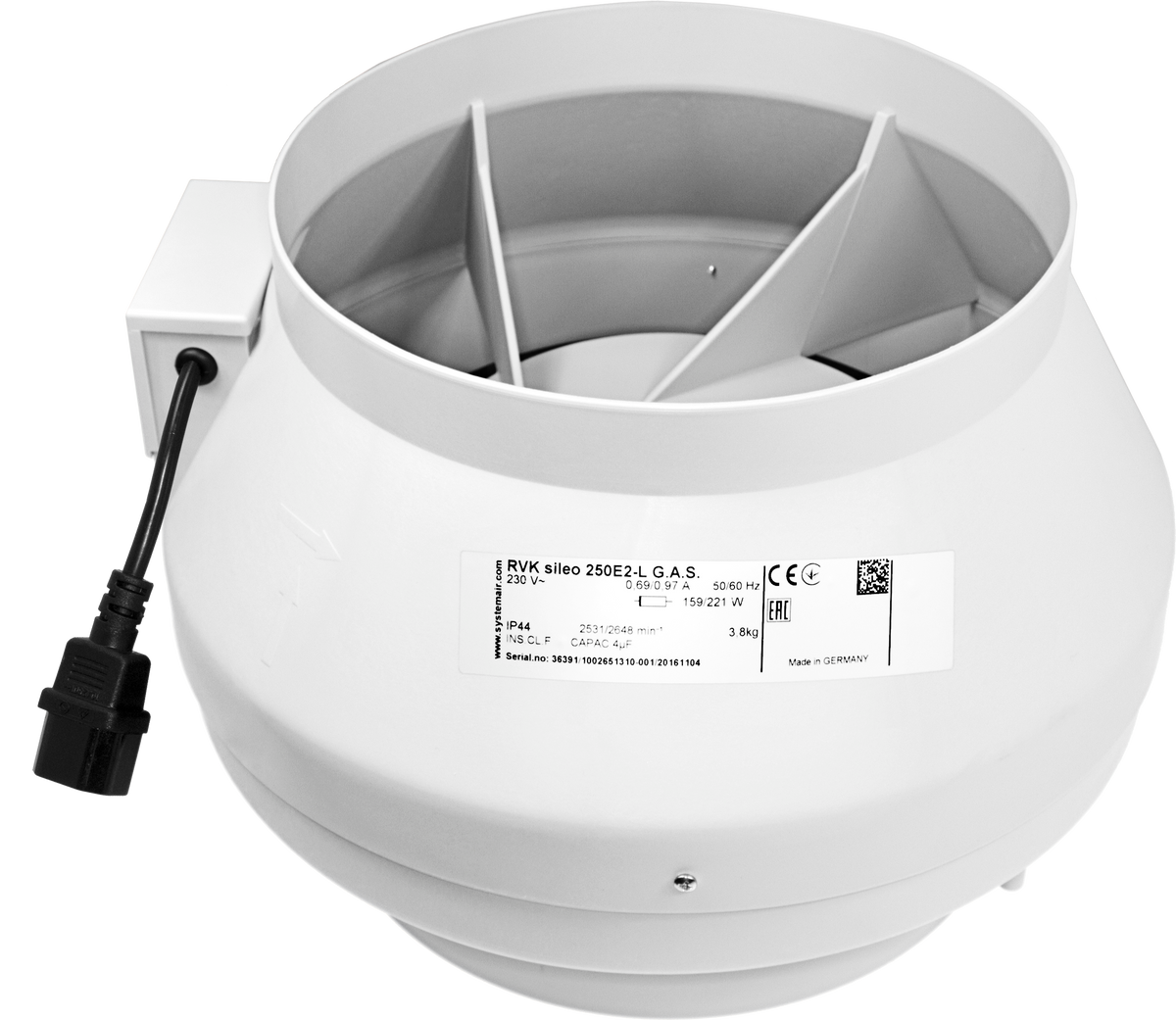

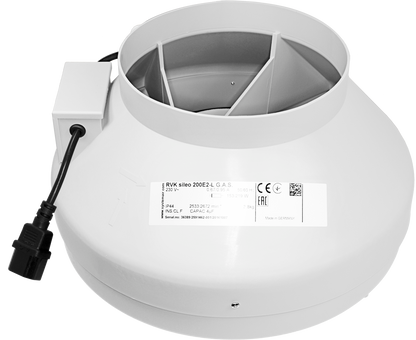

- Systemair RVK Inline Fan

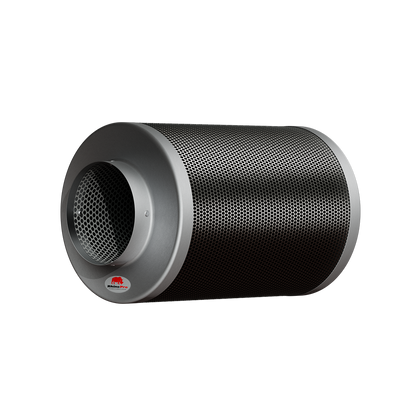

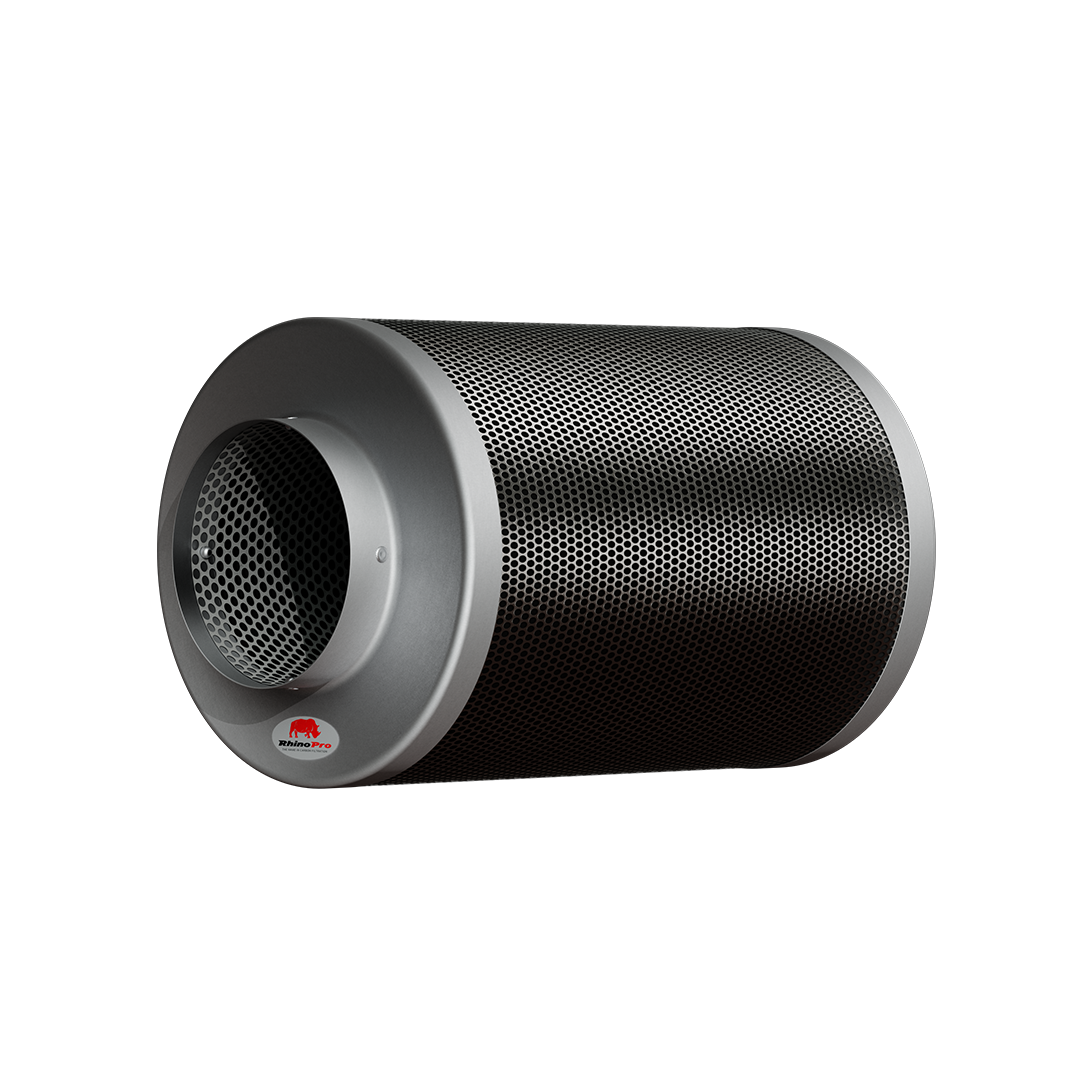

- Rhino Pro Carbon Filter

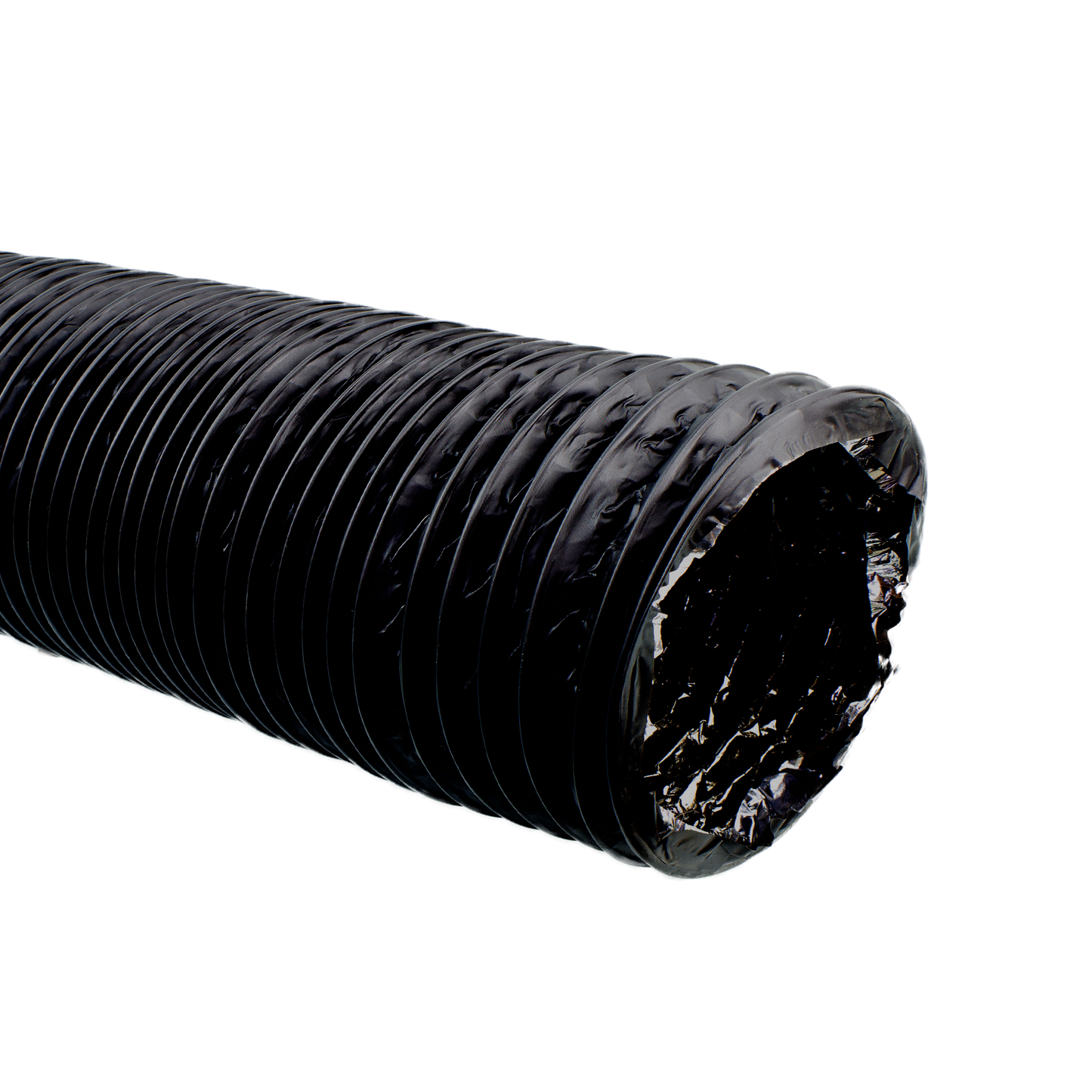

- 5m Combi Ducting
- IEC Kettle Power Lead
- 3 x Jubilee Clips
Key Benefits
- Complete extraction system ready to hang in a tent or room
- Powerful Systemair RVK fan for dependable, long-life airflow
- Rhino Pro carbon filter for highly effective odour control and discreet growing
- Stabilises temperature and humidity to protect plant health
- Matched, quality components that perform better together than a mixed setup
- Suits hydroponics, coco and soil indoor growing systems
Heat, humidity and odour building up in the grow space?
Poor ventilation lets heat and humidity climb and air turn stale, which slows vegetative growth, cuts nutrient uptake and raises the risk of mould during flowering. This kit exhausts hot, humid air while drawing fresh air in, stabilising the climate for stronger roots, while the Rhino Pro keeps things discreet by neutralising odour - supporting better flower density and yield through bloom.
How to Use
- Connect the Rhino Pro carbon filter to the intake side of the RVK fan with a short piece of ducting.
- Secure every join with jubilee clips for an airtight seal.
- Attach the remaining ducting to the fan outlet and route it outside the tent or room.
- Hang the fan and filter inside the grow space on rope ratchets or strong straps.
- Power the fan with the supplied IEC kettle lead.
- Run continuously, or pair with a compatible fan controller to regulate airflow and hold temperature and humidity steady.
Technical Specifications
- Fan type: Systemair RVK inline
- Impeller: backward-curved
- Fan casing: fibreglass and polypropylene
- Terminal box: IP44
- Motor protection: thermal
- Speed control: direct or via AC controller
- Fan warranty: 2 years
- Filter: Rhino Pro activated carbon
- Carbon bed: 50 mm RC4-12 virgin carbon
- Filter body: aluminium, 51% open mesh
- Pre-filter: Dacron, washable

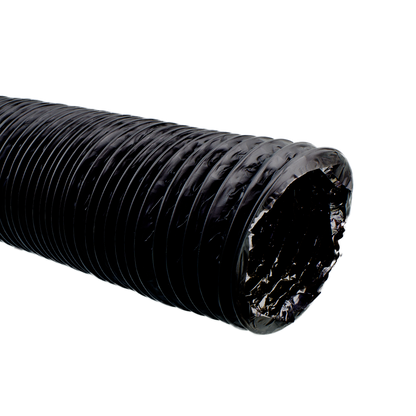

- Ducting: 5 m combi ducting
- Power lead: IEC kettle lead
- Clips: 3 jubilee clips
| By size | 4" | 5" | 6" |
|---|---|---|---|

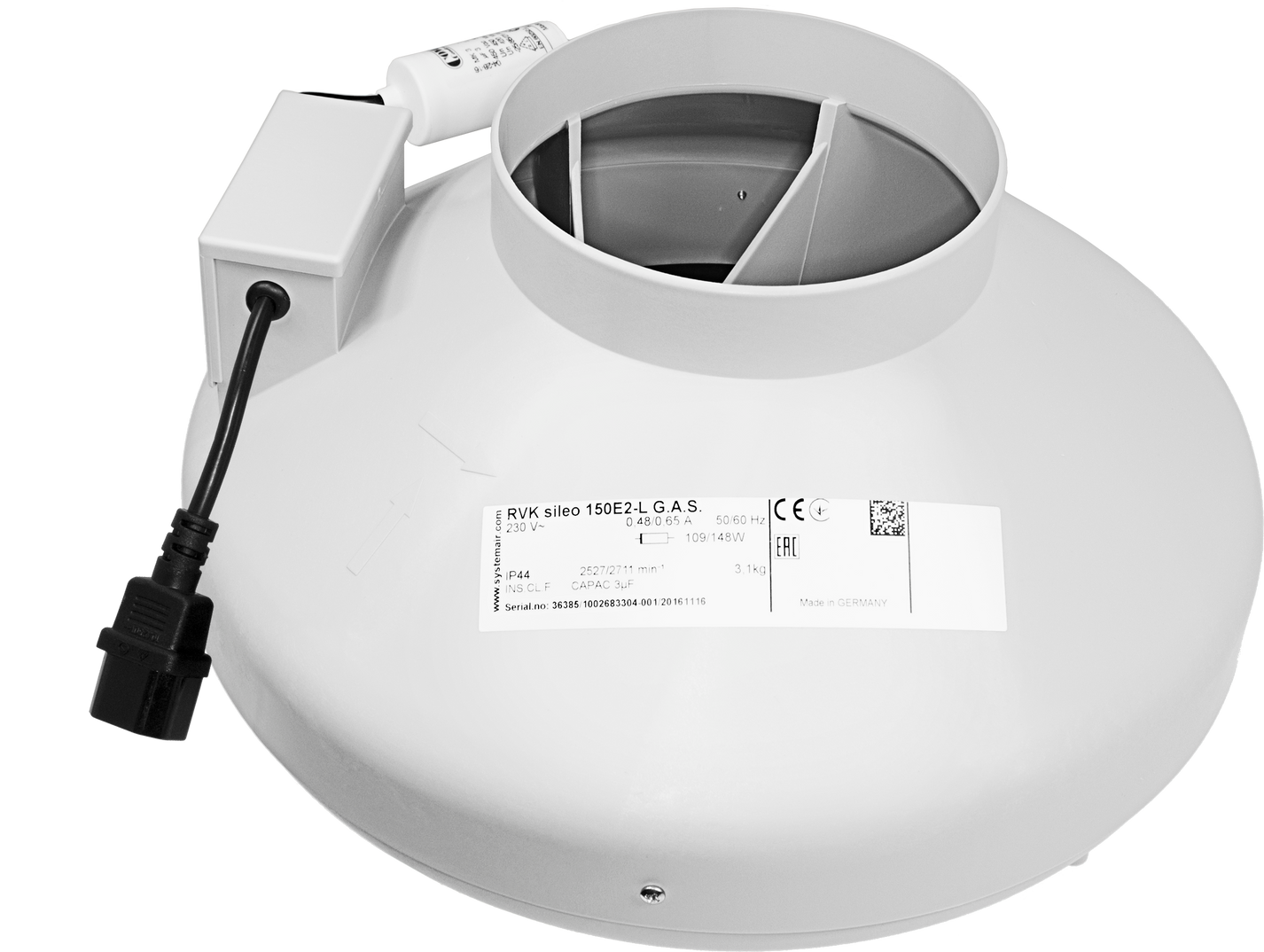

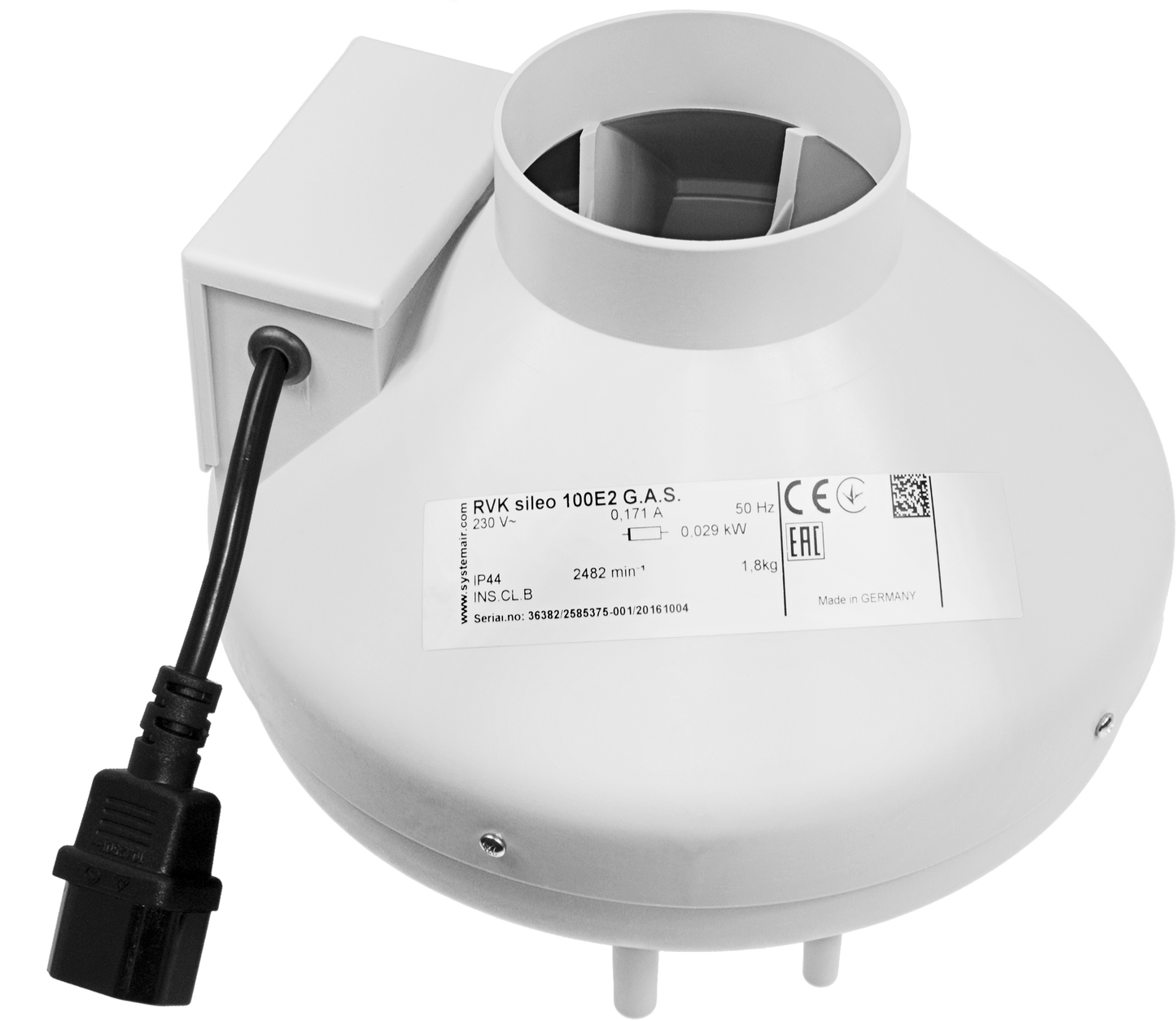

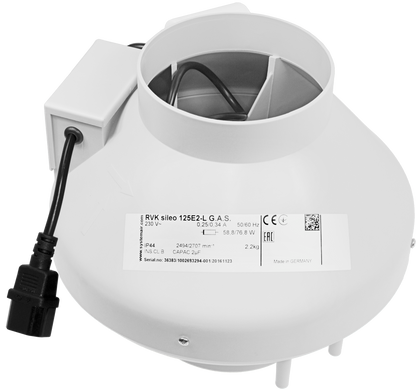

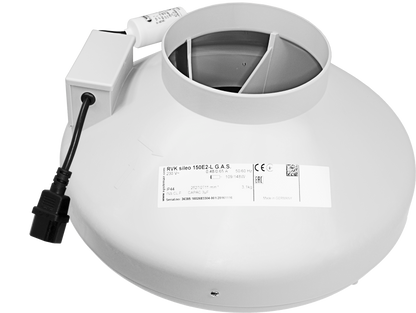

| Fan | RVK 100 A1 | RVK 125 L1 | RVK 150 L1 |
| Fan airflow | 211 m³/h | 368 m³/h | 737 m³/h |

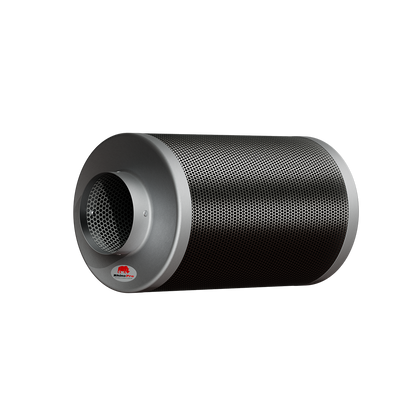

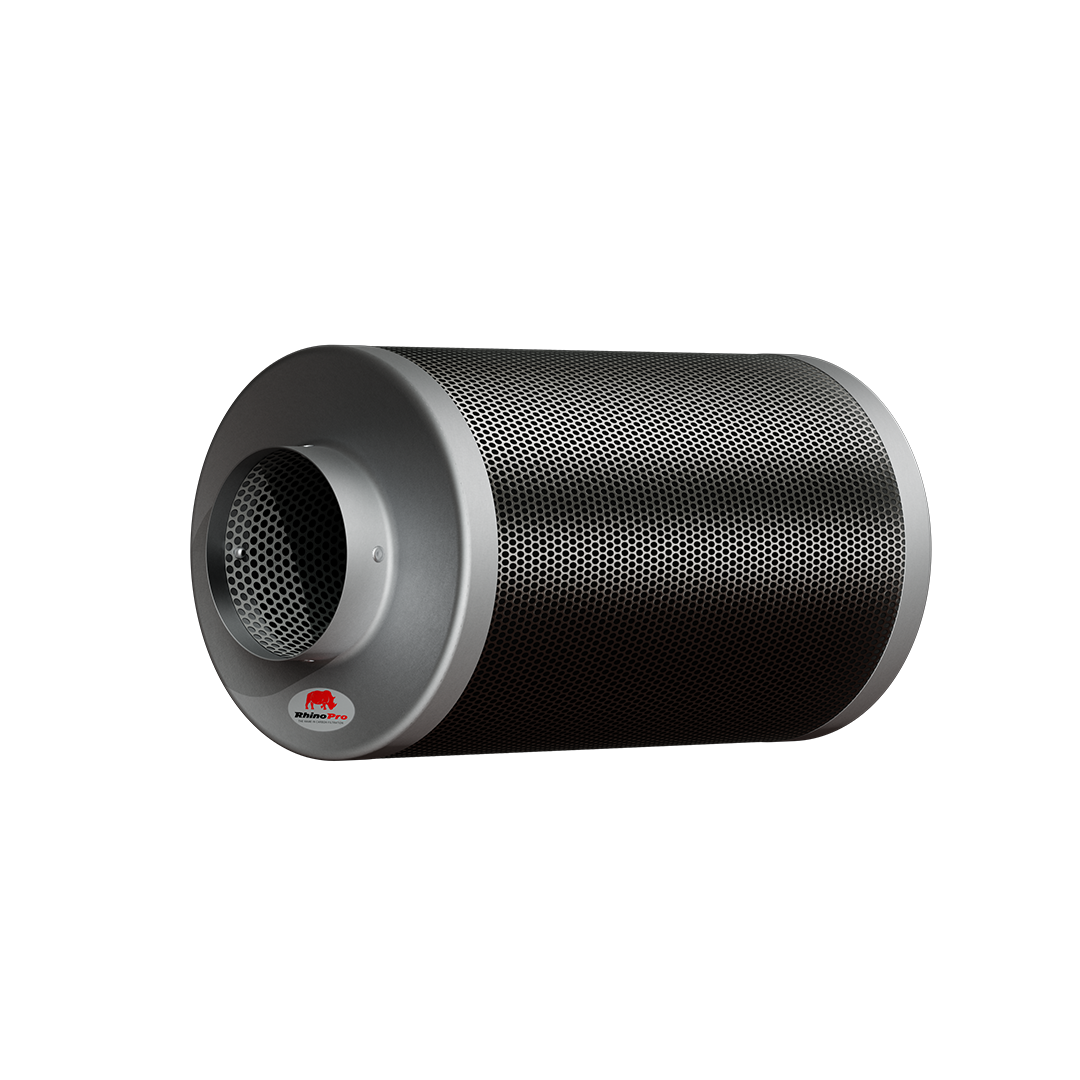

| Carbon filter | Rhino Pro 100 x 300 mm | Rhino Pro 125 x 300 mm | Rhino Pro 150 x 300 mm |
| Filter airflow | 350 m³/h | 500 m³/h | 600 m³/h |
| By size | 8" | 10" | 12" |
|---|---|---|---|

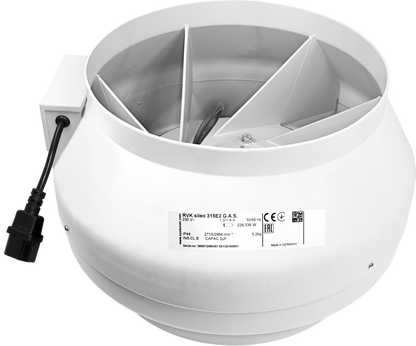

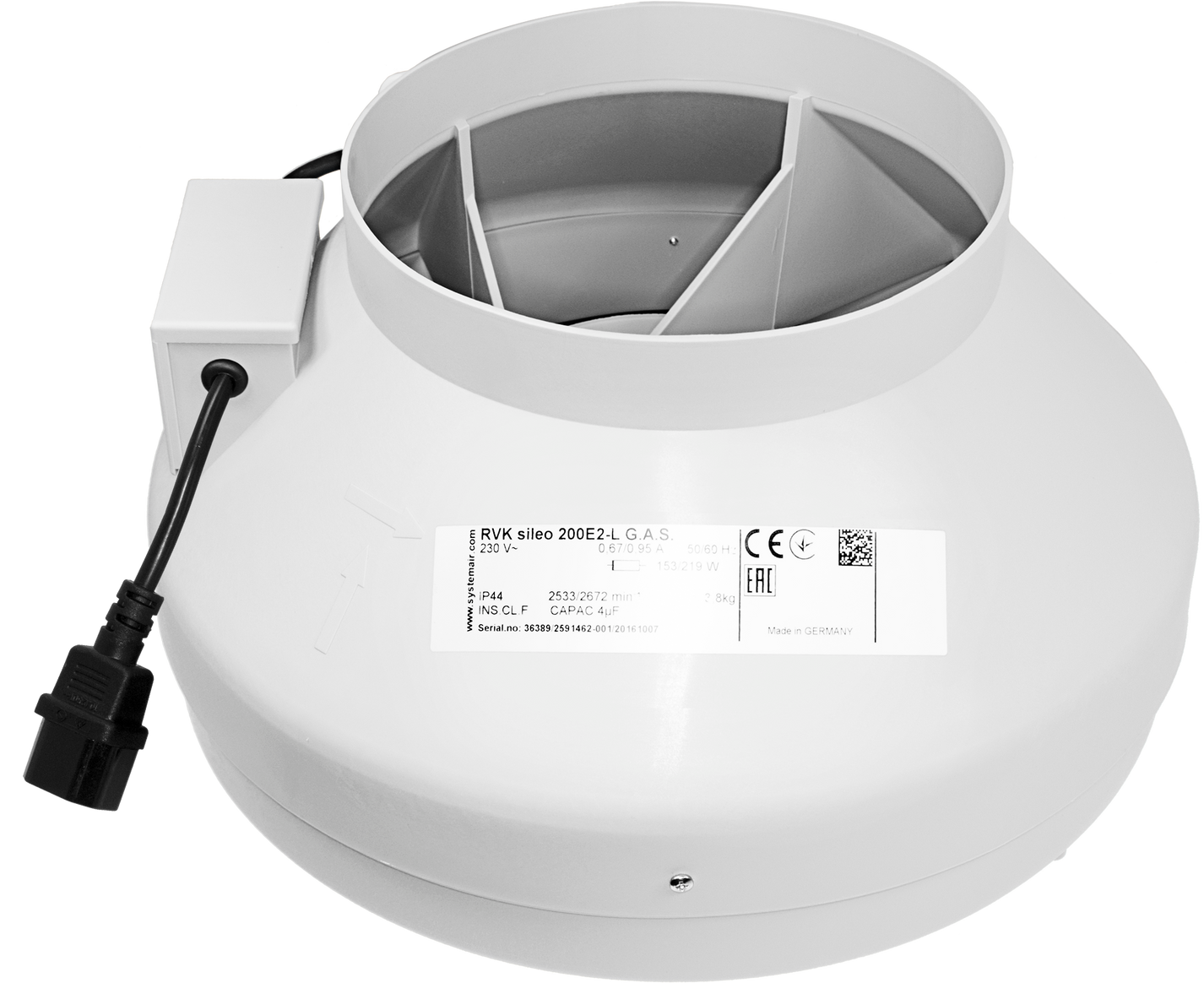

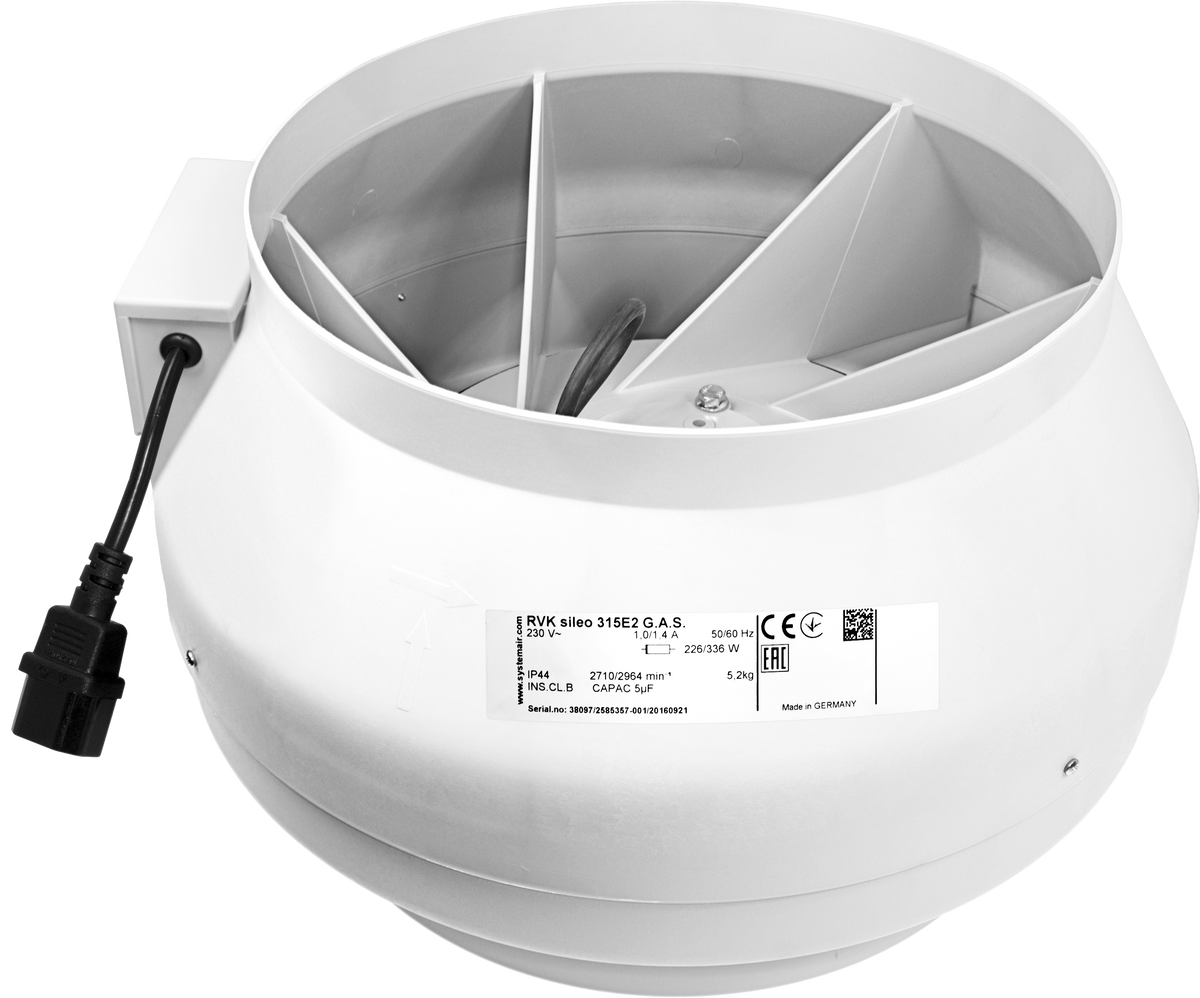

| Fan | RVK 200 L1 | RVK 250 L1 | RVK 315 A1 |
| Fan airflow | 1,073 m³/h | 1,134 m³/h | 1,364 m³/h |
| Carbon filter | Rhino Pro 200 x 600 mm | Rhino Pro 250 x 600 mm | Rhino Pro 315 x 600 mm |
| Filter airflow | 1,125 m³/h | 1,420 m³/h | 2,440 m³/h |
