Description
Extraction, filtration and ducting matched in one box

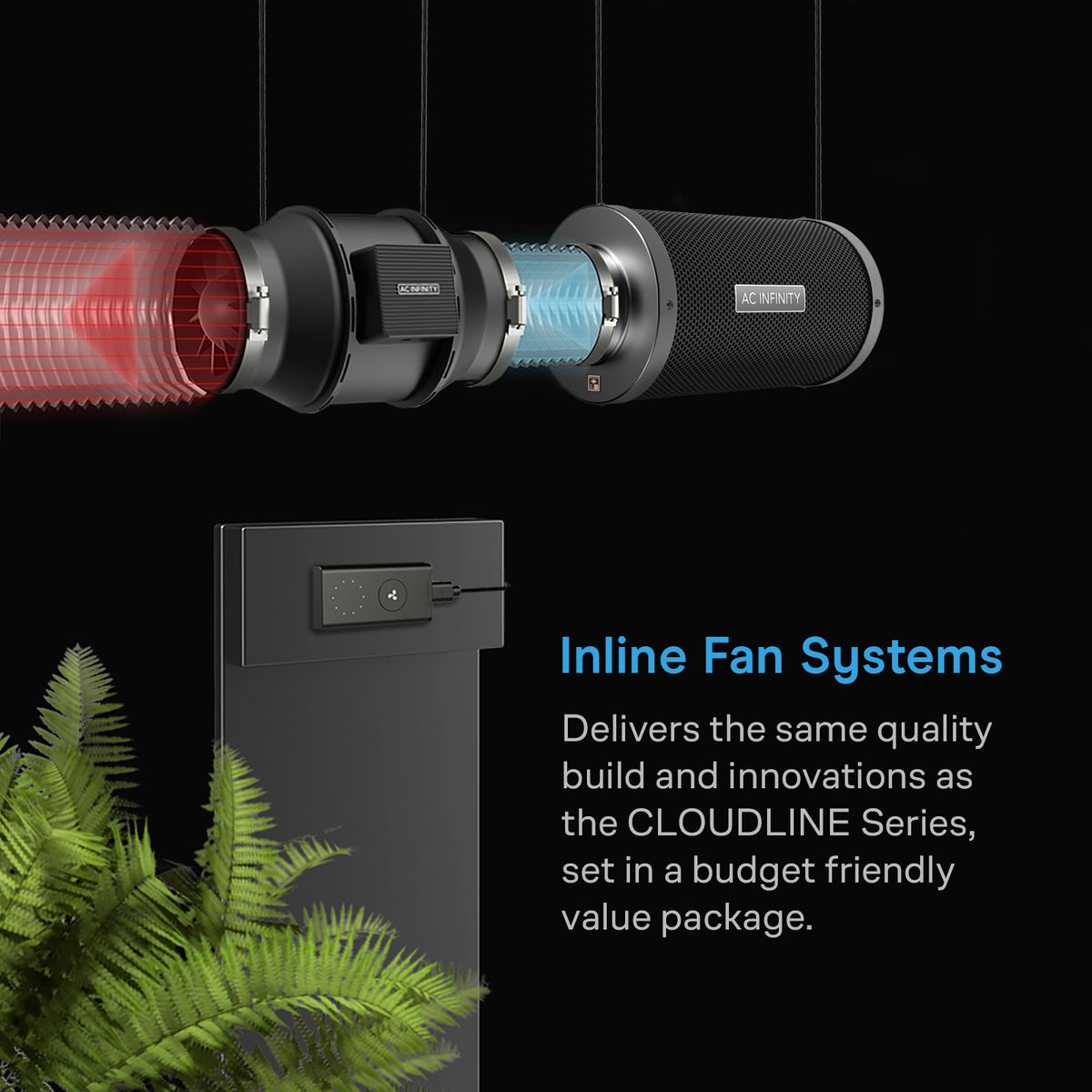

The AC Infinity Air Filtration Kit pairs a Cloudline inline fan with a carbon filter and ducting that are already sized to it, so the airflow the fan produces is the airflow the filter can actually take. Buying the three separately is where most extraction setups go wrong — an undersized filter chokes a good fan, and an oversized one wastes it.

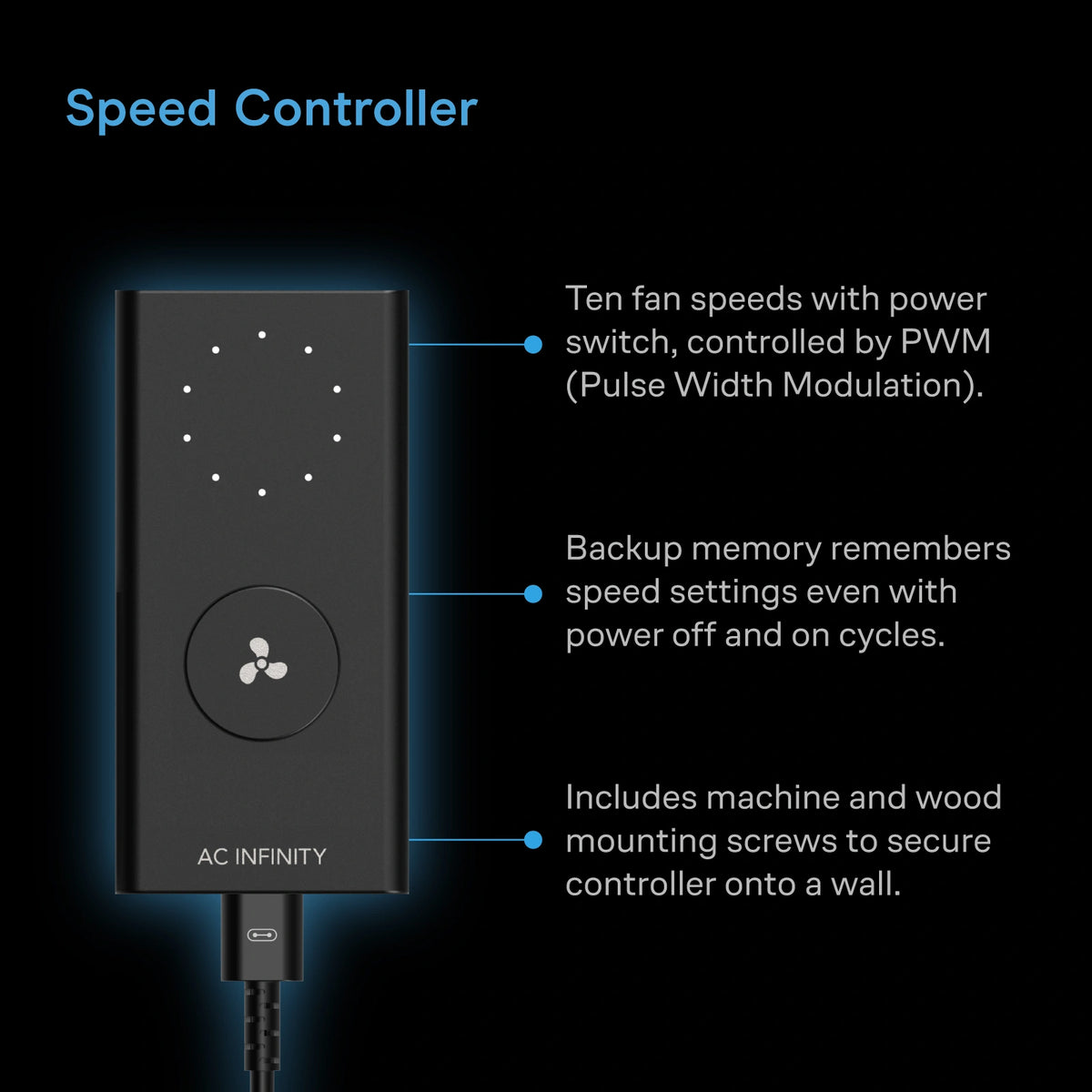

A wired 10-speed controller is included, so the fan is dialled in by hand rather than left flat out. It is not the smart UIS controller — that is what the PRO kit adds — but it does mean the kit runs properly out of the box with nothing else to buy.

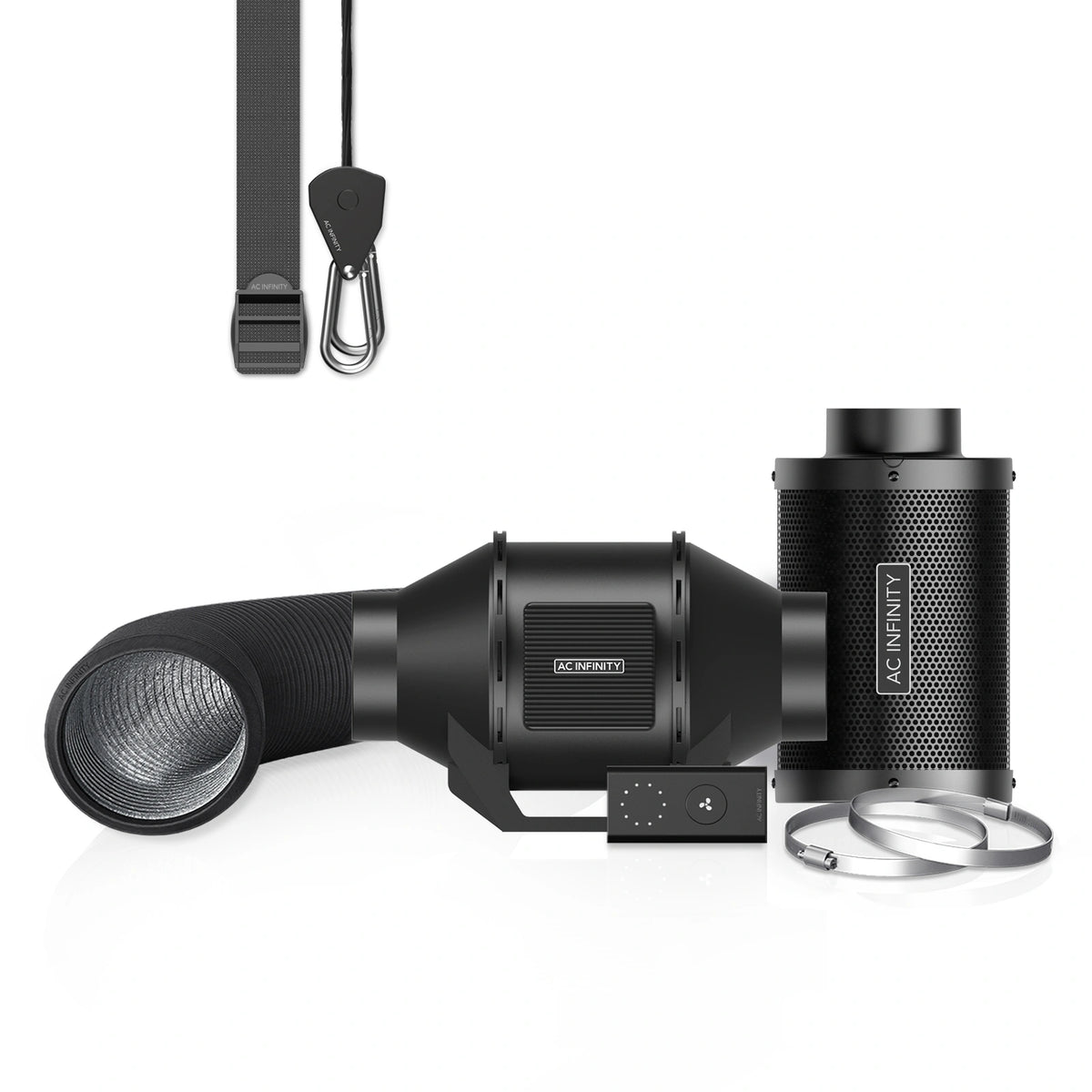

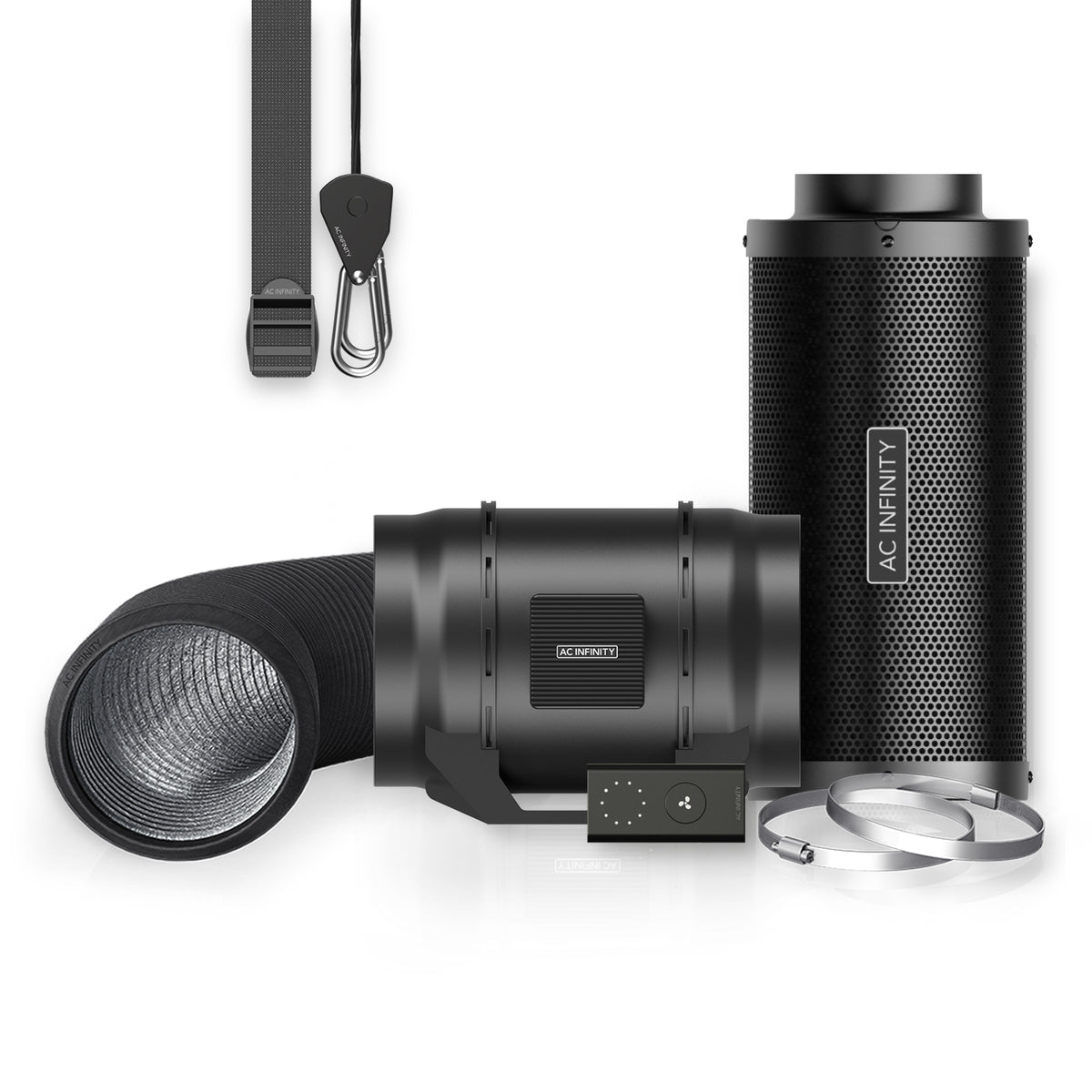

What's Included
- Cloudline inline fan with EC motor and dual ball bearings

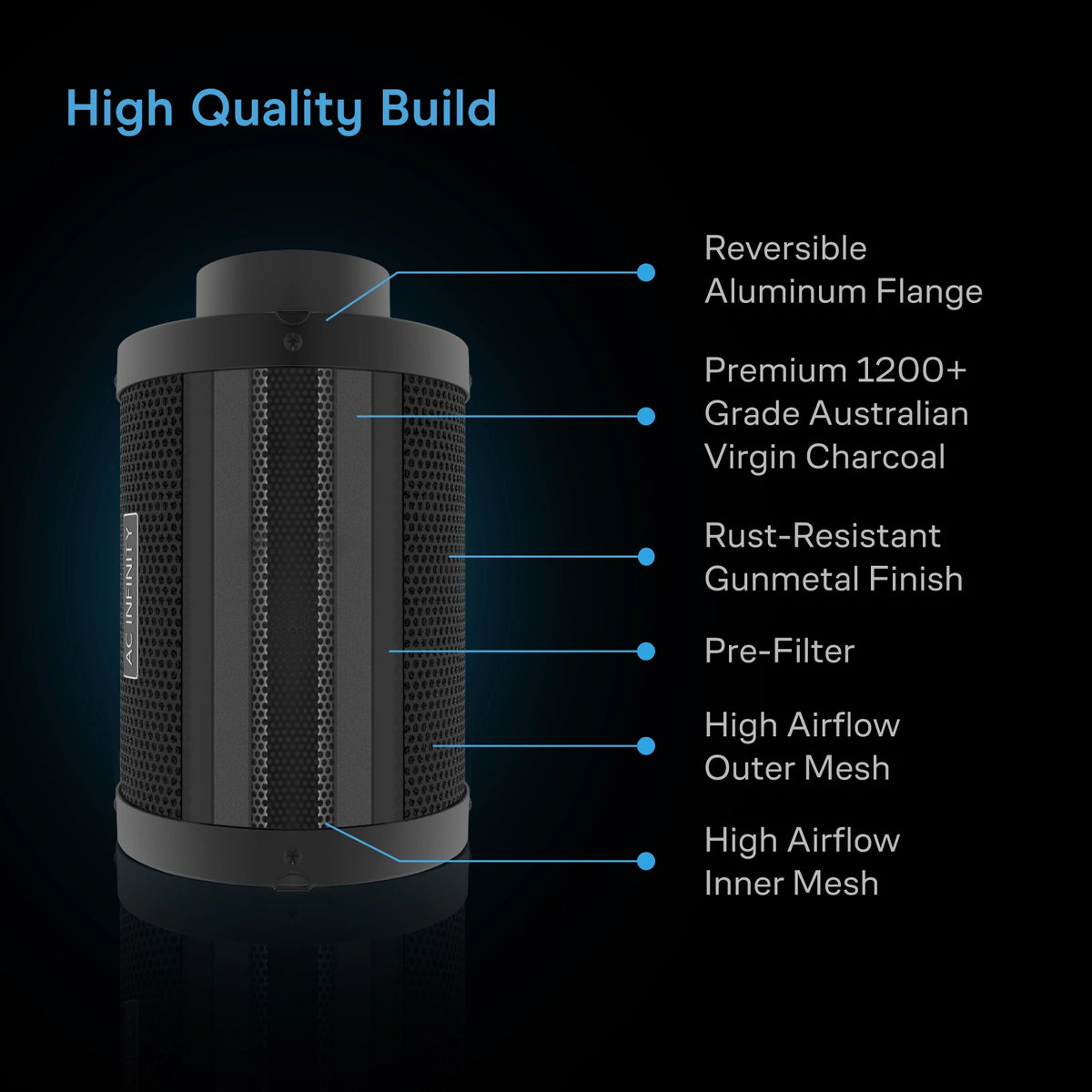

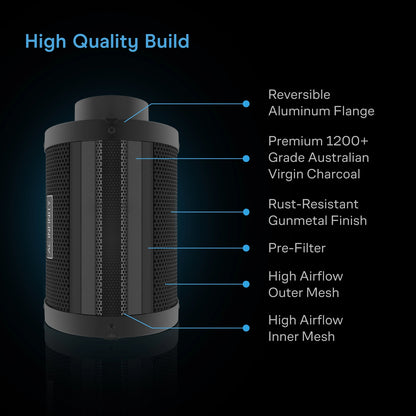

- Carbon filter — Australian Virgin RC412, 1200+ IAV grade, 38mm carbon bed
- 25ft (7.6m) four-layer ducting, PVC outer with aluminium foil inner
- Wired 10-speed controller with power switch
- Duct clamps, prefilter cloth, rope clip hangers and hanging straps
Key Benefits
- Fan and filter matched by airflow, so neither part is the bottleneck

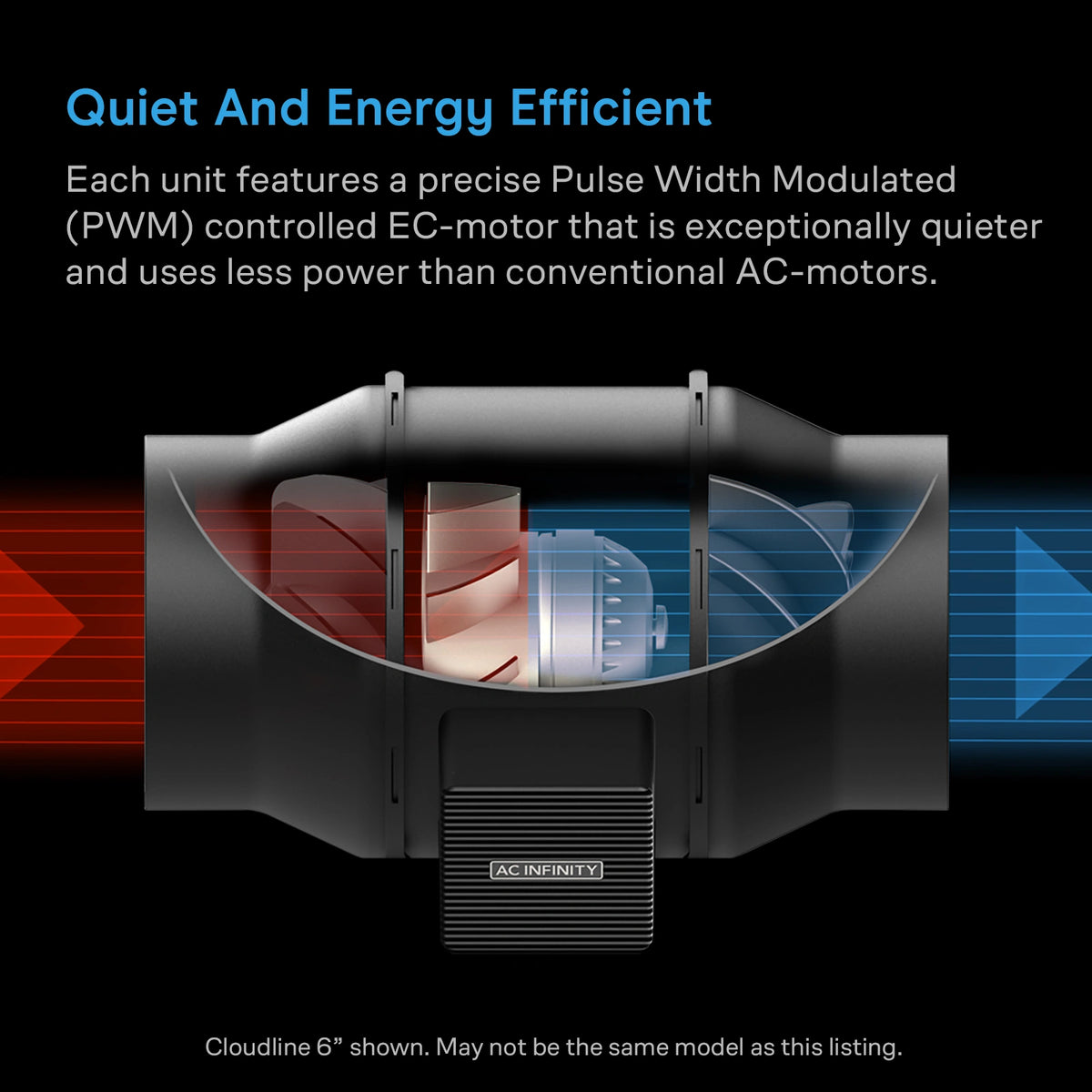

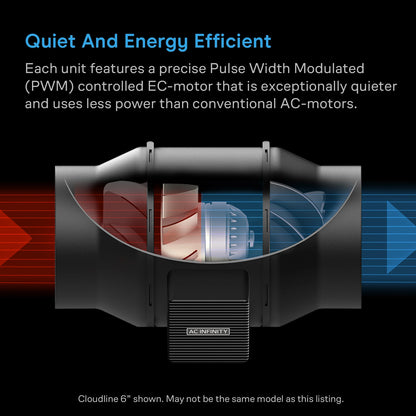

- EC motor with PWM speed control — quieter and lower draw than an AC fan at the same airflow
- Reversible aluminium flange on the filter, so it mounts either way round
- IP44 rated fan with a 67,000 hour bearing life
- Odour control and heat removal in one pass, rather than two separate jobs
Which size do I need?
The 4 inch kit moves 165 CFM and suits a single small tent. The 8 inch moves 724 CFM and is built for a room or a large multi-light tent. Match the duct size to the fan you are replacing rather than to the tent's port, and reduce at the port if you need to.
Specifications
- 4 inch: 165 CFM, 29 dBA, 324 Pa static pressure, 35W max draw, 0.55A
- 8 inch: 724 CFM, 42 dBA, 746 Pa static pressure, 190W max draw, 2.80A
- Voltage: 100–240V AC, 50/60Hz
- Fan rating: IP44, dual ball bearings, 67,000 hour life
- Filter carbon: Australian Virgin RC412, 1200+ IAV, 38mm bed
- Ducting: four layer, 25ft (7.6m)
- Approvals: CE, RoHS
Technical Specifications
- Type: inline fan, carbon filter and ducting kit
- Fan: Cloudline inline fan with PWM speed control
- Controller: wired 10-speed controller with on/off switch
- Carbon: Australian virgin RC412, 1,200+ IAV, 38 mm bed
- Filter flange: aluminium, reversible
- Filter mesh: galvanised steel
- Ducting: four-layer, PVC outer, aluminium foil inner, 7.6 m
- Also included: 2 duct clamps, 2 prefilter cloths, rope clip hangers, hanging straps
- Supply voltage: 100–240 V AC, 50/60 Hz
- Fan rating: IP44
- Bearings: dual ball, 67,000 hour L10 life
- Mounting: horizontal or vertical
- Cords: 1.8 m fan to controller, 1.8 m to plug
- Operating range: 0–60°C, 35–85% RH
- Approvals: CE, RoHS

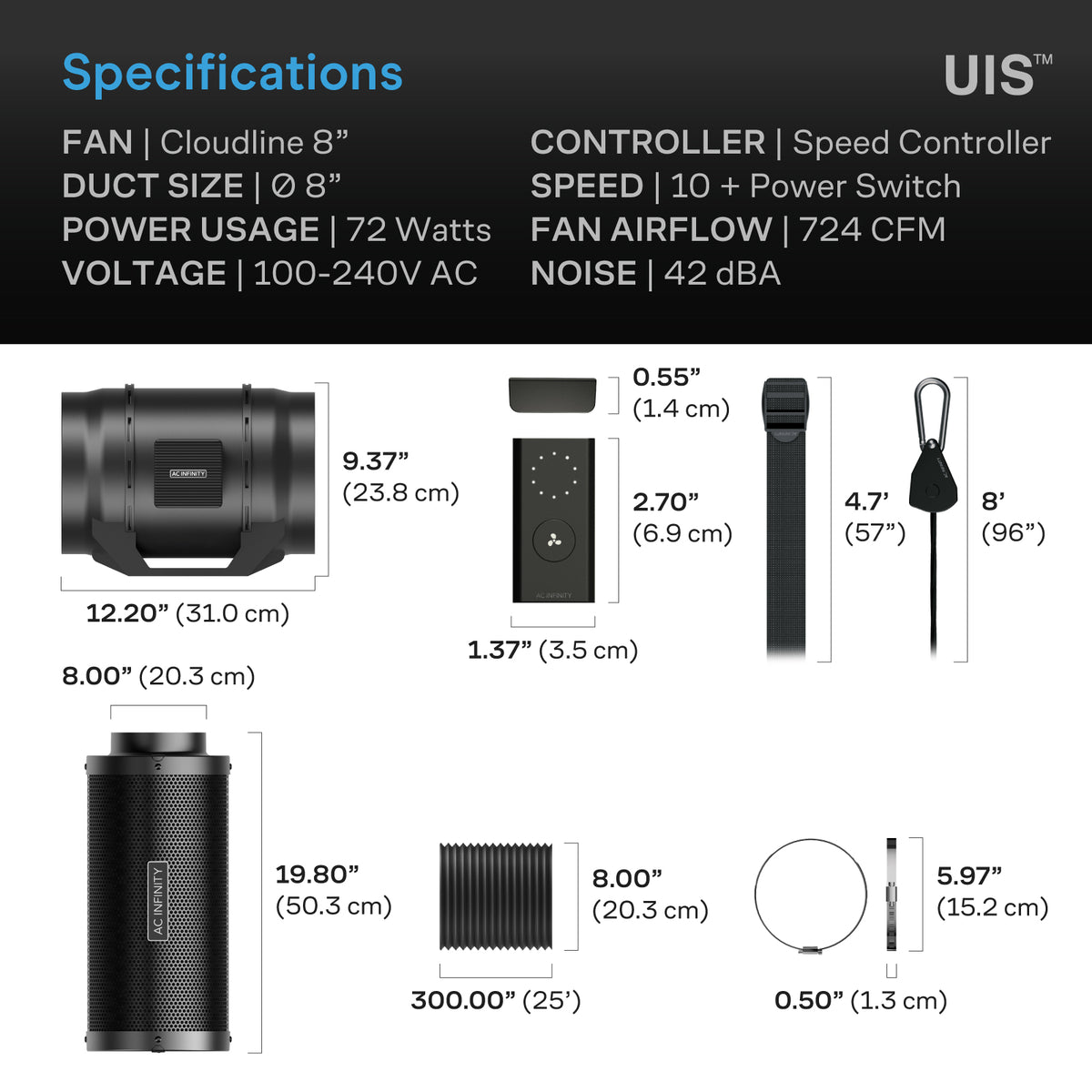

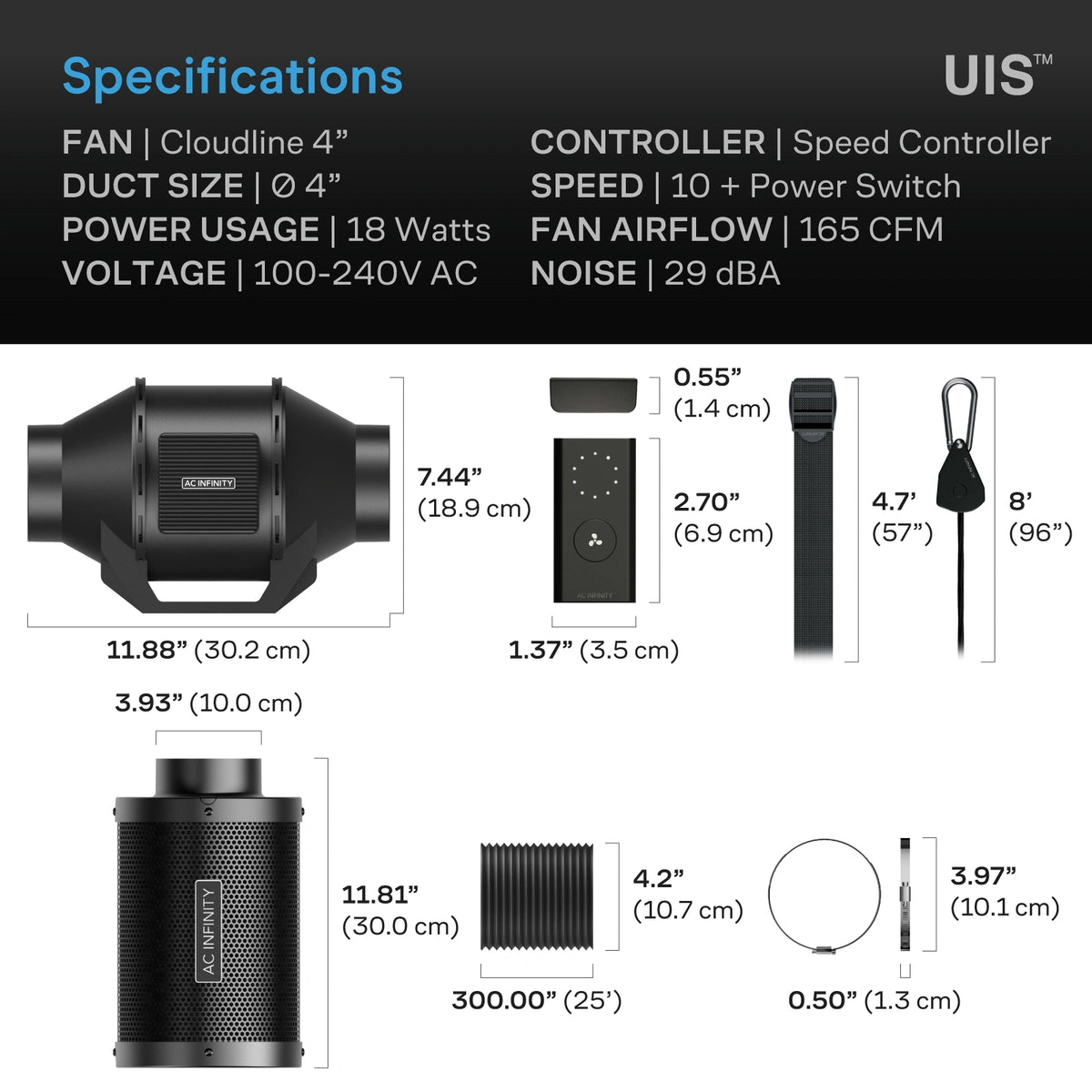

| By size | 100mm 4 in | 200mm 8 in |
|---|---|---|
| Fan airflow | 280 m³/h (165 CFM) | 1,230 m³/h (724 CFM) |
| Static pressure | 324 Pa | 746 Pa |
| Noise | 29 dB(A) | 42 dB(A) |
| Max power | 35 W | 190 W |
| Average power | 18 W | 72 W |
| Current | 0.55 A | 2.80 A |
| Carbon filter | Ø 17.7 x 33.9 cm | Ø 27.8 x 50.3 cm |
| Filter max airflow | 357 m³/h (210 CFM) | 1,308 m³/h (770 CFM) |
| Model | AC-FKS4 | AC-FKS8 |
| Dimensions | 19.0 x 30.2 x 17.6cm | 31.0 x 25.4 x 23.8cm |
