Description
Air moved across the room, not just stirred in a corner
Clip fans handle a tent. A room needs something that throws air the length of it, and the AC Infinity CLOUDLIFT does that from the floor or off a wall bracket — an EC motor driving an aluminium blade, with the whole unit rated IP-44 so humidity and the odd splash are not a problem.
Speed is set from a wireless remote rather than a dial on the housing, which matters when the fan is on a wall above head height. One remote pairs to several fans, so a room of them can be set together.
Key Benefits
- EC motor with PWM control — ten real speeds, not three, and lower draw than an AC fan at the same airflow
- Floor stand or wall mount, with the hardware for both in the box
- Wireless remote to 130ft, backlit, magnetic, and it pairs to multiple units
- IP-44 rated for humid rooms
- Dual ball bearings and a steel enclosure rather than moulded plastic
Which size do I need?
The S12 moves 1807 CFM at 62 dBA and suits a single room or a tent bank. The S14 moves 2130 CFM at 70 dBA — noticeably more air, and noticeably louder, so choose it for distance rather than for a space you work in.
Specifications

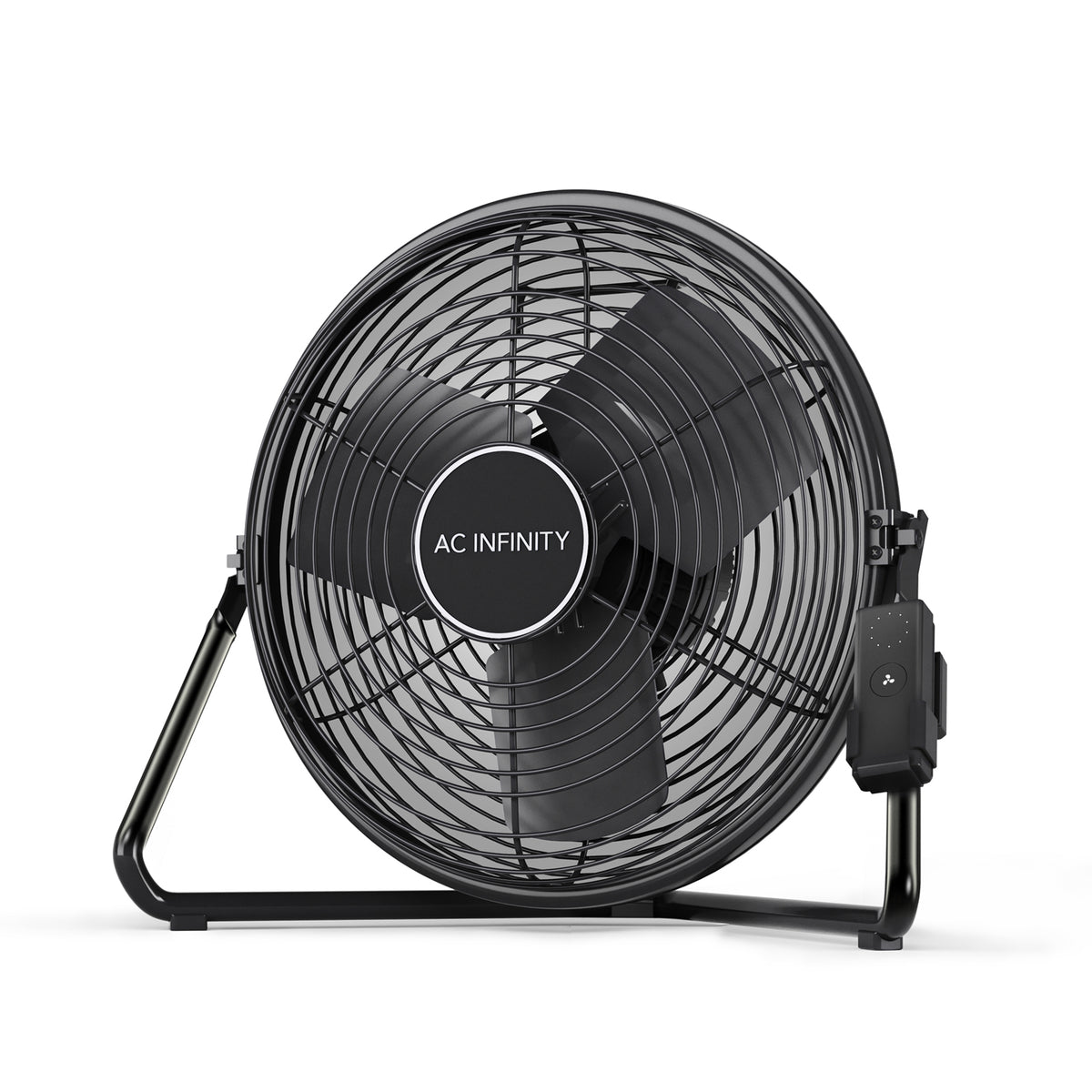

- S12: 12in blade, 1807 CFM, 62 dBA, 54W, 0.75A, 45.2 × 38.8 × 20.2cm

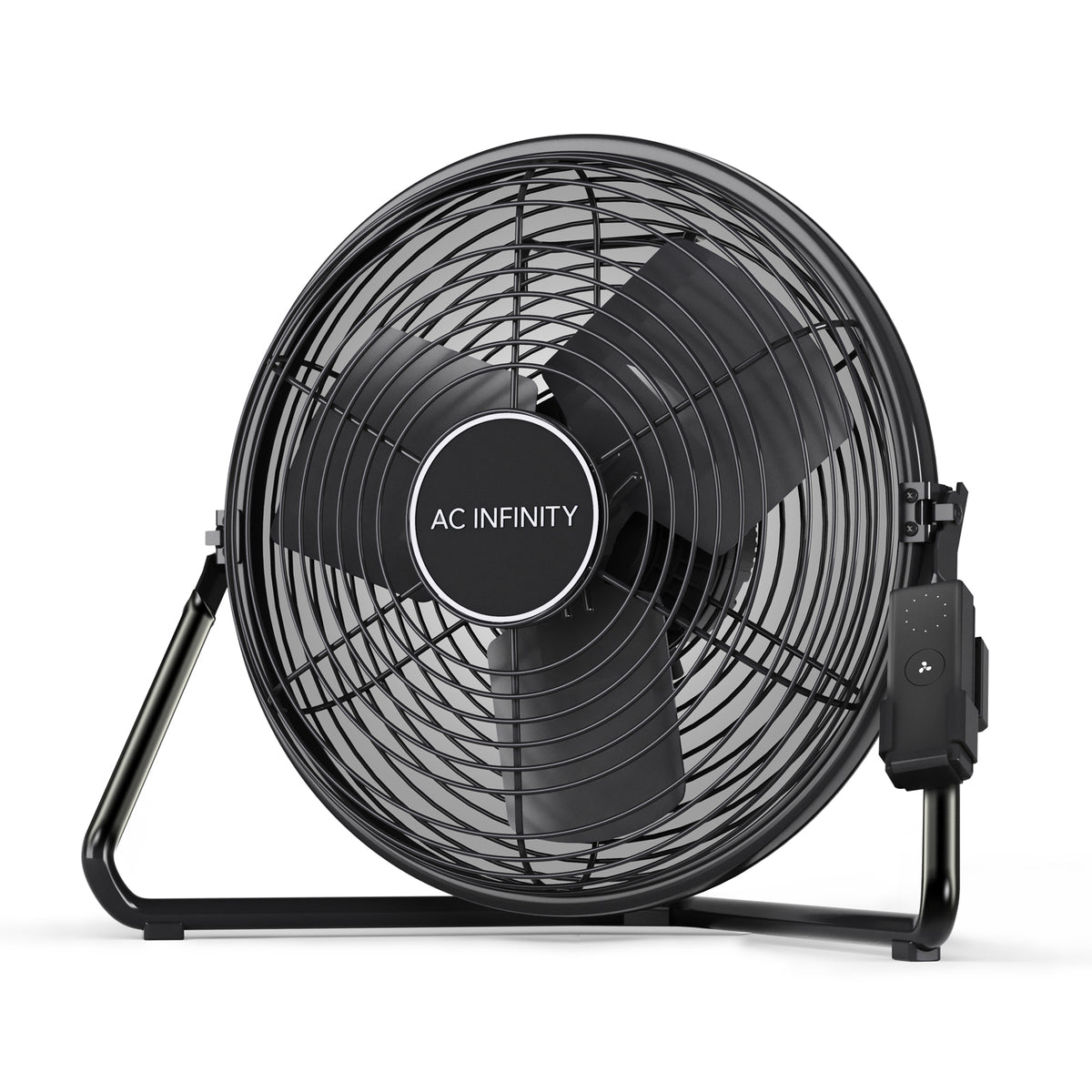

- S14: 14in blade, 2130 CFM, 70 dBA, 70W, 0.95A, 51.5 × 43.7cm

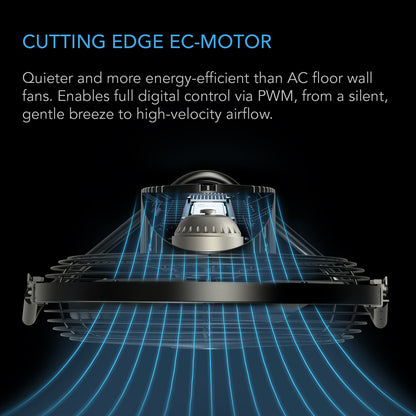

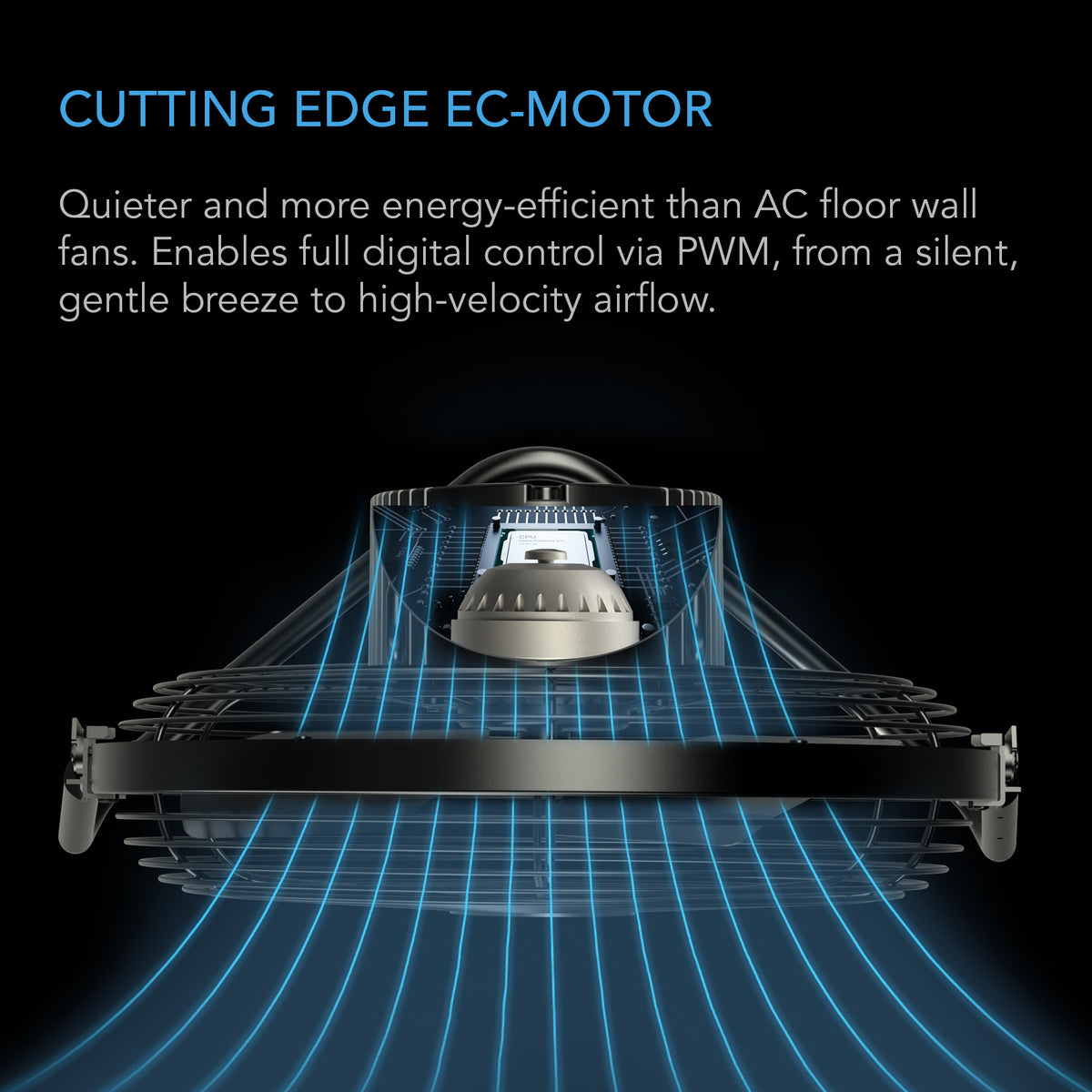

- Motor: EC with PWM, dual ball bearings, 10 speeds

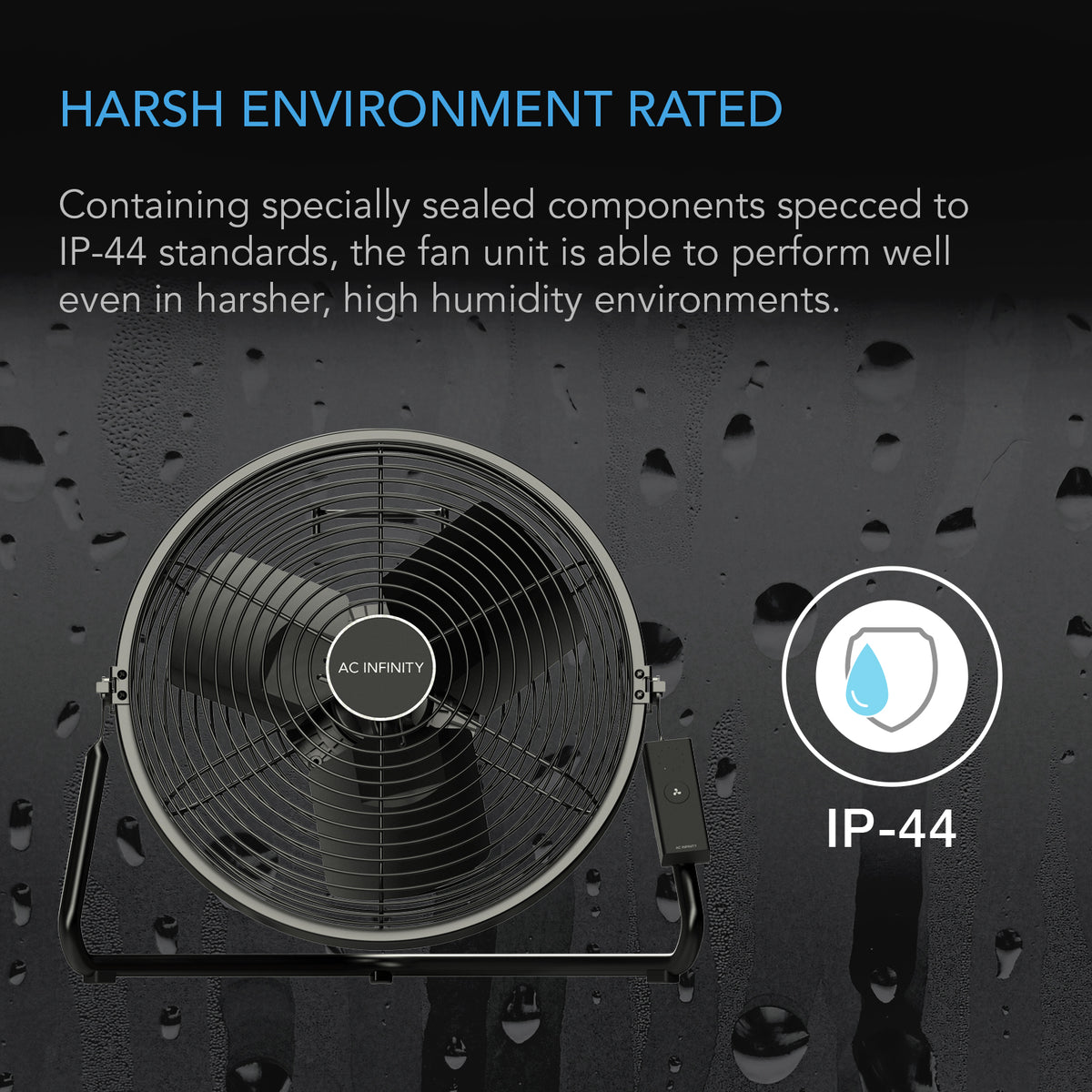

- Rating: IP-44
- Build: steel enclosure, aluminium blades
- Voltage: 100–240V AC
- Supplied with: wireless remote and batteries, floor stand and wall-mount hardware
Technical Specifications
- Type: EC floor and wall circulation fan
- Motor: EC with PWM speed control, dual ball bearings
- Bearing life: 67,000 hours
- Speeds: 10, set from the wireless controller

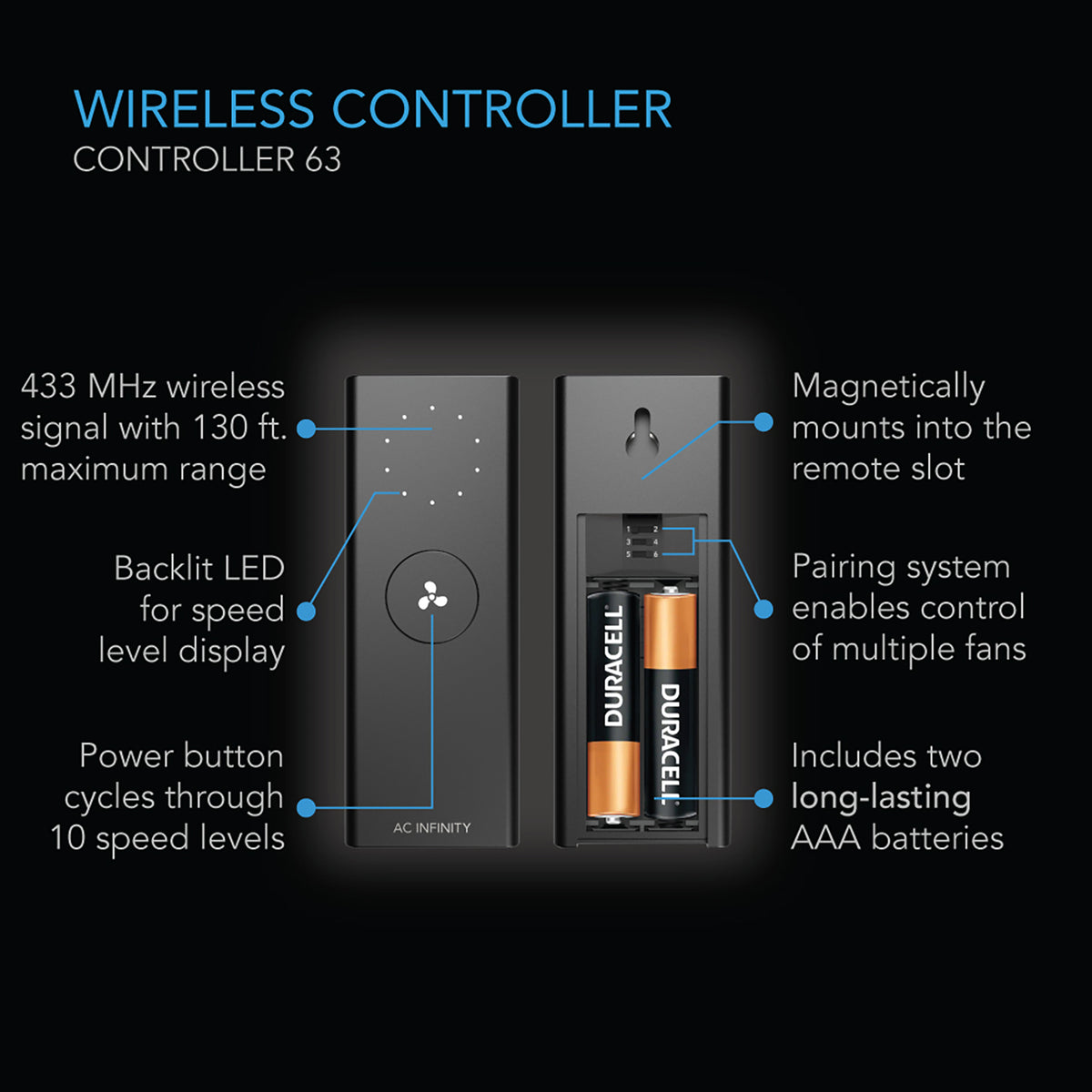

- Wireless controller: 9.1 x 3.5 x 1.9 cm, 2 x AAA supplied
- Build: powder-coated steel guard, aluminium blades
- Protection: IP44
- Supply voltage: 100–240 V AC
- Power cord: 2.4 m
- Mounting: floor stand or wall bracket, tilting head
- Operating humidity: 35–85% RH
- Included: wireless controller and receiver, 2 UIS cords (50 cm, 3 m), wall bracket and fixings
- Warranty: 2 years

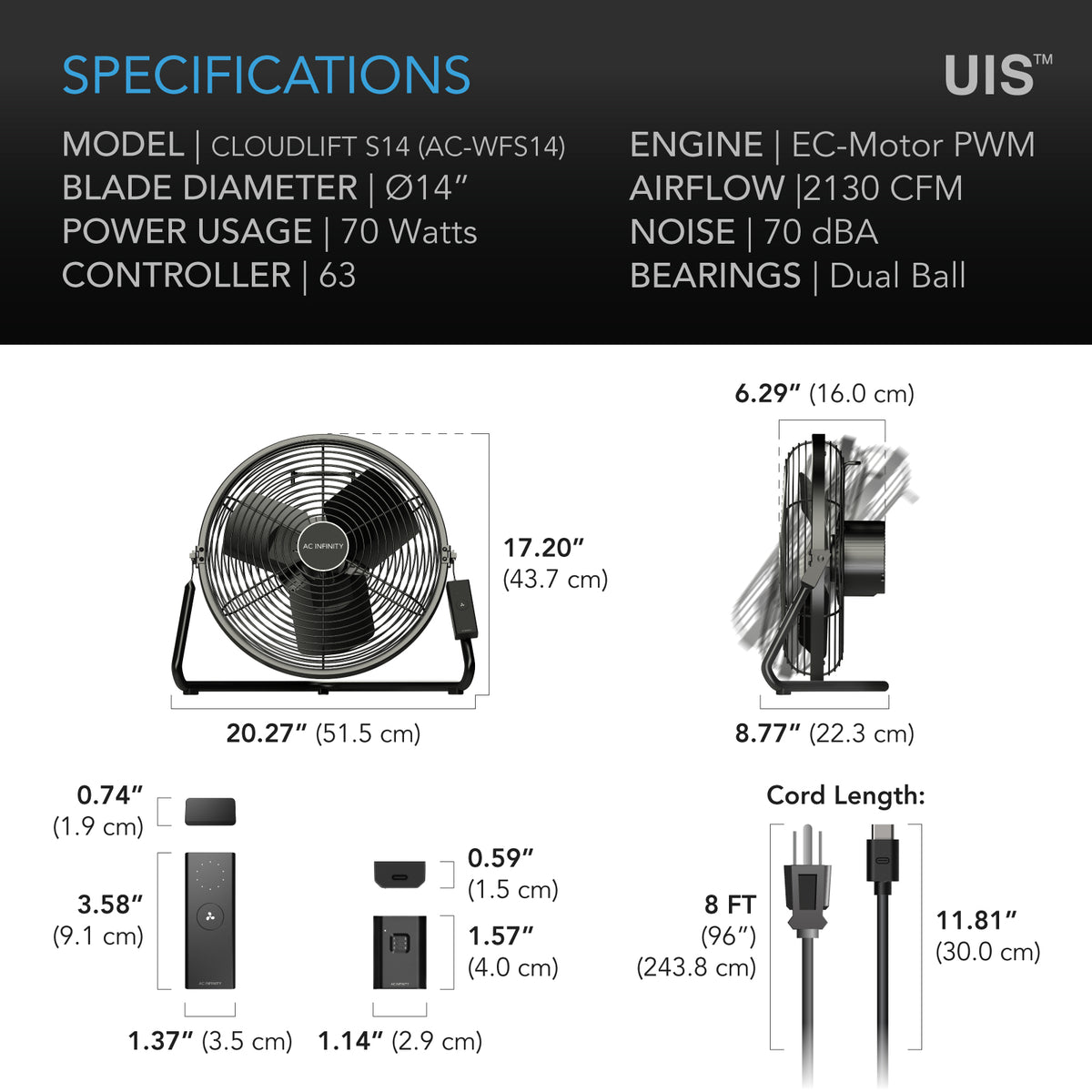

| By size | S12 – 12 in | S14 – 14 in |
|---|---|---|
| Blade size | 12 in | 14 in |
| Airflow | 3,070 m³/h (1,807 CFM) | 3,619 m³/h (2,130 CFM) |
| Static pressure | 72.8 Pa | 70.4 Pa |
| Noise | 62 dB(A) | 70 dB(A) |
| Power | 54 W | 70 W |
| Current | 0.75 A | 0.95 A |
| Model | AC-WFS12 | AC-WFS14 |
| Dimensions | 45.2 x 38.8 x 20.2cm | 51.5 x 43.6 x 16.0cm |
