Description
Move the air your plants actually need

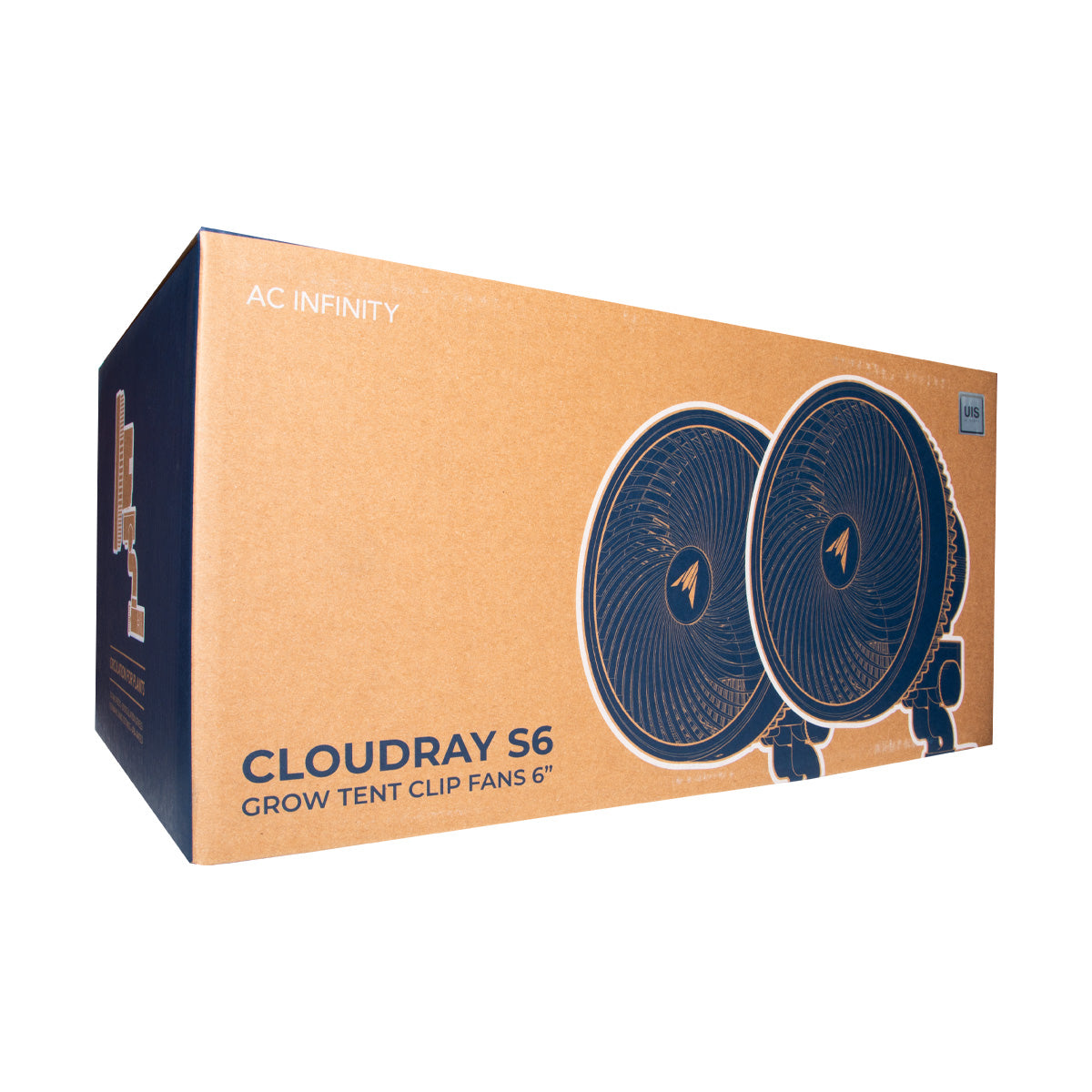

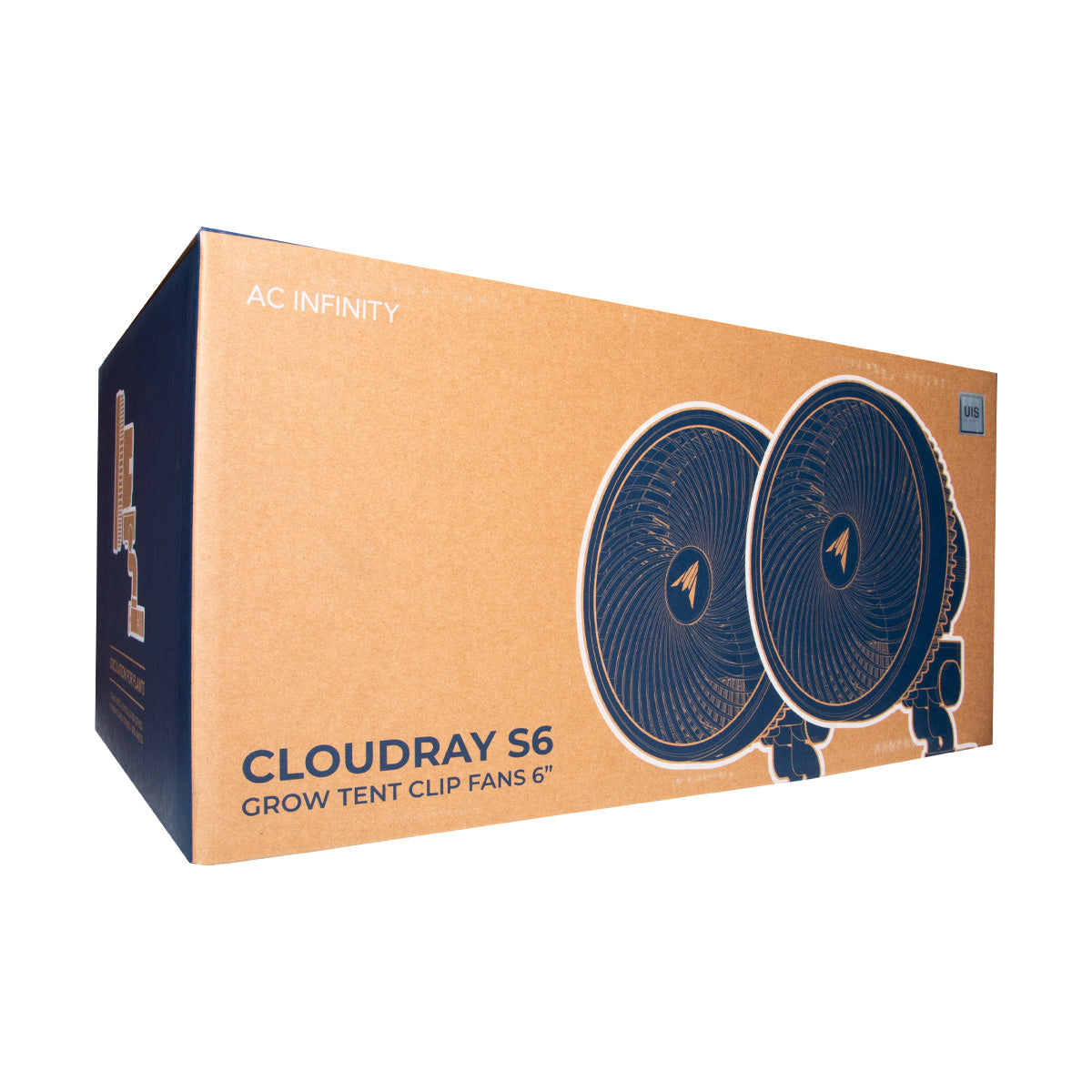

The AC Infinity CloudRay Clip Fan is an oscillating clip-on circulation fan that keeps air moving through the canopy, strengthening stems and breaking up the still, damp microclimates where mould and pests take hold. Driven by a long-life brushless EC motor with 10 speeds and up to 90-degree auto oscillation, it delivers up to 552 m3/h (325 CFM) on the 6-inch model and up to 688 m3/h (405 CFM) on the 9-inch, and is UIS-compatible for automated speed and oscillation control.
Key Benefits
- Up to 552 m3/h (S6) or 688 m3/h (S9) airflow to keep the whole canopy moving
- 90-degree auto oscillation across 10 ranges plus 55-degree tilt to cover a wide area
- 10 digital fan speeds and dynamic natural-wind modes for gentle, consistent movement
- Quiet brushless EC motor from 31 dBA, rated to 67,000 hours
- UIS-compatible for automated speed and oscillation alongside your other climate gear
- IP-54 rated clip-on design that mounts to poles or trellis bars
Struggling with weak stems and damp pockets in the canopy?
Without proper circulation, plants throw weak, thin stems that struggle to hold heavy flowers, and humid air settles unnoticed around lower leaves and flowers. Clipping fans at several points keeps air moving constantly across the canopy, toughening growth and evening out humidity and temperature, especially in the corners your main exhaust fan never reaches.
How to Use

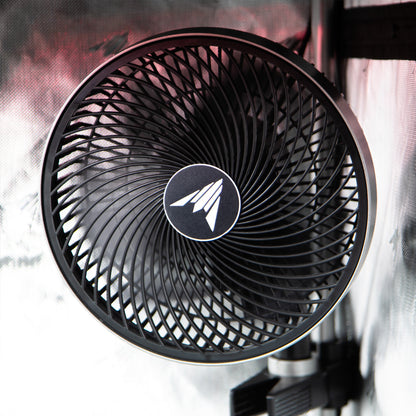

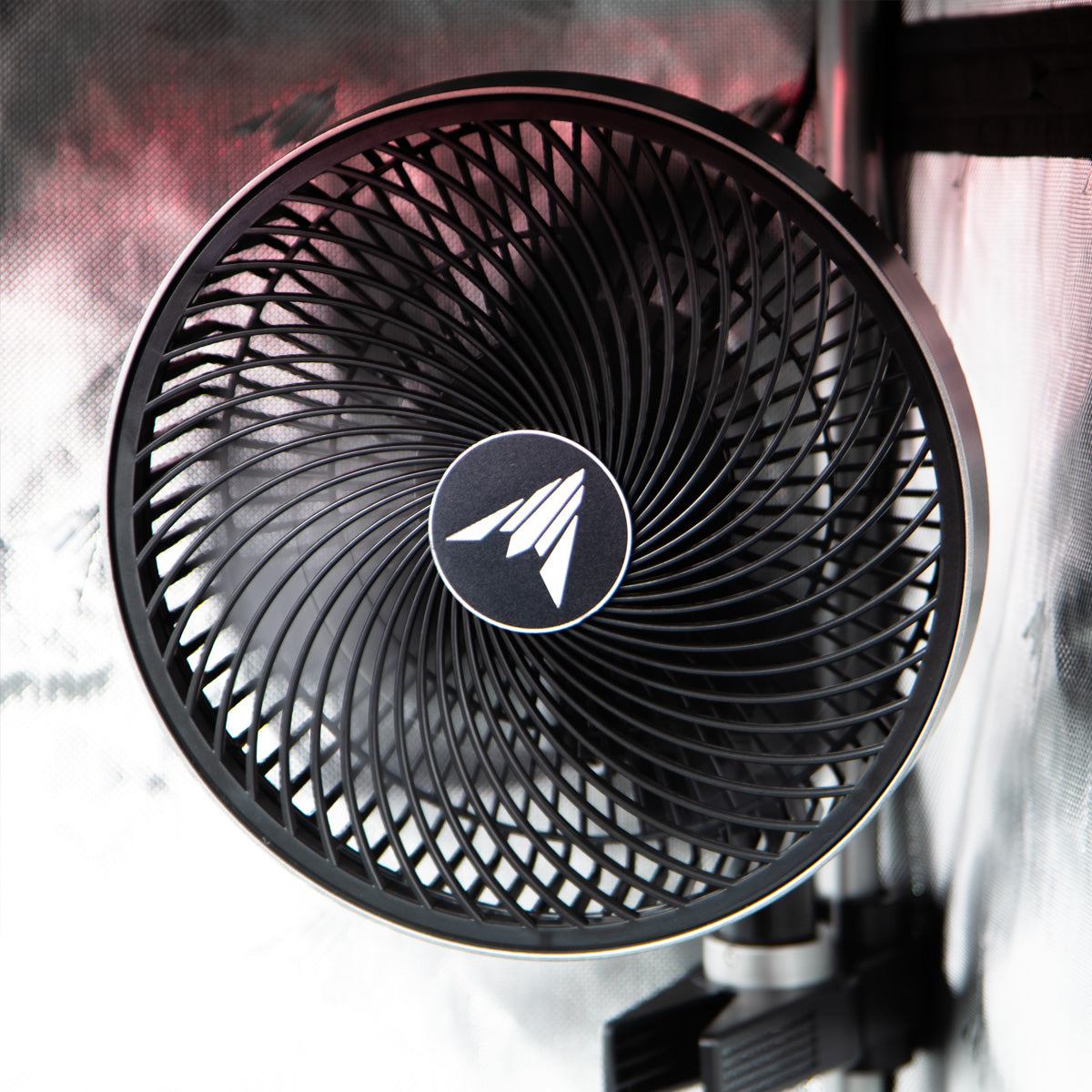

- Clip the fan to your tent poles or a trellis bar at canopy height, angled so air passes over rather than blasting the plants directly.
- Use oscillation to sweep a wider area, adding units at multiple points for full coverage.
- Connect to a UIS controller to have speed and oscillation adjust automatically with the rest of your climate equipment.
Technical Specifications
- Model S6 airflow: up to 552 m3/h (325 CFM)
- Model S9 airflow: up to 688 m3/h (405 CFM)

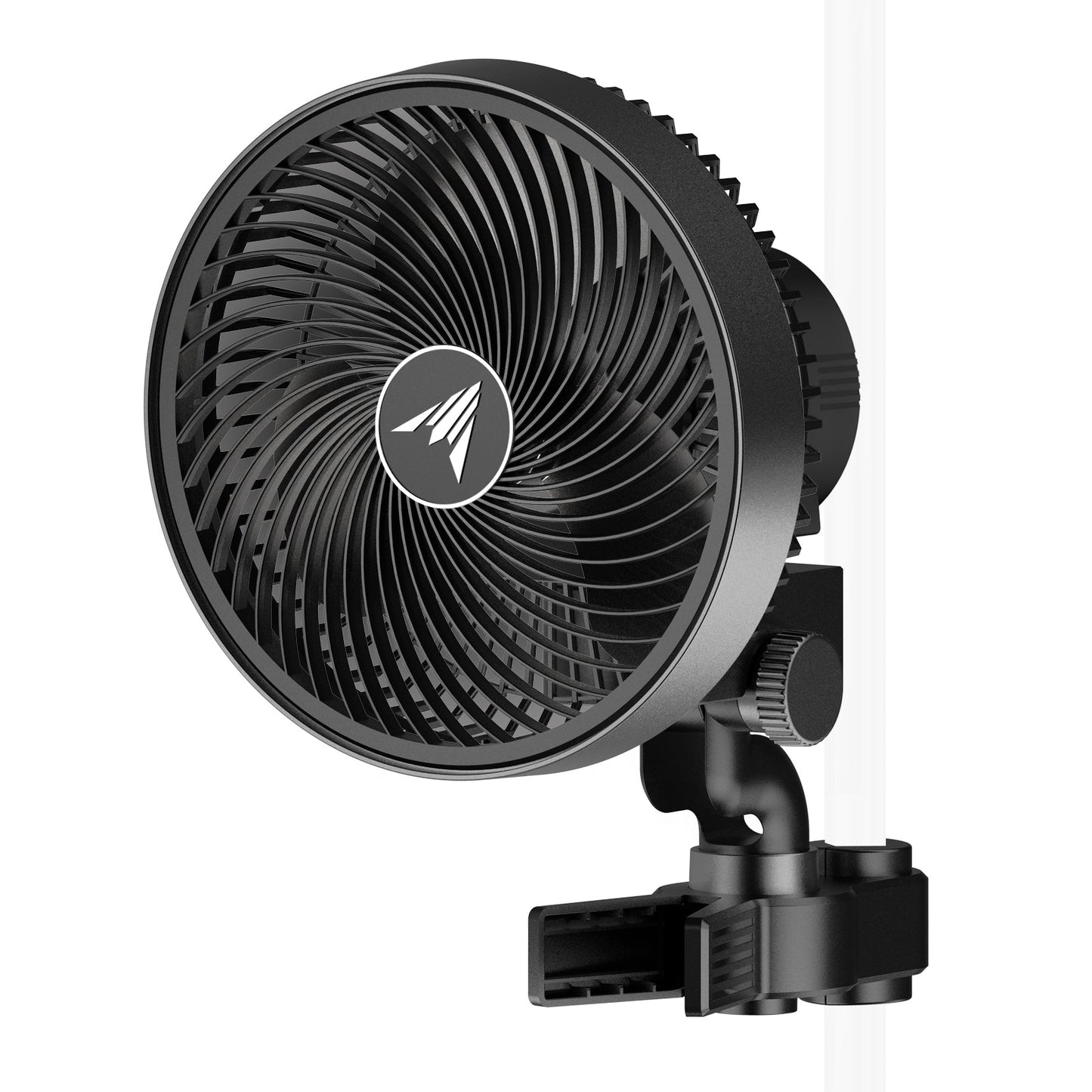

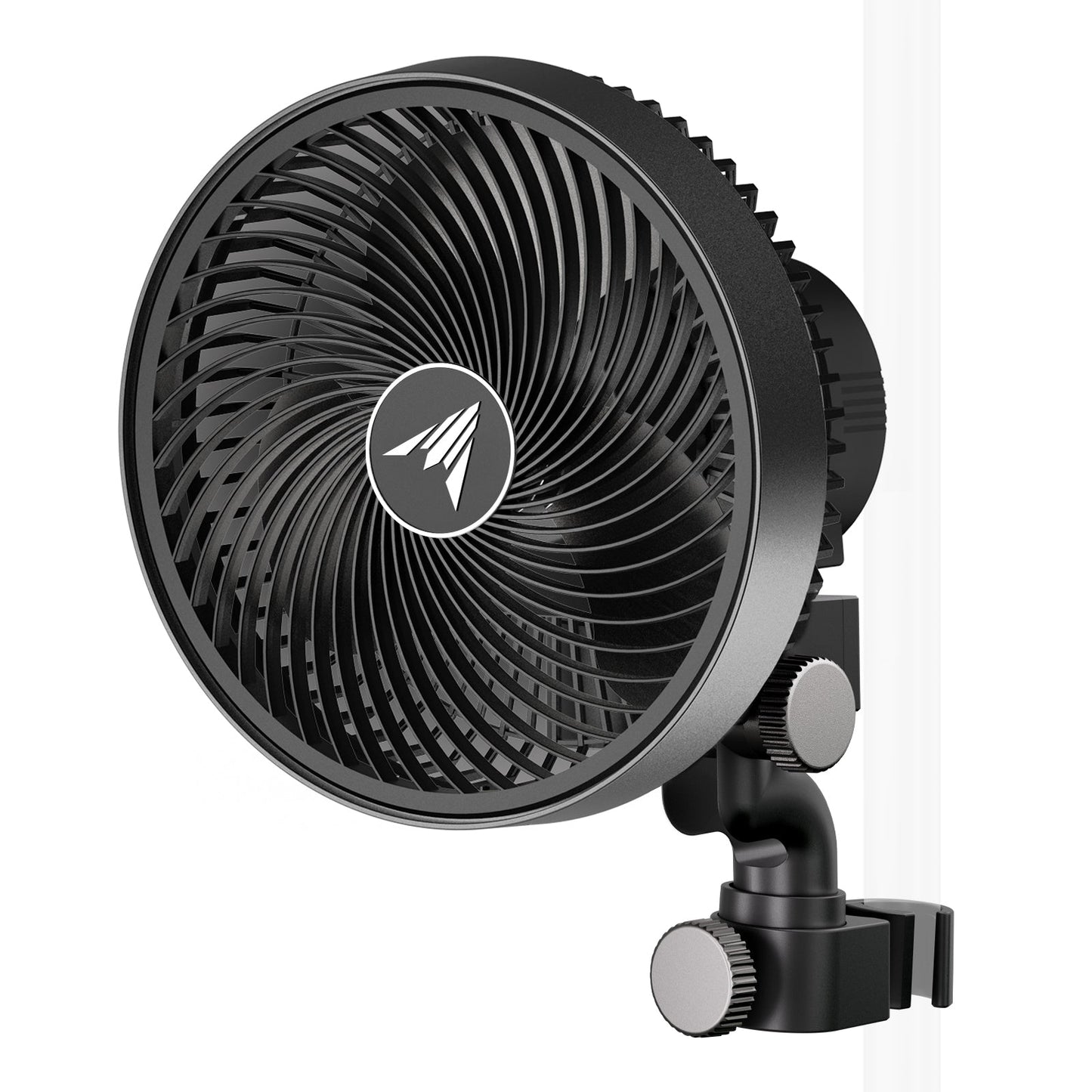

- Impeller size: 6 inch (S6) / 9 inch (S9)
- S6 dimensions: 24.7 x 30.0 cm
- S9 dimensions: 26.5 x 35.2 cm
- Static pressure: 25 Pa
- Noise level: from 31 dBA (S6) / 35 dBA (S9)
- Speeds: 10 digital speeds plus dynamic wind modes
- Oscillation: 90-degree rotation across 10 ranges, 55-degree tilt
- Motor: brushless EC with dual-ball bearings, rated 67,000 hours
- Voltage: 100-240V AC
- Power: 11 W
- Current: 0.14 A (S6) / 0.15 A (S9)
- Waterproof rating: IP-54
- Cord length: 2.4 m (8 ft)

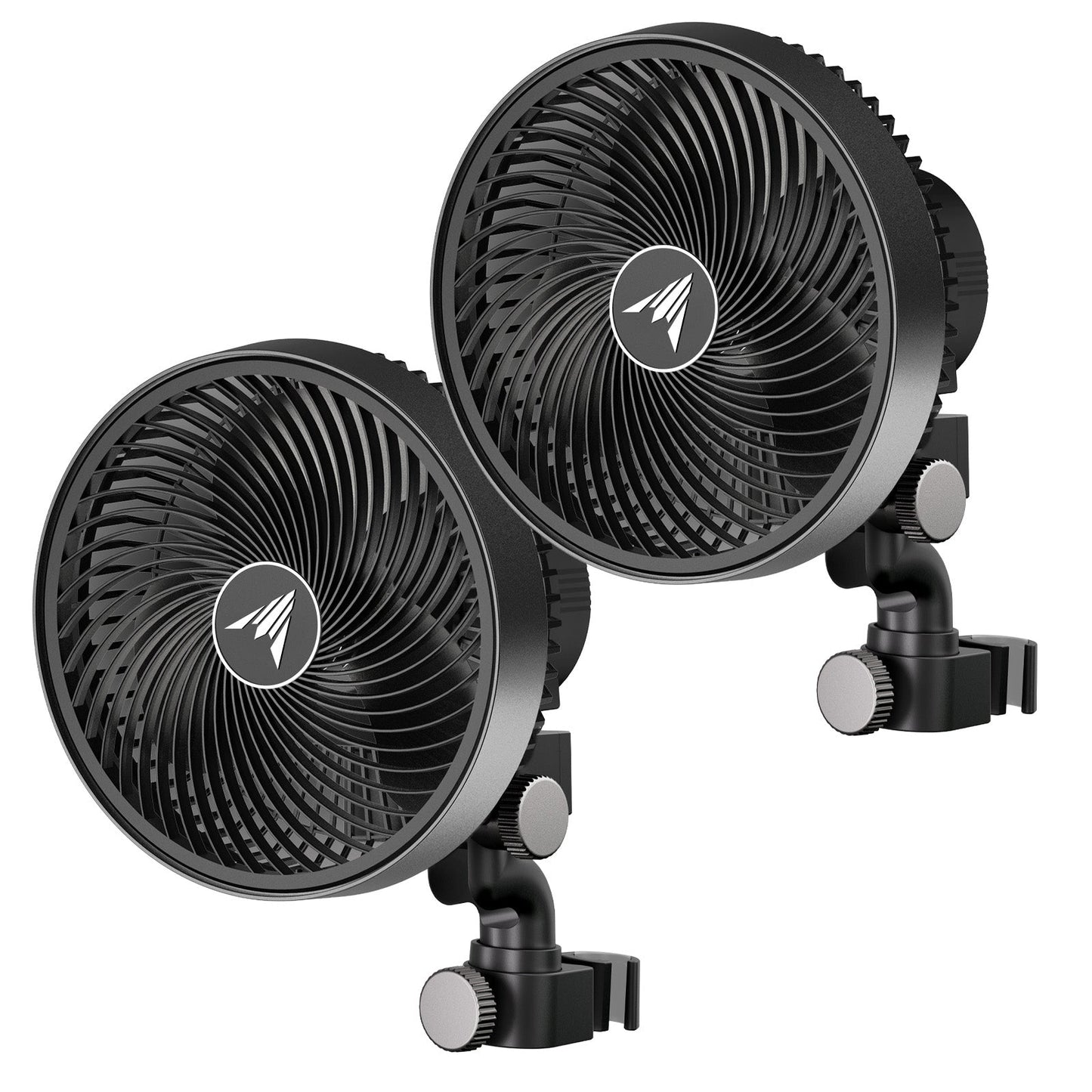

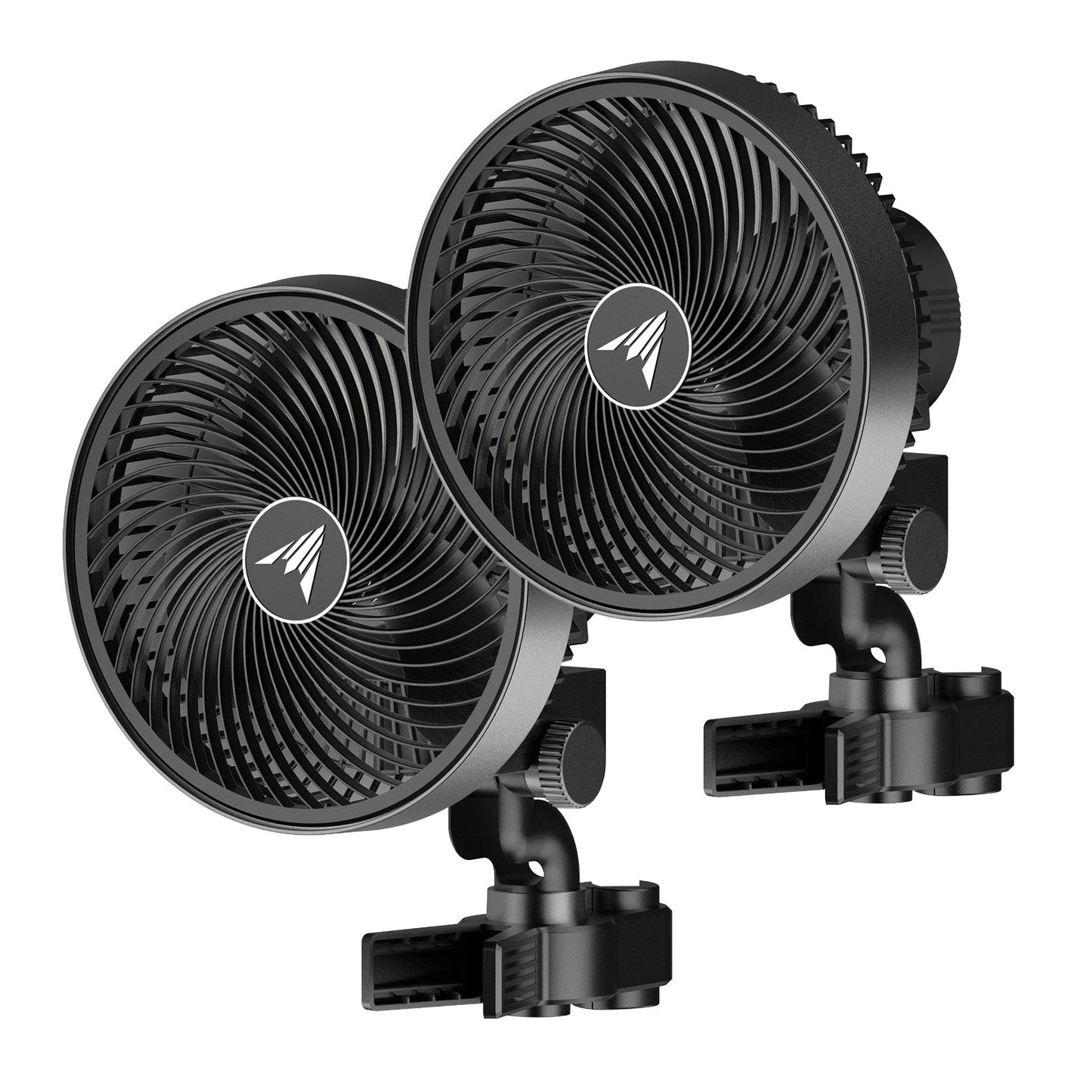

- Control: UIS-compatible; available as single units or twin packs
Questions & answers
What's the difference between the S6 and S9?
The S6 has a 6in impeller and moves up to 552 m3/h (325 CFM). The S9 has a 9in impeller and moves up to 688 m3/h (405 CFM). Both come as a single fan or a twin pack.
How noisy is it?
The brushless EC motor runs from 31 dBA on the S6 and 35 dBA on the S9, with 10 speeds and natural-wind modes.
How does it mount?
It clips onto tent poles or trellis bars, with 90-degree auto oscillation and a 55-degree tilt. Angle it so air passes over the plants rather than blasting them.
Can it be automated?
Yes, it's UIS-compatible, so an AC Infinity UIS controller can adjust its speed and oscillation along with the rest of your climate kit.
What power does it use?
11W on 100–240V AC, with a 2.4m cord. The motor is rated to 67,000 hours and the fan is IP-54 rated against dust and splashes.
