Description
A propagator that does not have to come off to vent

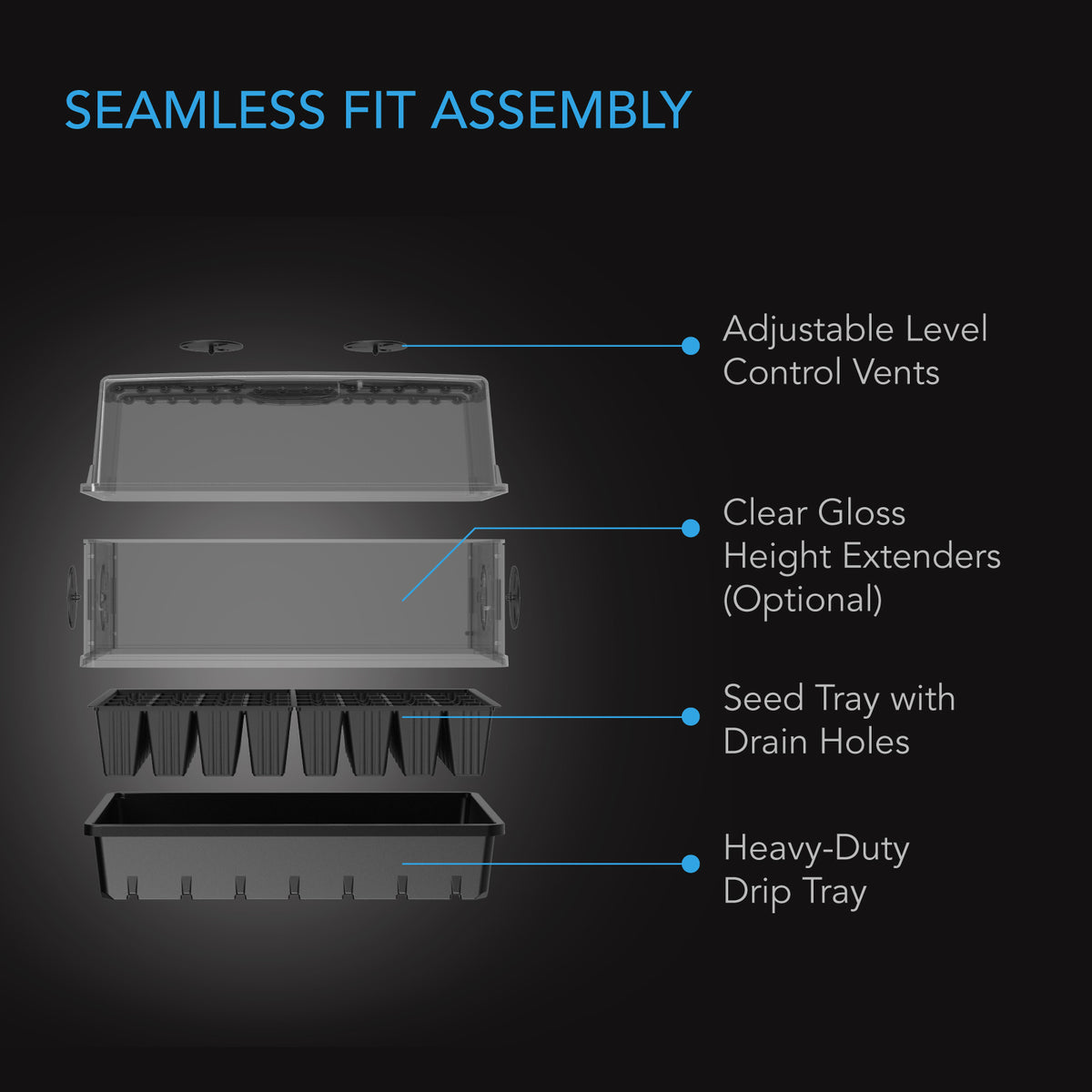

The AC Infinity Humidity Dome is a heavy-duty propagator with rotating vents in the lid and a height extension kit in every box, so humidity comes down gradually and the dome keeps fitting as seedlings grow rather than being lifted off the day they touch the top.

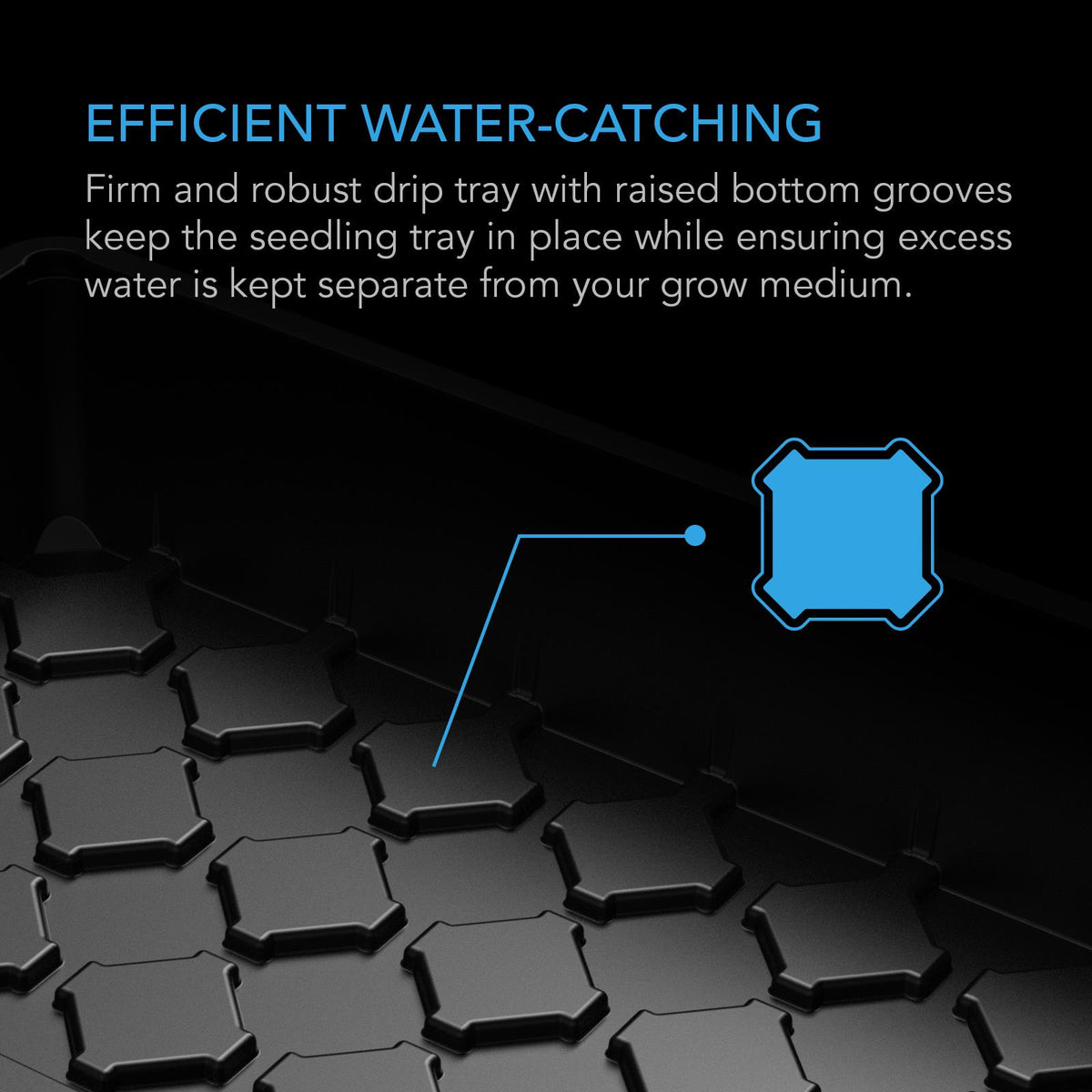

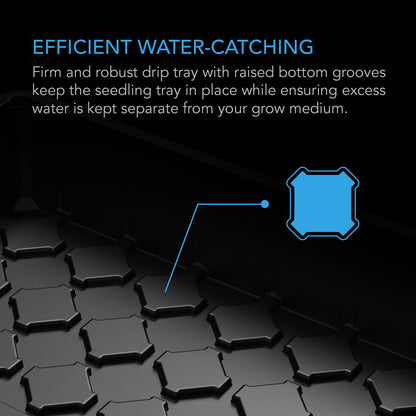

Underneath sits a raised drip tray with grooves that hold run-off clear of the cell bases, which is what stops the bottom of a tray sitting wet. The seed tray lifts out on its own for watering.
With or without lights?

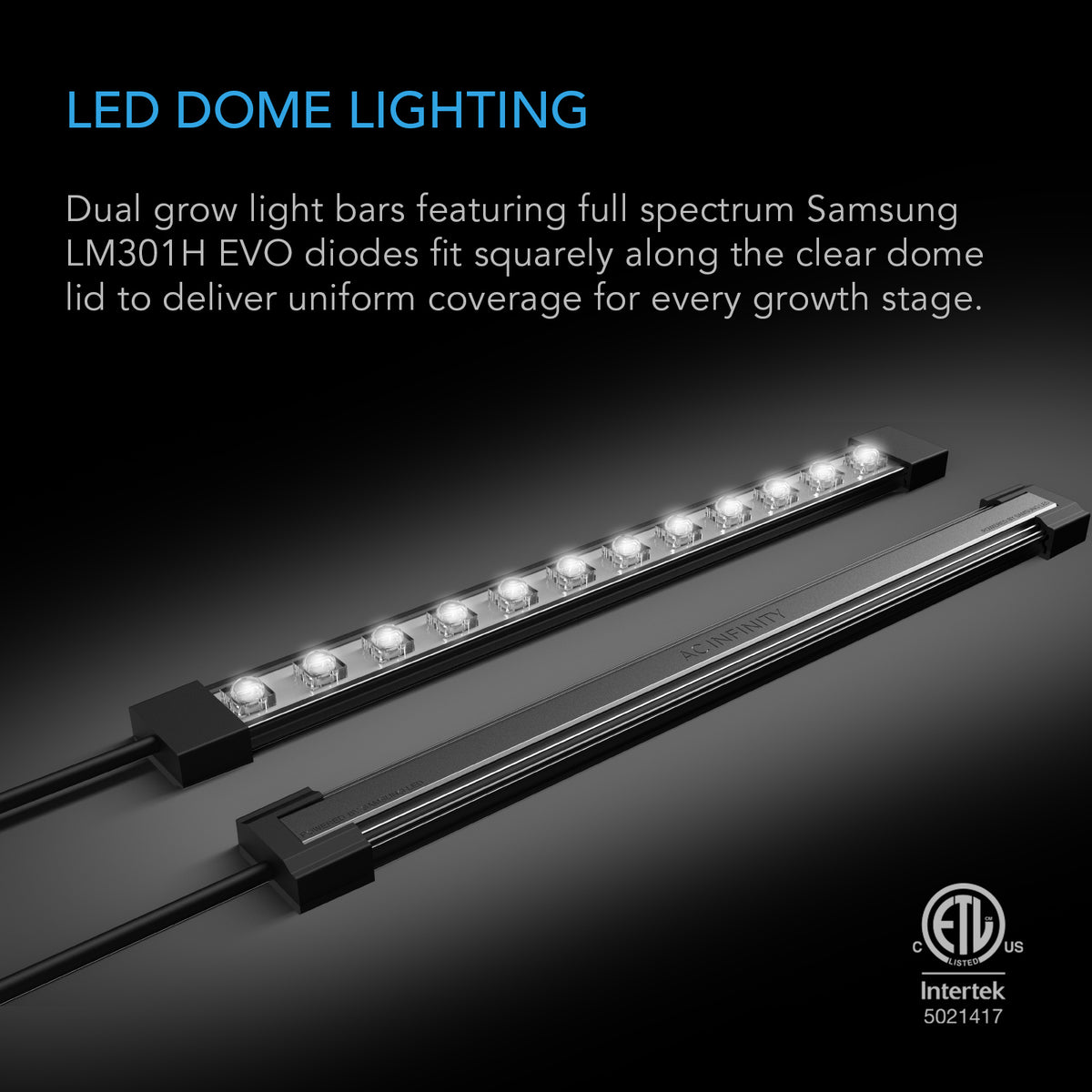

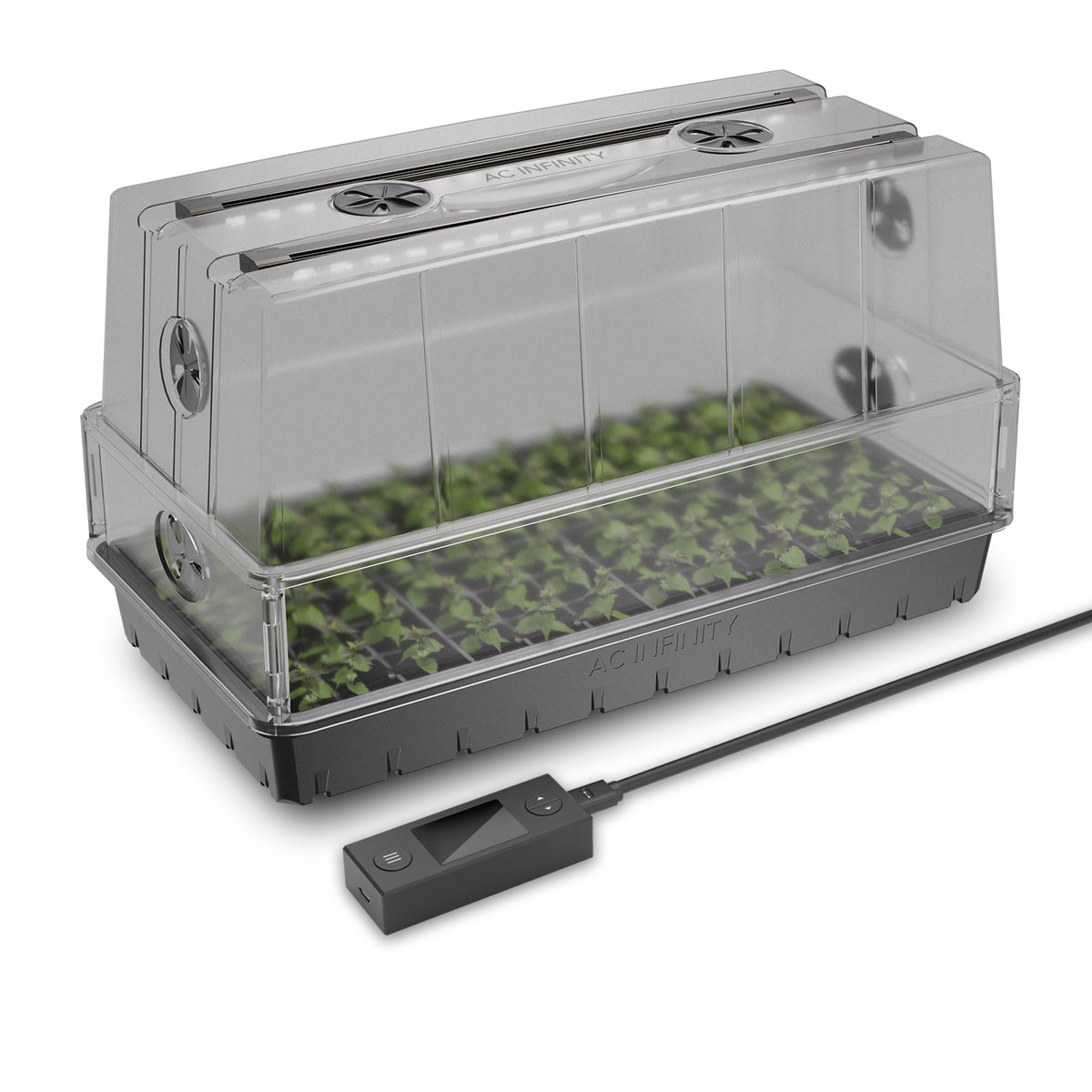

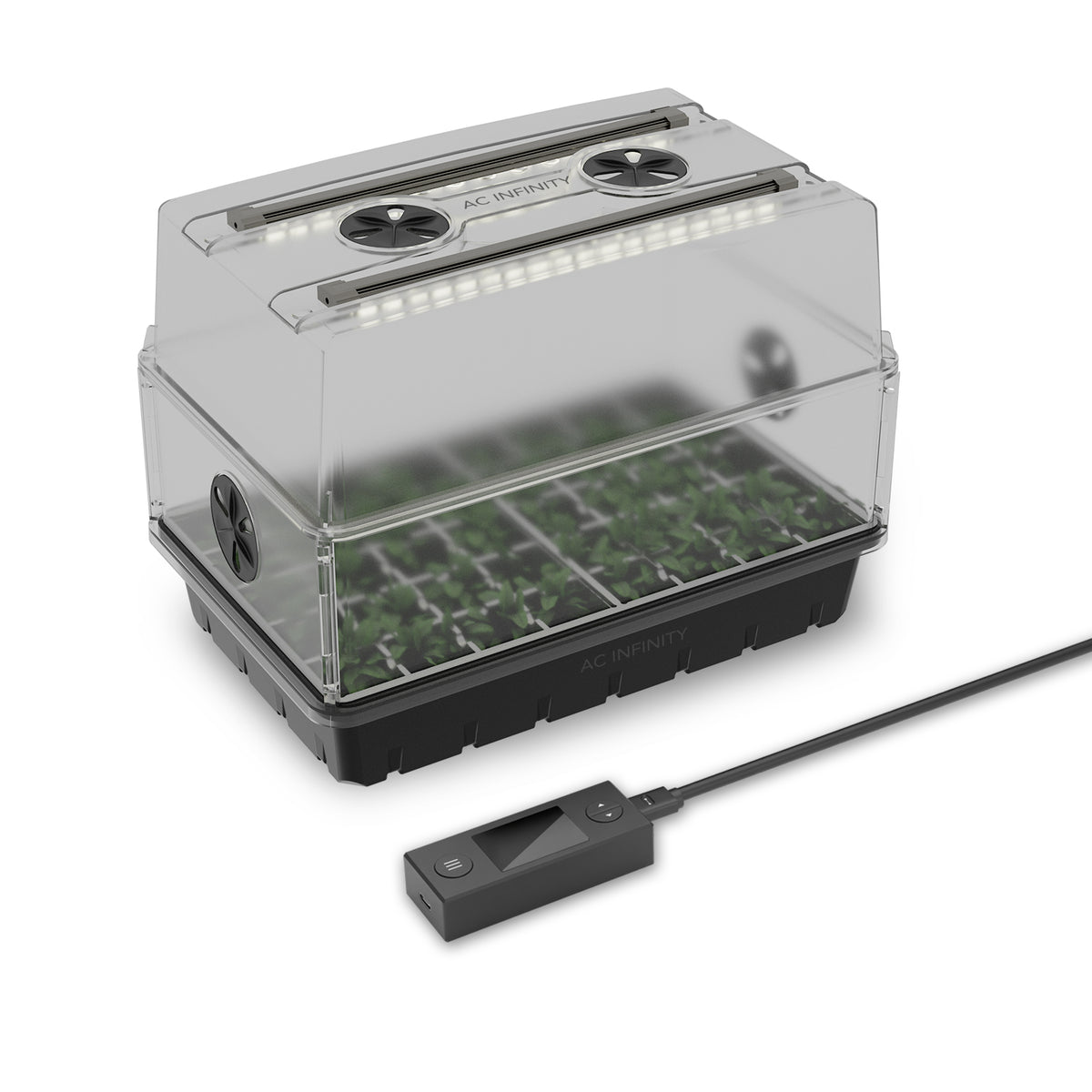

Two of the four options add two Samsung LM301H EVO light bars fitted to the lid, with a dimming timer controller. On a windowsill that is the difference between seedlings that stand up and seedlings that stretch. The plain domes take a light of your own above them.
Key Benefits
- Height extension kit included on all four, adding headroom as growth takes off

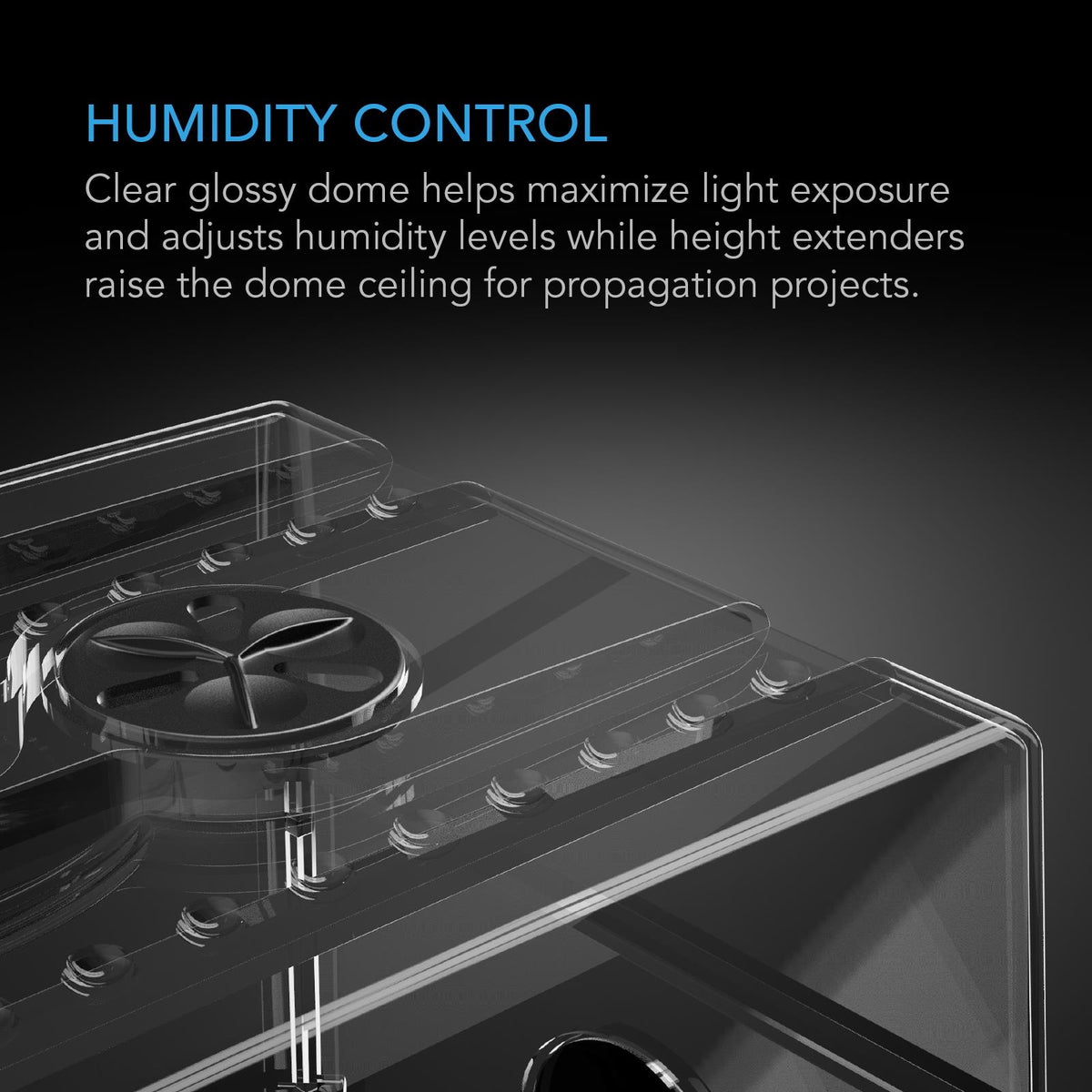

- Adjustable rotating vents so humidity is stepped down rather than switched off
- Raised drip tray holding run-off away from the cell bases
- Dual LM301H EVO light bars on the LED versions, with a timer controller
- Lift-out seed tray for watering without disturbing the dome
Specifications

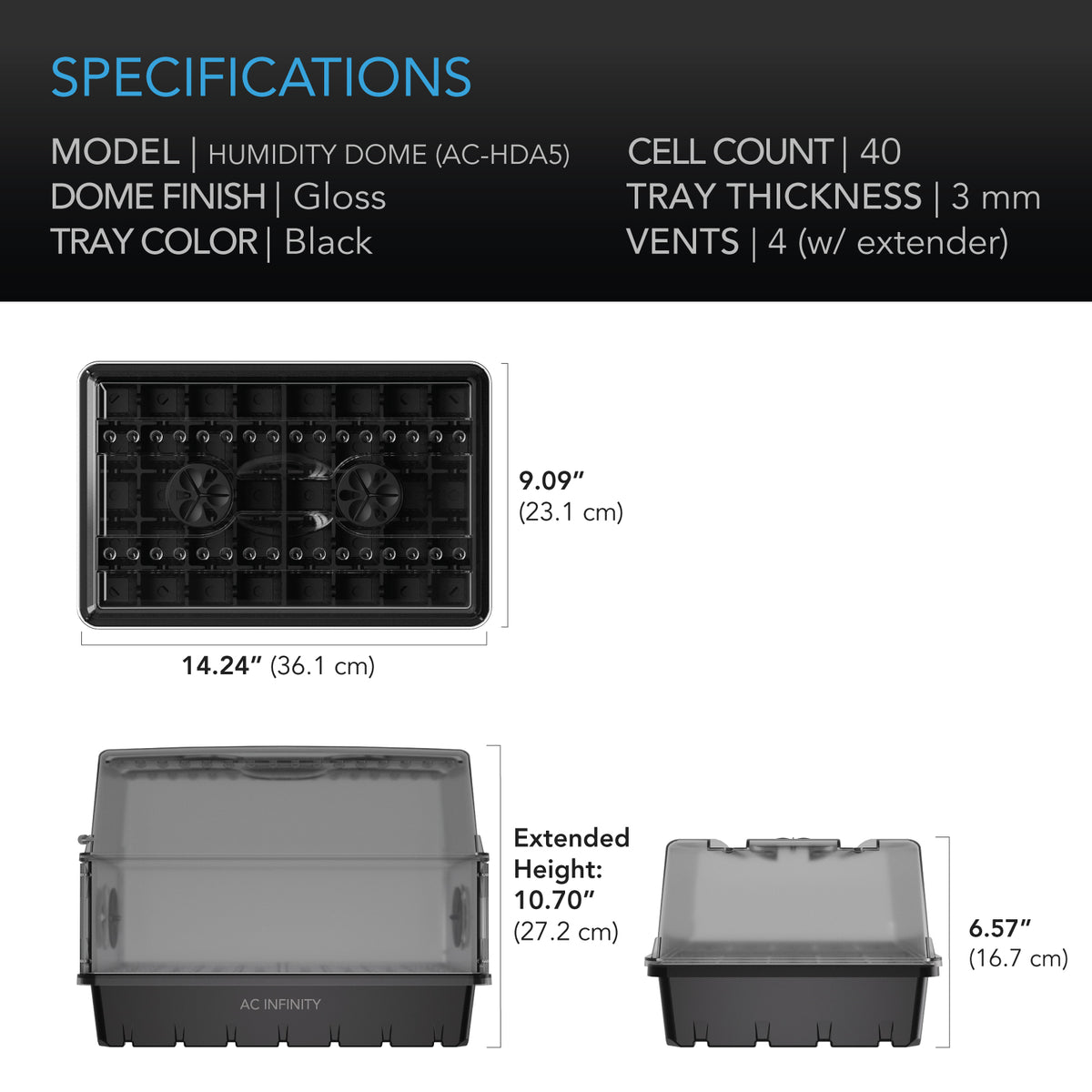

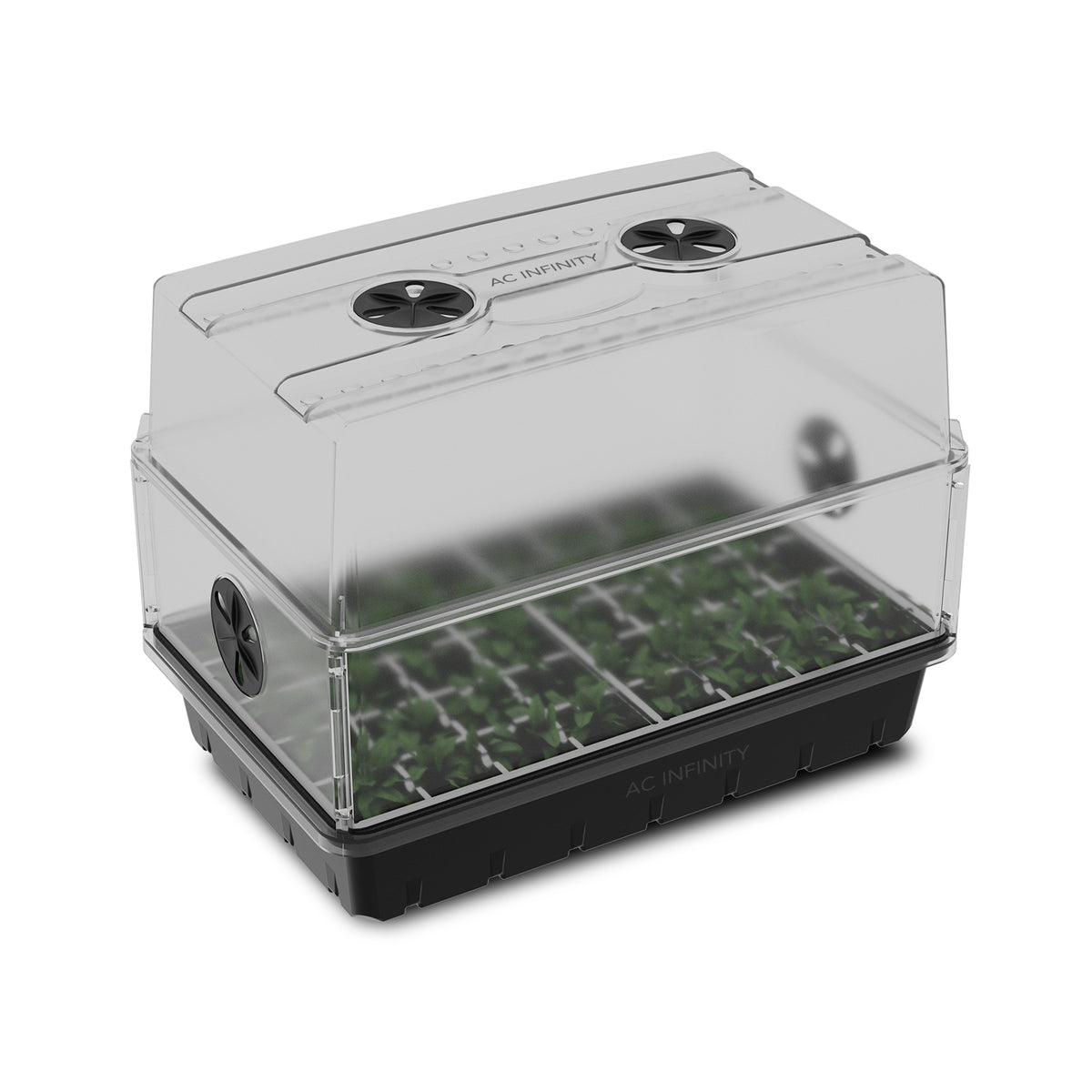

- 5x8: 36.1 × 23.1cm, 16.7cm high, 27.2cm with the extender, 40 cells, 2 vents

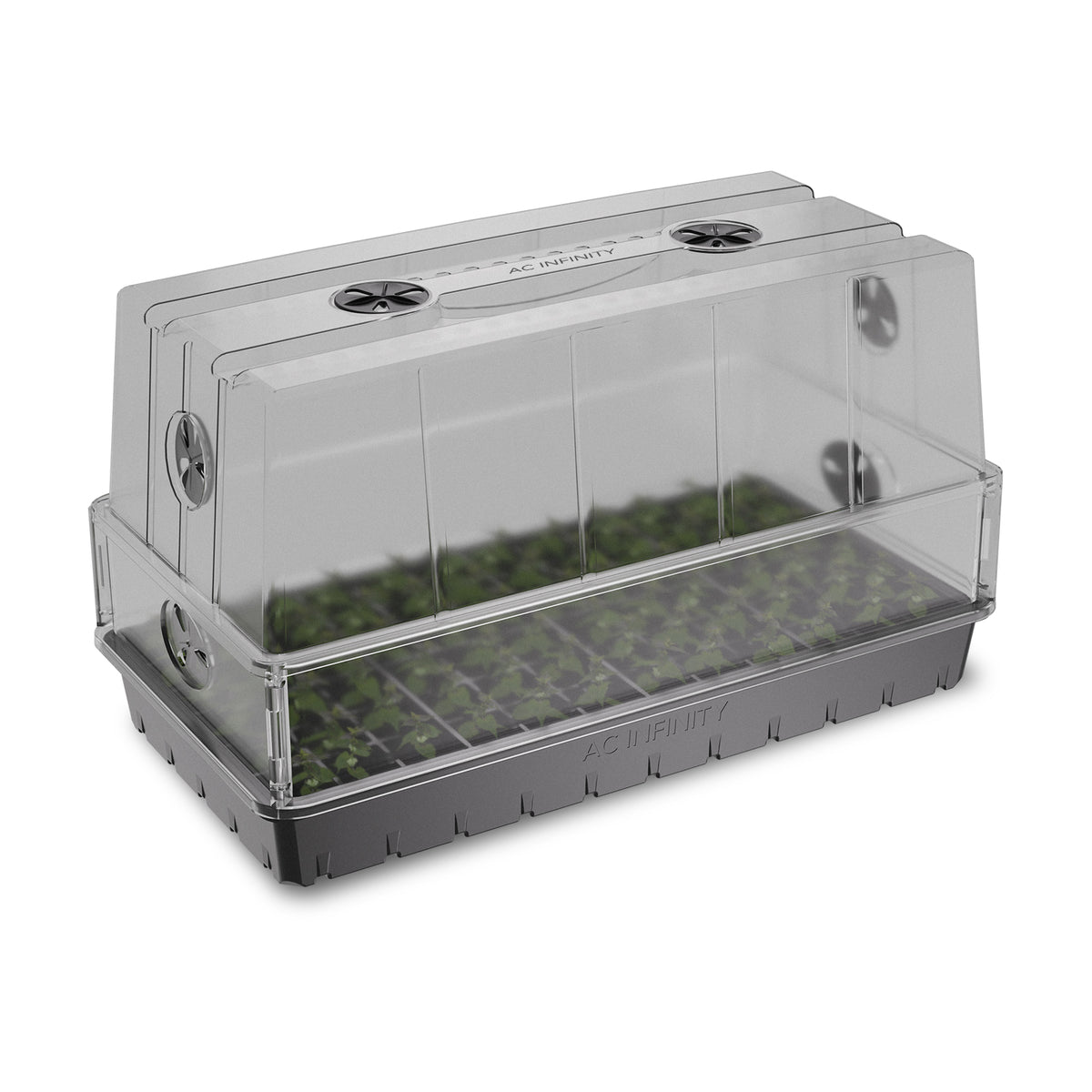

- 6x12: 53.3 × 27.4cm, 24.4cm high, 72 cells, 4 vents
- LED bars (5x8): two 27.9cm bars, 12 chips each, 28W
- LED bars (6x12): two 40.6cm bars, 18 chips each, 22W
- Diodes: Samsung LM301H EVO, 3000K and 5000K
- Light rating: IP65, 50,000 hours, dimming timer controller
Technical Specifications
- Type: propagation humidity dome with height extender
- Vents: 2 rotating lid vents, 4 with the extender fitted
- Height extender: included with every option
- Seed tray: PET, lifts out
- Base tray: drains excess water away from the cells
- Light bar diodes (LED options): Samsung LM301H EVO, 3000K and 5000K
- Light bar rating (LED options): IP65, 50,000 hours
- Light controller (LED options): dimming timer; UIS-compatible
- Supply (LED options): 100–240 V AC power adapter
| By size | 5x8 – 40 Cell | 5x8 – 40 Cell with LED Bars |
|---|---|---|
| Cells | 40 | |
| Height with extender | 27.2 cm | |
| Dome / base tray | PS / PP, 1.5 mm | |
| LED bars | – | 2 x 27.9 cm, 12 LEDs each |
| LED power | – | 28 W |
| Model | AC-HDA5 | AC-HDL5 |
| Dimensions | 36.2 x 23.1 x 16.7cm | 36.2 x 23.1 x 16.7cm |
| By size | 6x12 – 72 Cell | 6x12 – 72 Cell with LED Bars |
|---|---|---|
| Cells | 72 | |
| Height with extender | – | 34.6 cm |
| Dome / base tray | PET / PS, 2.2 mm | PS / PP, 1.5 mm |
| LED bars | – | 2 x 40.7 cm, 18 LEDs each |
| LED power | – | 22 W |
| Model | AC-HDA7 | AC-HDL7 |
| Dimensions | 53.3 x 27.4 x 24.4cm | 53.3 x 27.4 x 24.4cm |
