Description
Light into the places the main fixture cannot reach

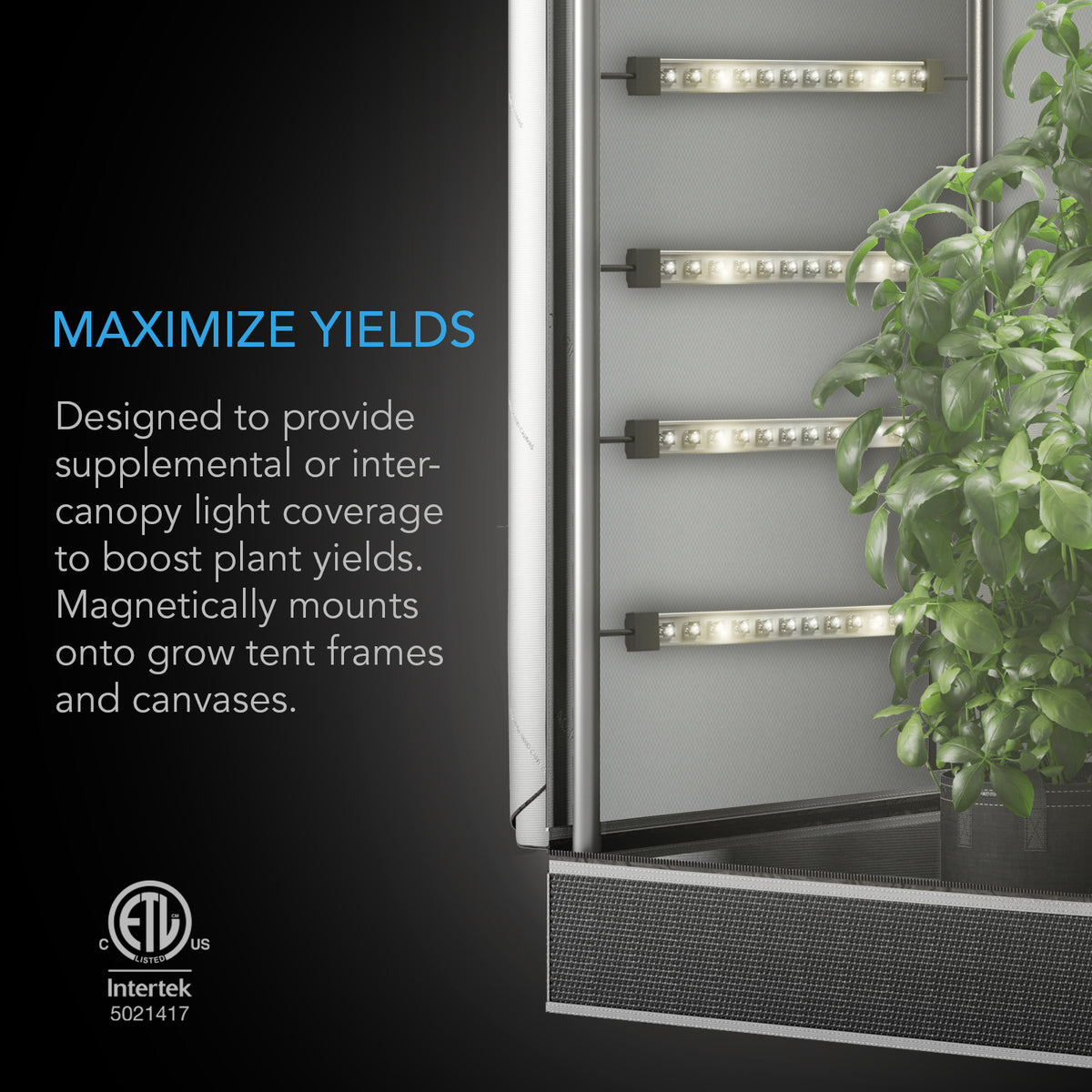

A single overhead board lights the top of the canopy and very little else. The AC Infinity IONBEAM Full Spectrum bars are built to be mounted inter-canopy or along a wall, putting usable light on the lower and side growth that would otherwise sit in shade.
Both kits use Samsung LM301H EVO diodes in a 3000K and 5000K blend, and both are four-bar sets supplied with a dimming schedule controller and steel magnetic mounting bars.
Key Benefits
- Samsung LM301H EVO diodes — the current generation, not the older LM301B
- Four bars in every kit, with a magnetic steel mounting bar for each
- Schedule controller included, so the bars run to their own window
- Slim profile at just 2.75cm deep, designed to sit inside the canopy
- IP65 rated and rated to 50,000 hours
Which length do I need?

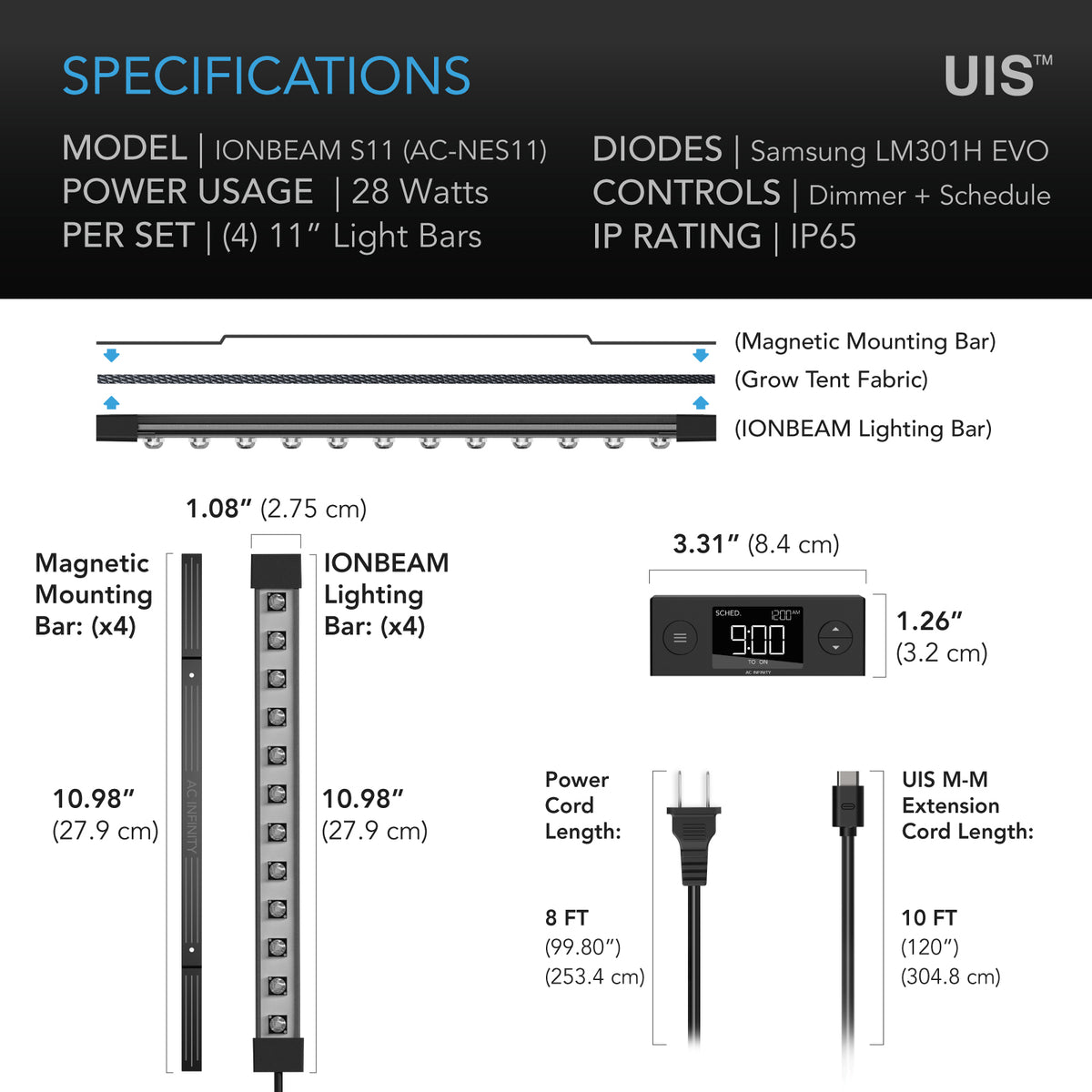

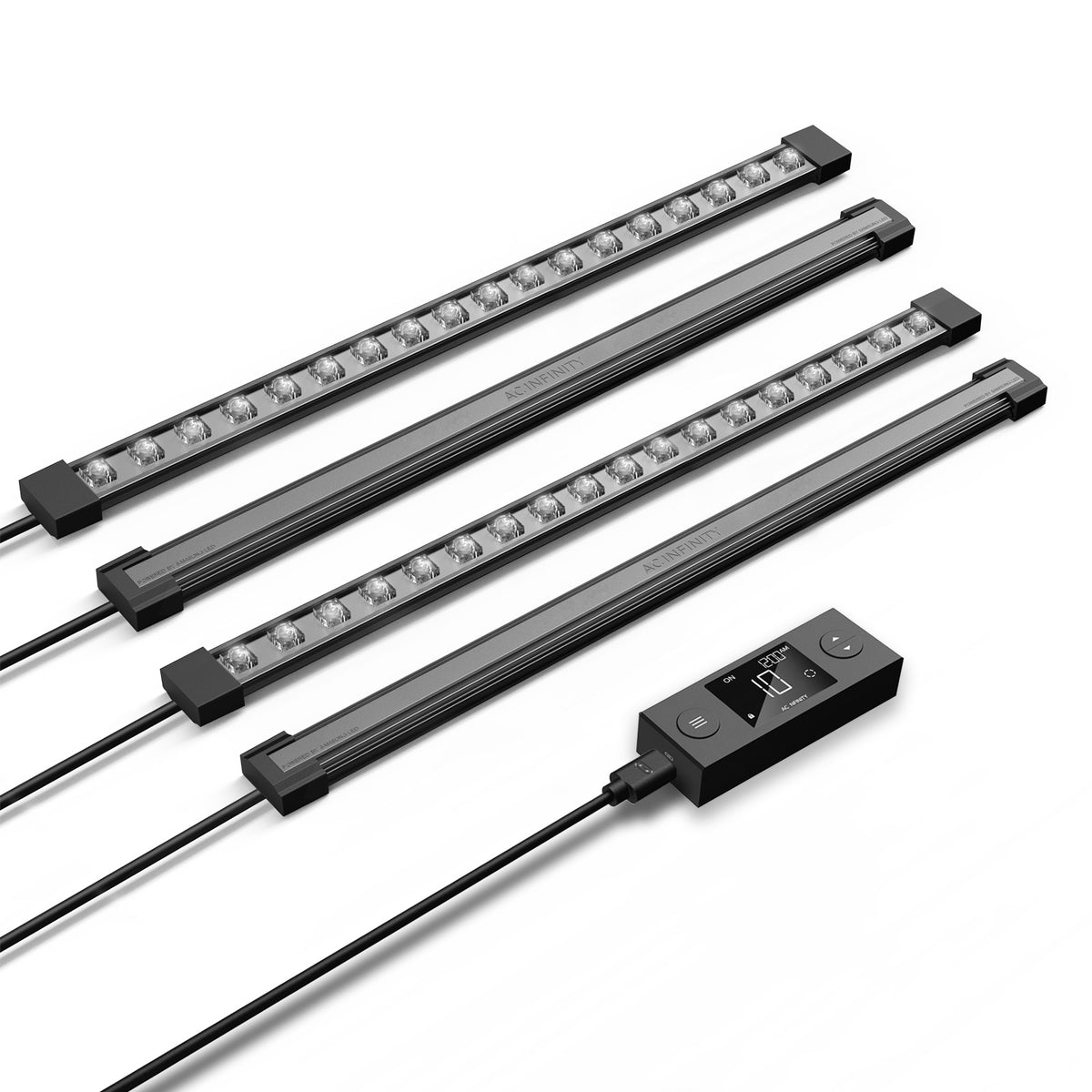

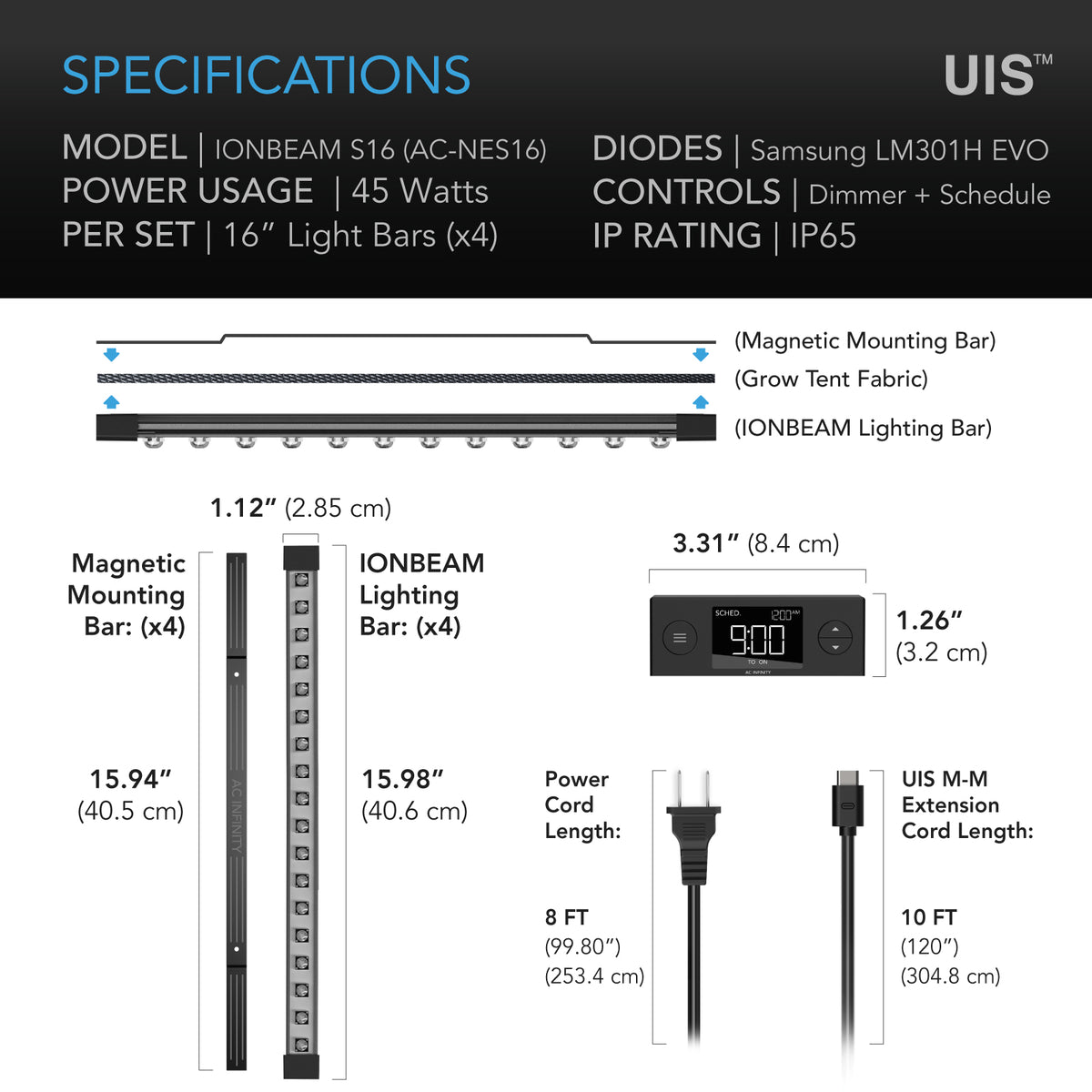

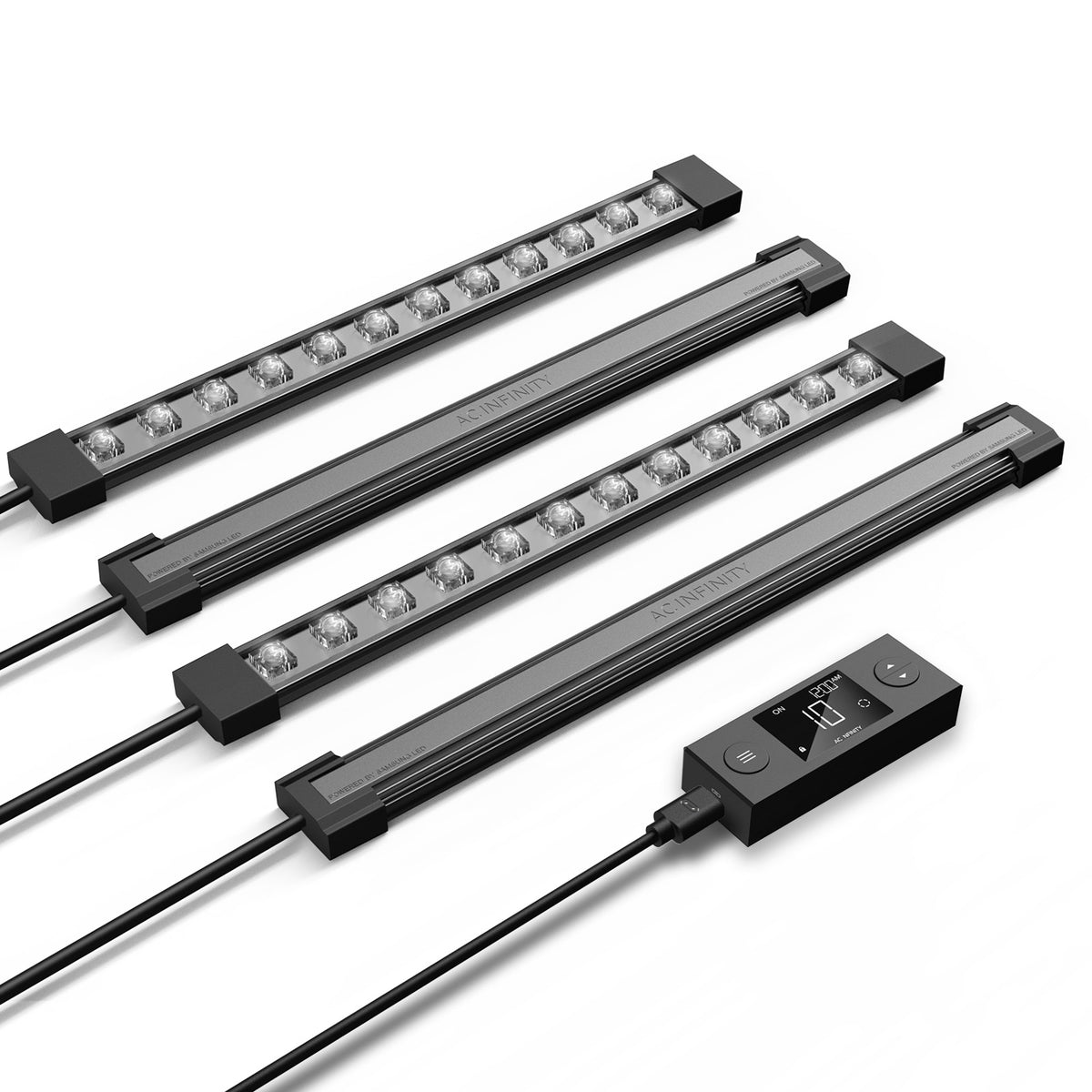

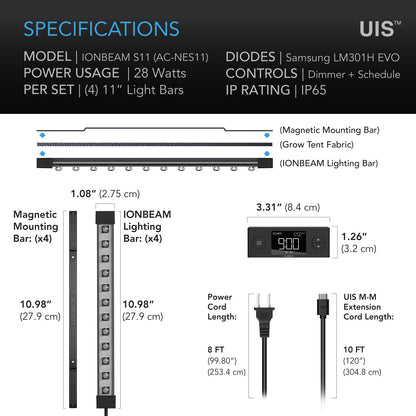

S11 bars are 27.9cm long with 12 diodes each — the choice for a smaller tent or tighter runs between plants. S16 bars are 40.6cm with 18 diodes each, for wider spans and taller canopies.
- Type: full-spectrum LED grow light bar kit
- Bars per kit: 4

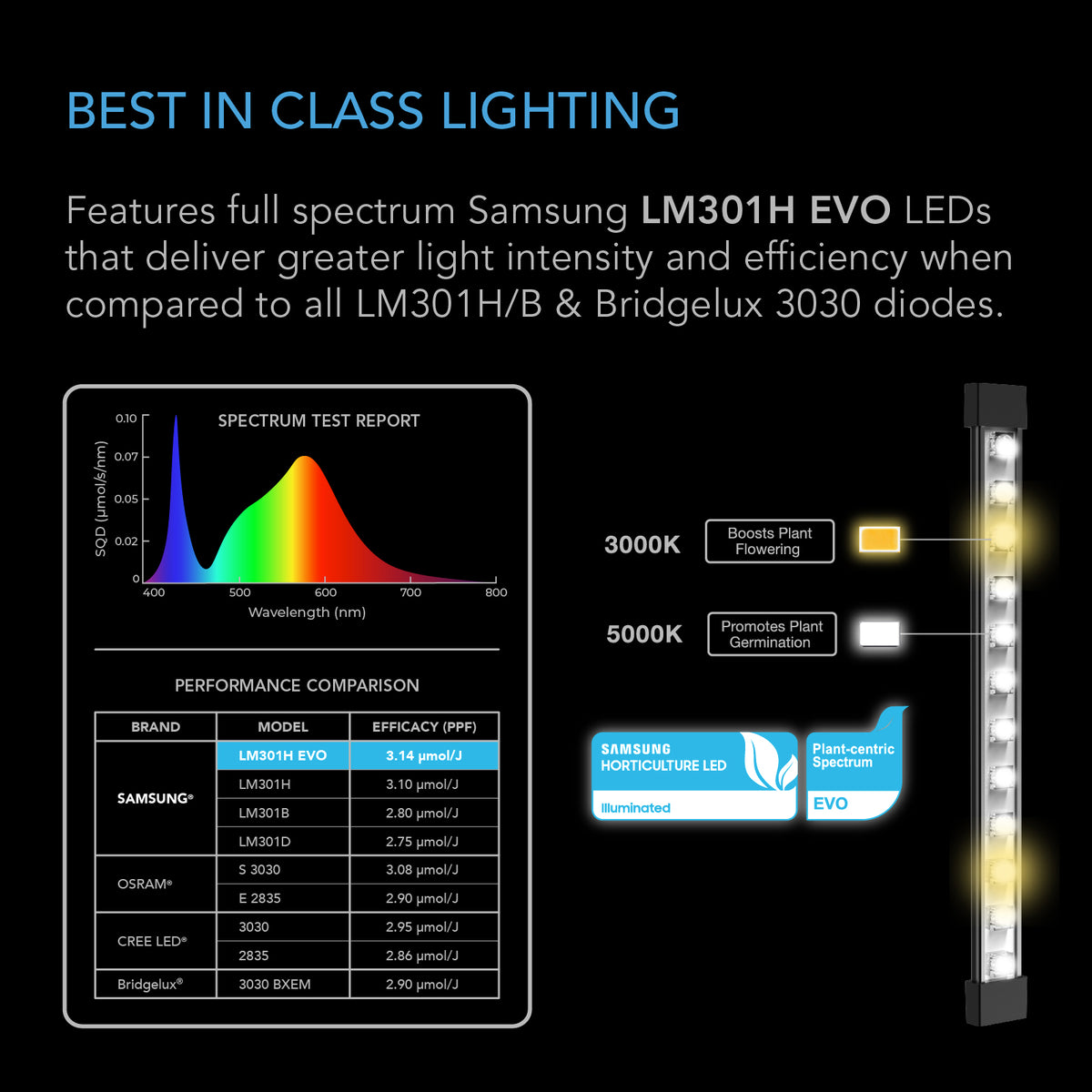

- Diodes: Samsung LM301H EVO
- Spectrum: 3000 K and 5000 K white
- Mounting: magnetic bar ends, 4 steel mounting bars, wall screws

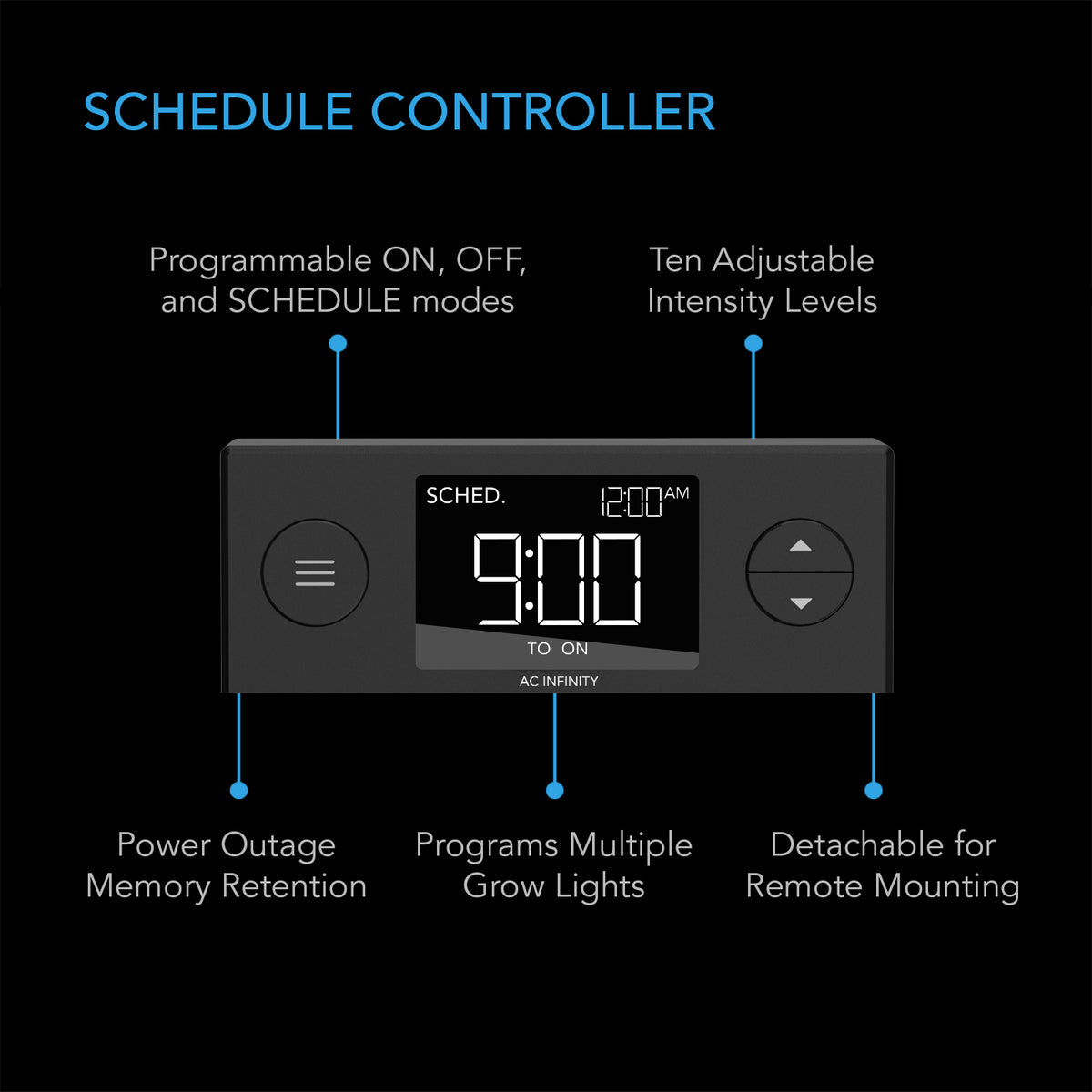

- Controller: dimming schedule controller, 10 levels
- Controller size: 8.4 x 3.2 cm
- Power supply: EC power adapter, 100–240 V AC, 50/60 Hz
- Power cord: 2.53 m
- Connector cord: 23.2 cm
- Ingress protection: IP65
- Operating conditions: 0 to 60 °C, 35 to 85% RH
- Rated life: 50,000 hours
- Smart control: UIS port for AC Infinity controllers
- Warranty: 2 years (AC Infinity)
| By size | S11 – 11 in, 4 Bar Kit | S16 – 16 in, 4 Bar Kit |
|---|---|---|
| Input power | 30W | 42W |
| Coverage | Supplemental / propagation bars | Supplemental / propagation bars |
| Dimensions | 27.9 x 2.75cm | 40.6 x 2.85cm |
| LED chips per bar | 12 | 18 |
Questions & answers
What's the difference between the S11 and S16 kits?
S11 bars are 27.9cm long with 12 diodes each, 30W per kit. S16 bars are 40.6cm long with 18 diodes each, 42W per kit. Both kits have four bars.
What's in the box?
Four light bars, a dimming schedule controller, four steel magnetic mounting bars and screws.
Where are they meant to go?
Inside the canopy or along a wall, lighting the lower and side growth that a single overhead fixture leaves in shade.
How do they compare with Cosmorrow LED strips?
IONBEAM kits are supplementary bars totalling 30W or 42W for inter-canopy use. Cosmorrow kits run from 60W to 200W and are built to light a small space on their own.
Which diodes do they use?
Samsung LM301H EVO in a 3000K and 5000K blend. The bars are IP65 rated and rated to 50,000 hours.
