Description
Targeted UVA, on a schedule, without a separate timer
The AC Infinity IONBEAM UV bars run 365nm and 395nm UVA diodes in a slim 11-inch bar you can put where the light actually needs to fall. Each kit comes with its own dimming schedule controller, so the UV runs for a set window each day rather than whenever the main light is on.
Magnetic mounting bars are included with every bar, so they go up against steel tent poles or a frame without drilling and come down again as easily when the layout changes.
Which kit do I need?

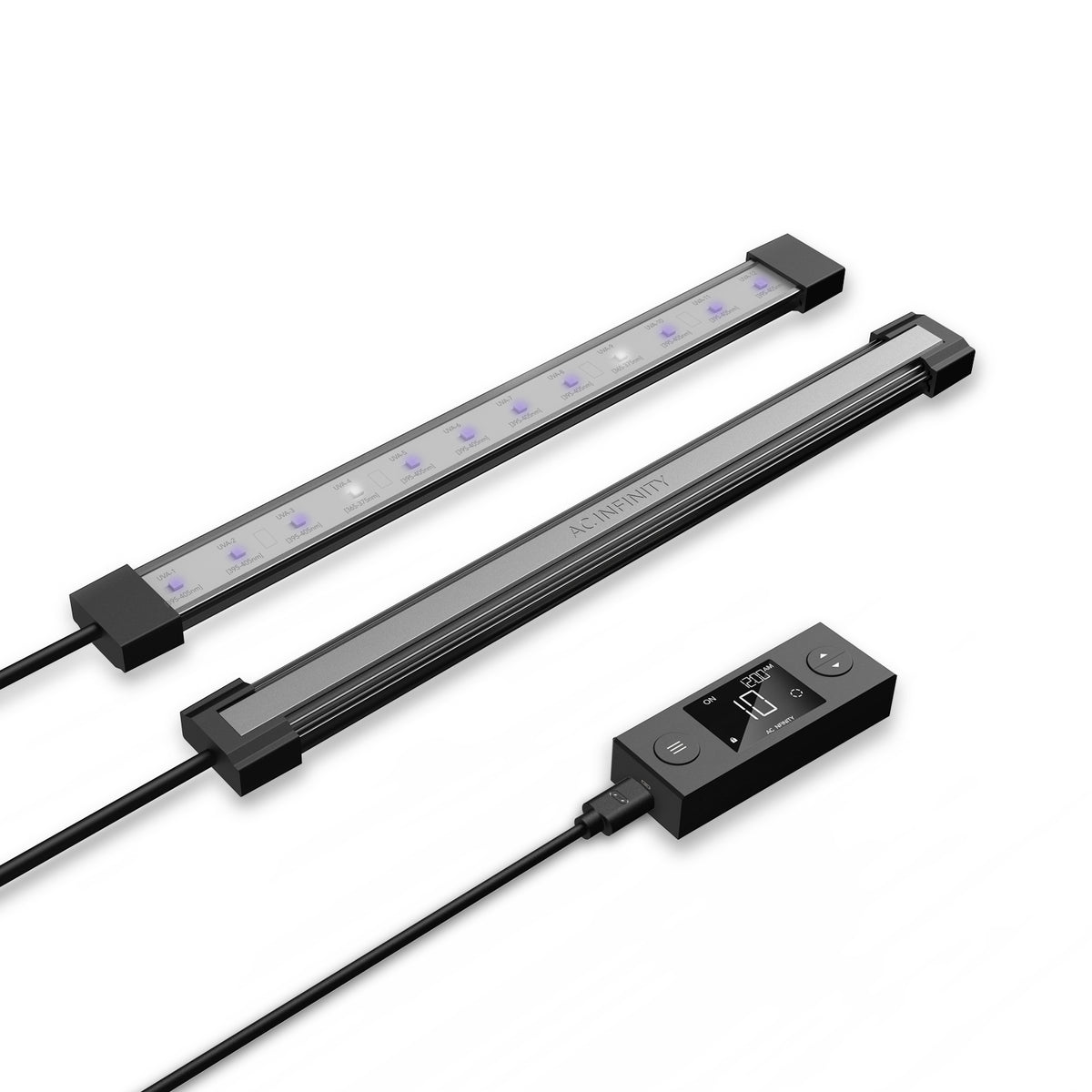

- U2 — two bars. AC Infinity rate two bars as full coverage for 2 × 2, 2 × 4 and 3 × 3 spaces

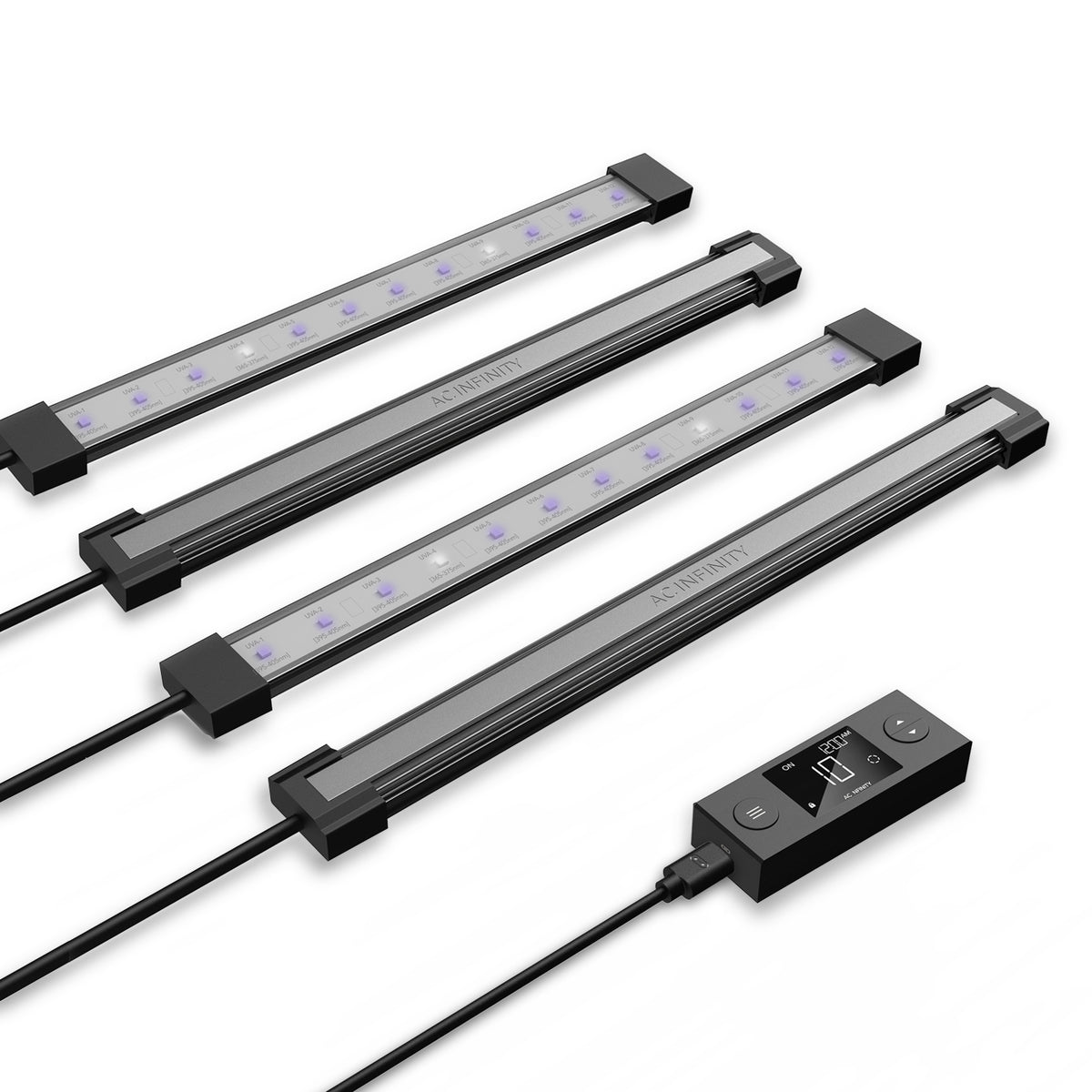

- U4 — four bars. Rated for 4 × 4 and 5 × 5 spaces
Key Benefits

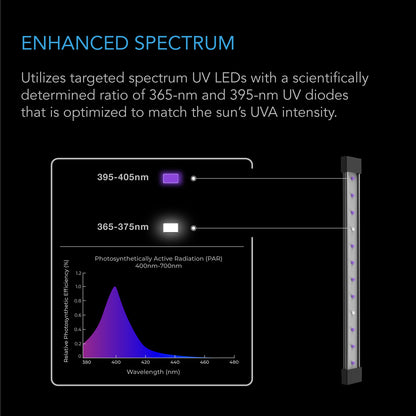

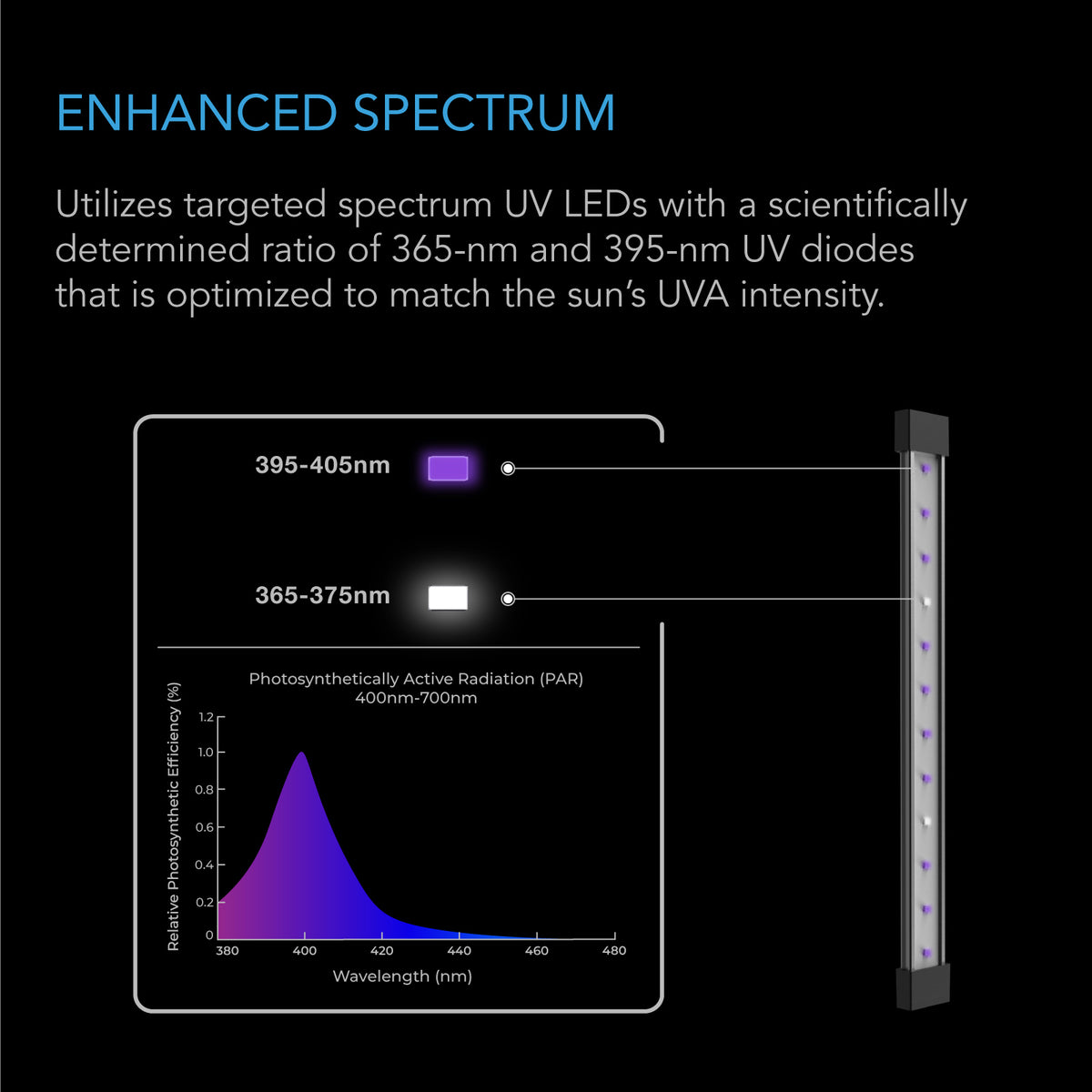

- Two UVA wavelengths, 365nm and 395nm, rather than a single peak

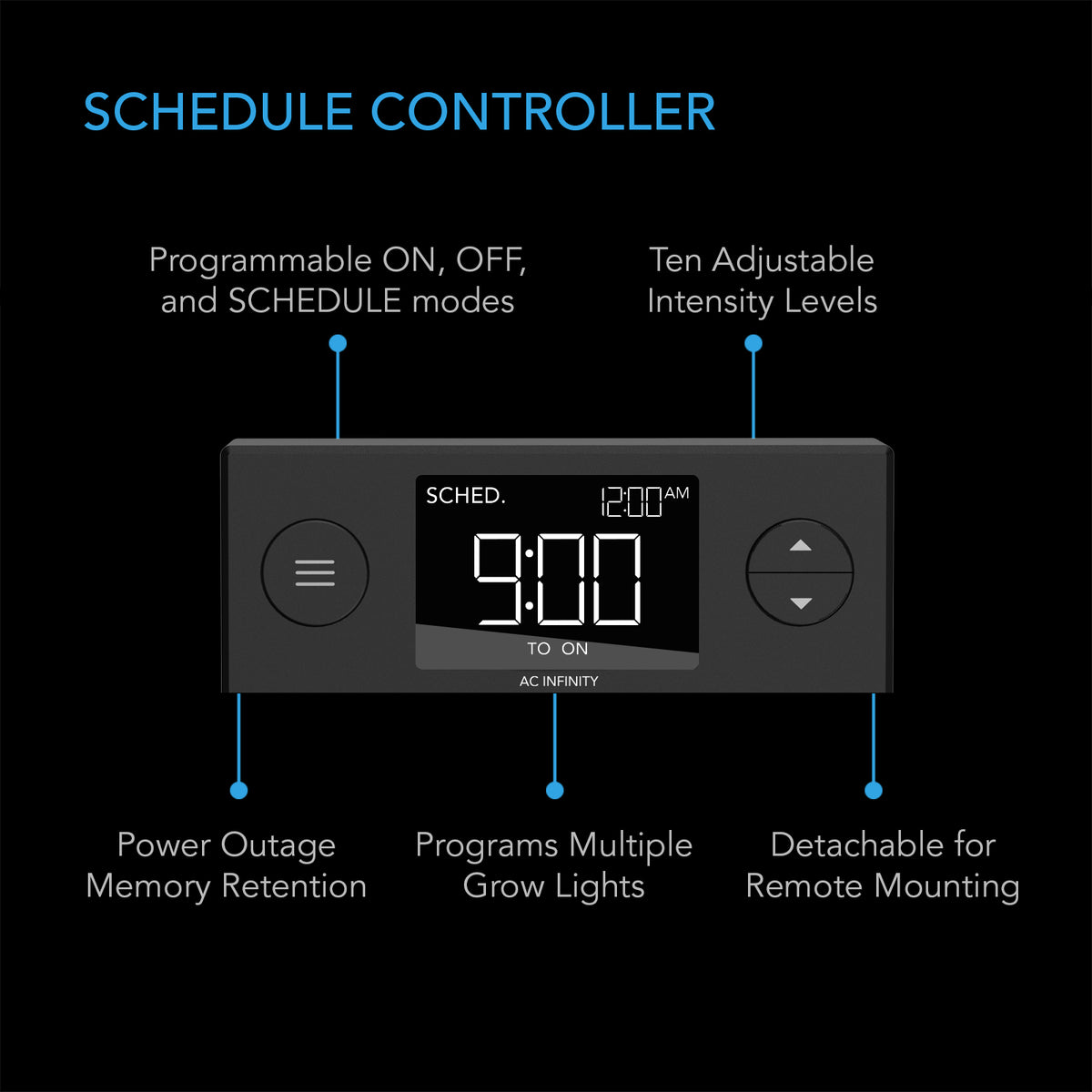

- Schedule controller included — ten intensity levels, on/off and timed modes, with power-outage memory
- Magnetic mounting bars supplied for every light bar
- IP65 rated and rated to 50,000 hours
- UIS compatible, so it can join an AC Infinity controller setup later

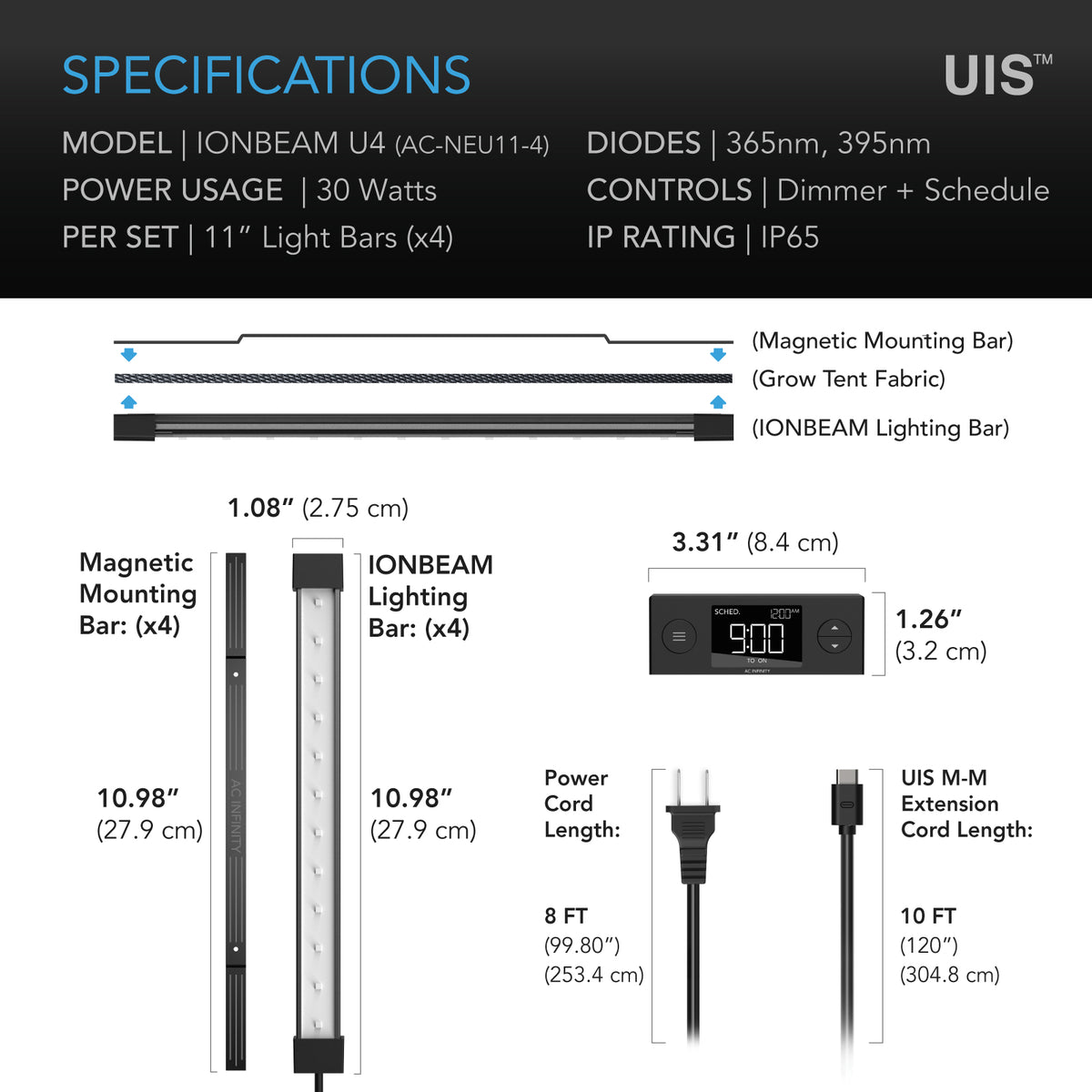

- Type: UVA LED supplemental light bar kit
- Diodes: 365 nm and 395 nm UVA
- LED chips per bar: 12
- Mounting: magnetic bar ends, one steel mounting bar per light bar
- Controller: dimming schedule controller, 10 levels
- Controller size: 8.4 x 3.2 cm
- Power supply: EC power adapter, 100–240 V AC, 50/60 Hz
- Power cord: 2.53 m
- Connector cord: 23.2 cm
- Ingress protection: IP65
- Operating conditions: 0 to 60 °C, 35 to 85% RH
- Rated life: 50,000 hours
- Smart control: UIS port for AC Infinity controllers
- Warranty: 2 years (AC Infinity)
| By size | U2 – 2 Bar Kit | U4 – 4 Bar Kit |
|---|---|---|
| Input power | 15W | 30W |
| PPF | UV – no PPF rating | UV – no PPF rating |
| Coverage | 0.9 x 0.9m (3x3 ft) or 0.6 x 1.2m (2x4 ft) | 1.5 x 1.5m (5x5 ft) |
| Dimensions | 27.9 x 2.75cm | 27.9 x 2.75cm |
| Bars per kit | 2 | 4 |
| Full UV coverage | 2 x 2, 2 x 4, 3 x 3 ft | 4 x 4 and 5 x 5 ft |
