Description
A solid board, no fan, nothing to fail
The AC Infinity IONBOARD is a fanless unibody aluminium board — the whole fixture is the heatsink, so there is no fan to clog, whine or wear out. That also makes it silent, which matters more than it sounds in a small room where the extraction is already making noise.
The whole range is IP-65 rated and dimmable from 0 to 100% in five steps, and every model carries a UIS daisy-chain port, so boards can be driven together from one AC Infinity controller later without replacing anything.
Key Benefits
- Fanless and silent — the aluminium body does the cooling
- IP-65 rated, so humidity and the occasional spray are not a problem
- Five-step dimming from the supplied controller, 0–100% PWM
- UIS compatible — daisy-chain to an AC Infinity controller for scheduling and automation
- 50,000 hour life with ETL, CE and RoHS approval
Which size do I need?
Match the board to the footprint, not the wattage. S22 covers 2 × 2ft, S24 covers 2 × 4ft, S33 covers 3 × 3ft and S44 covers 4 × 4ft. A board run at half power over the right footprint beats a small board run flat out over too large an area.
- Type: fanless full-spectrum LED grow light board

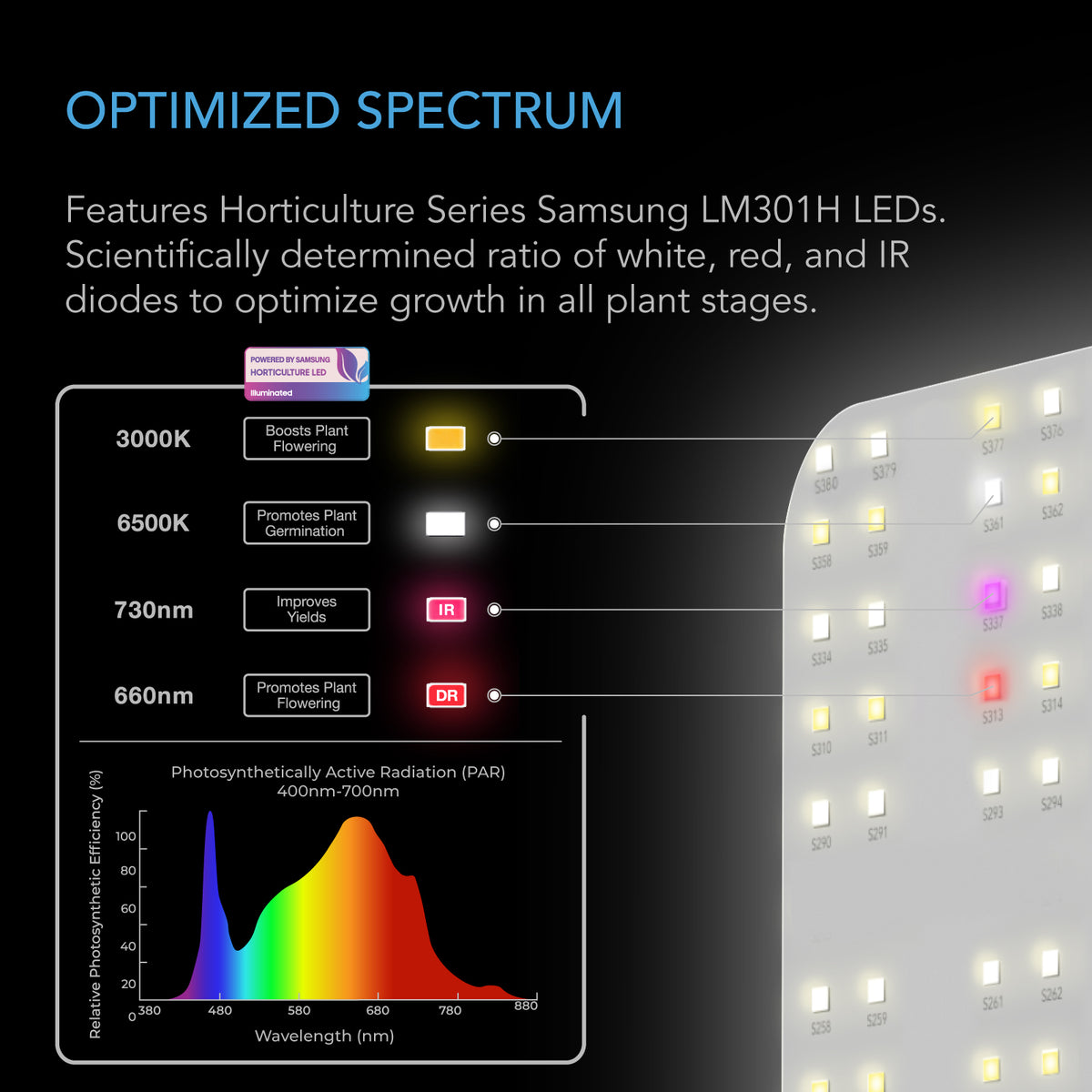

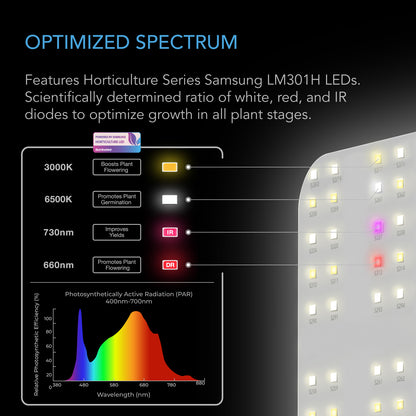

- Spectrum: 3000 K and 6500 K white, 660 nm red, 730 nm far red
- Housing: unibody aluminium board, no fan
- Ingress protection: IP65

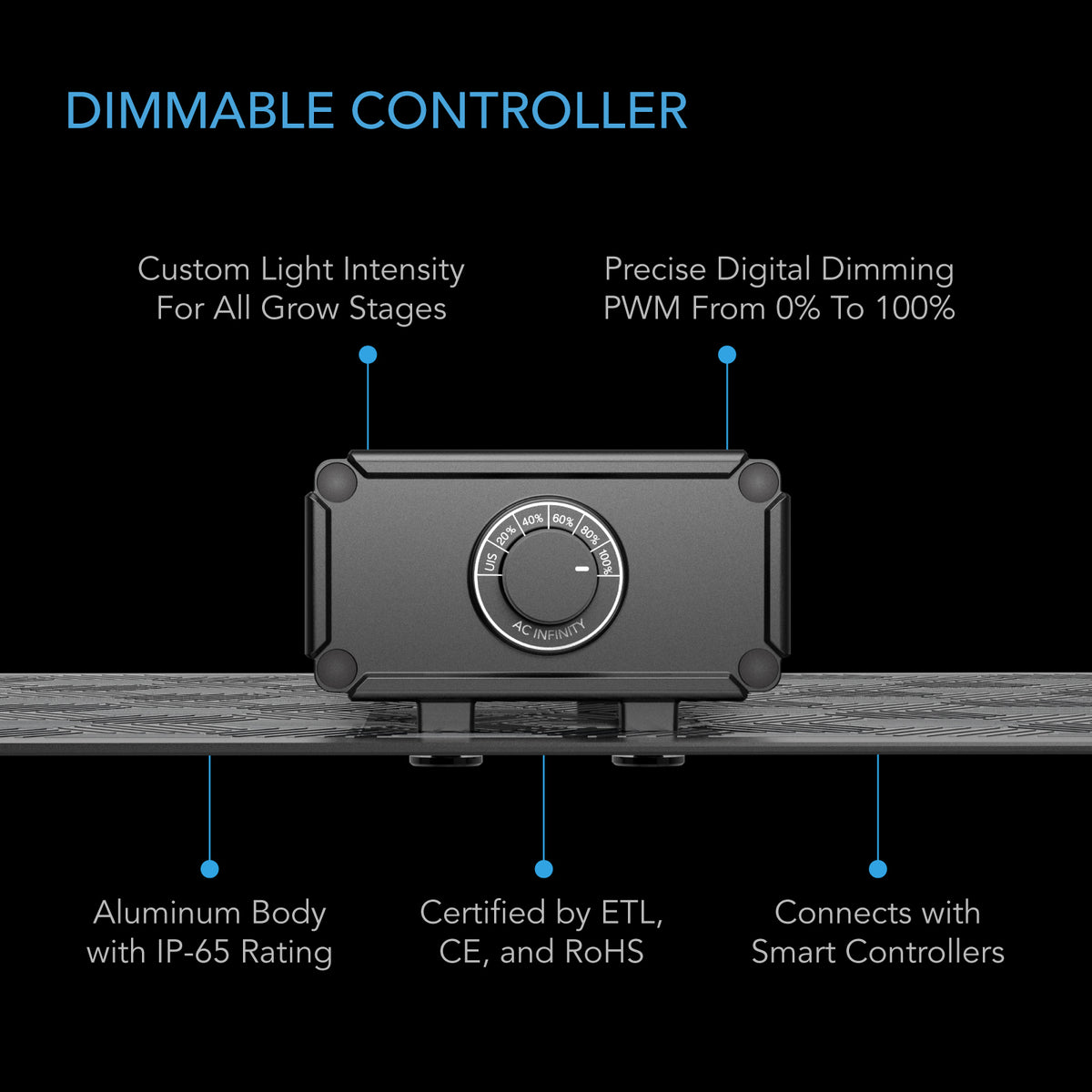

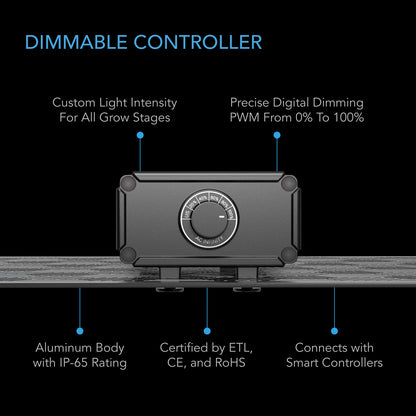

- Dimming: 0–100% in 20% steps, knob on the driver
- Control: digital dimmer and timer; UIS port for AC Infinity controllers
- Input voltage: 100–277 V AC, 50/60 Hz
- Operating conditions: 0 to 60 °C, 35 to 85% RH
- Rated life: 50,000 hours
- Certification: ETL, CE, RoHS
- Supplied with: LED driver, 2 steel hanging hooks, 2 rope clip hangers, UIS cord, ties
- Warranty: 2 years (AC Infinity)

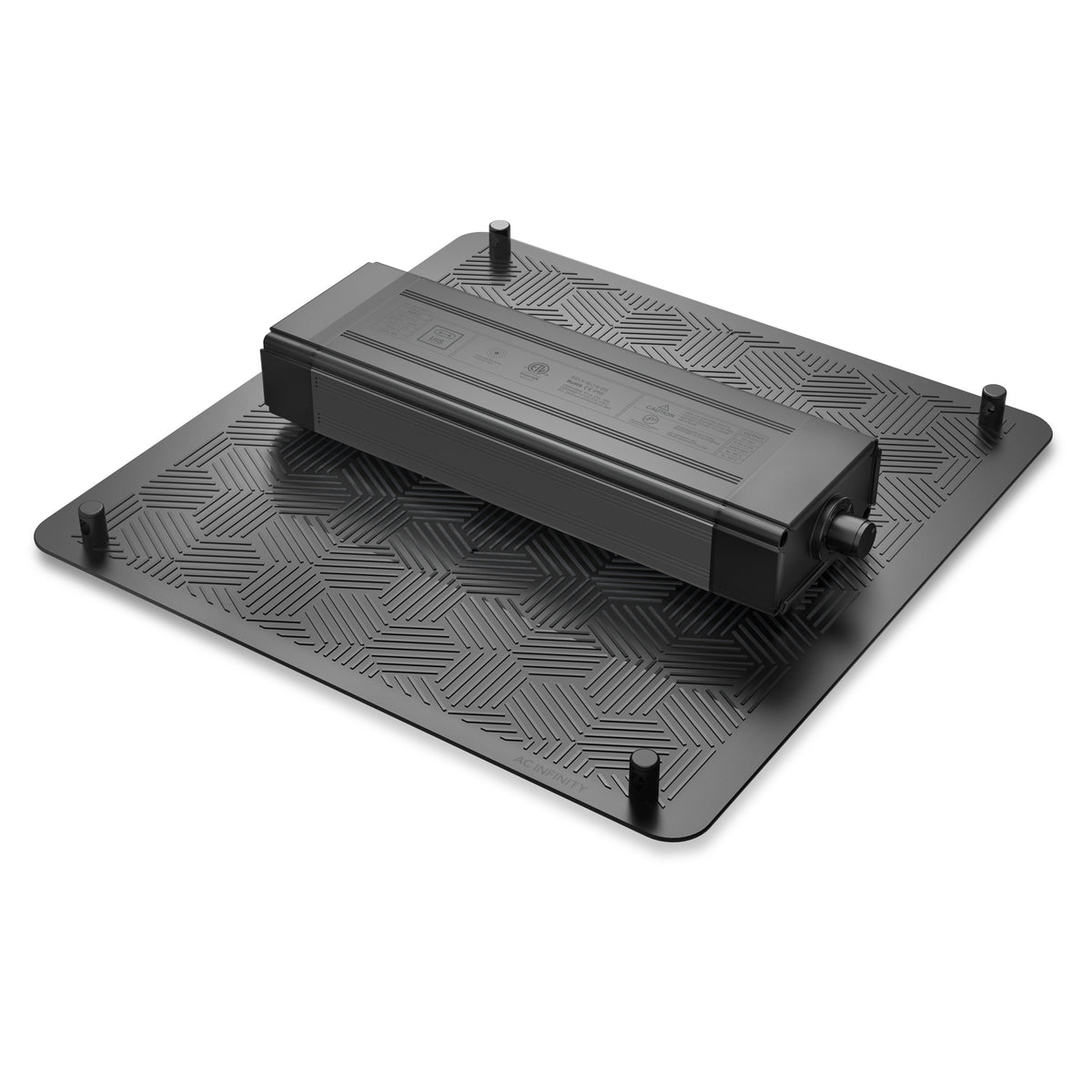

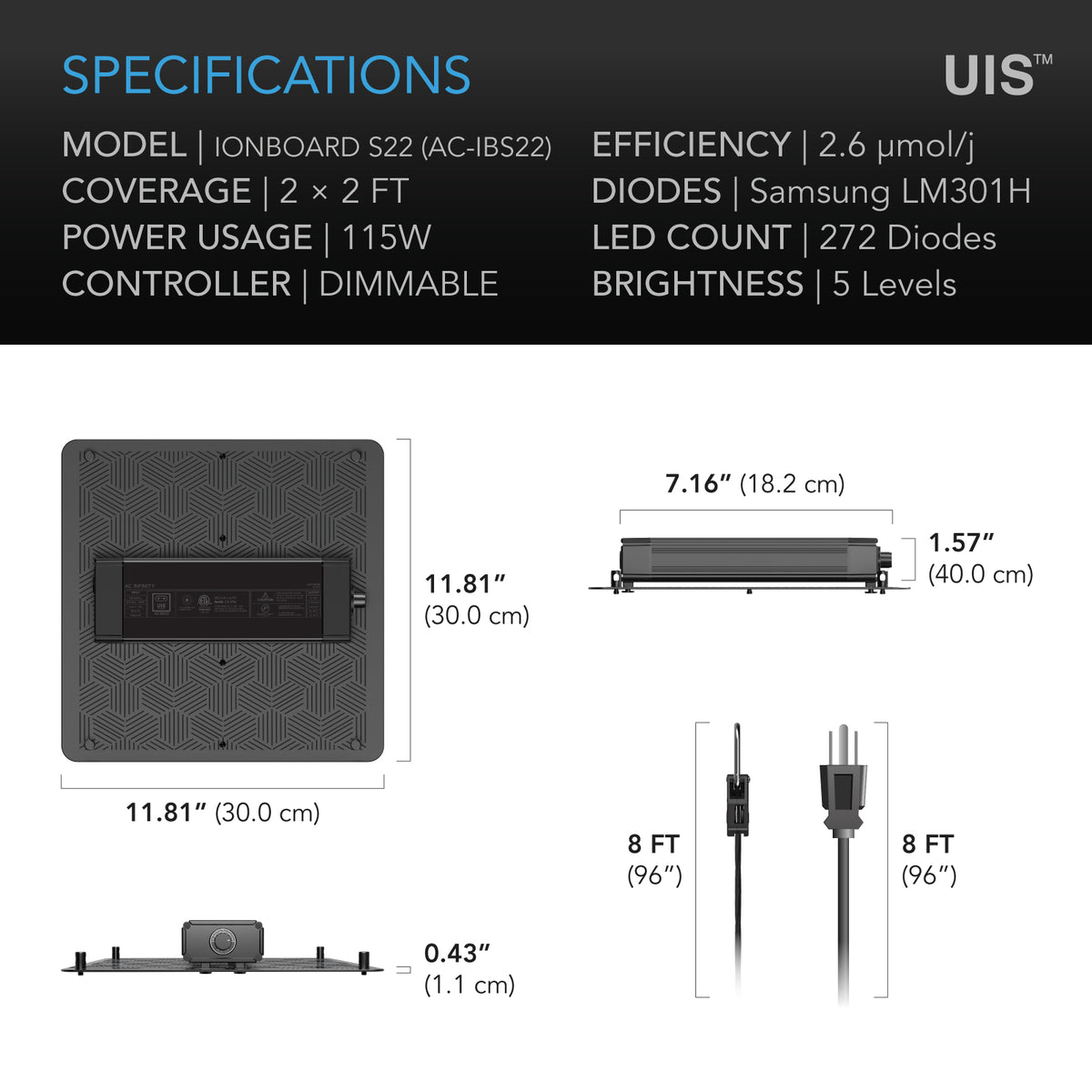

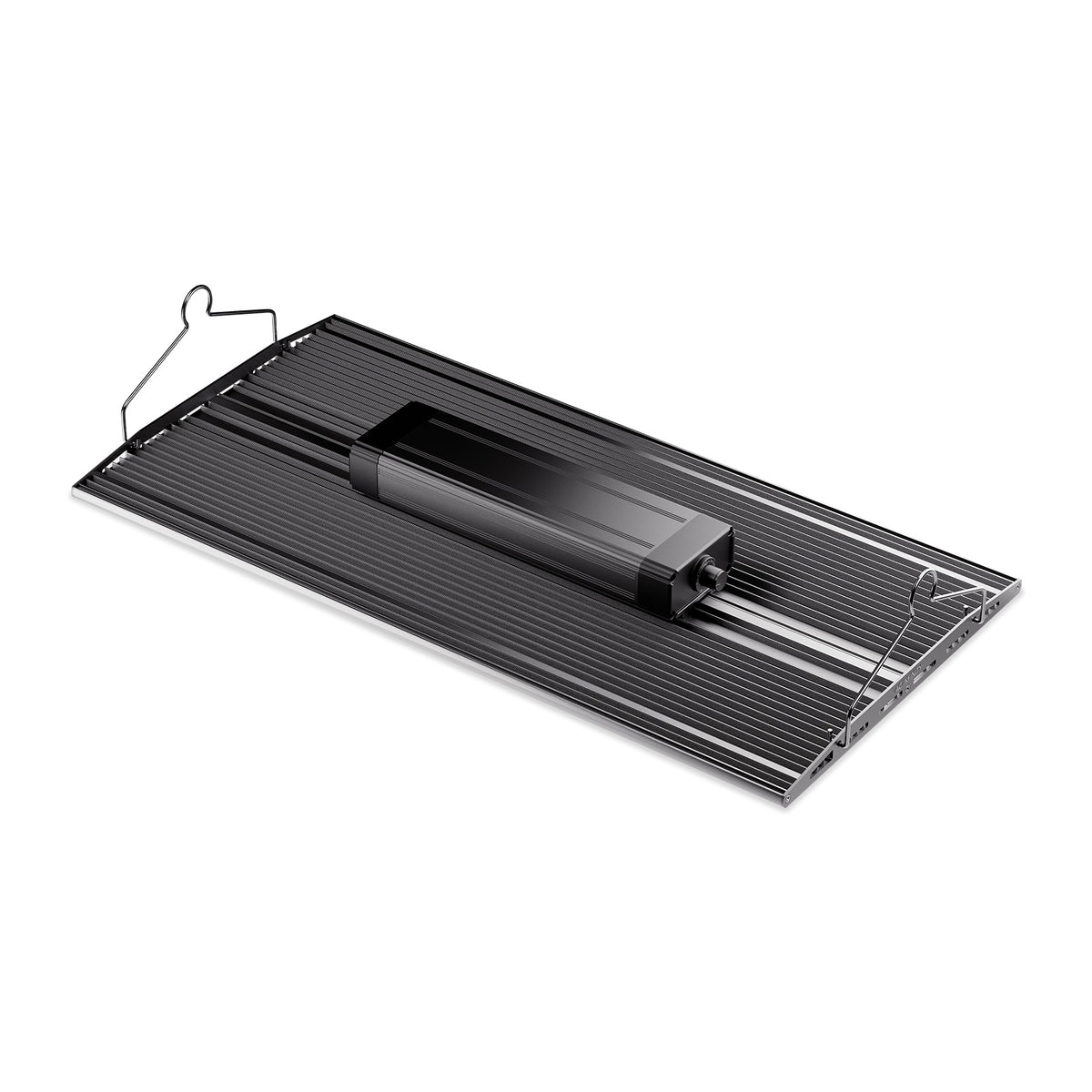

| By size | S22 – 115W, 2 x 2ft | S24 – 220W, 2 x 4ft |
|---|---|---|
| Input power | 115W | 220W |
| PPF | 310 µmol/s | 583 µmol/s |
| Efficacy | 2.7 µmol/J | 2.65 µmol/J |
| Coverage | 0.6 x 0.6m | 0.6 x 1.2m |

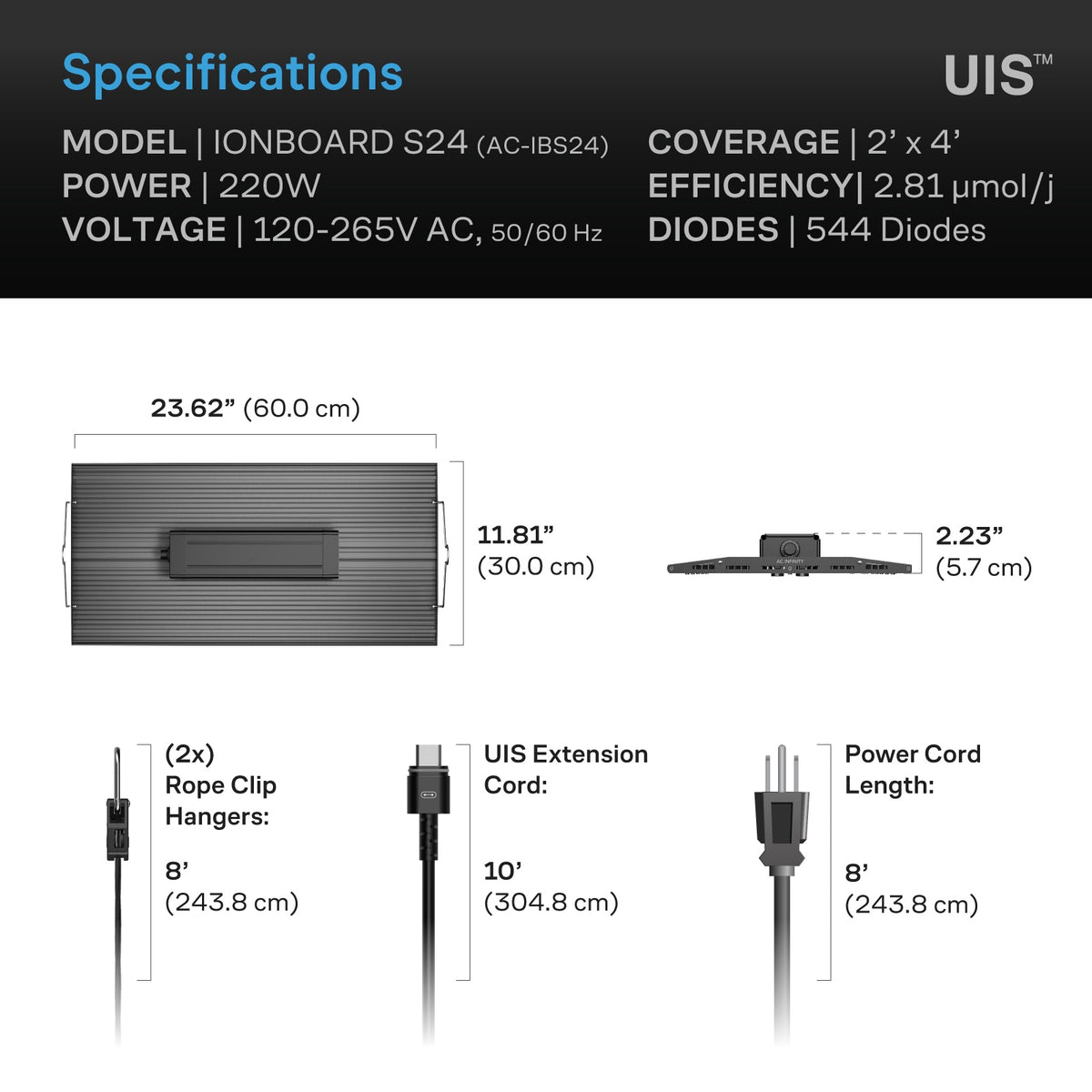

| Dimensions | 30 x 30 x 1.1cm | 30 x 60 x 1.1cm |
| LED chips | 272 | 544 |
| Diodes | Samsung LM301H | – |
| PPFD | 1,098 µmol/m²/s | 1,726 µmol/m²/s |
| Driver | IB-150 | IB-200 |
| Driver size | 18.2 x 4.0 cm | 21.9 x 4.0 cm |
| Current at 230 V | 0.47 A | 0.96 A |

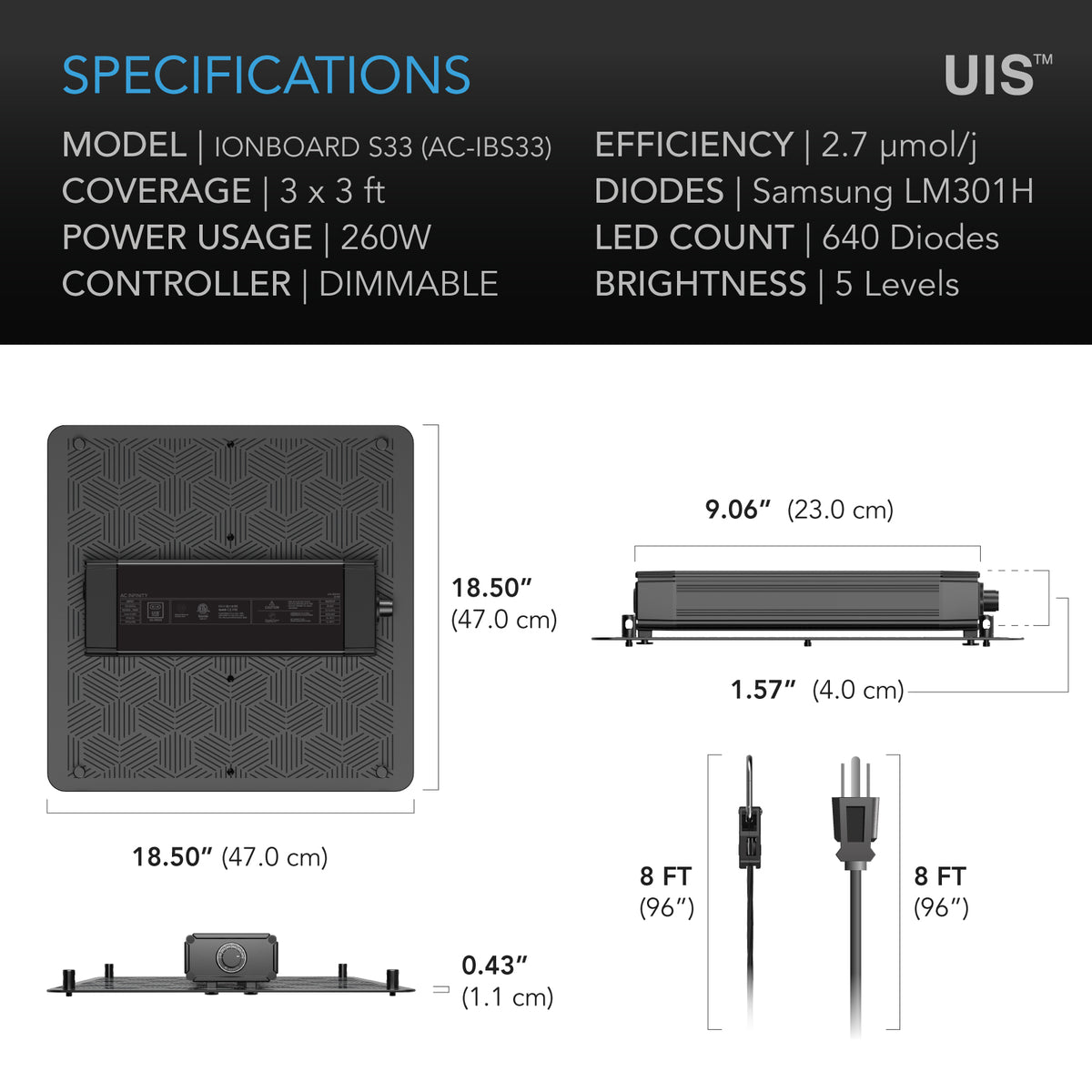

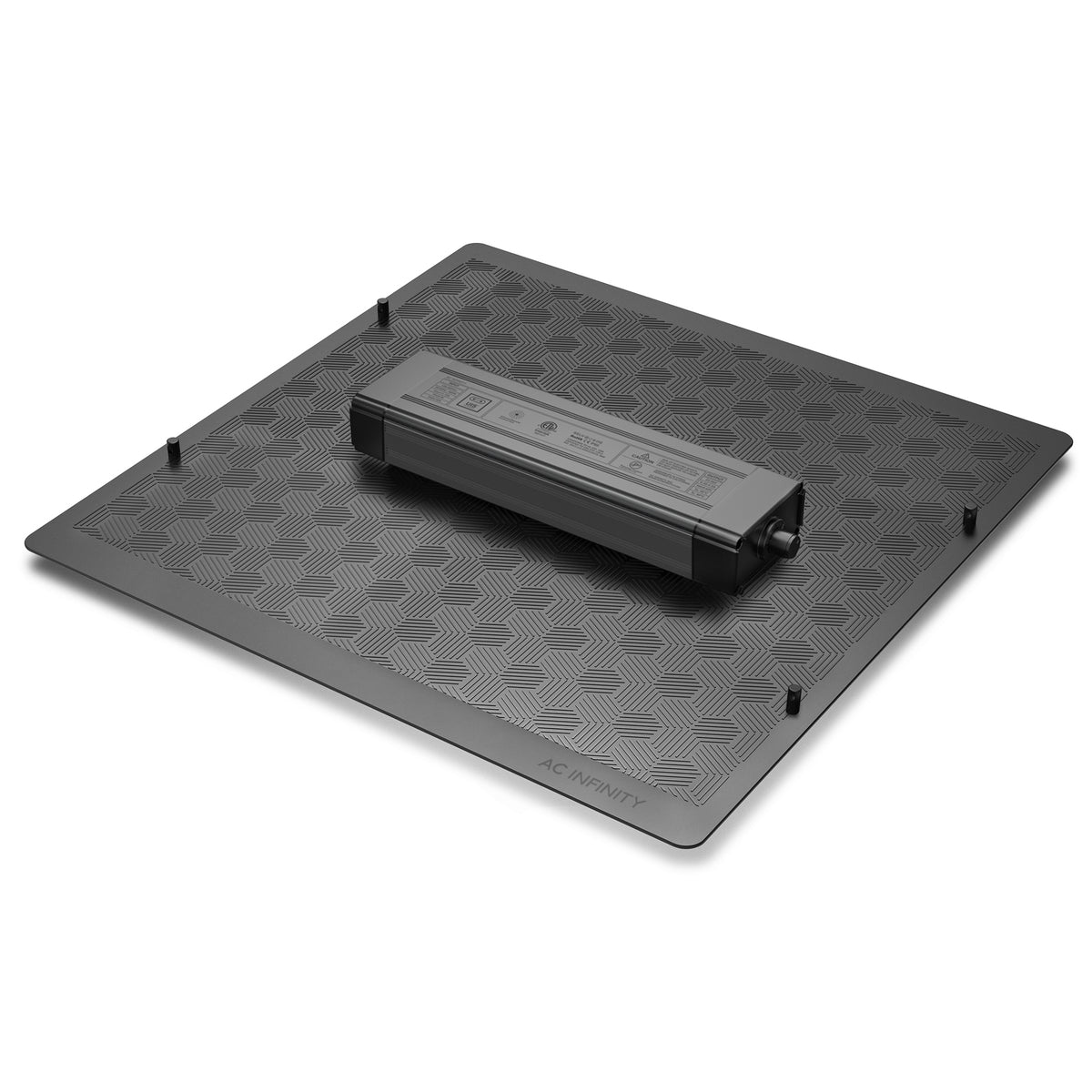

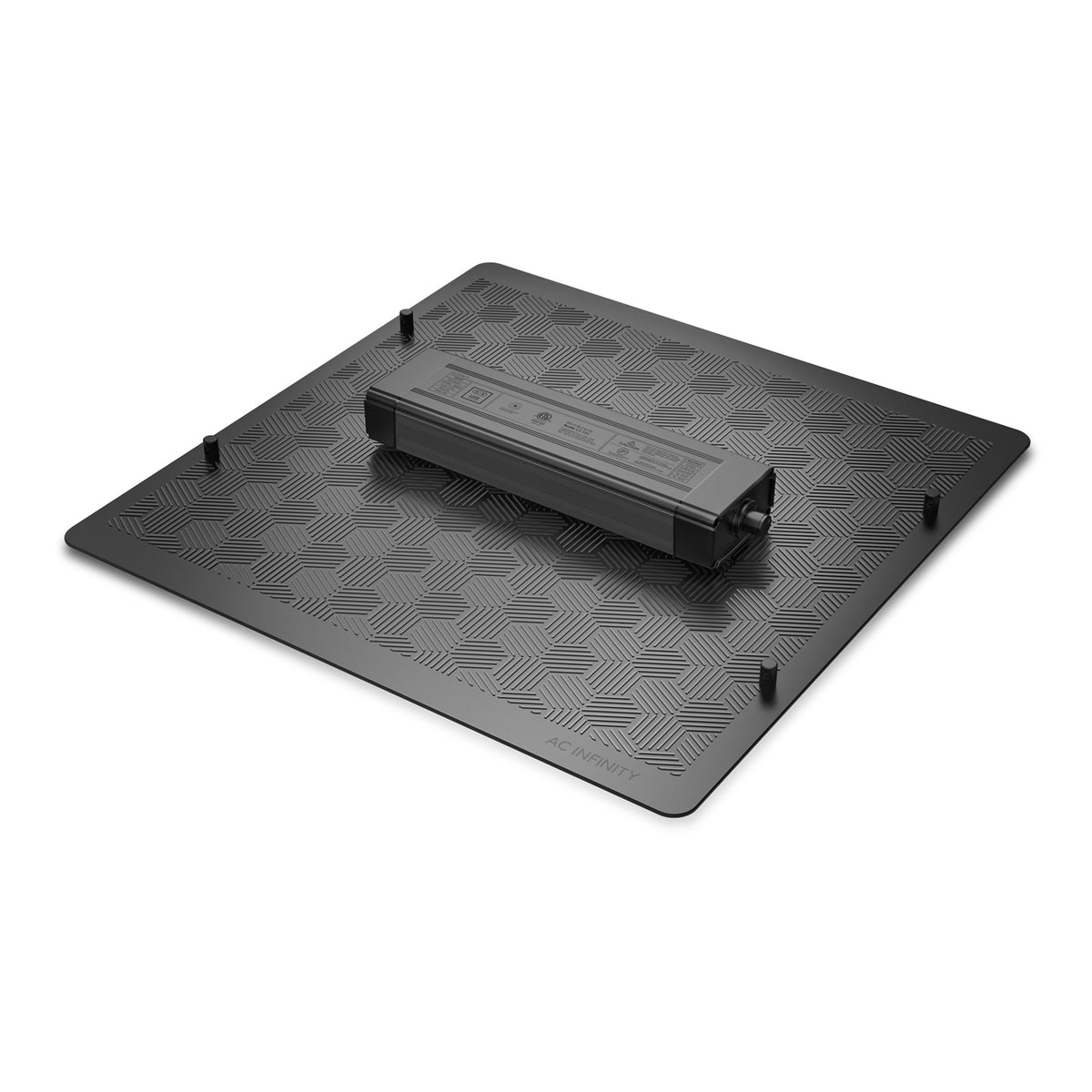

| By size | S33 – 260W, 3 x 3ft | S44 – 430W, 4 x 4ft |
|---|---|---|
| Input power | 260W | 430W |
| PPF | 702 µmol/s | 1182 µmol/s |
| Efficacy | 2.7 µmol/J | 2.75 µmol/J |
| Coverage | 0.9 x 0.9m | 1.2 x 1.2m |
| Dimensions | 47 x 47 x 1.1cm | 60 x 60 x 1.1cm |
| LED chips | 640 | 1,024 |
| Diodes | Samsung LM301H | |

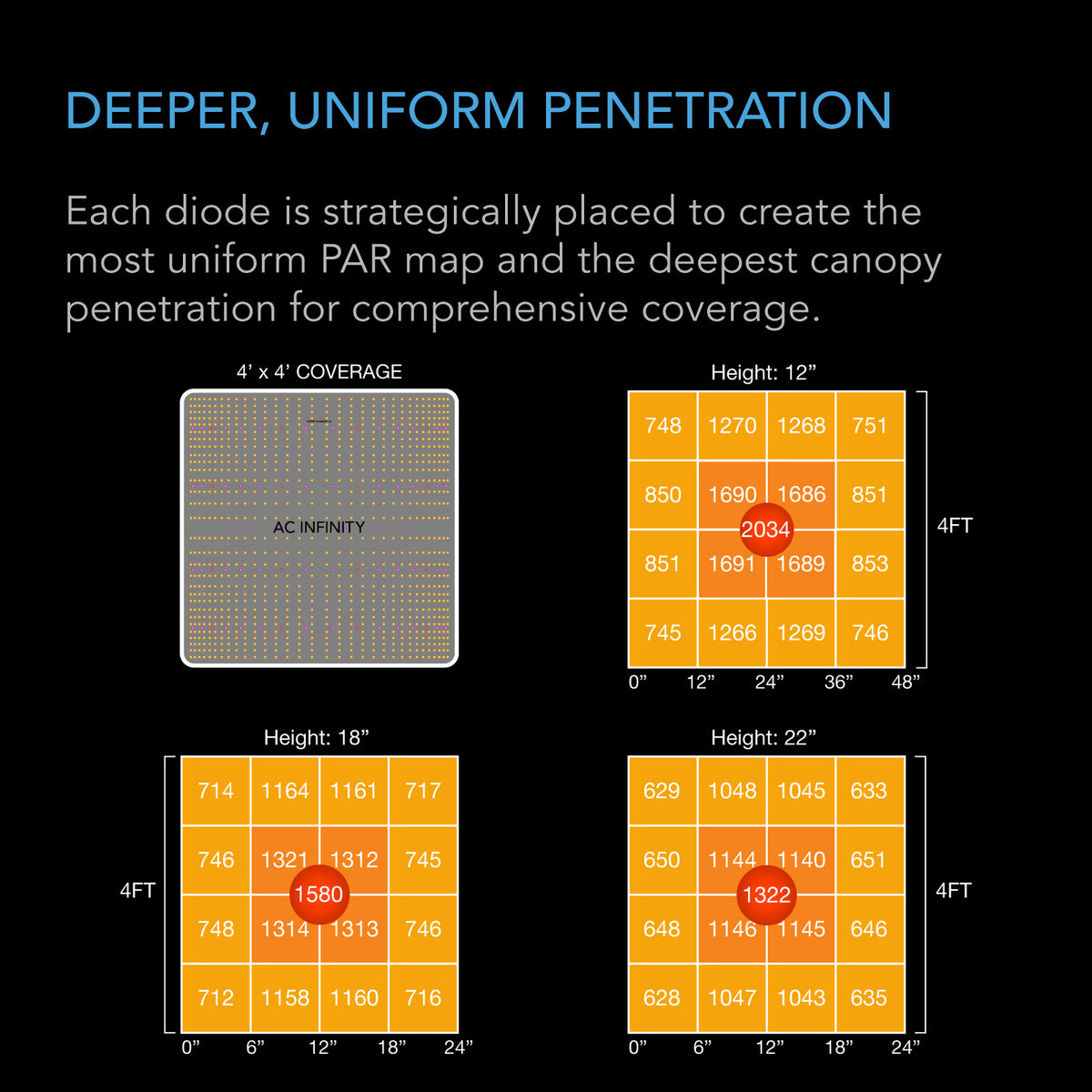

| PPFD | 1,788 µmol/m²/s | 2,034 µmol/m²/s |
| Driver | IB-240 | IB-400 |
| Driver size | 23.0 x 4.0 cm | 27.3 x 4.5 cm |
| Current at 230 V | 1.13 A | 1.87 A |
