Description
A Fully Matched Extraction and Filtration Setup, Ready to Install
The AC Infinity PRO Air Filtration Kit bundles everything needed to pull heat and odour from a grow tent, instead of buying a fan, filter, ducting and controller separately and hoping the sizes match. It is built around a Cloudline PRO inline fan paired with a UIS controller, so you get automated, sensor-driven extraction from day one.

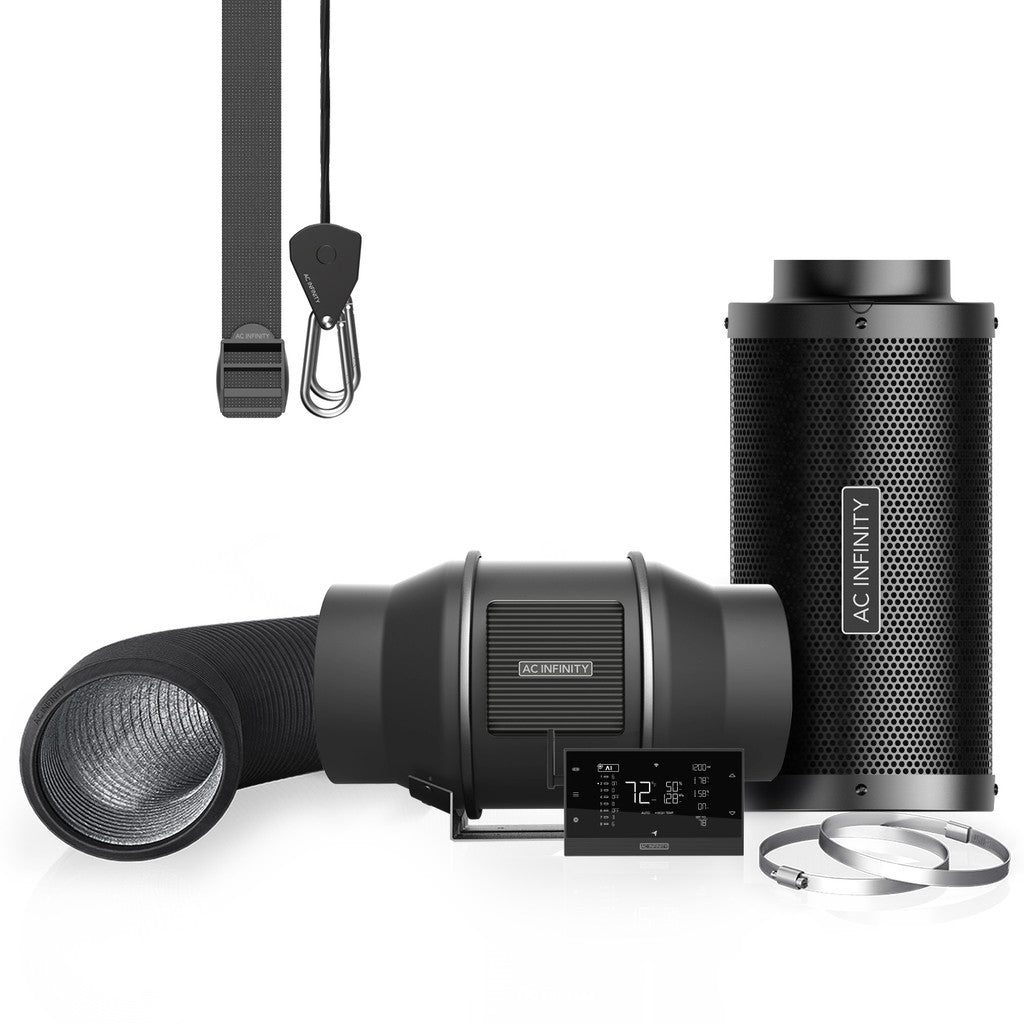

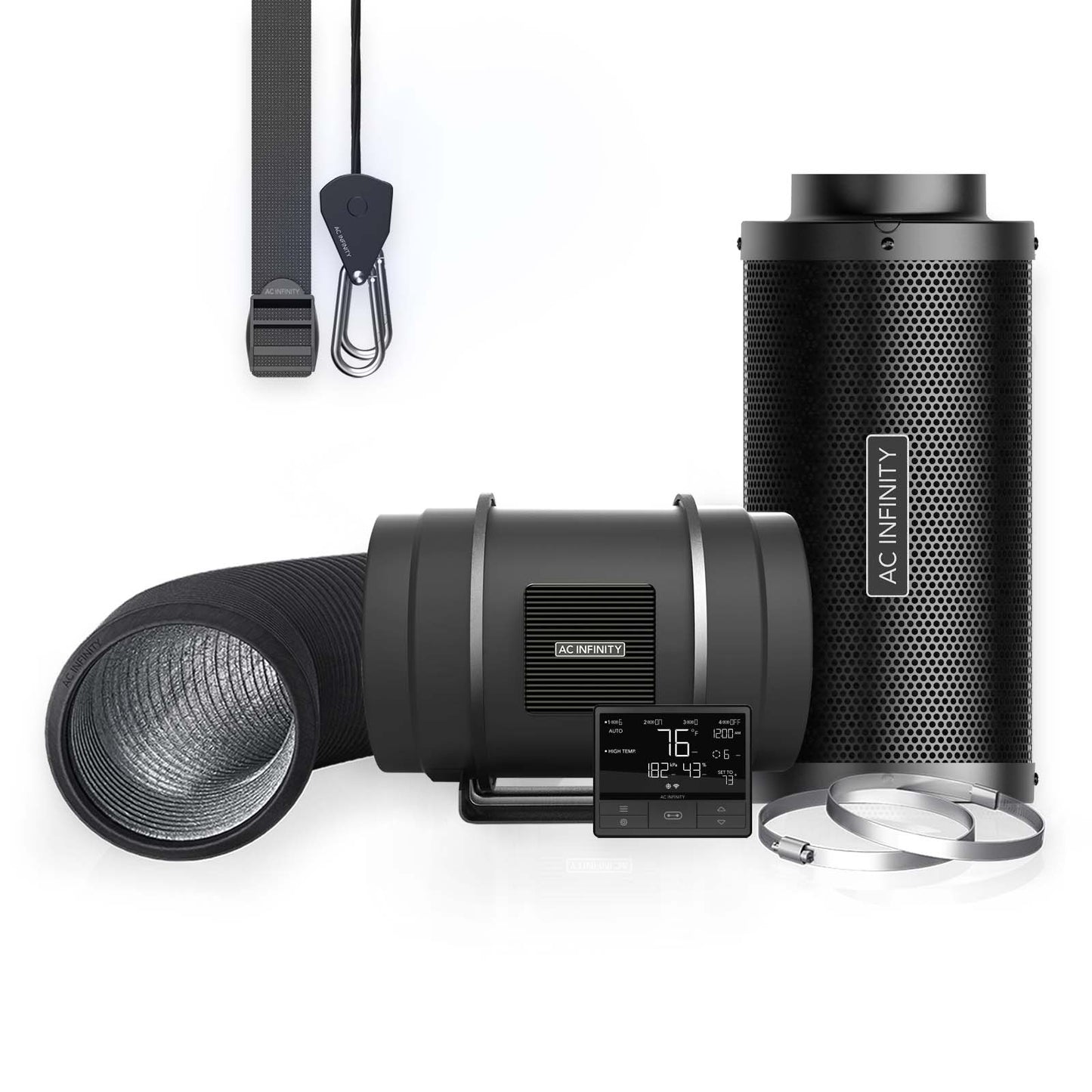

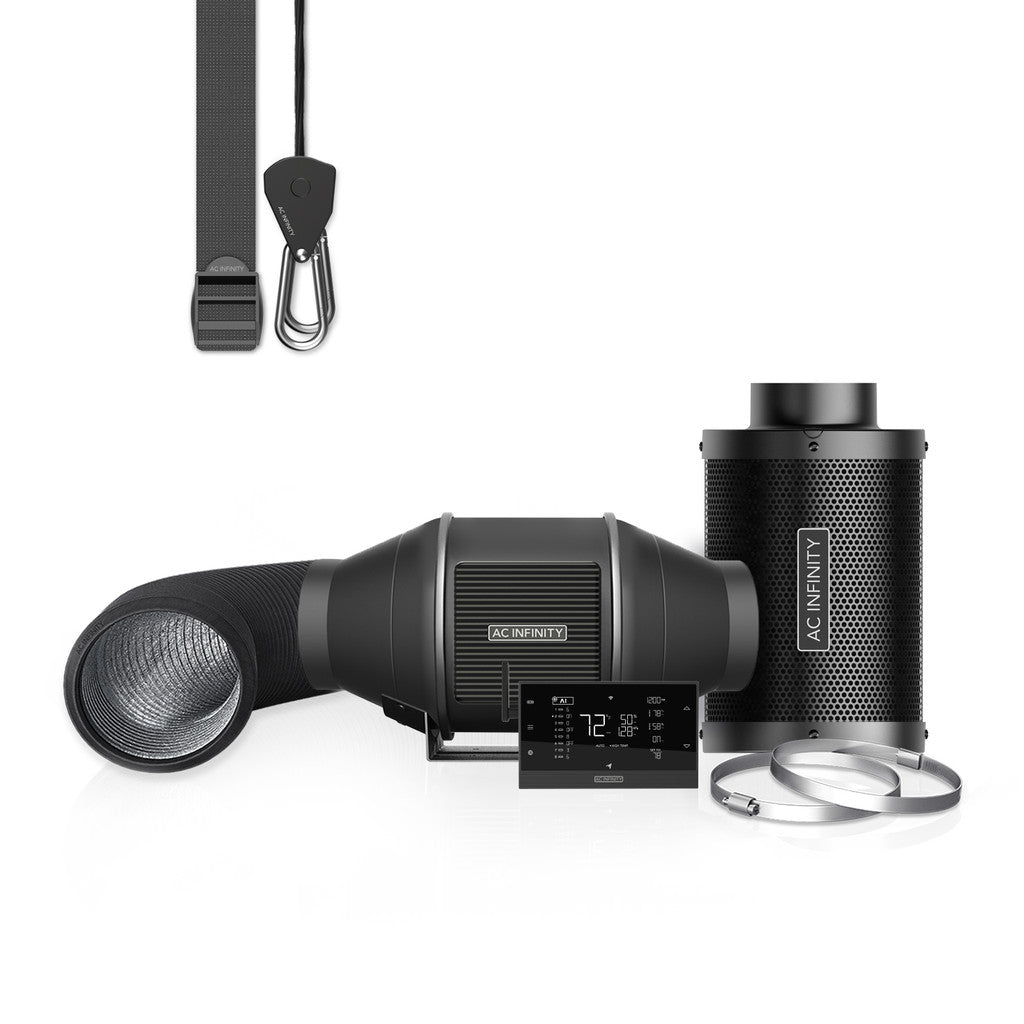

What's Included

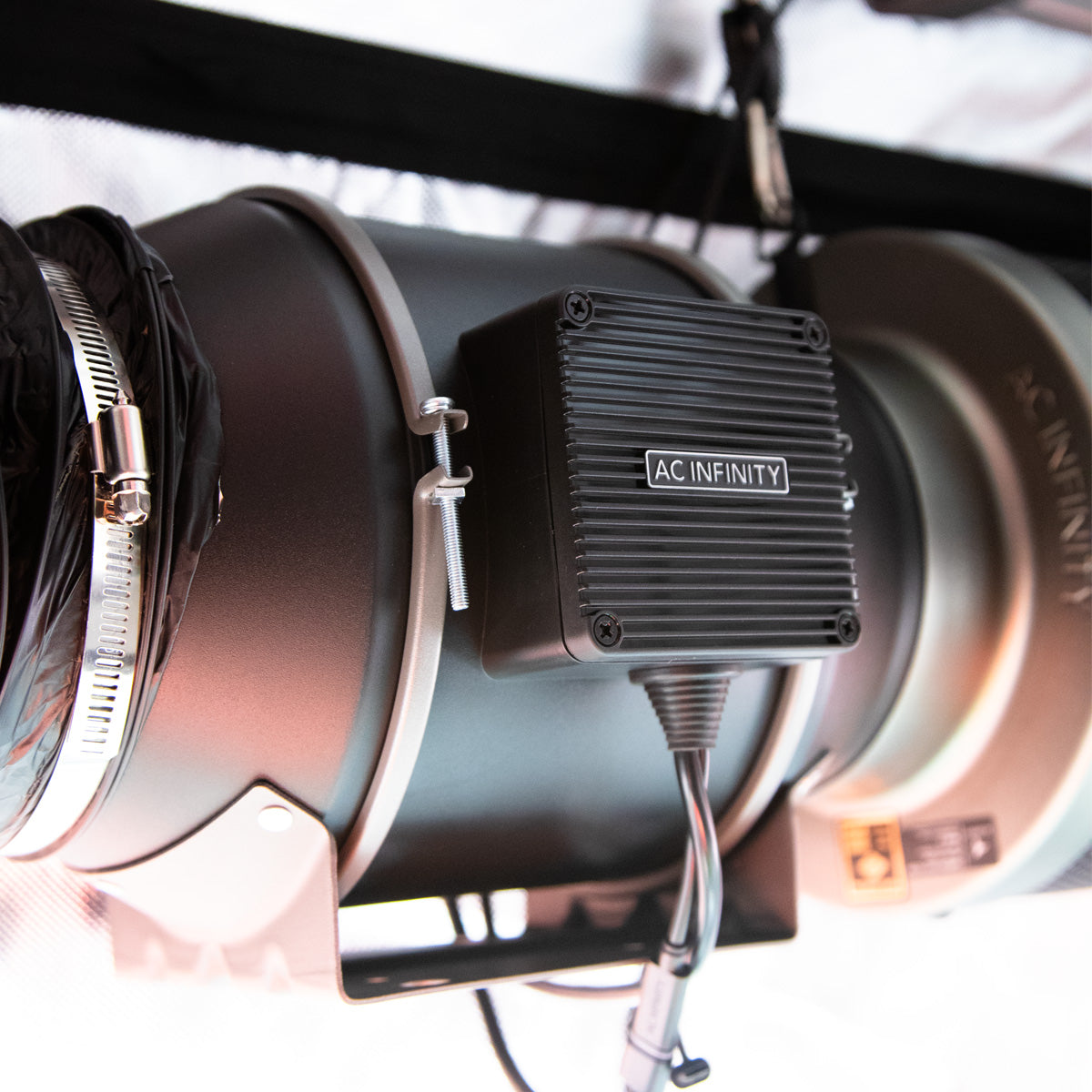

- AC Infinity Cloudline PRO inline fan (PWM-controlled EC motor)
- AC Infinity carbon filter (Australian virgin charcoal, 1,200+ IAV, 60mm bed)
- Flexible ducting
- Duct clamps
- UIS controller - AI+ on the 100mm and 150mm kits, or 69 PRO on the 200mm kit
Key Benefits
- Complete, size-matched kit - fan, filter and ducting engineered to work together
- Automated UIS control replaces a fixed manual speed, ramping extraction to temperature, humidity or VPD
- Built-in odour control from a premium virgin-charcoal carbon filter
- Quiet EC airflow - the 150mm fan moves 683 m3/h (402 CFM) at just 34 dBA
- Three sizes - 100mm and 150mm with the AI+, or 200mm with the 69 PRO - to suit tent volume
- No guesswork matching fan power to filter and duct diameter
Mismatched parts and a fan that fights its filter?
Assembling extraction from odd parts often leaves a fan too strong or too weak for its ducting and filter, or a rig stuck on a basic timer that ignores heat and humidity. This kit sizes everything to match and runs it through a UIS controller, so airflow rises when the tent warms or gets damp and eases off otherwise - cutting heat stress, damp and lingering odour.
How to Use
- Join the fan to the carbon filter and ducting with the supplied clamps, filter positioned to scrub air before it exits
- Wire the fan into the included UIS controller
- Set a target temperature, humidity or VPD - or use timer, cycle or schedule modes - and let it manage fan speed as conditions change
Technical Specifications
- Type: smart inline fan, carbon filter and ducting kit
- Fan: Cloudline PRO inline fan, EC motor, PWM control
- Controller modes: timer, cycle, schedule, VPD and auto triggers
- Carbon: Australian virgin RC412, 1,200+ IAV
- Filter flange: aluminium, reversible
- Ducting: four-layer, PVC outer, aluminium foil inner, 7.6 m
- Also included: 2 duct clamps, 2 prefilter cloths, rope clip hangers, hanging straps, 3 m UIS cord
- Supply voltage: 100–240 V AC, 50/60 Hz
- Bearings: dual ball, 67,000 hour L10 life
- Mounting: horizontal or vertical
- Operating range: 0–60°C, 35–85% RH
| By size | 100mm (4 in) - AI+ Controller | 150mm (6 in) - AI+ Controller | 200mm (8 in) - 69 PRO Controller |
|---|---|---|---|
| Controller | Controller AI+ | Controller AI+ | Controller 69 PRO |
| Fan airflow | 348 m³/h (205 CFM) | 683 m³/h (402 CFM) | 1,371 m³/h (807 CFM) |
| Static pressure | 324 Pa | 394 Pa | 746 Pa |
| Noise | 29 dB(A) | 34 dB(A) | 39 dB(A) |
| Max power | 28 W | 70 W | 180 W |
| Current | 0.4 A | 0.94 A | 2.3 A |
| Max speed | 2,800 RPM | 2,800 RPM | – |
| Carbon filter | Ø 17.7 x 33.9 cm | Ø 22.7 x 40.5 cm | Ø 27.8 x 50.3 cm |
| Carbon bed | 38 mm | 60 mm | 38 mm |
| Model | AC-FKT4 | AC-FKT6 | AC-FKT8 |
| Dimensions | 19.0 x 30.2 x 17.6cm | 20.0 x 32.0 x 21.2cm | 21.7 x 30.2 x 23.3cm |
