Description
Dependable mixed-flow extraction without the EC price tag
The Air AC, formerly sold as the RadAir, is G.A.S's mixed-flow AC duct fan for growers who want reliable extraction without paying for EC electronics. Its angled impeller and guide vanes are shaped to hold pressure through carbon filters and long duct runs, so it keeps pulling air where a cheap axial fan would stall. Six sizes span 100mm to 315mm and 200 to 2,300 m³/h.
Key Benefits
- Mixed-flow impeller and guide vanes that maintain static pressure through filters and ducting
- AC motor for dependable, continuous extraction
- Six sizes from 100mm to 315mm, delivering 200 up to 2,300 m³/h
- The 6" fits 150mm or 160mm ducting — G.A.S sell it as the 150-160 AC, so it drops straight onto either size
- IEC connector for simple plug-and-play installation
- Sealed body with removable mounting bracket that is easy to hang and clean
Need real airflow through a carbon filter without EC electronics?
A weak fan fighting filter resistance shows up as high humidity, poor odour control and stagnant air around lower foliage. The mixed-flow design holds airflow up under load, so the fan still shifts air after a filter and a long run rather than losing most of its output to static pressure.
How to Use
- Pick a size that comfortably exceeds your room volume once filter and ducting resistance are allowed for
- Mount in-line on the extraction side, pulling air through the carbon filter before venting outside
- Clip ducting to both flanges and connect power via the IEC lead
- Add a separate speed controller or thermostat to run below full speed
Technical Specifications
- Type: mixed-flow AC inline fan

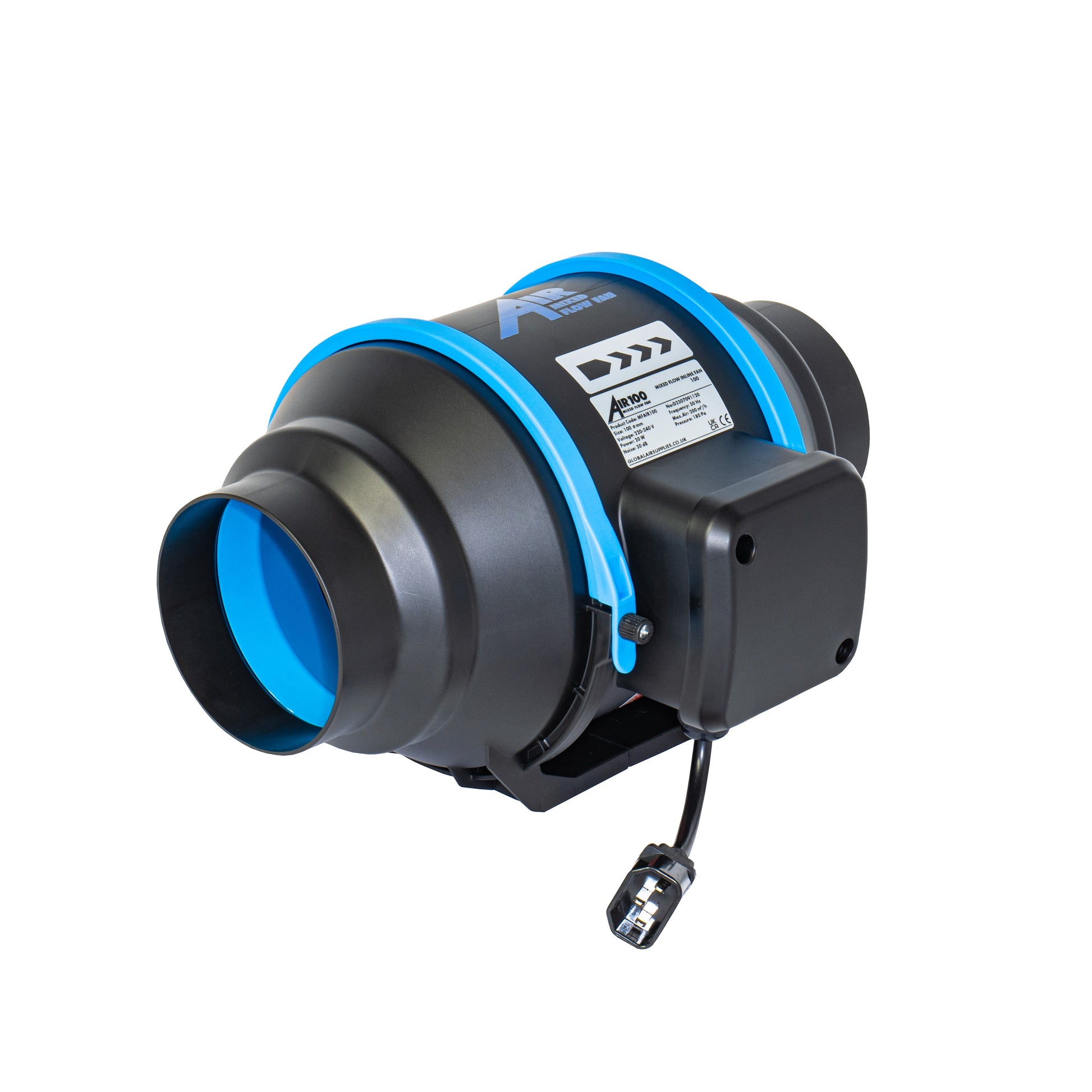

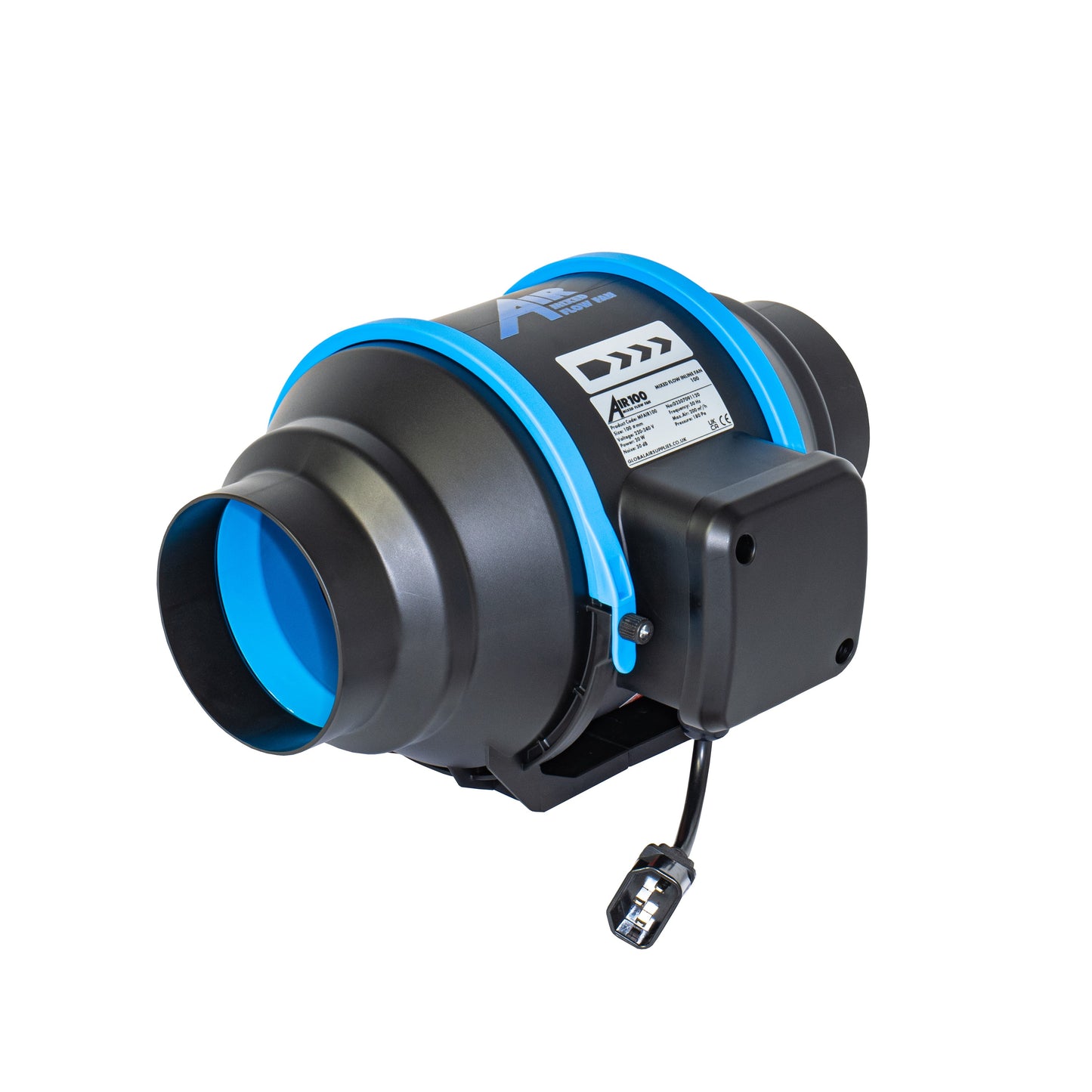

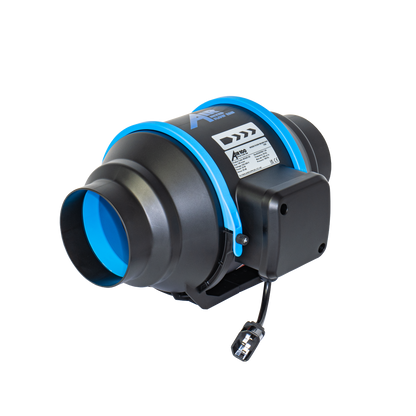

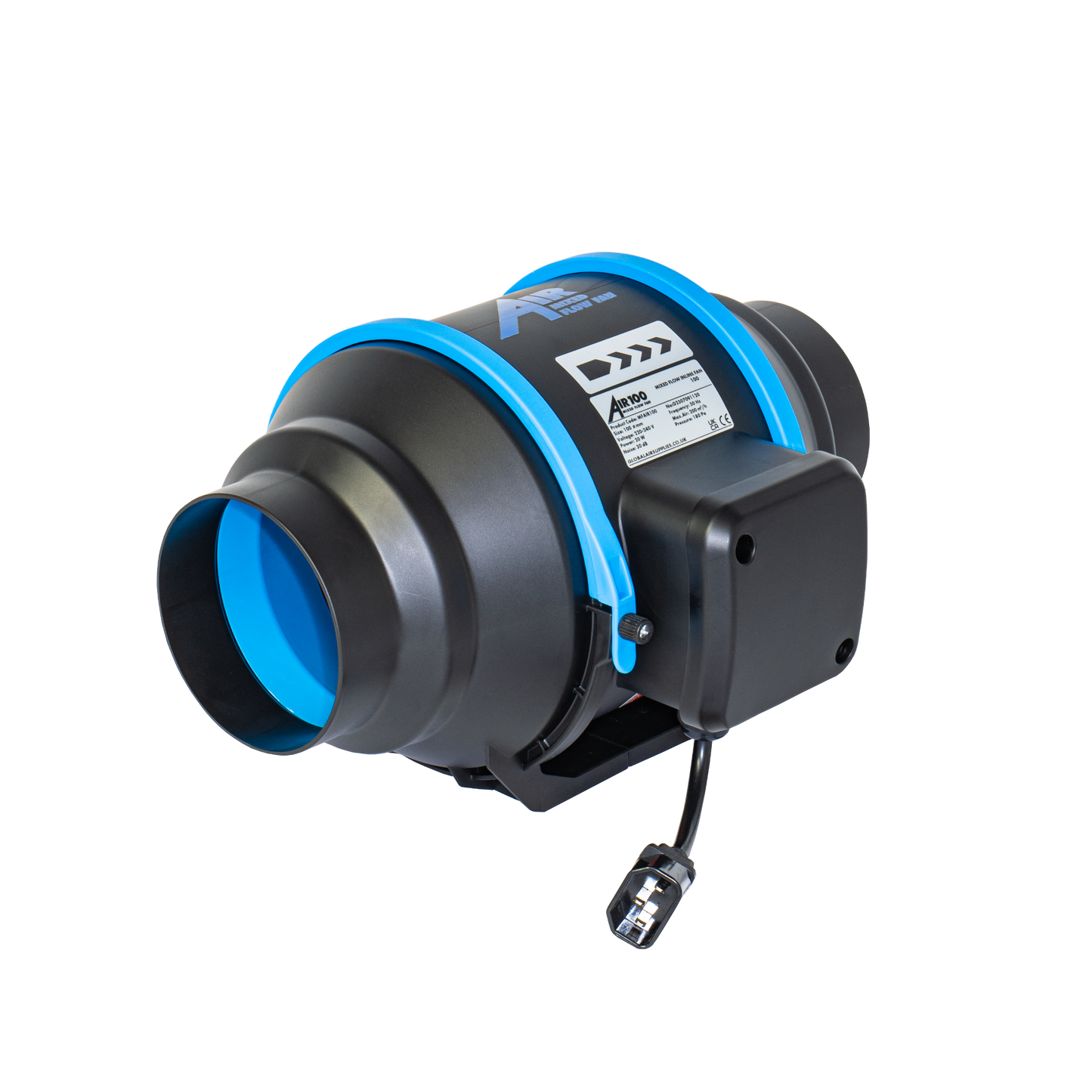

- 100mm (4"): 200 m³/h

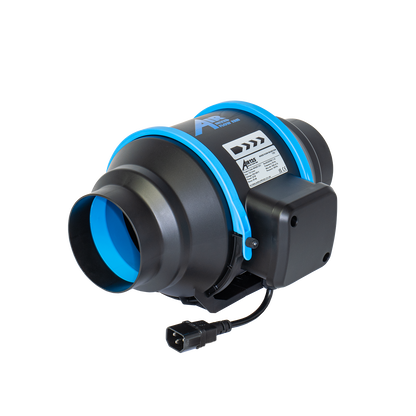

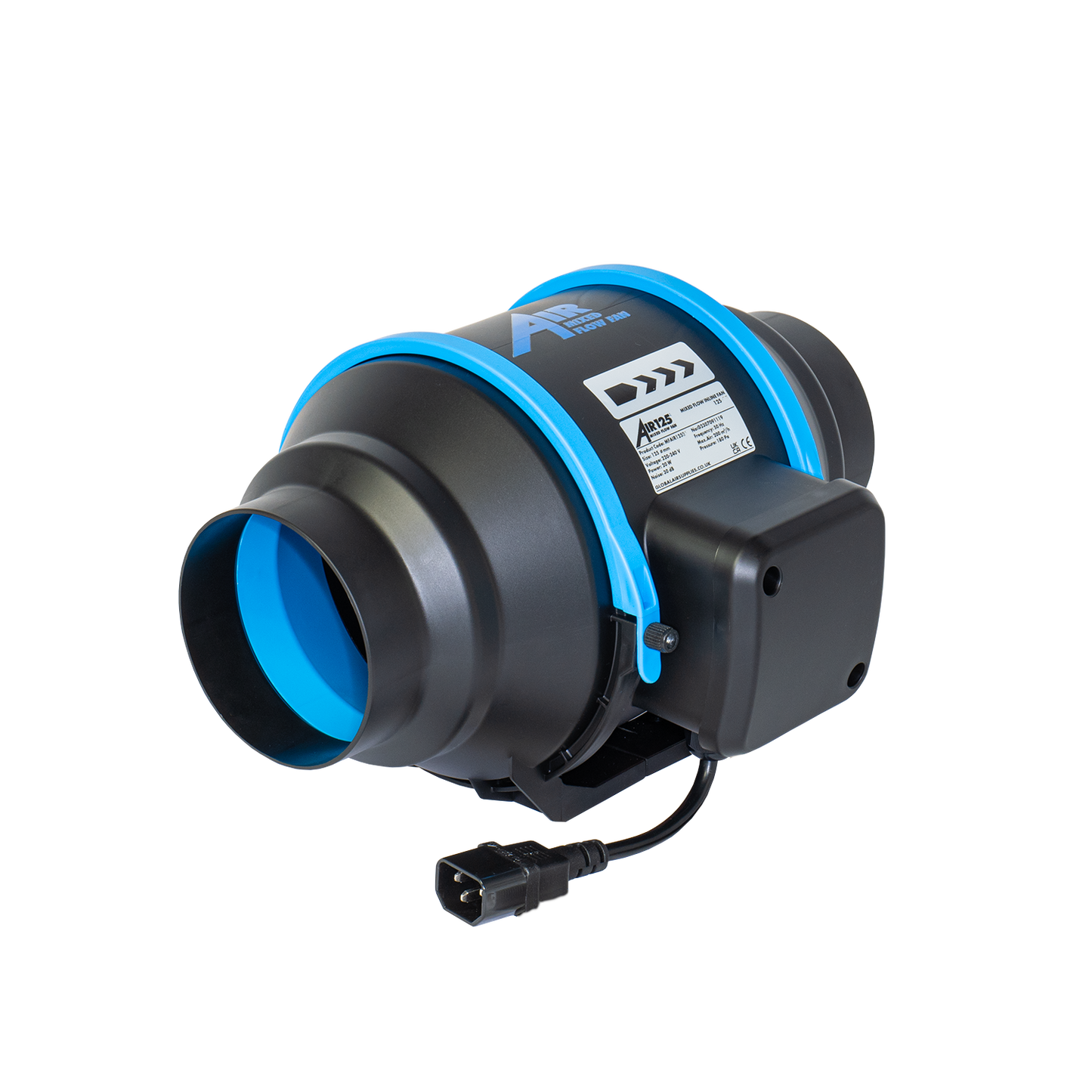

- 125mm (5"): 200 m³/h

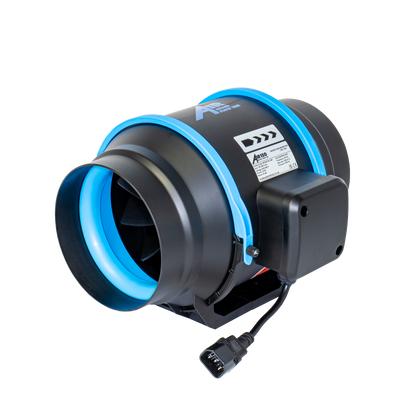

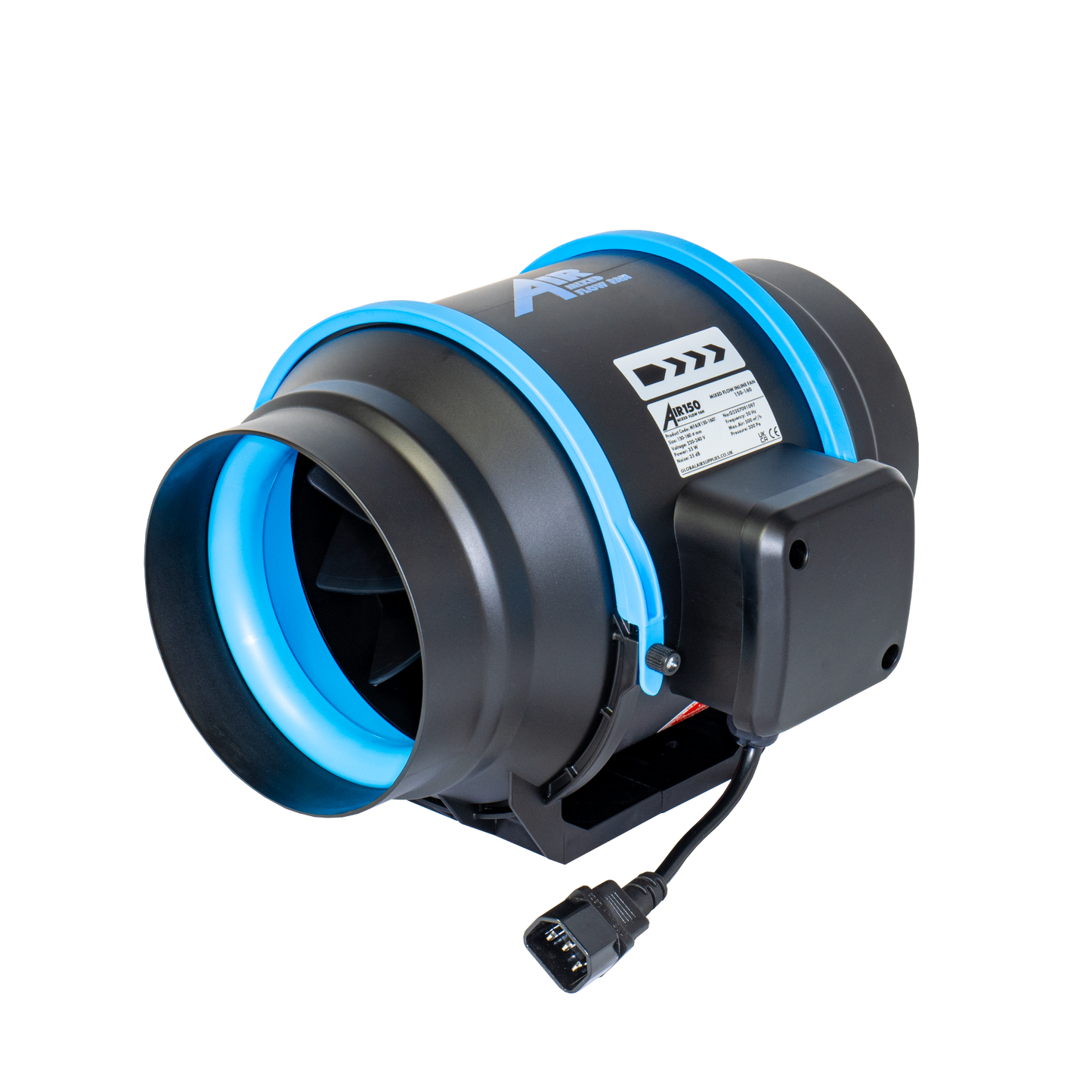

- 150mm (6"): 500 m³/h — sold by G.A.S as the 150-160 AC, fits 150mm or 160mm ducting

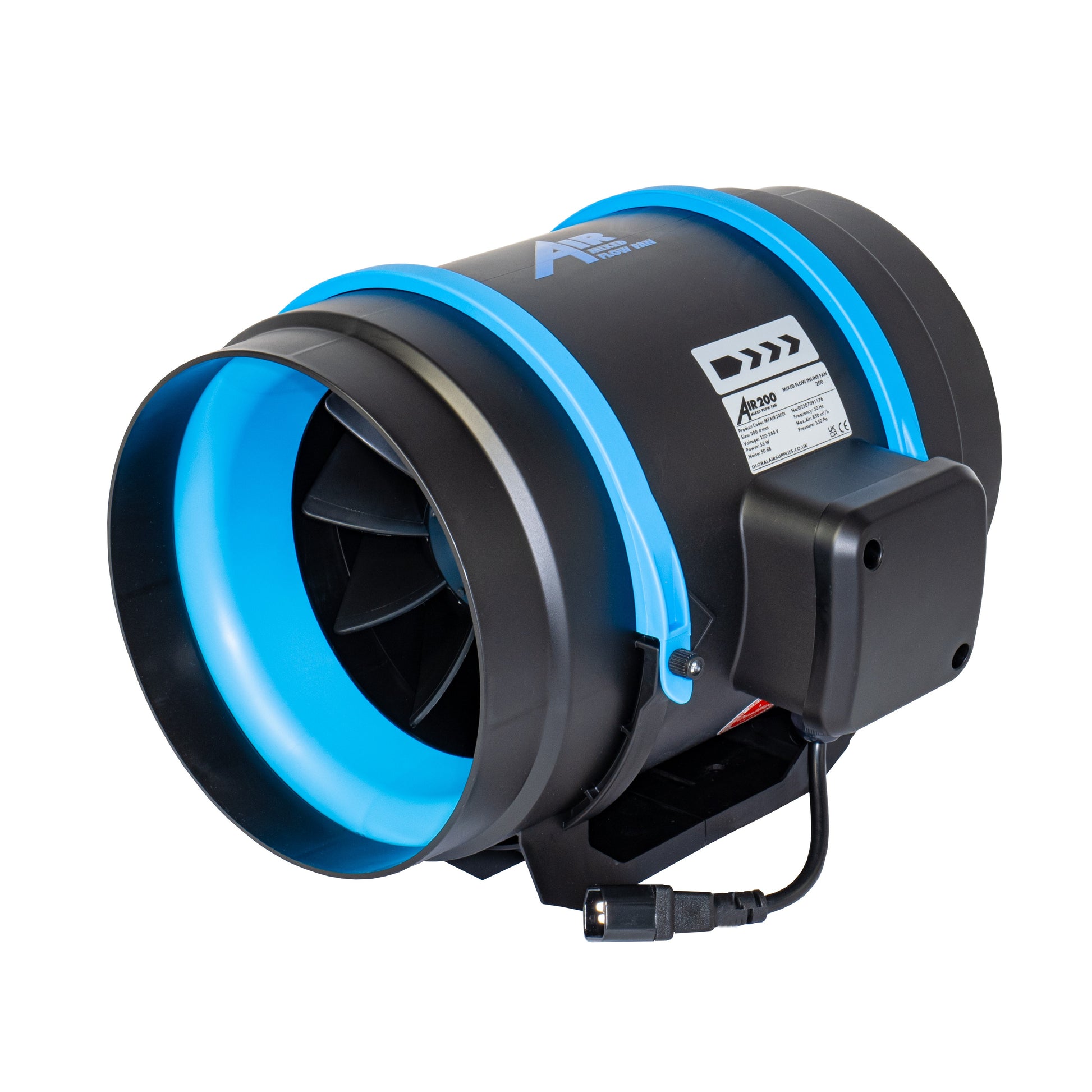

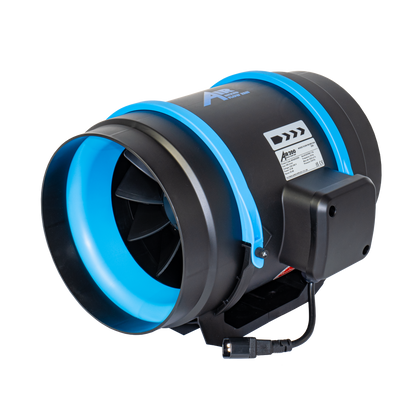

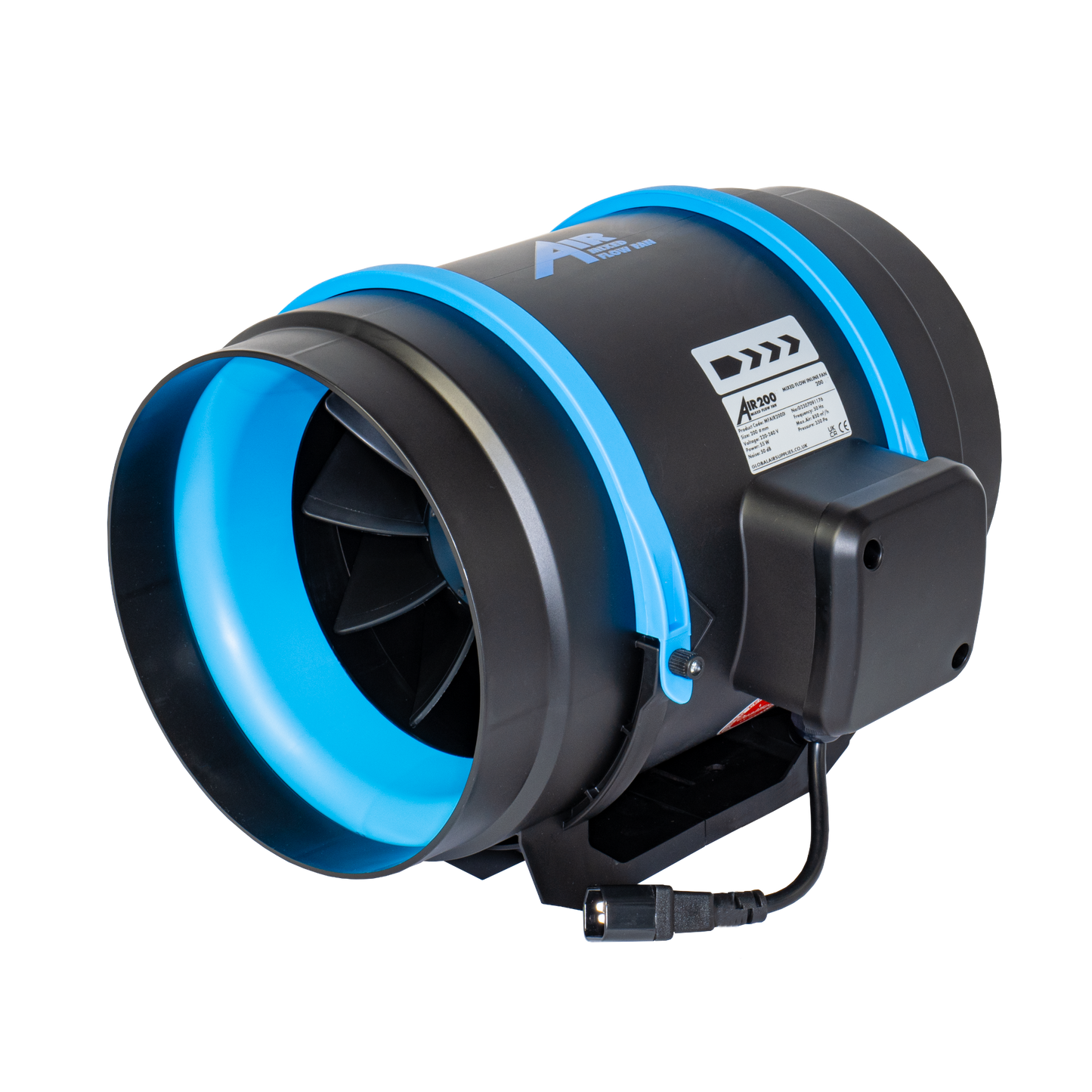

- 200mm (8"): 850 m³/h

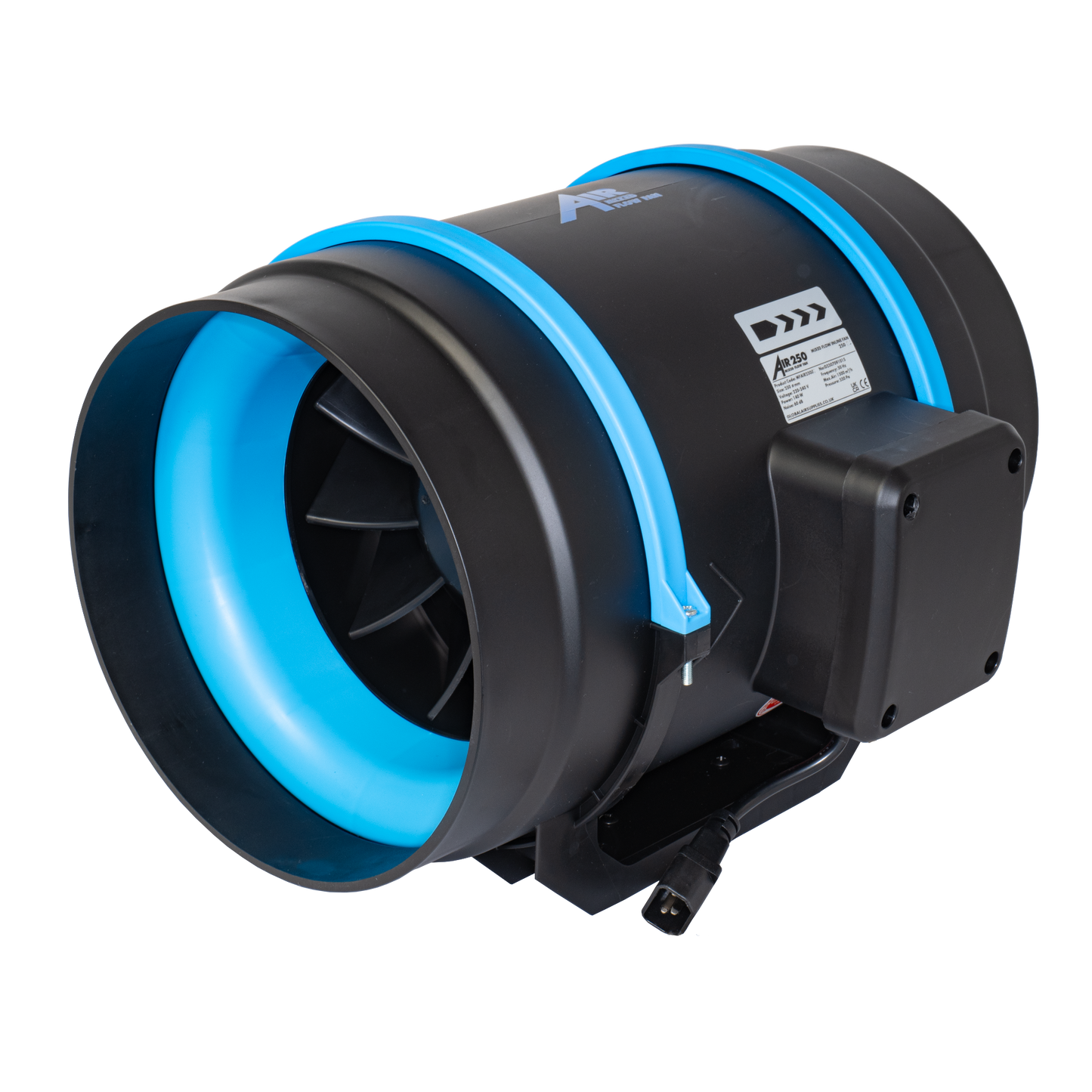

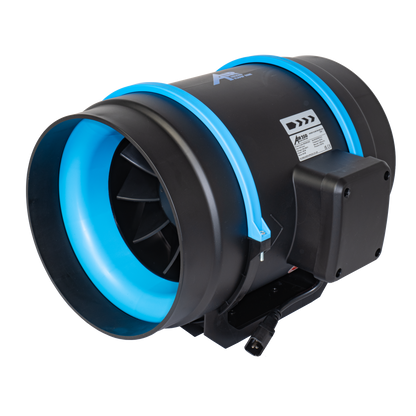

- 250mm (10"): 1,500 m³/h

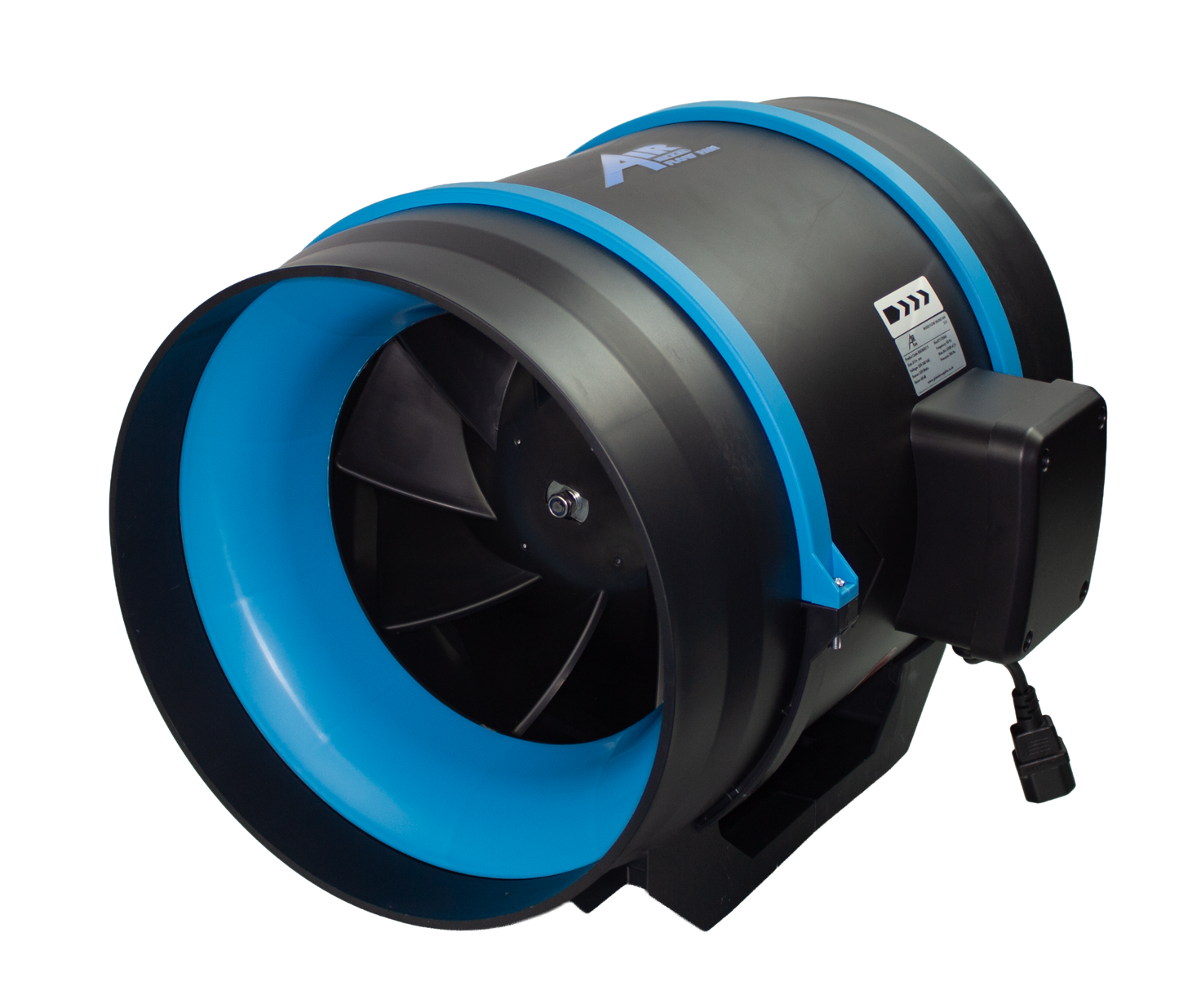

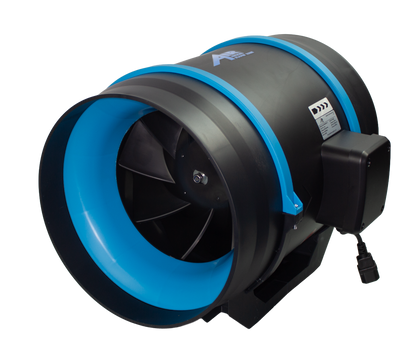

- 315mm (12"): 2,300 m³/h
- Connection: IEC plug-and-play
- Housing: sealed body with removable mounting bracket
- Noise, 100mm (4"): 30 dB(A)
- Noise, 125mm (5"): 30 dB(A)
- Noise, 150mm (6"): 35 dB(A)
- Noise, 200mm (8"): 50 dB(A)
- Noise, 250mm (10"): 60 dB(A)
- Noise, 315mm (12"): 66 dB(A)
- Power, 100mm (4"): 40 W
- Power, 125mm (5"): 40 W
- Power, 150mm (6"): 60 W
- Power, 200mm (8"): 100 W
- Power, 250mm (10"): 200 W
- Power, 315mm (12"): 350 W
- Static pressure, 100mm (4"): 180 Pa
- Static pressure, 125mm (5"): 180 Pa
- Static pressure, 150mm (6"): 300 Pa
- Static pressure, 200mm (8"): 350 Pa
- Static pressure, 250mm (10"): 550 Pa
- Static pressure, 315mm (12"): 700 Pa
- Motor type: AC, 220–240 V 50 Hz
