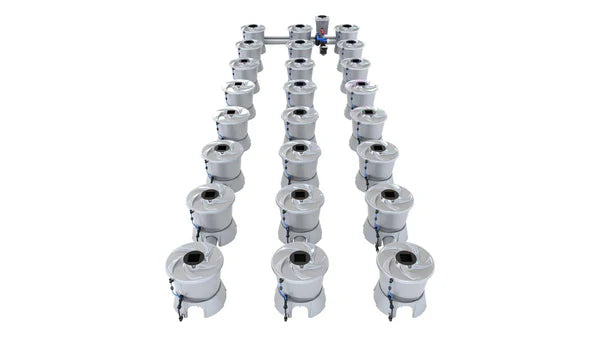

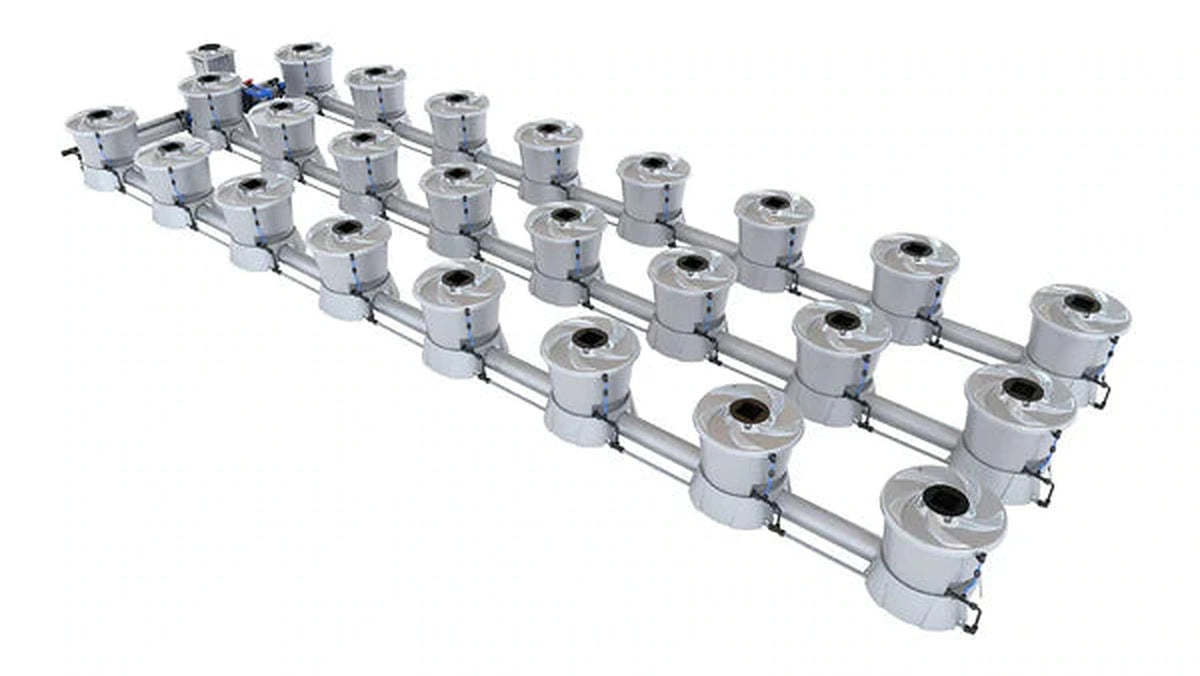

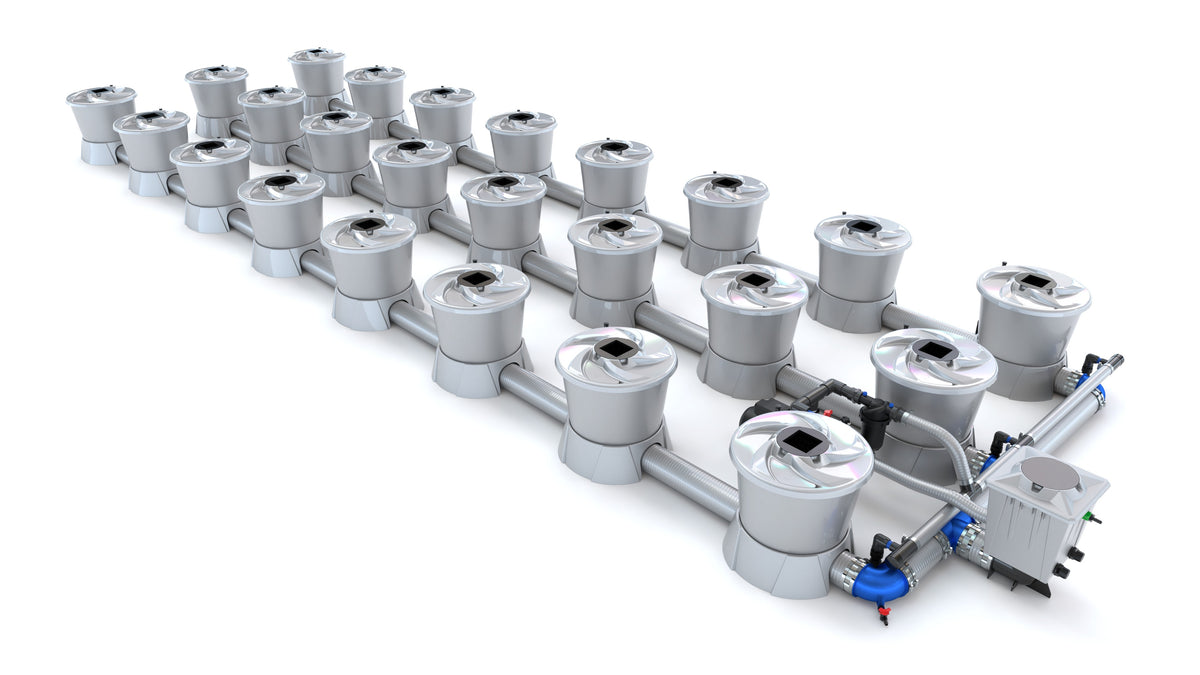

Alien V-System 24 Pot 3 Row – Deep Water Culture System

Venturi-driven oxygenation for large-scale RDWC, no air pump needed

The Alien V-System 24 Pot / 3 Row is a large-scale RDWC hydroponic system designed and manufactured in Britain for serious growers chasing maximum plant performance across a full grow room. Instead of relying on a separate air pump, it uses the JET-STREAM Vortex pump to create venturi-driven vortex circulation, pulling air directly into the nutrient stream so the whole pot is oxygenated rather than just one point. This version uses larger components than a standard V-System, making it ideal for big plants and high-yield setups.

Key Benefits

• JET-STREAM Vortex pump sits outside the header pot to minimise heat transfer, keeping nutrient solution cooler and reducing root rot and pathogen risk
• Venturi-driven oxygenation removes the need for a separate air pump while oxygenating the entire pot
• 58L V-Pots give roots room to build expansive root zones for larger plants and heavier yields
• 5 inch spiral pipework distributes nutrients evenly to every plant site for uniform crop development
• Fully drainable pots allow a complete nutrient solution refresh between cycles
• 3-row, 24-pot layout in heavy-duty British manufacturing, built for organised large-scale installs

Beating low root-zone oxygen and warm nutrient temperatures

In large DWC setups, low dissolved oxygen and warm nutrient temperatures are the main causes of root rot, pathogens and slow growth. The V-System tackles both: its externally mounted vortex pump keeps solution cooler, while venturi oxygenation floods the full pot with air rather than a small area around an air stone, driving faster vegetative growth, stronger roots and improved nutrient uptake.

How to Use

1. Assemble the system, ensuring all 5 inch Dual-Flow fittings, clamps and spiral pipework are securely connected.
2. Fill the control pot with water up to the indicated fill line.
3. Add nutrients suitable for recirculating systems, mix thoroughly and adjust EC and pH for veg or flower.
4. Place plants into net pots with clay pebbles or another hydroponic medium so roots reach the circulating solution.
5. Turn on the JET-STREAM Vortex pump to begin circulation and venturi-driven oxygenation.
6. Monitor EC, pH and water levels regularly to maintain nutrient uptake and plant health.
7. Periodically drain the system fully and refill with fresh nutrient solution to keep the root zone clean and maximise yield and flower density.
