Description
Connect 25mm Irrigation Pipe Straight to a 1" Tap or Outlet

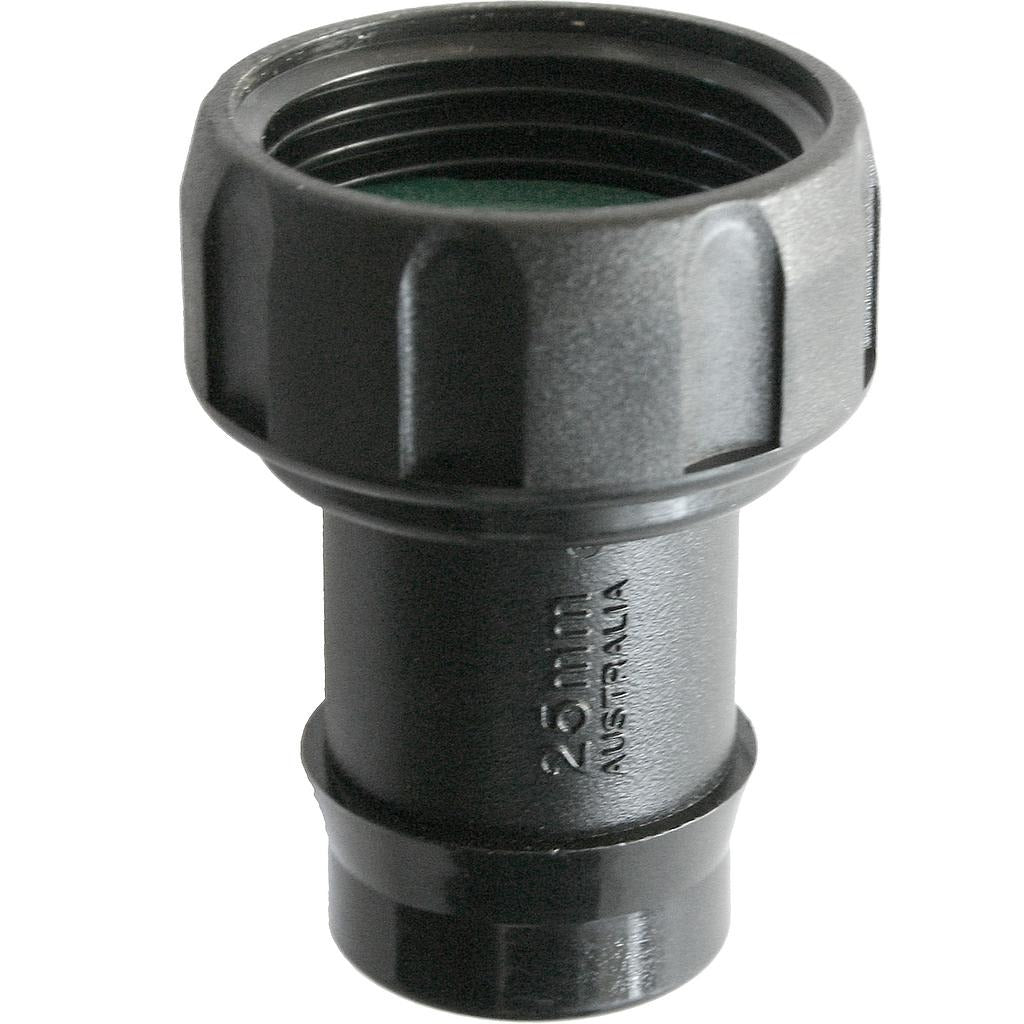

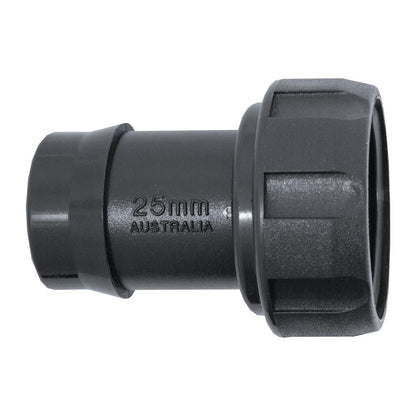

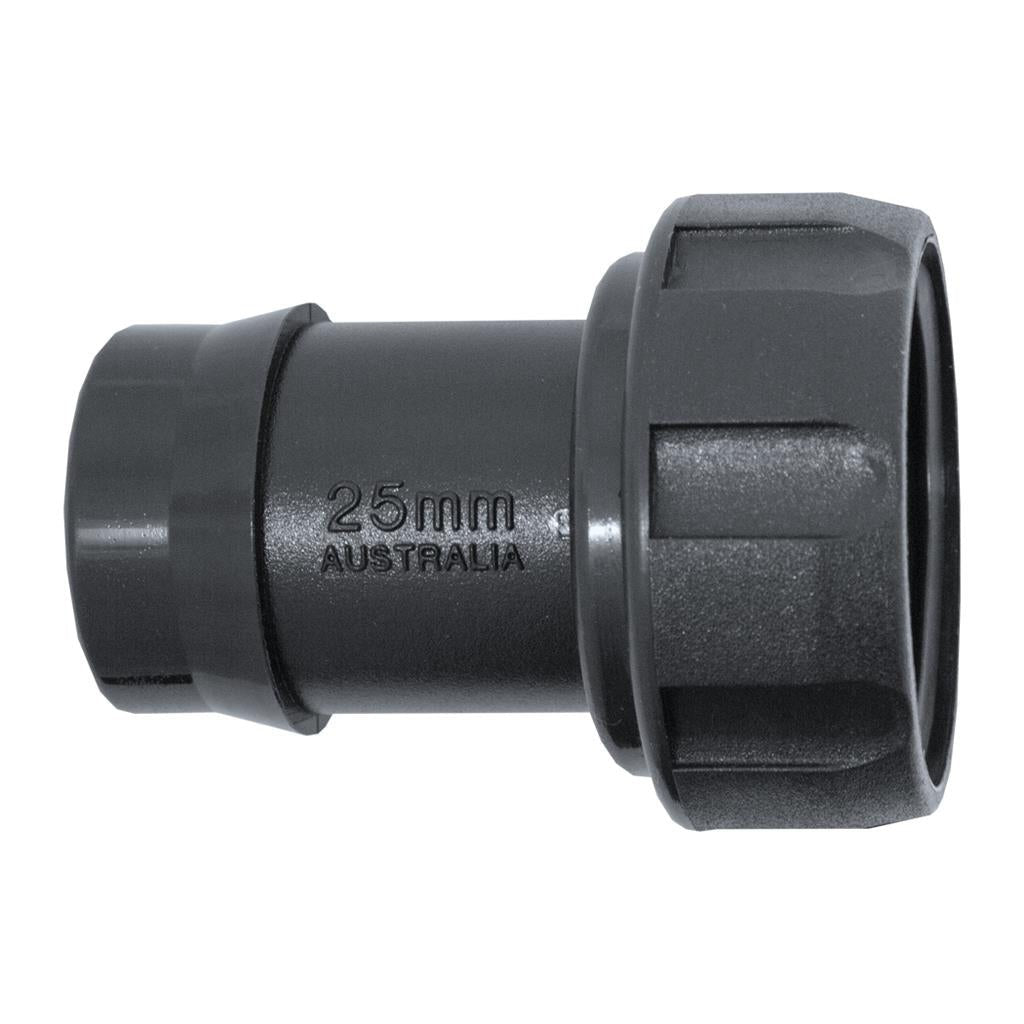

The Antelco 25mm Nut & Tail joins 25 mm irrigation pipe to any 1" BSP male thread - a tap, valve, pump outlet or tank connector - with no PTFE tape and no tools. A barbed 25 mm tail pushes into the pipe, and the 1" BSP female nut turns independently of the tail, so it tightens onto the thread without twisting the pipe. A Santoprene washer is fitted for a watertight seal. Made in Australia from UV-stabilised plastic, with 25 fittings included for building feed lines, return lines and manifolds across a grow room or greenhouse - a quick fix for the leaks and stripped threads that mixed metal-and-plastic joints cause.
Key Benefits
- 1" BSP female x 25 mm barb - takes 25 mm pipe straight onto a 1" male thread
- Turning nut - tighten onto the thread without twisting or kinking the pipe
- Santoprene washer included - seals by hand pressure, no PTFE tape needed
- UV-stabilised plastic - will not corrode and copes with outdoor and greenhouse use
- 25 fittings included - enough to fit out several tanks, pumps or manifolds at once
How to Use
- Cut the pipe square and push it fully over the barbed tail. Stiff pipe goes on more easily after a minute in hot water; add a hose clip where the line runs under pump pressure.
- Check the washer is seated inside the nut, then screw the nut onto the 1" BSP male thread by hand until it seals. Do not over-tighten.
- For a 3/4" tap, fit a 1" BSP male x 3/4" BSP female reducing bush first.
Technical Specifications
- Brand: Antelco
- Antelco order code: 44045 - Nut and Tail with Washer 1" BSPF x 25 mm
- Thread: 1" BSP female (turning nut)
- Tail: 25 mm barbed
- Seal: Santoprene washer, included
- Material: UV-stabilised plastic
- Made in: Australia
- Fittings included: 25
