Description
Step a Large Filter or Fan Down to 200mm Ducting

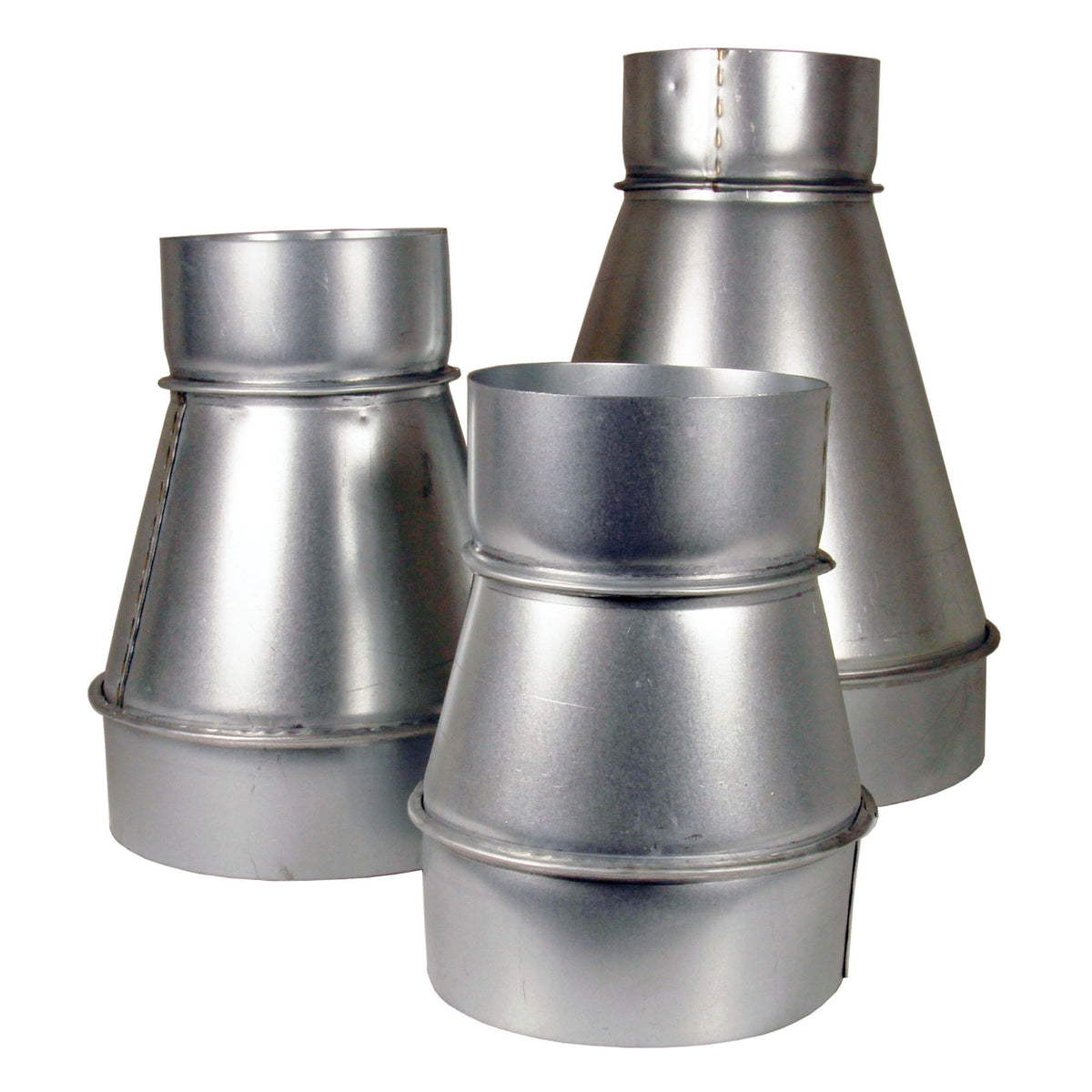

This Blauberg metal ducting reducer steps a 315mm (12") fan or filter outlet down to 200mm (8") ducting in one fitting, the connection needed when a larger extraction unit has to run on a smaller duct size. It is pressed from galvanised sheet steel by the Blauberg Group, so it holds its shape under a fan's negative pressure and seats securely under a standard clamp.
Key Benefits
- One-step size change - 315mm down to 200mm without stacking two separate reducers
- Galvanised steel construction - rigid, corrosion resistant and built to stay in service
- Clean pressed cone that keeps the airflow transition smooth rather than turbulent
- Seats tightly under a fast clamp or jubilee clip at both ends
Matching a Bigger Fan to Smaller Ducting
A 315mm fan or carbon filter forced straight onto 200mm ducting either will not fit or leaves a loose, leaking joint that bleeds static pressure and lets odour escape. A properly formed reducer gives both ends a solid, sealed seat, so the airflow the fan is rated for is the airflow that actually reaches the room.
How to Use
- Fit the 315mm end onto the fan or filter outlet
- Fit the 200mm end onto the ducting
- Secure both joins with a fast clamp or jubilee clip and seal with duct tape for an airtight run
Technical Specifications
- Type: Concentric metal ducting reducer
- Sizes: 315mm (12") to 200mm (8")
- Material: Galvanised sheet steel
- Brand: Blauberg
- Use: Connecting a larger fan or filter outlet to smaller ducting
