Description
Automatic pH dosing with remote control from your phone

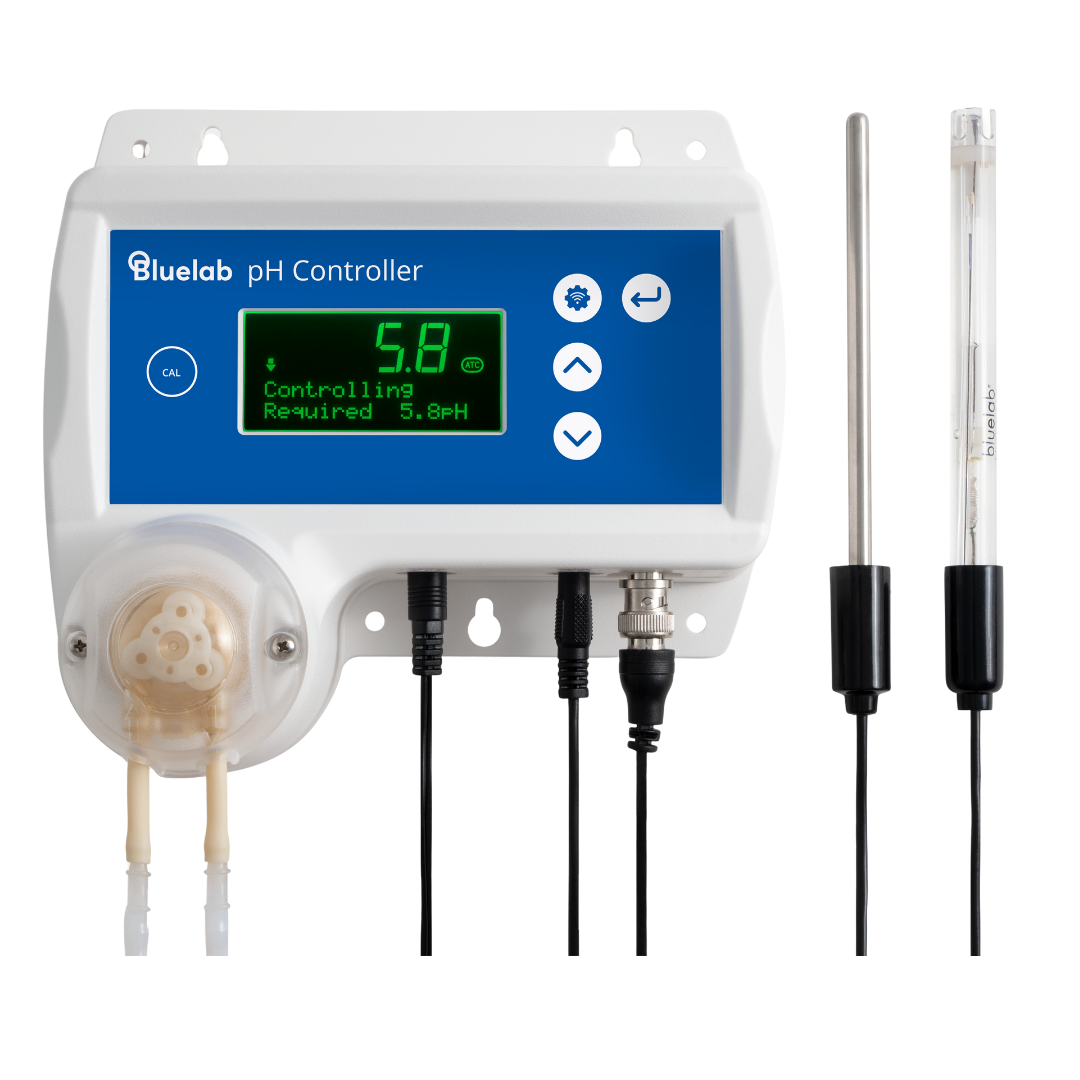

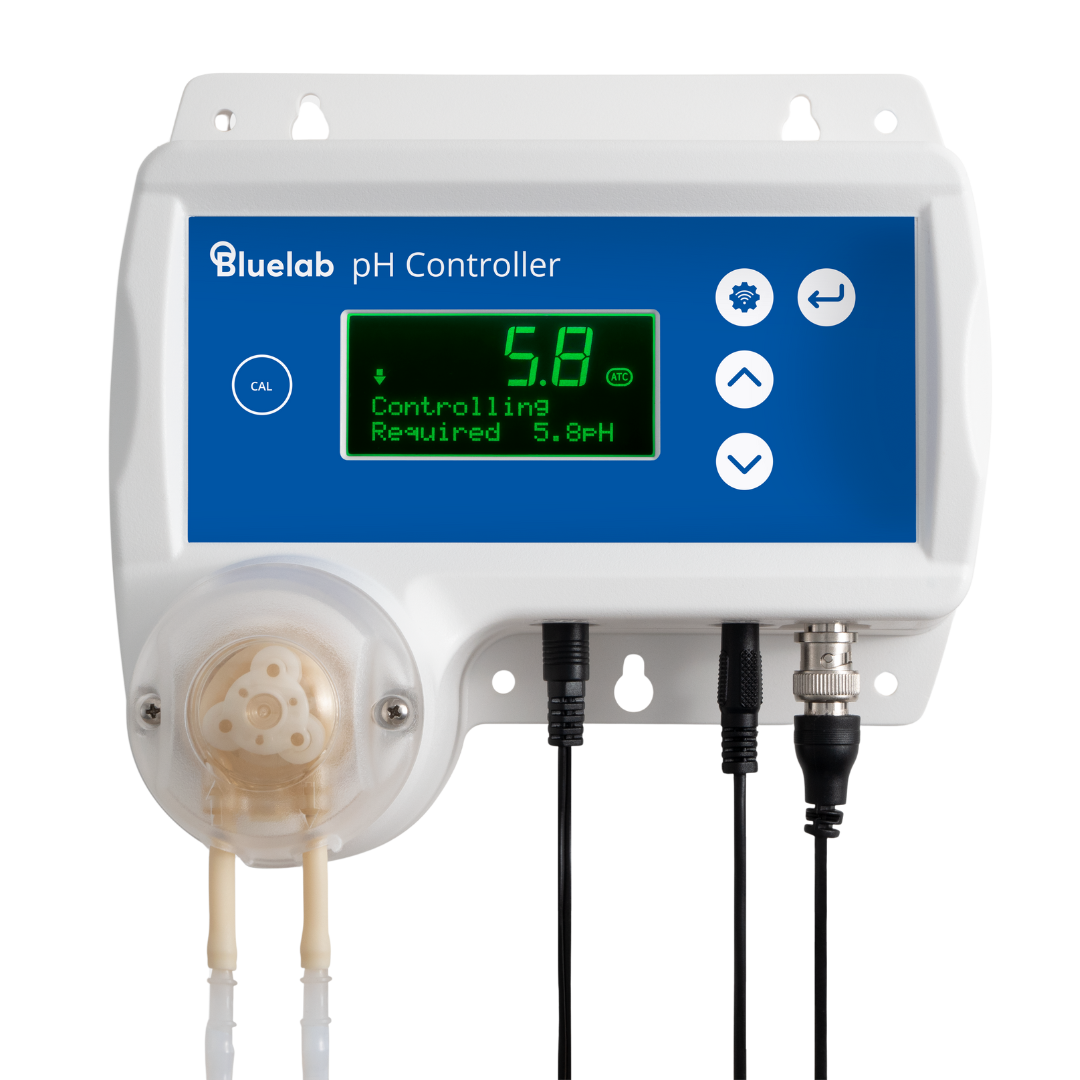

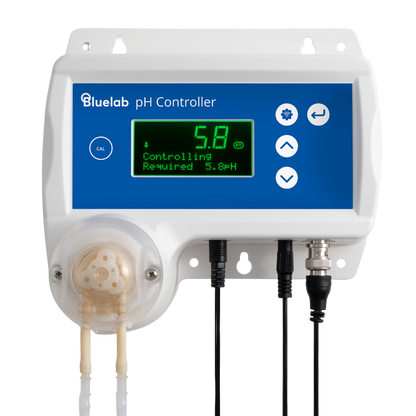

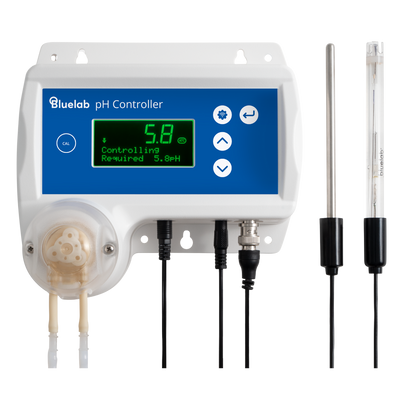

The Bluelab pH Controller Wi-Fi automatically monitors and doses reservoir pH up or down, holding your target to within 0.1 pH using a built-in variable-speed peristaltic pump. Optional Wi-Fi connects the unit to the Edenic app, so you can check readings, adjust settings and receive alerts from anywhere, on top of the safety lockouts and alarms that keep dosing under control at the reservoir itself.
Key Benefits
- Precision dosing within 0.1 pH via a variable-speed peristaltic pump, up to 120ml/min
- Optional Wi-Fi links to the Edenic app for remote monitoring, control and alerts, with the option to disable it
- Safety lockouts and high/low alarms prevent excessive dosing and flag out-of-range pH
- Auto-resume dosing after a power loss keeps control running without intervention
- Automatic temperature compensation via a separate temperature probe keeps readings accurate as the reservoir changes
- Replaceable pH probe keeps long-term running costs low
How to Use
- Mount the controller on a wall near the reservoir and a mains outlet, then connect the pH and temperature probes.
- Set up the inlet and outlet dosing tubes into your pH stock solution and reservoir.
- Calibrate the probe in fresh pH 7.0 and pH 4.0 (or 10.0) solution before first use.
- Connect to Wi-Fi and the Edenic app if you want remote monitoring, set your target pH and dosing direction, then let the controller take over.
Technical Specifications
- pH range: 0.0-14.0, resolution 0.1, accuracy +/-0.1
- Pump flow rate: up to 120ml/min, variable speed
- Connectivity: optional Wi-Fi, Edenic app
- Power: 100-240VAC, 50/60Hz, 5VDC 1.5A output
- Operating environment: 0-50C (32-122F)

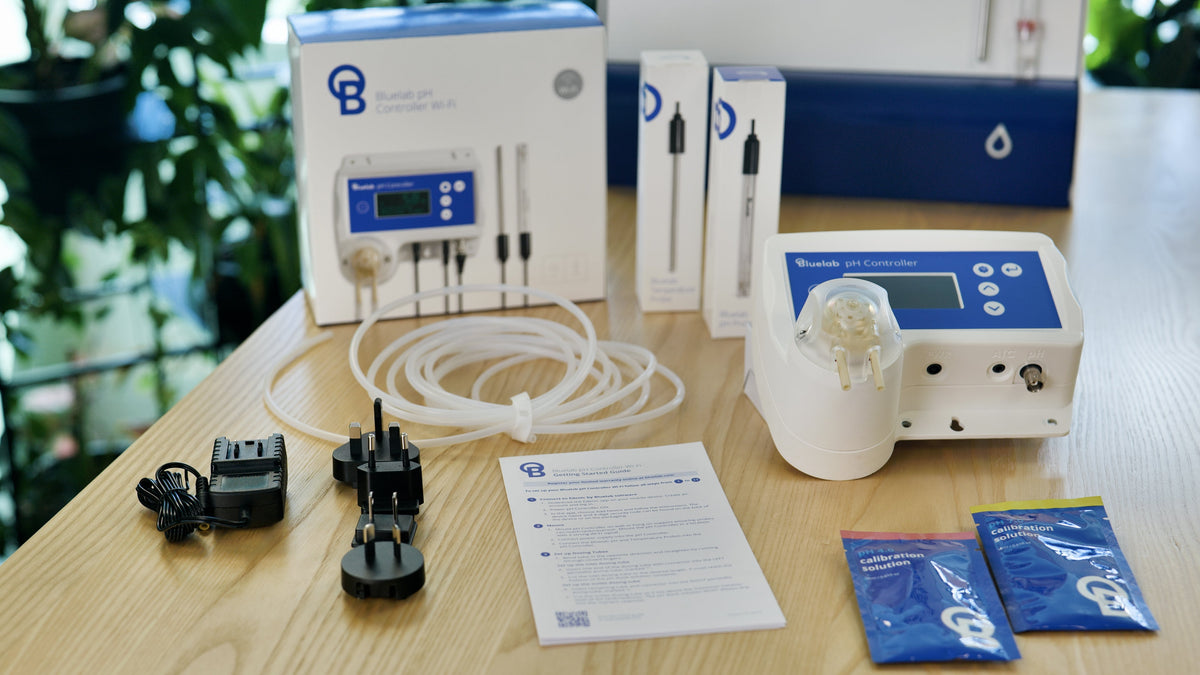

- Includes: pH probe, temperature probe, probe holder, 4m acid-resistant dosing tubing, mounting screws, calibration solution sachets
- Warranty: 2-year controller, 6-month pH probe
