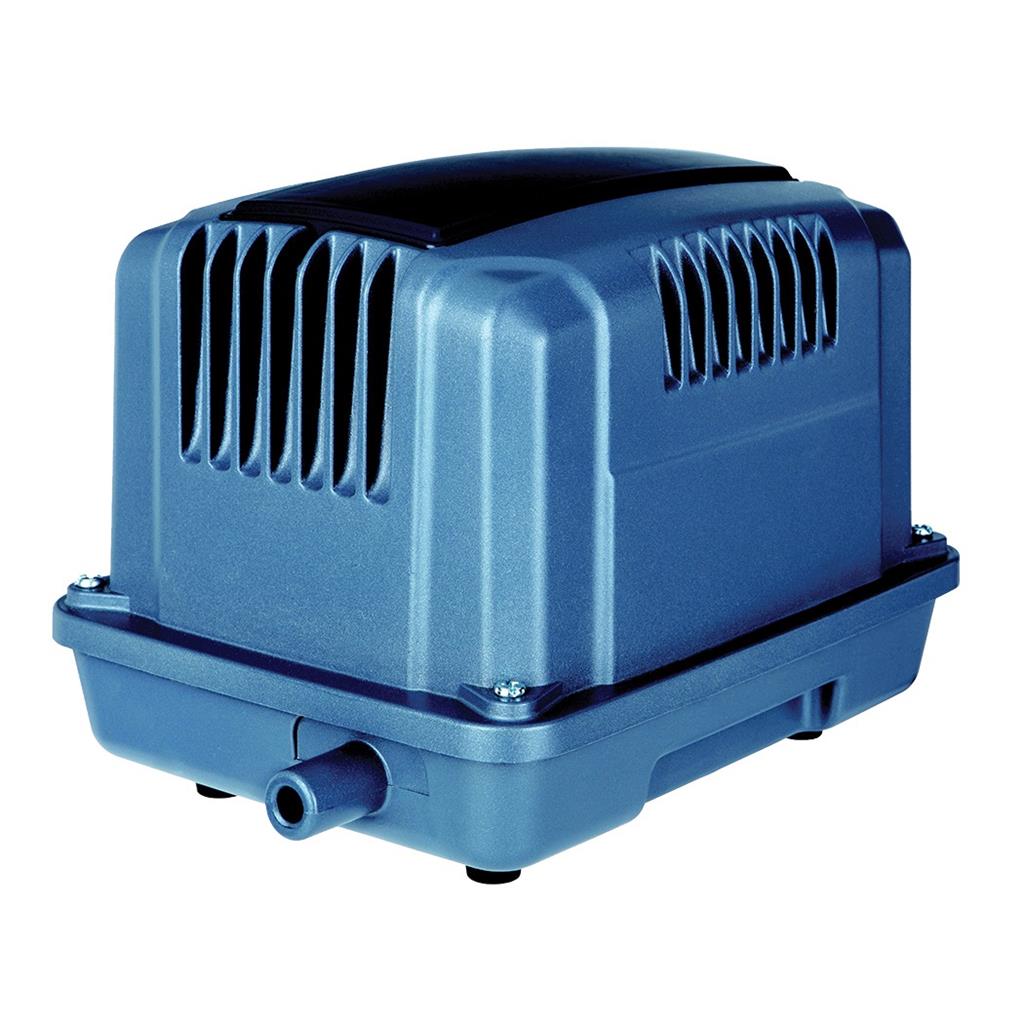

BOYU LK High Flow Air Pump – Air Compressor for Hydroponics

Serious air volume for large reservoirs and multi-site DWC systems

The BOYU LK High Flow Air Pump is a heavy-duty mains air pump built for jobs that a small aquarium-style pump cannot keep up with: large deep water culture and RDWC systems and nutrient reservoirs. Three models share one compact 288 x 196 x 193mm body and move 60, 80 or 100 litres per minute (3,600 to 6,000 L/h) through a single 19mm outlet. The motor sits inside an aluminium casing that sheds heat and protects it, and an outlet buffer chamber keeps running noise down.

Key Benefits

• High output from one pump - up to 100 L/min on the LK-100, enough to feed a manifold and many air stones.
• Working pressure of 0.03-0.035 MPa pushes air down to stones in deep tanks without the flow collapsing.
• Aluminium motor casing for good heat dissipation and a long working life on 24-hour duty.
• Quiet running thanks to the outlet buffer chamber.
• Oil-free - no lubrication needed, so no oil can reach your nutrient solution.

Low Dissolved Oxygen in Big Systems

Roots sitting in solution need oxygen as much as they need feed. As a reservoir grows, or as solution temperature climbs through summer, a small pump stops keeping dissolved oxygen up: roots turn brown and slimy, nutrient uptake falls away and growth stalls. One high-flow pump running several air stones keeps the whole system oxygenated and the solution moving.

How to Use

• Size the model to the total air your stones need, plus some headroom.
• Stand the pump on a dry, level surface above the water line, or fit a non-return valve in the line, so water cannot siphon back into it.
• Run 19mm hose from the outlet to an air manifold, then airline to each stone.
• Run it continuously and keep the pump somewhere clean and ventilated so it stays cool.

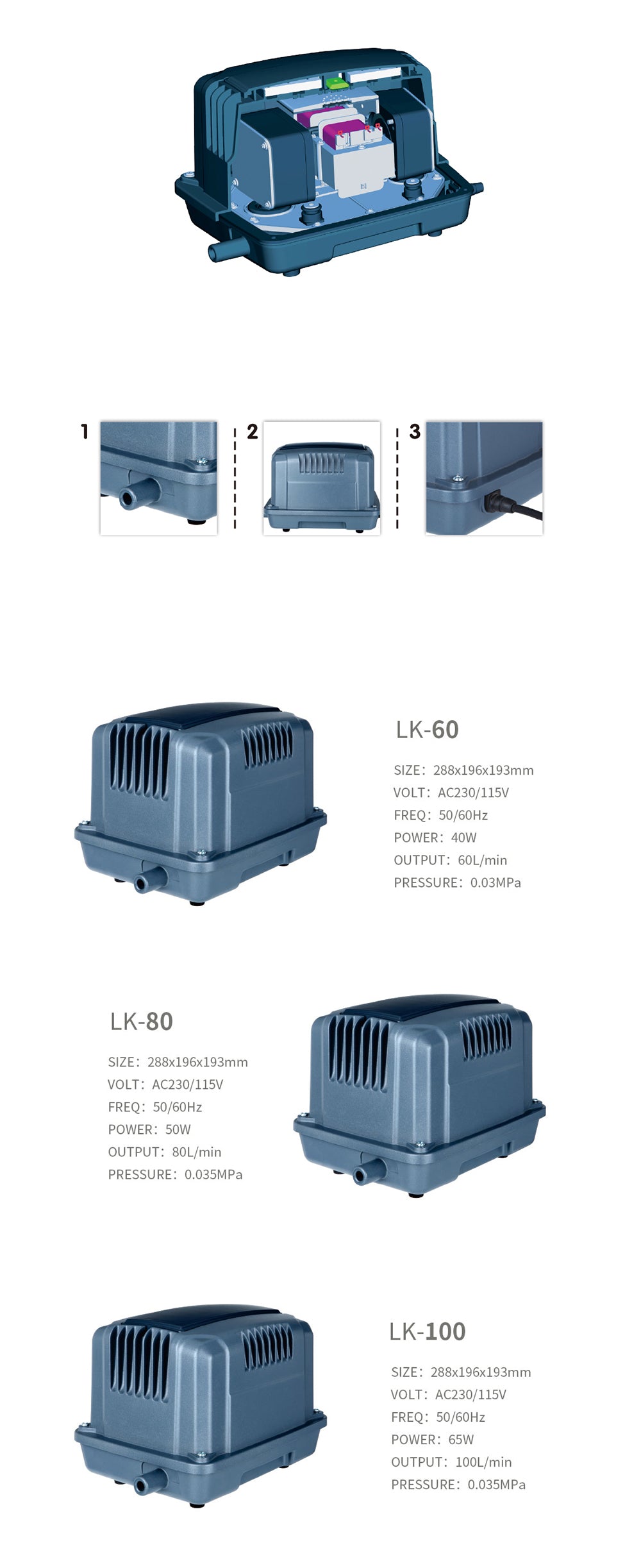

Technical Specifications
