Description
A Full 9m² Titan Room for Commercial-Scale Growing

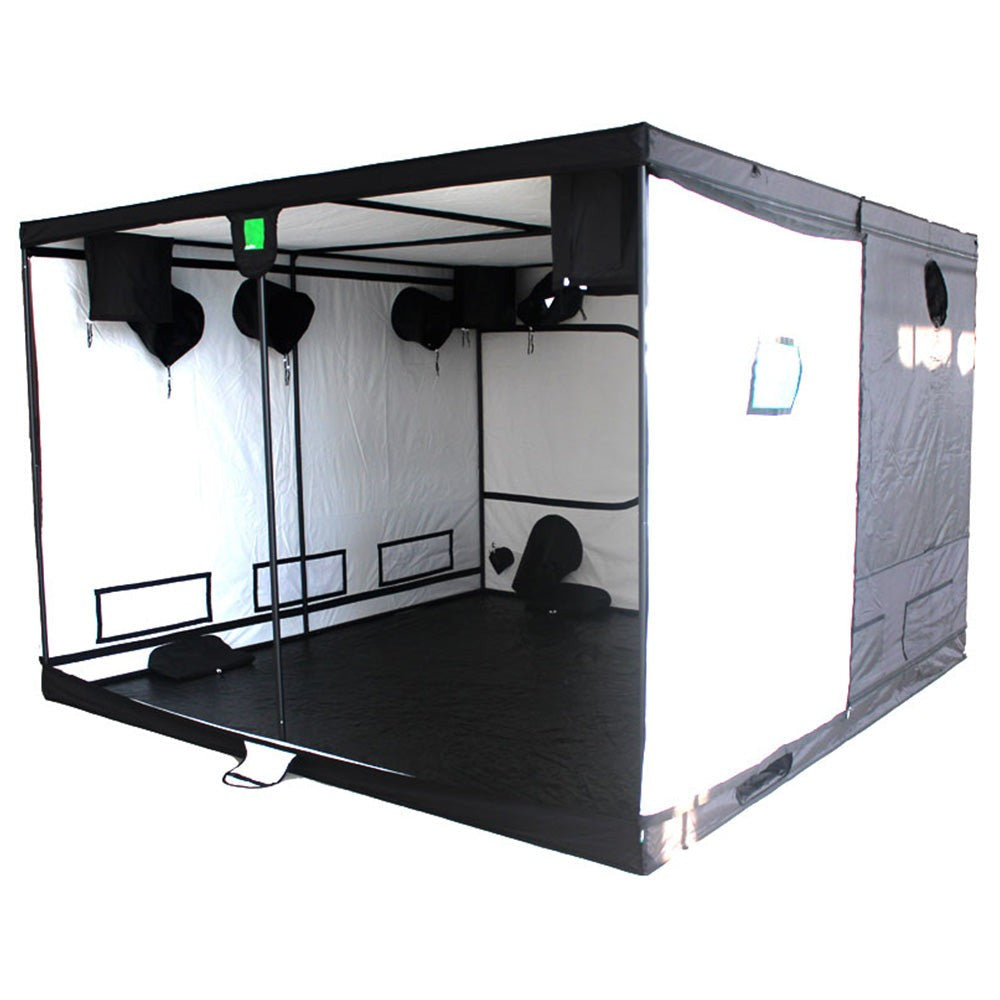

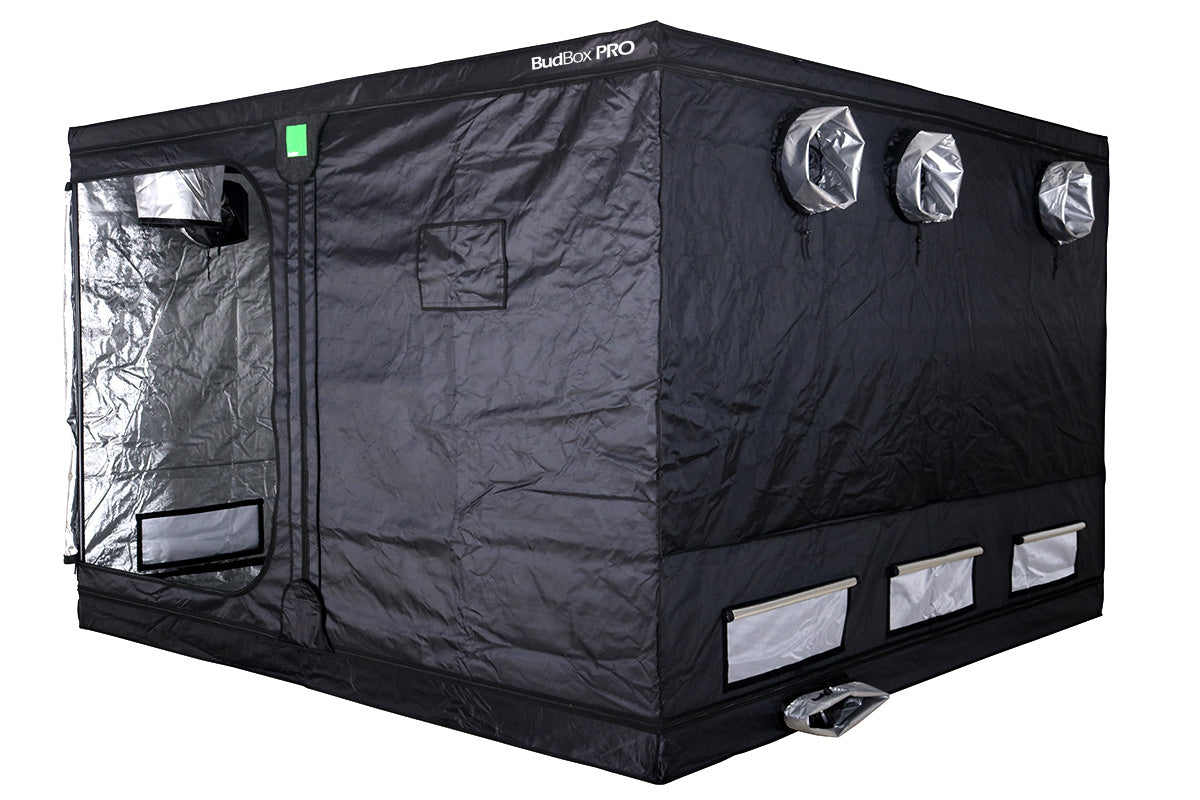

The BudBox Pro Tent (300cm x 300cm x 200cm) — BudBox's Titan 3 — steps up to a full 9m² square footprint on a standard 2m ceiling, built to run as a serious multi-light room while staying under a normal domestic or commercial-unit roof height. The black powder-coated 25mm tempered steel frame with full metal push-and-click connectors carries the fabric and equipment load of a room this size, and six doors — two front main, one front access and two rear — give working access across the whole floor.
Key Benefits
- Load-bearing 25mm steel frame built for a commercial-scale multi-light canopy
- 6 doors (2 front main, 1 front access, 2 rear access) for working access from three sides
- Oversized reducible vents — 6 x 340mm and 8 x 275mm — support multiple extraction and intake runs
- Uplift irrigation bar and 4 irrigation ports for a clean recirculating or run-to-waste setup at scale
- 6 micro-mesh screened passive vents for extra passive airflow across the large floor area
- Fully waterproof inner plus spill tray contains runoff across the full 9m² floor
How to Use
- Assemble the frame with the push-and-click poles and metal corner connectors, then fit the waterproof inner and spill tray.
- Plan the canopy as a grid of lights rather than a single fixture, matching fan capacity to the room's full 18m³ volume.
- Run ducting through the 340mm or 275mm vents, splitting intake and extraction across more than one point.
- Route irrigation through the dedicated ports and uplift bar to keep all six doors clear.
Technical Specifications

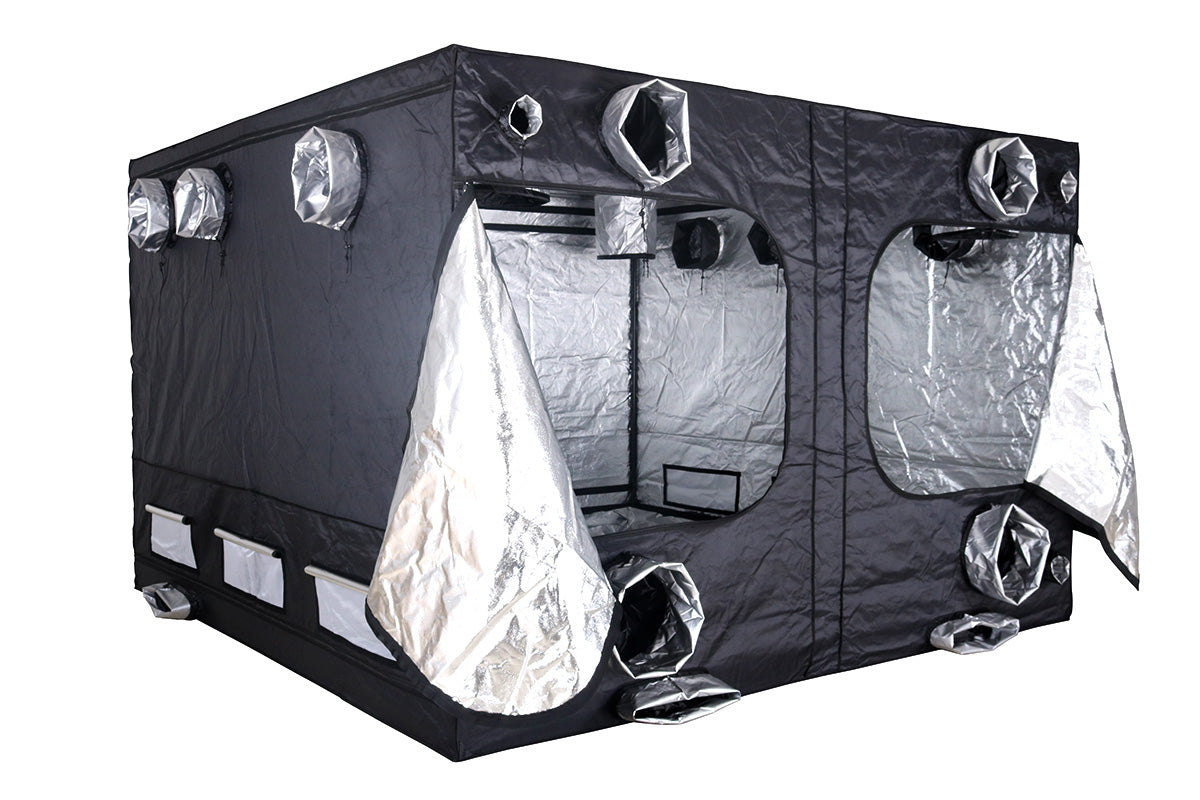

- Lining: silver reflective mylar

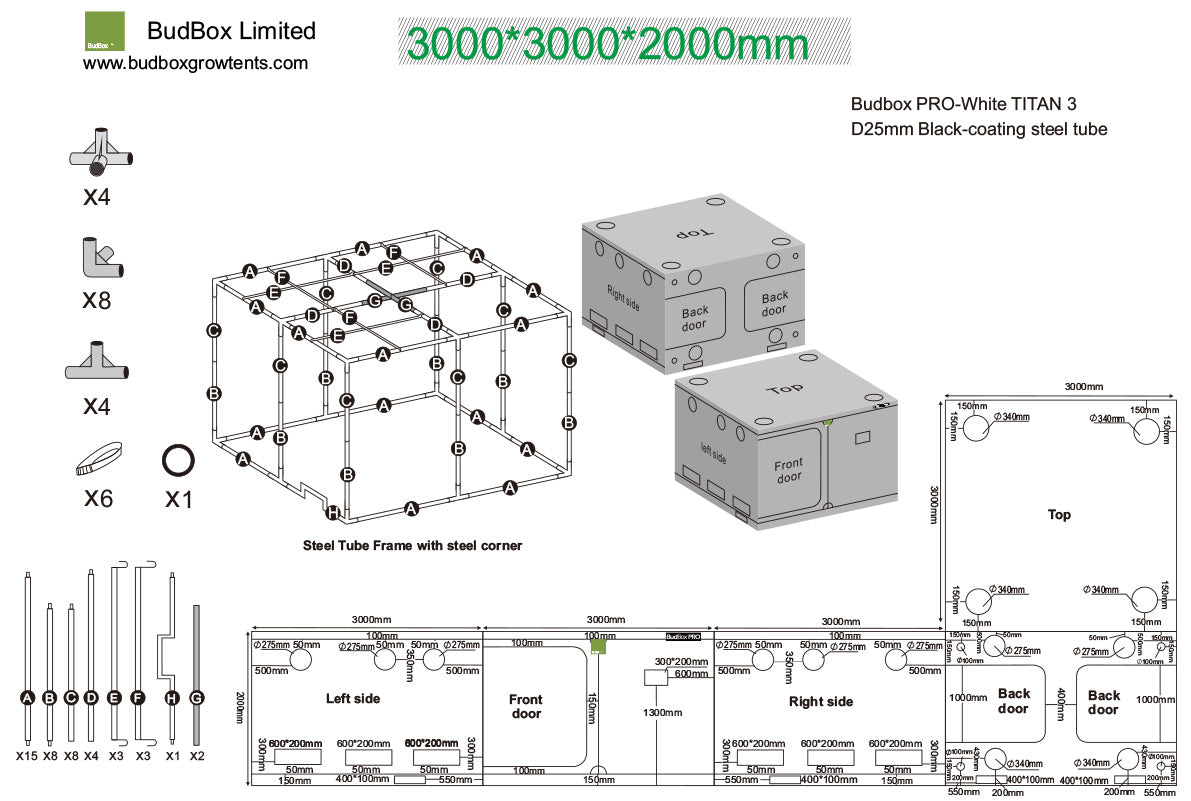

- External dimensions: 300cm x 300cm x 200cm (3.0m x 3.0m footprint, 2.0m tall)
- Footprint: 9.0m²
- Frame: black powder-coated tempered rolled steel, 25mm tubing, full metal push-and-click connectors
- Fabric: 600D canvas, light-proof
- Doors: 2 x front main doors, 1 x front access door, 2 x rear access doors
- Vents: 6 x 340mm, 8 x 275mm, 4 x 100mm reducible ports, 4 x irrigation ports, 1 uplift irrigation bar
- Fittings: 6 roof hanging bars, 6 hanging straps, 1 night-vision viewing window, 6 micro-mesh screened passive vents, waterproof inner with removable spill tray
- Assembly: tool-free push-and-click poles with metal corner connectors
