Description
An 18m² Industrial-Scale Titan Room

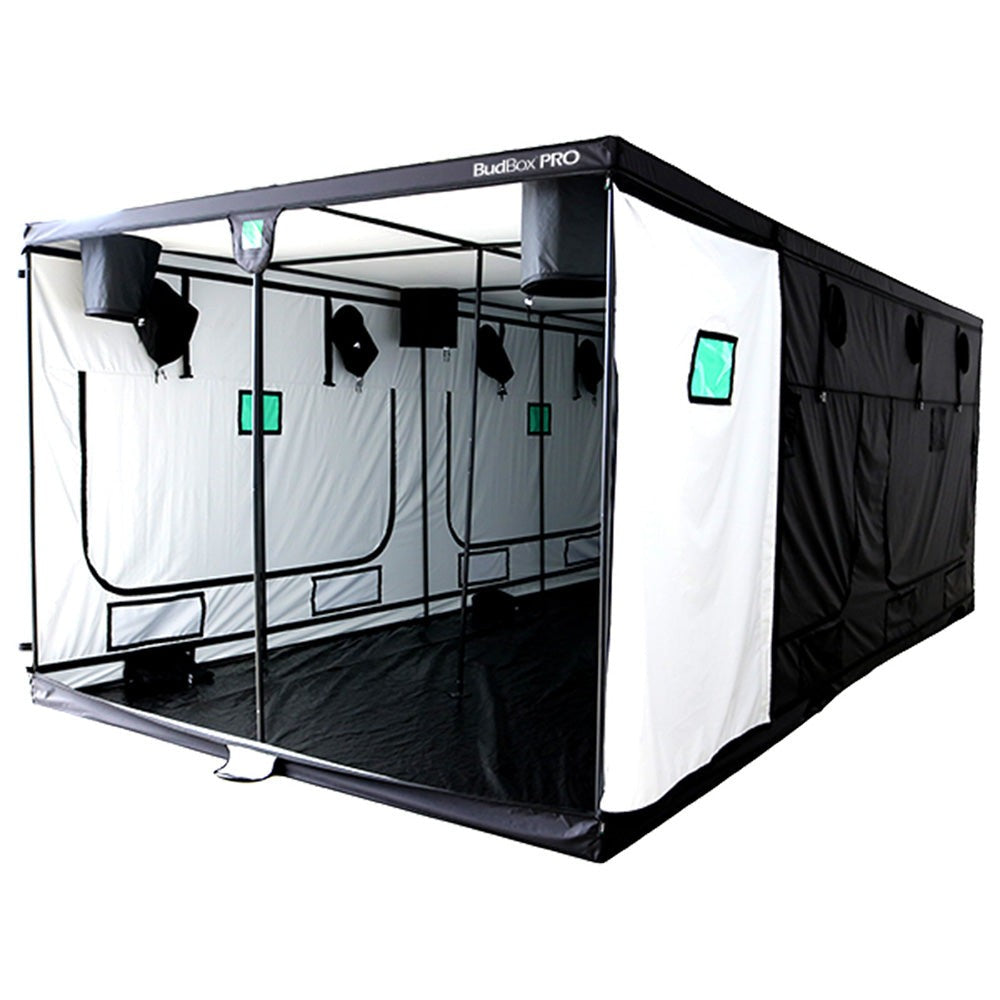

The BudBox Pro Tent (600cm x 300cm x 220cm) — BudBox's Titan 6 — is a full 18m² industrial-scale growing room in a single light-tight, waterproof structure, built for a commercial multi-light, multi-zone canopy run as a proper grow room rather than a tent. The black powder-coated 25mm tempered steel frame with full metal push-and-click connectors carries the fabric and equipment load across the full 6m length, and eight doors — two front main, one front access, four side access and one rear — give working access to every part of the room without crossing the canopy.
Key Benefits
- Load-bearing 25mm steel frame built for an industrial-scale, multi-light canopy
- 8 doors (2 front main, 1 front access, 4 side access, 1 rear) across the full 6m length
- Oversized reducible vents — 10 x 340mm and 8 x 275mm — support several independent extraction and intake runs
- 2 uplift irrigation bars and 6 irrigation ports for a large recirculating or run-to-waste setup
- 5 night-vision viewing windows and 8 micro-mesh screened passive vents for monitoring and passive airflow along the room
- Fully waterproof inner plus spill tray contains runoff across the full 18m² floor
How to Use
- Assemble the frame with the push-and-click poles and metal corner connectors, then fit the waterproof inner and spill tray — plan for more than one person on a build this size.
- Plan the canopy as several independent zones along the 6m length, each with its own light and, ideally, its own extraction point.
- Run ducting through the 340mm or 275mm vents, sizing extraction to the room's full 39.6m³ volume and balancing airflow between zones.
- Route irrigation through the dedicated ports and uplift bars to keep every door clear for daily access.
Technical Specifications

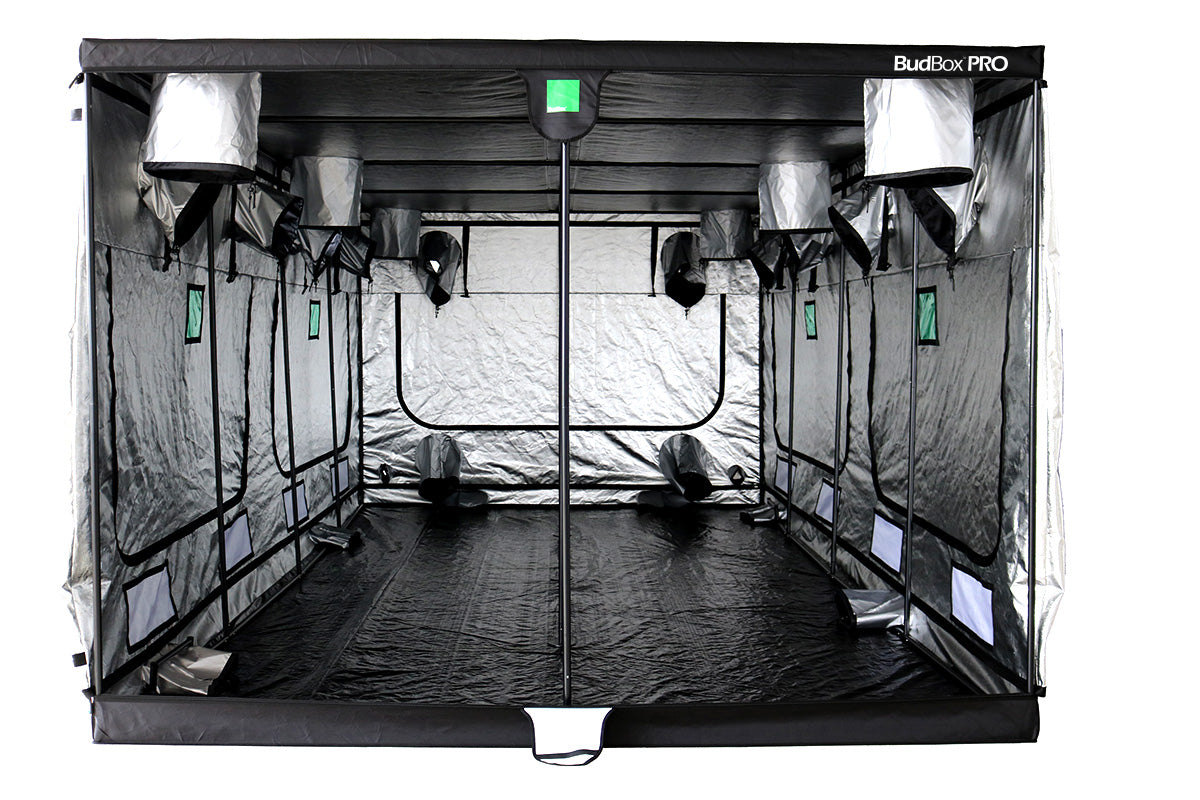

- Lining: silver reflective mylar

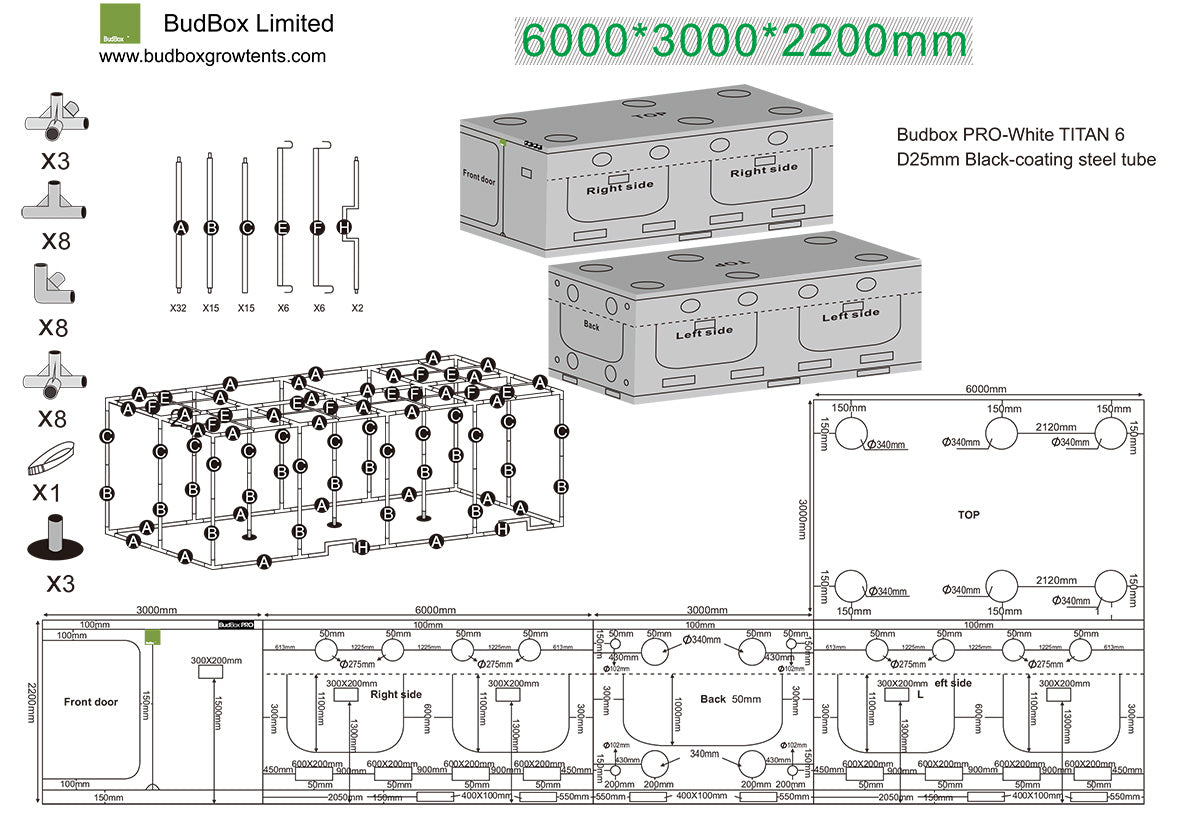

- External dimensions: 600cm x 300cm x 220cm (6.0m x 3.0m footprint, 2.2m tall)
- Footprint: 18.0m²
- Frame: black powder-coated tempered rolled steel, 25mm tubing, full metal push-and-click connectors
- Fabric: 600D canvas, light-proof
- Doors: 2 x front main doors, 1 x front access door, 4 x side access doors, 1 x rear access door
- Vents: 10 x 340mm, 8 x 275mm, 4 x 100mm reducible ports, 6 x irrigation ports, 2 uplift irrigation bars
- Fittings: 12 roof hanging bars, 12 hanging straps, 5 night-vision viewing windows, 8 micro-mesh screened passive vents, waterproof inner with removable spill tray
- Assembly: tool-free push-and-click poles with metal corner connectors
