Description
BudBox's Largest Standard Room — 40.5m² Under One Roof

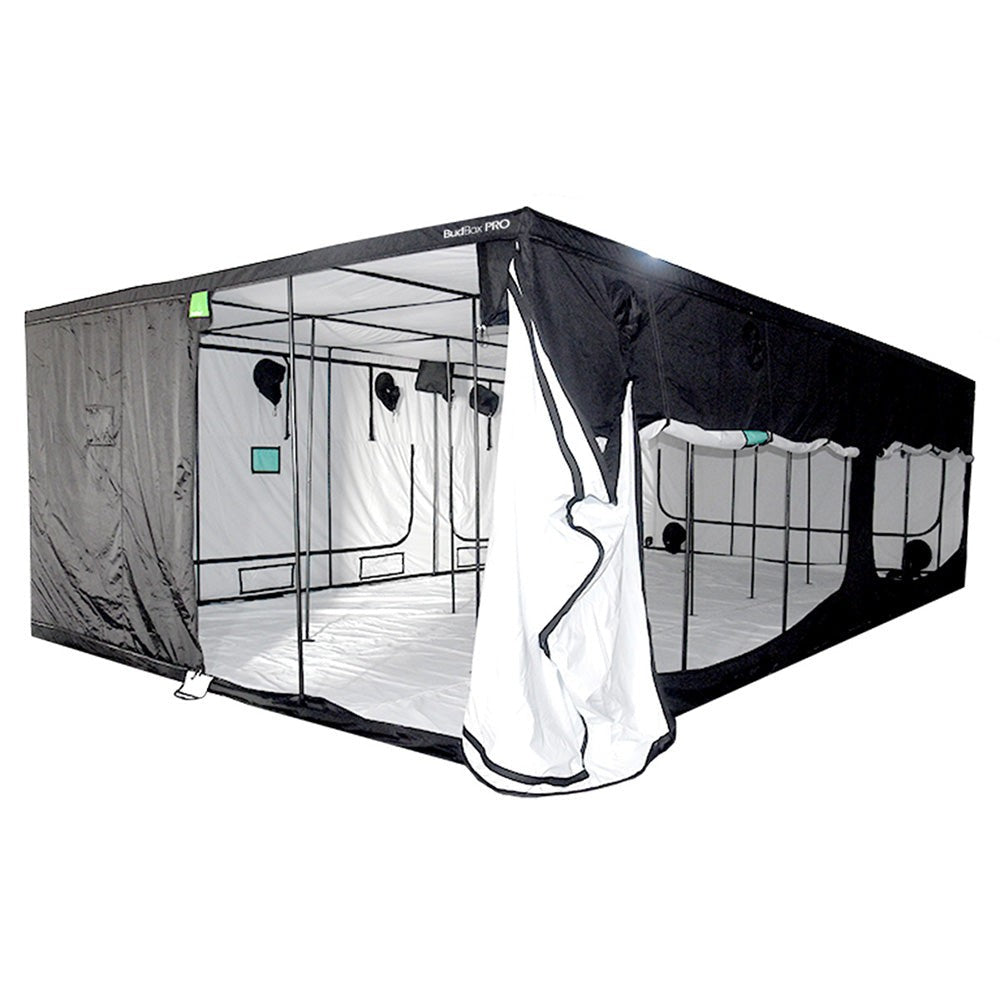

The BudBox Pro Tent (900cm x 450cm x 240cm) is BudBox's largest standard-catalogue tent, the Titan 9 — a 40.5m² industrial growing room with a 2.4m ceiling, weighing around 280kg in fabric and steel alone. The black powder-coated 25mm tempered steel frame with full metal push-and-click connectors is engineered to carry a genuinely commercial lighting and extraction install across the full 9m length, and eight doors — two front main, one front access, four side access and one rear — give working access to every part of the room without crossing the canopy.
Key Benefits
- Load-bearing 25mm steel frame engineered for a commercial-scale lighting and extraction install
- 8 doors (2 front main, 1 front access, 4 side access, 1 rear) across the full 9m length
- Oversized reducible vents — 10 x 340mm, 12 x 275mm and 5 x 102mm — support several independent extraction and intake runs
- 2 uplift irrigation bars and 6 irrigation ports for a large recirculating or run-to-waste setup
- 5 night-vision viewing windows and 12 micro-mesh screened passive vents for monitoring and passive airflow along the full length

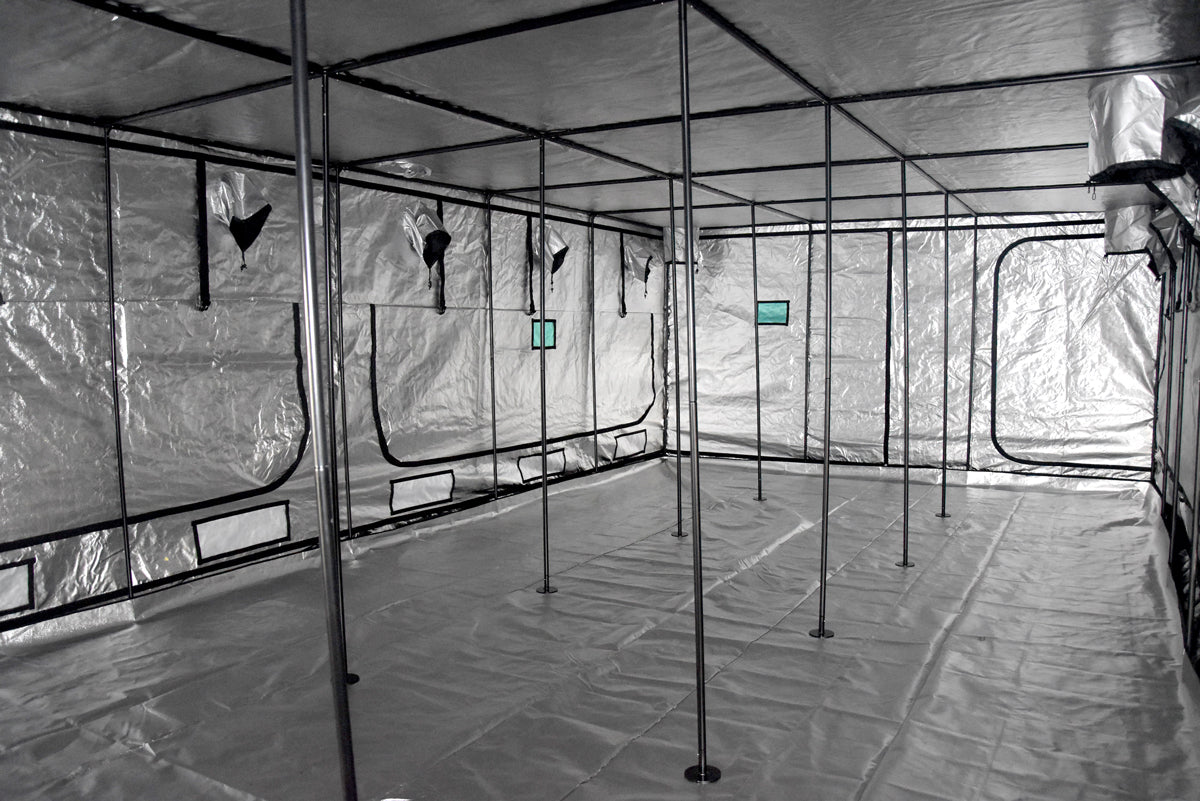

- 32 roof hanging bars and straps distribute the load of multiple fixtures, filters and fans evenly across the frame
How to Use
- Assemble the frame with the push-and-click poles and metal corner connectors — a build this size needs more than one person and a clear, level floor.
- Plan the canopy as a grid of independent lighting zones along the 9m length rather than a single install.
- Run ducting through the 340mm, 275mm or 102mm vents, sizing extraction to the room's full 97.2m³ volume and balancing airflow between zones.
- Route irrigation through the dedicated ports and uplift bars to keep every door clear for daily access.
Technical Specifications

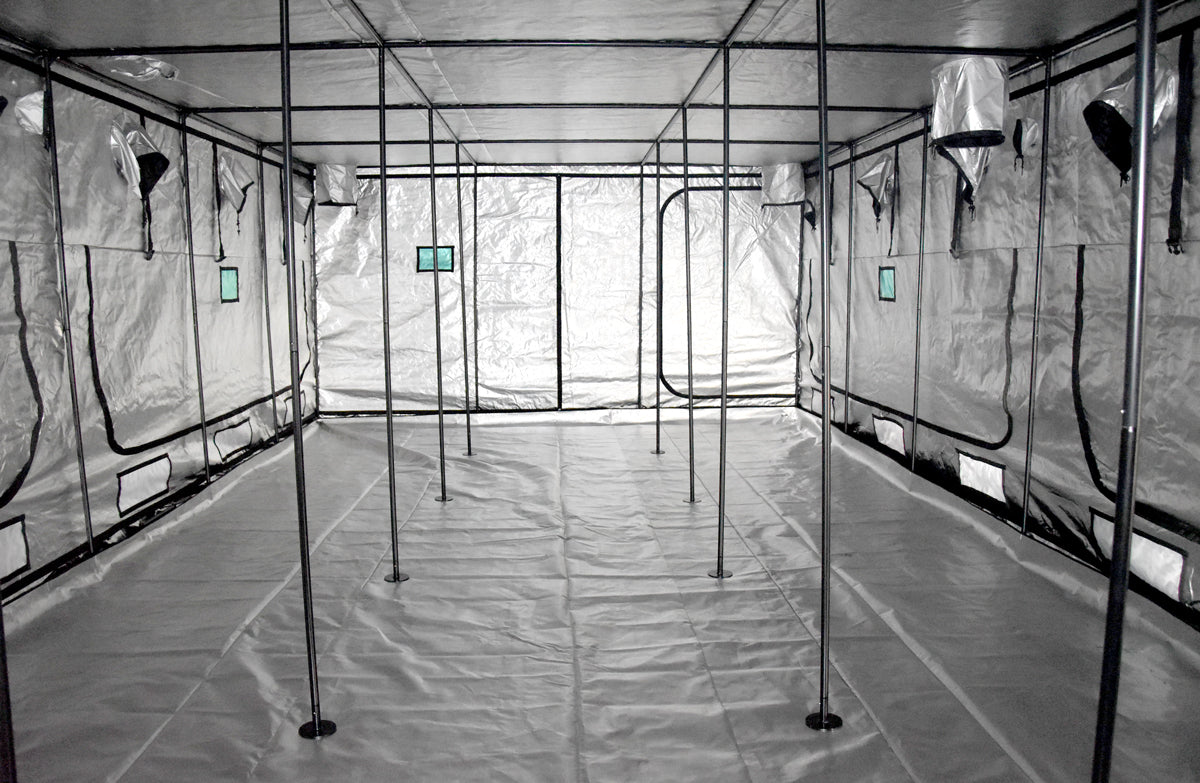

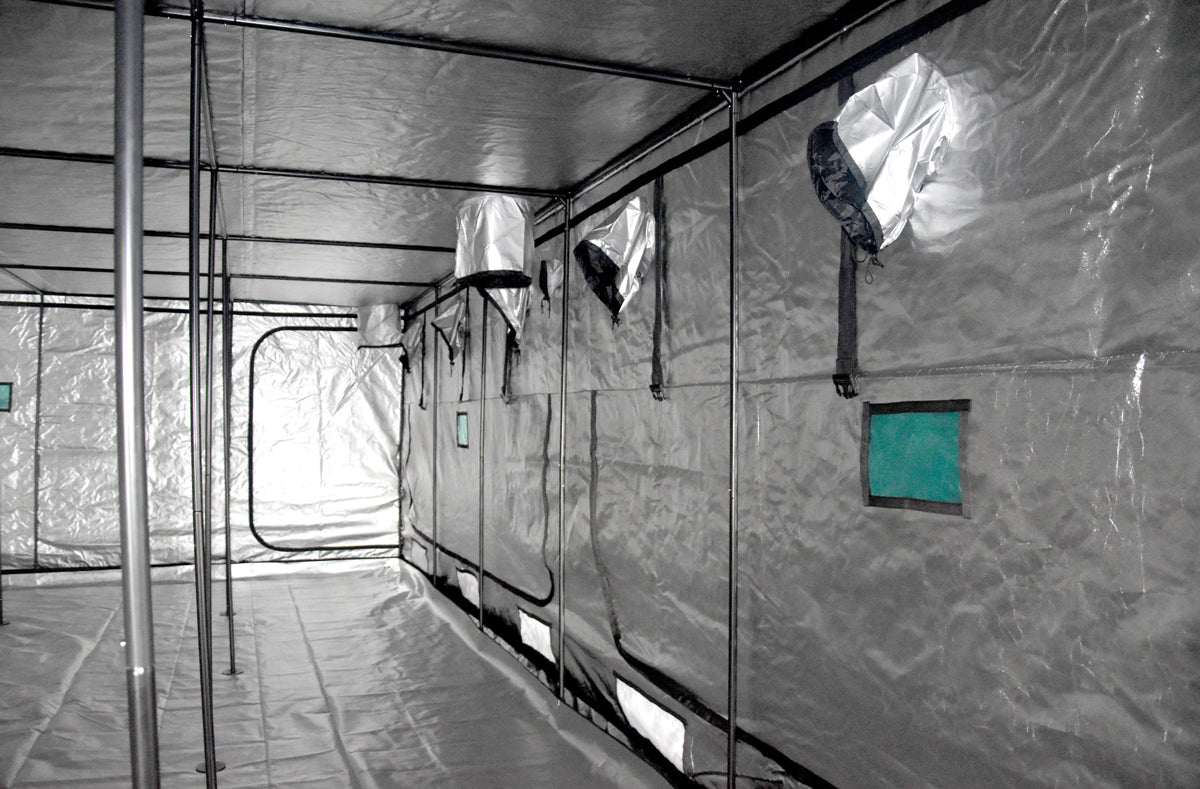

- Lining: silver reflective mylar

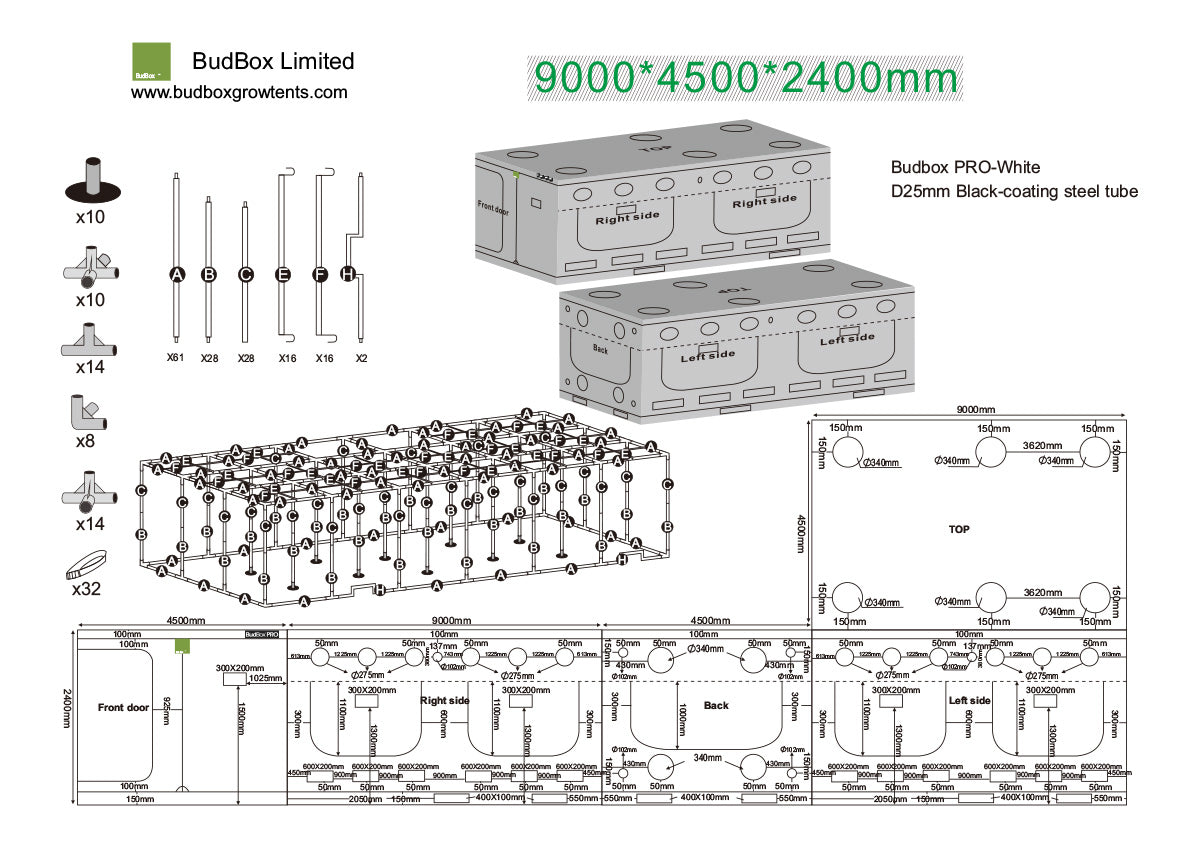

- External dimensions: 900cm x 450cm x 240cm (9.0m x 4.5m footprint, 2.4m tall)
- Footprint: 40.5m²
- Frame: black powder-coated tempered rolled steel, 25mm tubing, full metal push-and-click connectors
- Fabric: 600D canvas, light-proof
- Doors: 2 x front main doors, 1 x front access door, 4 x side access doors, 1 x rear access door
- Vents: 10 x 340mm, 12 x 275mm, 5 x 102mm reducible ports, 6 x irrigation ports, 2 uplift irrigation bars
- Fittings: 32 roof hanging bars, 32 hanging straps, 5 night-vision viewing windows, 12 micro-mesh screened passive vents
- Assembly: tool-free push-and-click poles with metal corner connectors
