Description
The second-generation Max-Fan, refined for more airflow from a smaller footprint

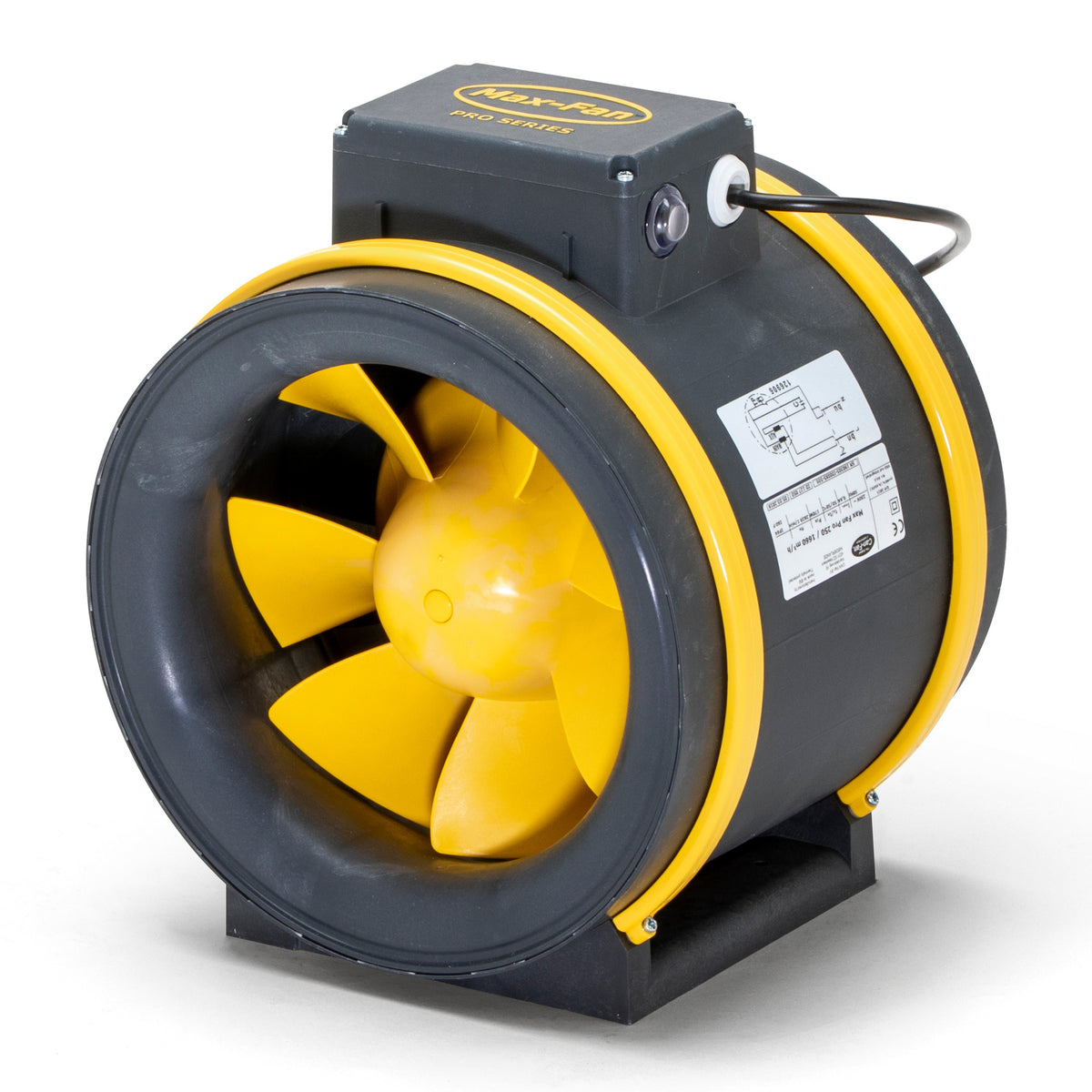

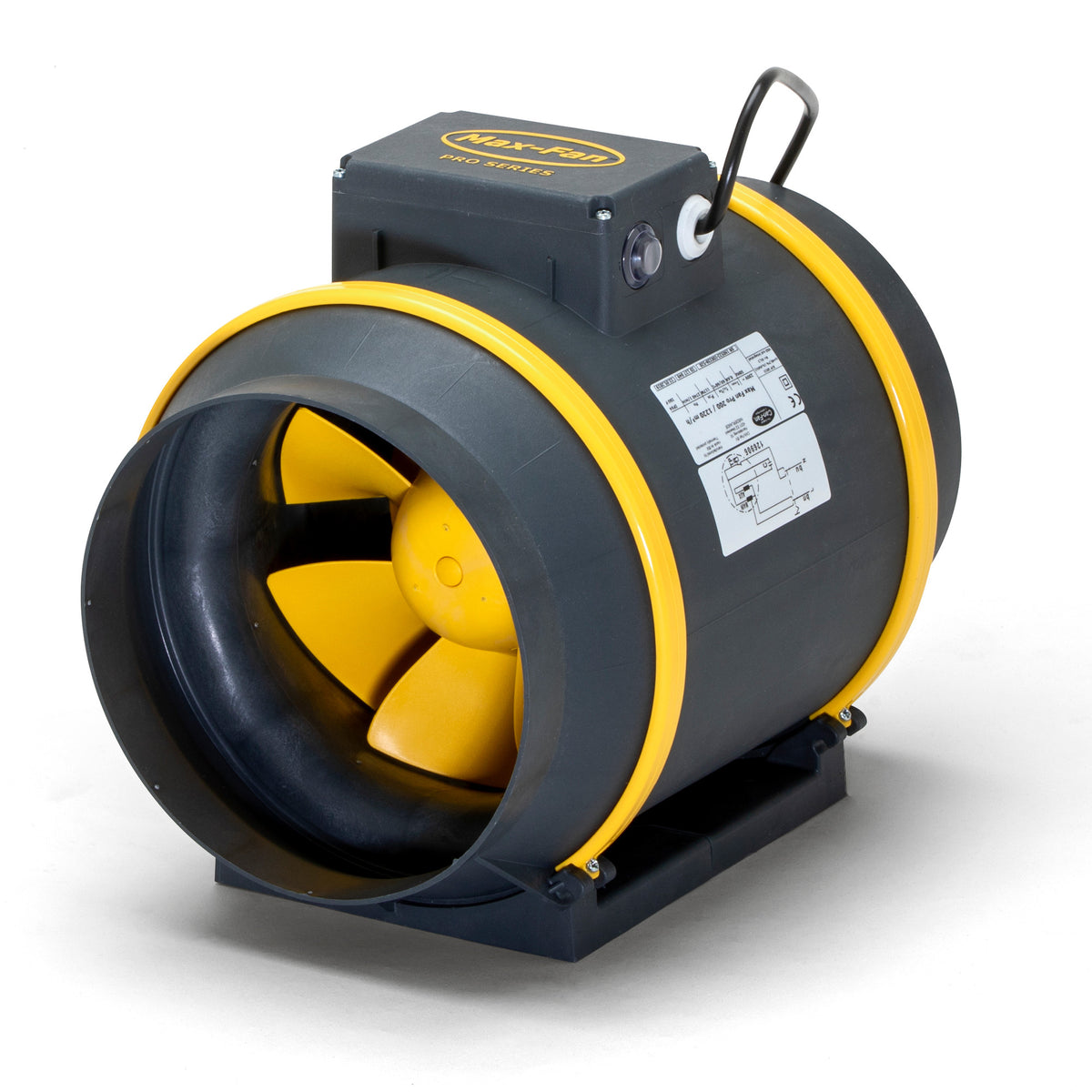

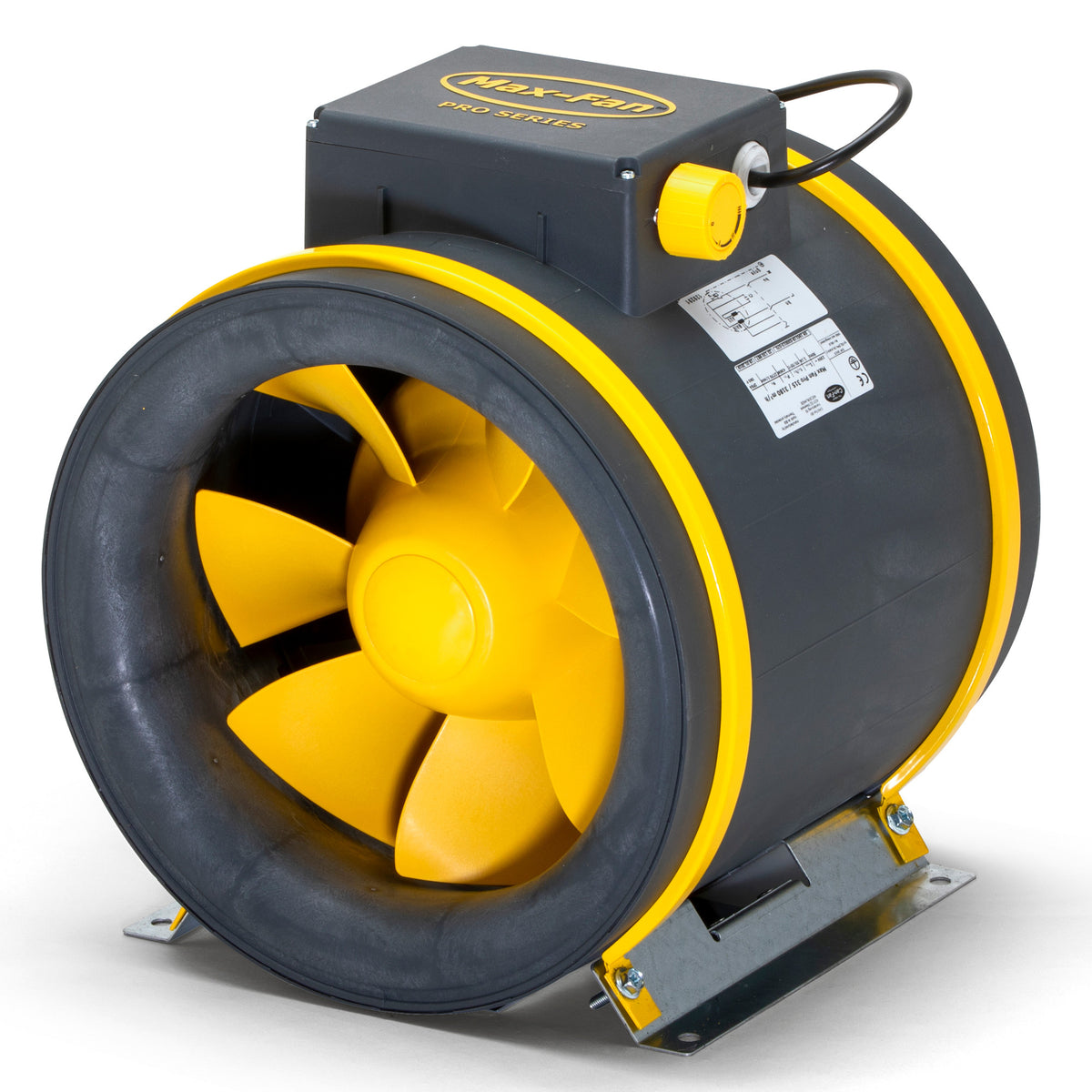

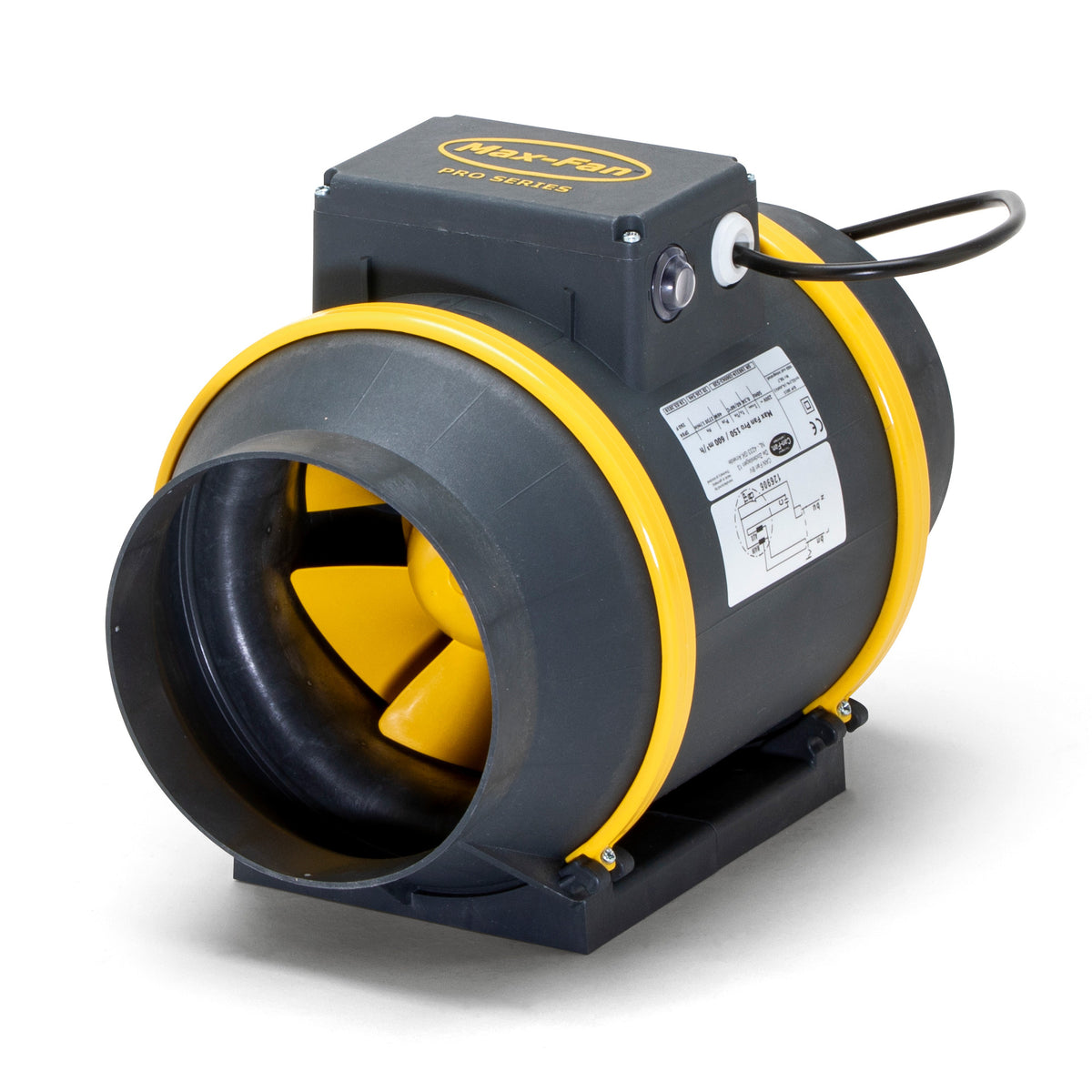

The Max-Fan Pro Series is the second generation of the Can Max-Fan, using the same diagonal 3D rotor-stator system improved for better efficiency and a more compact build. It's an AC motor fan supplied bare, without acoustic housing, for growers wiring it directly into their own ducting run who want strong output in a smaller physical space than the original Max-Fan.
Key Benefits
- Improved 3D rotor-stator system for stronger air performance than the original Max-Fan at a similar size.
- Compact body that takes up less room than the first-generation Max-Fan for the same airflow class.
- 2-speed and 3-speed models across the range, giving finer control over airflow.
- AC motor, compatible with standard fan speed controllers.
- Airflow from 600 m³/h up to 3180 m³/h across four sizes.
A fan that's too weak for the room leaves heat, humidity and stale air building up around the canopy, while one that's the wrong physical size can be awkward to fit in a tight loft or cupboard grow space. The Max-Fan Pro's smaller body makes it easier to fit strong extraction into a compact space without giving up airflow.
How to Use
Size the fan to clear the room's air volume several times an hour, accounting for carbon filter and ducting resistance in the run. Wire through a compatible speed controller, mount with the airflow arrow pointing away from the room, and support the fan independently of the ducting joints.
- Design: 2nd-generation diagonal 3D rotor-stator, AC motor
- Construction: bare fan, no acoustic housing
- Airflow range: 600-3180 m³/h
- Sizes: 150mm-315mm (6"-12"), 2 or 3 speed
