Description
German EC power for grow rooms that need serious airflow
The Can-Fan Q-Max EC Fan pairs a German-made Max-Fan Pro Series EC motor with a fully silenced metal housing, giving growers a mixed-flow inline fan that moves a lot of air without the racket of an old AC unit. A 3D rotor-stator system smooths the airflow through the diagonal impeller, so the fan stays aerodynamically efficient even against the resistance of a carbon filter and a long duct run. Six sizes cover 150mm (6") up to 355mm (14"), moving from 716 m3/h up to 4,800 m3/h on the high-power 14-inch.
Key Benefits
- Airflow from 716 m3/h to 4,800 m3/h across the six sizes, enough for anything from a single tent to a full grow room
- Max-Fan Pro Series EC motor built into the housing, delivering strong static pressure at low power draw
- Fully silenced metal casing lined with acoustic foam, muffling both intake and exhaust noise
- 3D rotor-stator diagonal impeller for the aerodynamic efficiency the Q-Max range is known for
- Amperage is irrelevant - speed is set through the EC control signal, so up to 10 fans run off one Can-Fan EC Controller
- Integrated hanging brackets keep installation straightforward and vibration out of the ducting
Long Duct Runs and Filters That Choke a Standard Fan
A carbon filter and metres of ducting rob a lot of fans of their rated airflow, leaving growers with a stagnant tent, climbing humidity and slow, stretched growth. The Q-Max EC's static pressure holds up against that resistance, so the airflow at the plant stays close to the number on the box rather than trailing off partway down the duct.
How to Use
- Size the fan to exchange the room or tent volume roughly once a minute, then add headroom for the filter and ducting
- Mount it inline using the integrated hanging brackets, ideally with the carbon filter feeding straight into the fan
- Connect a Can-Fan EC Controller (sold separately) with the 3.5mm jack lead to set the fan speed - the fan does not run without one
- Chain further fans off the same controller, up to ten in total, for balanced multi-fan extraction
Technical Specifications
- Motor: Max-Fan Pro Series EC, diagonal mixed-flow, 3D rotor-stator system
- Housing: galvanised metal casing with acoustic foam lining
- Compliance: ErP-compliant for the UK/EU market

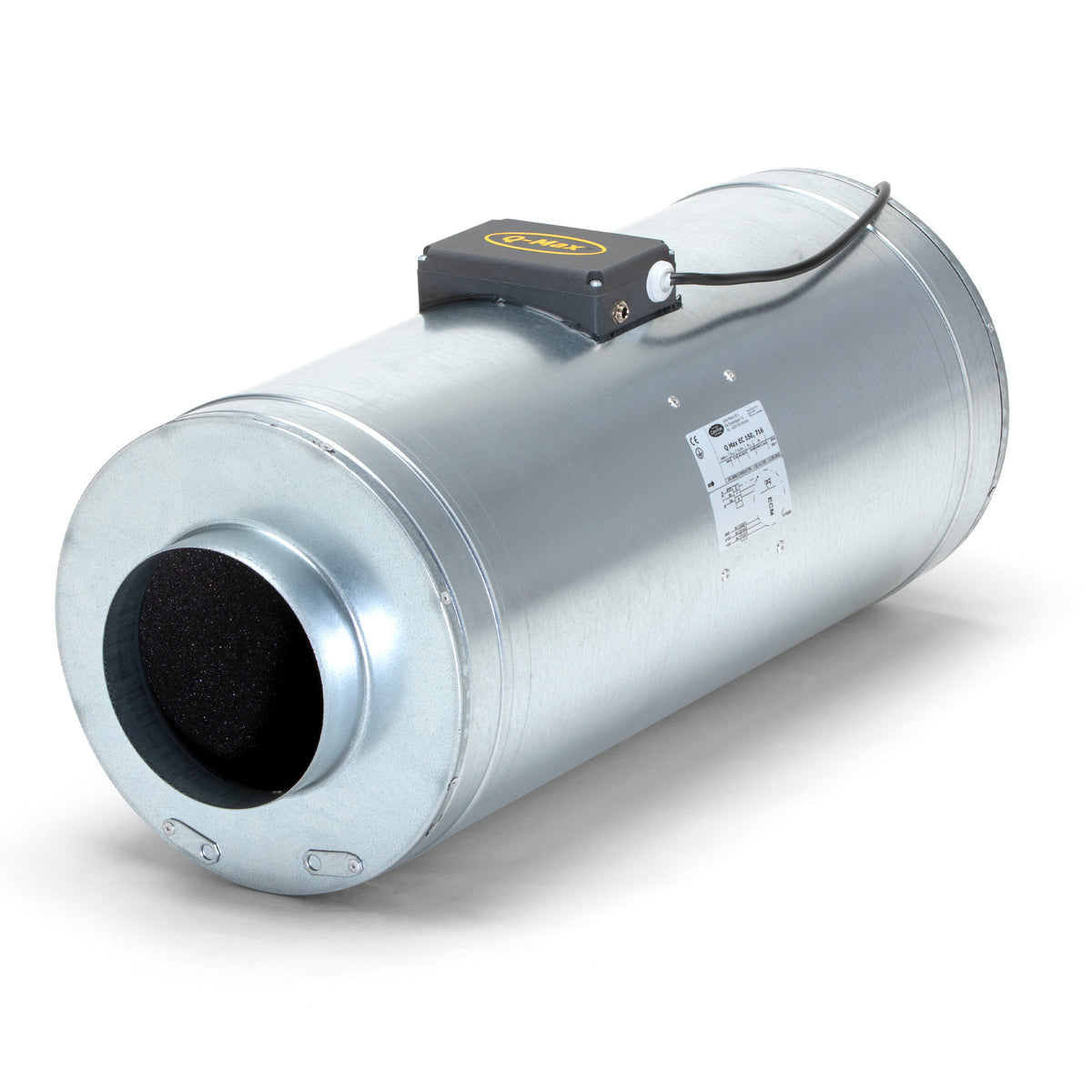

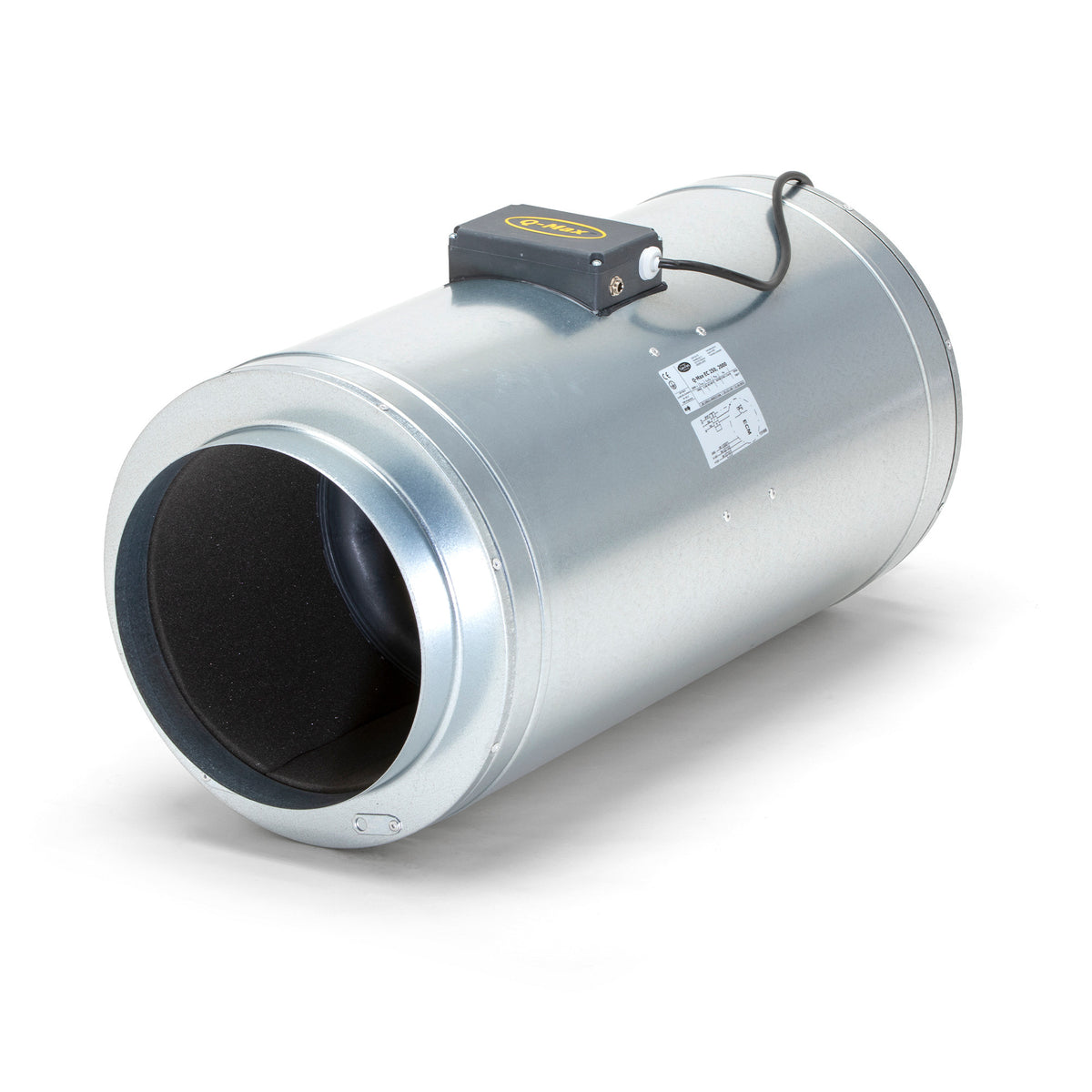

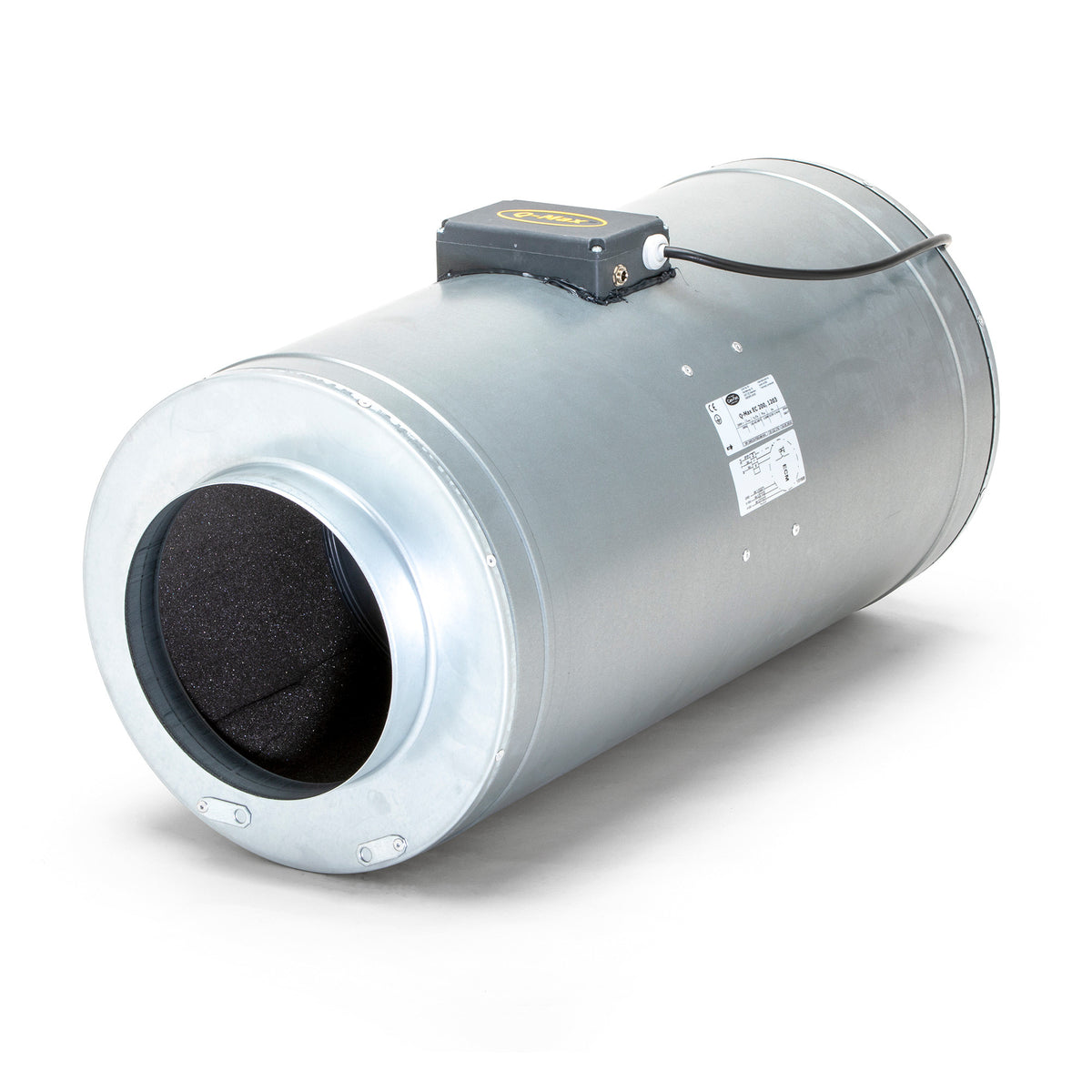

| By size | 6" 150mm 716m3/hr | 8" 200mm 1203m3/hr | 10" 250mm 2000m3/hr |
|---|---|---|---|
| Airflow | 716 m³/h | 1203 m³/h | 2000 m³/h |
| Power | 63W | 120W | 313W |
| Noise | – | 55 dB | 58 dB |
| Control | EC controller compatible | ||
| Max speed | – | 3111 rpm | 3868 rpm |
| Static pressure | – | 380 Pa | 715 Pa |
| Weight | – | 9kg | 10kg |
| Dimensions | – | 60 x Ø31.3cm | 60 x Ø32.7cm |

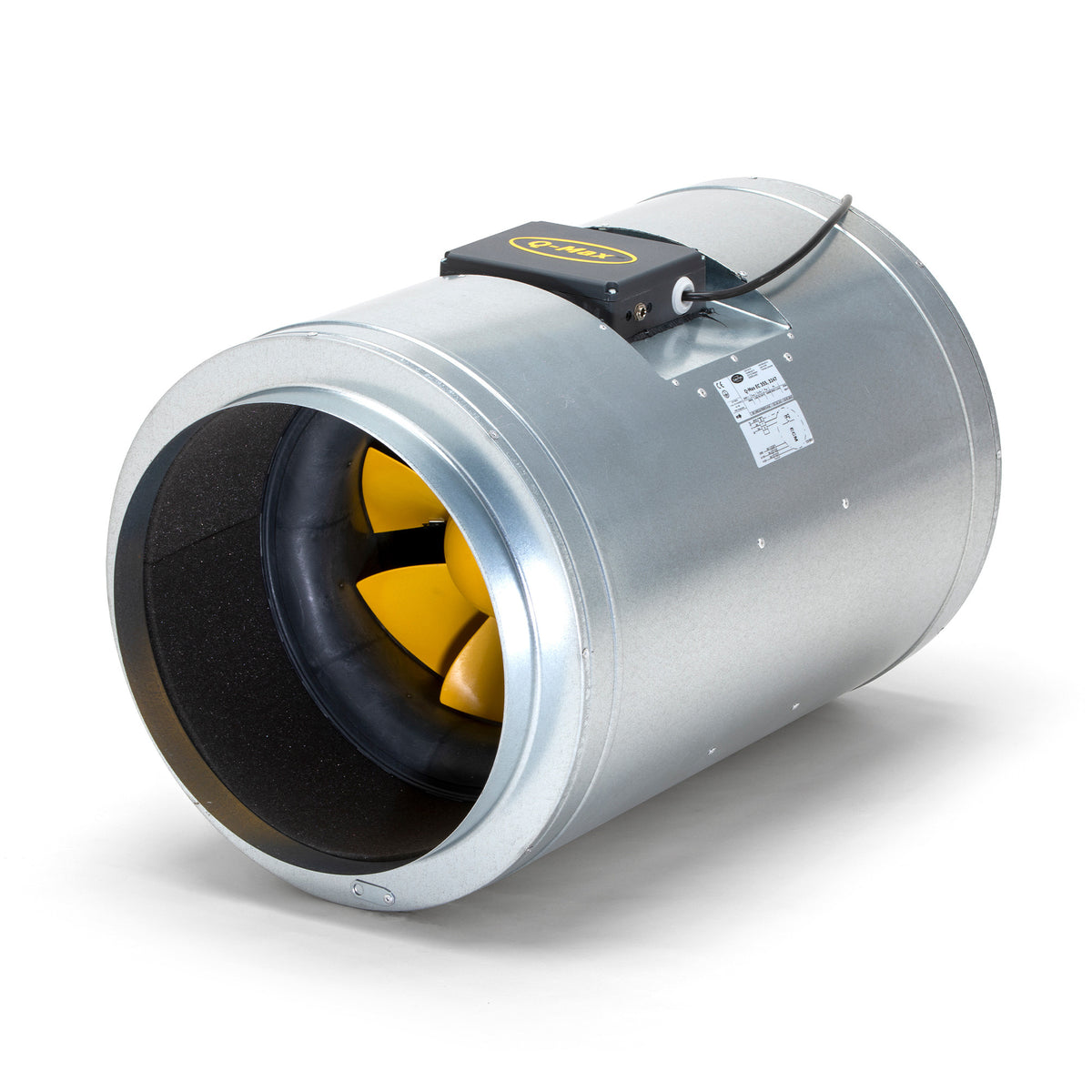

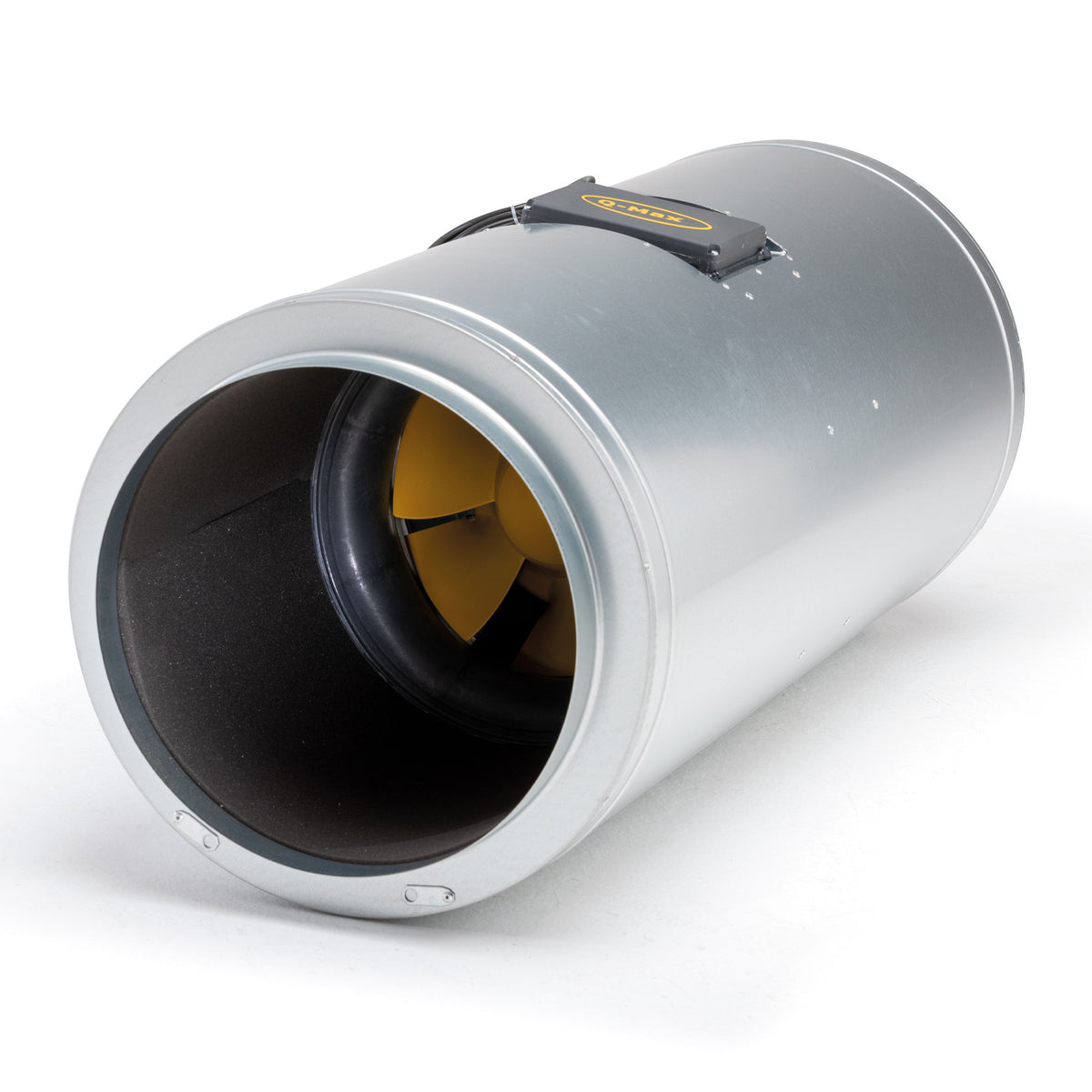

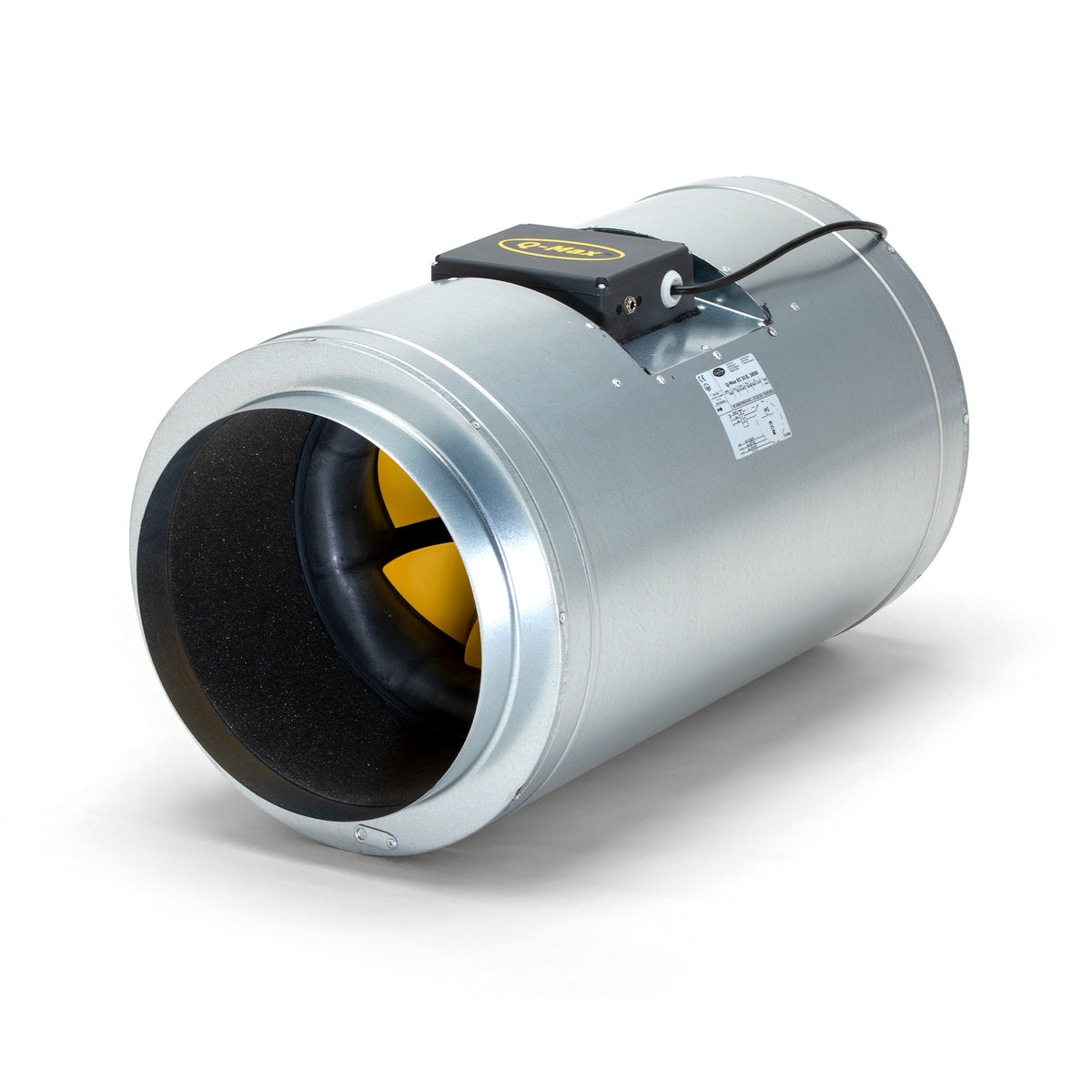

| By size | 12" 315mm 2850m3/hr | 14" 355mm 3247m3/hr | 14" 355mm 4800m3/hr High |
|---|---|---|---|
| Airflow | 2850 m³/h | 3247 m³/h | 4800 m³/h |
| Power | 287W | 266W | 736W |
| Noise | 58 dB | 56 dB | 65 dB |
| Control | EC controller compatible | ||
| Max speed | 2795 rpm | 2230 rpm | 2998 rpm |
| Static pressure | 565 Pa | 450 Pa | 865 Pa |
| Weight | – | – | 22kg |
| Dimensions | 60 x Ø39.2cm | 60 x Ø43.2cm | 99.5 x Ø43.2cm |
