Dimlux Expert Series 630W Dual Full Spectrum – CMH Fixture

Two Full Spectrum CMH Lamps, One Ballast, Up to 1,411 µmol/s

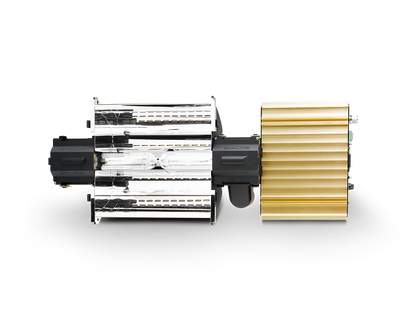

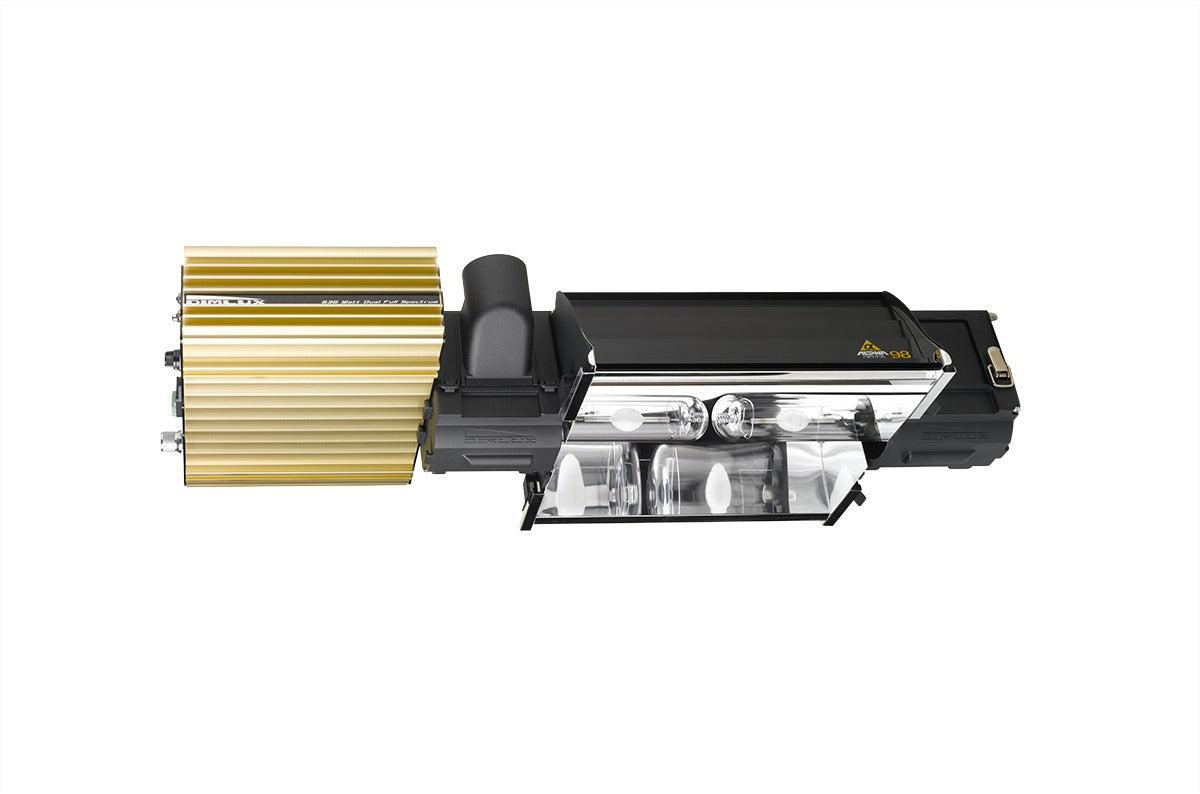

The Dimlux Expert Series 630W Dual Full Spectrum is a complete 630W ceramic metal halide (CMH) fixture built around a single Dimlux Xtreme 630W digital ballast driving two Dimlux 315W Full Spectrum 3000K lamps inside an Ultra Optics / Alpha Optics 98 reflector. At its 760W boost setting it delivers 1,411 µmol/s, enough to light up to 2.4 m² of canopy with a broad, natural spectrum for vegetative growth and flowering alike.

Key Benefits

• Boost to 760W – 1,411 µmol/s system PPF from two 315W CMH lamps
• Eight manual power positions – Soft-Off, 330W, 410W, 490W, 560W, 630W, 690W and 760W
• 98% efficient reflector – Single Bounce Clear Sight design, Miro Silver mirrors and adjustable side reflectors

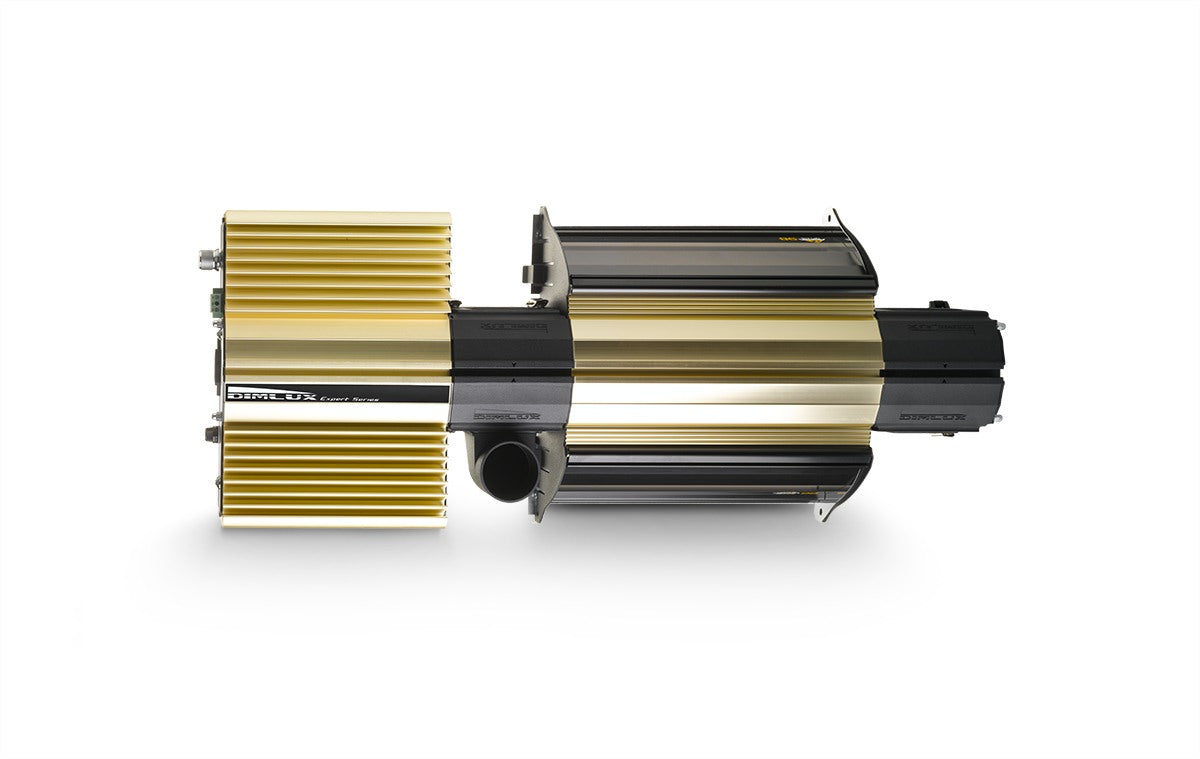

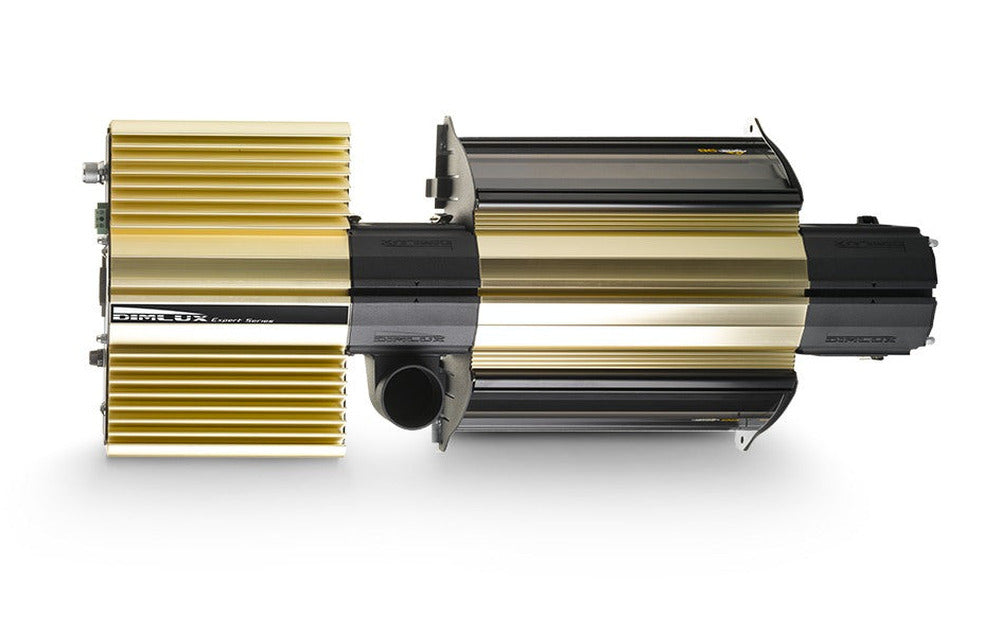

• Passive lamp cooling – open reflector with a 50mm spigot for direct extraction of warm air
• Maxi Controller ready – soft-start, soft-dim and lamp end-of-life warning; 2.5m interlink cable included

Covering a Bigger Tent Without HPS Heat

Lighting a 1.2m or 1.5m space with a single CMH lamp leaves uneven coverage and weak corners, while a 1000W HPS brings heat and stretch. Pairing two 315W CMH lamps in one reflector spreads the light over a wider footprint, and the full-spectrum output keeps internodes tight in veg while still driving strong flowering.

How to Use

• Hang the fixture centrally and level; raise it for young plants, lower as the canopy fills
• Select a power position on the ballast, or connect a Dimlux Maxi Controller to schedule, dim and boost automatically
• Run new lamps continuously for at least 15 minutes on first use so they bed in
• Duct the 50mm spigot to extraction in warm rooms

Technical Specifications
