Dimlux Maxi Controller V1.2 and CO2 Sensor Kit

Read CO2 at the Canopy and Dose It Automatically

This pairs the Dimlux Maxi Controller V1.2 with the Dimlux CO₂ Sensor and a 10 metre cable. The sensor reads the CO₂ value beside the plant rather than at the wall, and doses through its own switched power point when levels drop. The controller handles lighting, heaters and humidifiers, and dims the lamps automatically once temperature passes a level you set.

What’s Included

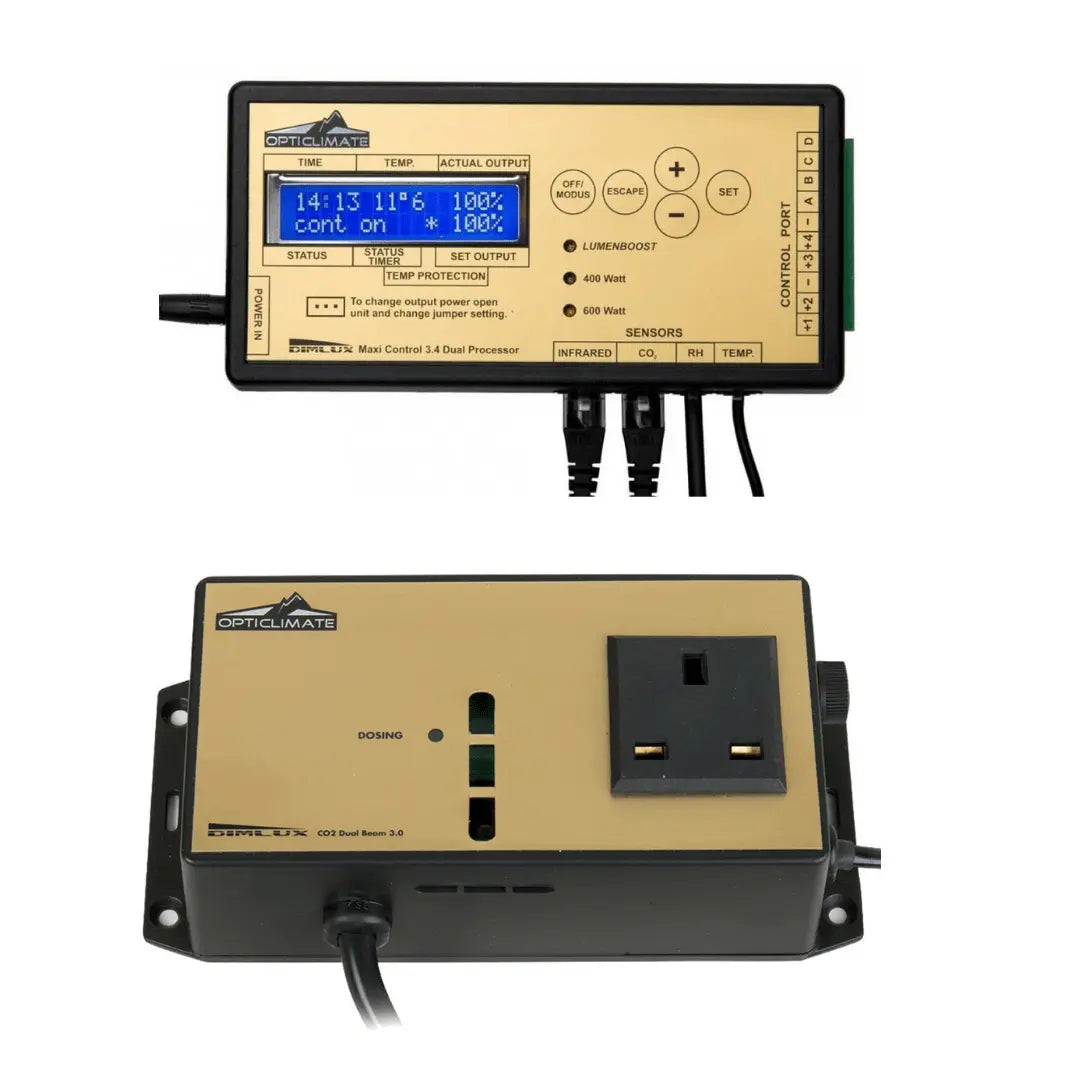

• Dimlux Maxi Controller V1.2 – central control for lighting, heating, humidity and CO₂

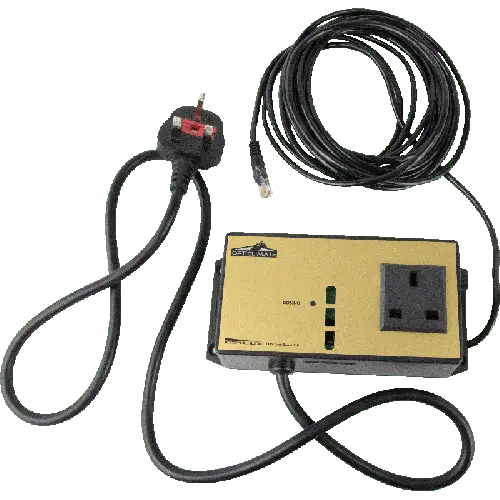

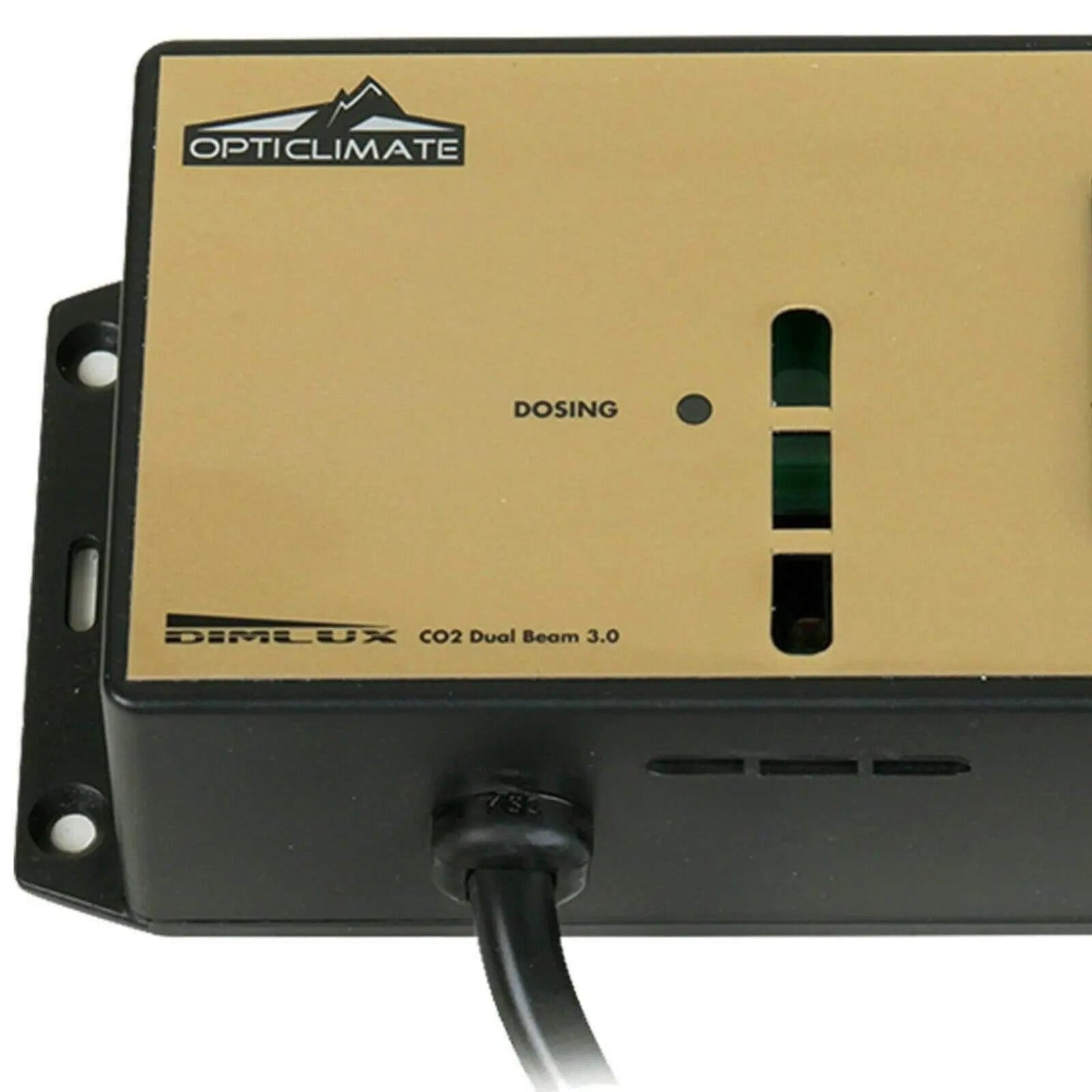

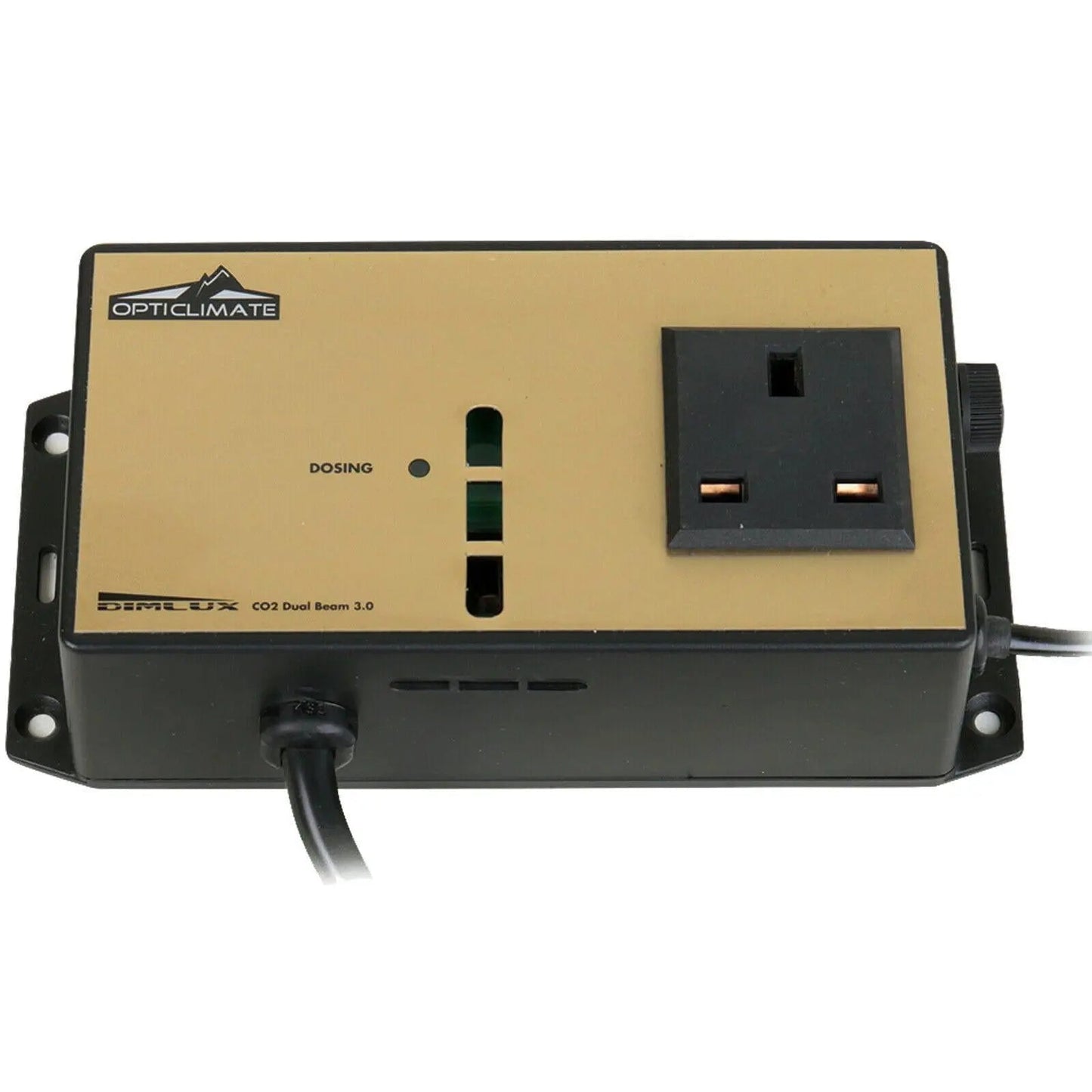

• Dimlux CO₂ Sensor – canopy-level measurement with a light cell and switched outlet
• 10 metre sensor cable with data plug

Key Benefits

• Accurate canopy-level readings, so CO₂ is dosed only when genuinely needed
• Built-in light cell senses the day cycle, so no CO₂ is dosed at night and nothing is wasted
• Works with the PT camera and temperature sensor, pausing dosing if plant temperature is too high
• Automatic lamp dimming when the room exceeds your maximum temperature
• Plugs straight into a wall socket with no relay, time delay unit or time switch in between

Why Is Your CO2 Enrichment Not Showing in the Yield?

Dosing blind is usually the reason. Gas released without a reading at the canopy either falls short or gets vented, and dosing at night or into a hot room burns money while stomata stay shut. Poor nutrient uptake, slow growth and low yields follow. Measuring where the leaves are turns CO₂ into growth.

How to Use

• Hang the sensor at plant height where light falls on the light cell – that is what tells it daytime has begun
• Power the sensor from a wall socket and run the data plug into the "CO₂" slot on the controller
• Connect your source: a CO₂ generator, or a pressure-reducing valve with a cold CO₂ valve, plugs into the sensor’s power point
• Set your target CO₂ level and a maximum room temperature so lamps dim before the room runs away
