Description
A dedicated single-ended greenhouse fixture, distinct from the Expert Series NanoTube

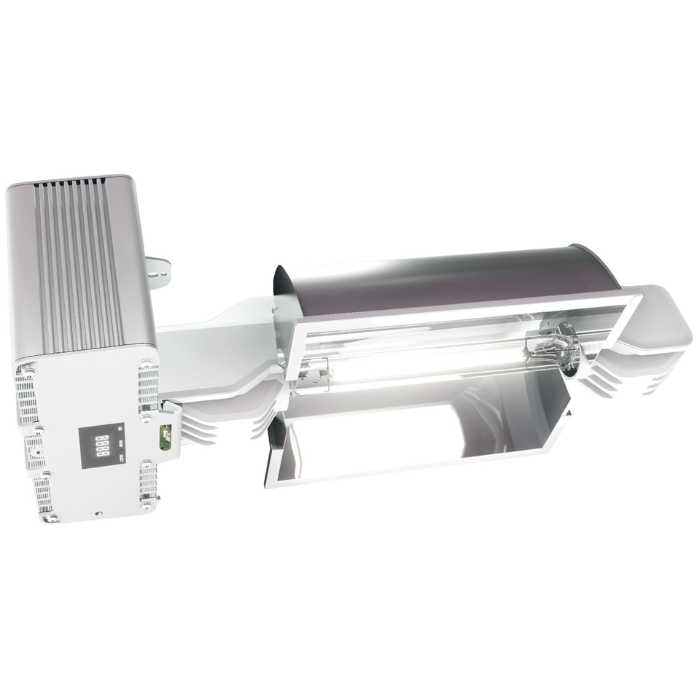

The Dimlux PRO Series 1000W is a complete, self-contained HID/HPS lighting fixture built for greenhouse and large-scale horticulture use — a different product line to the double-ended Expert Series NanoTube fixtures already in the Dimlux range. Where the NanoTube is a 400V, double-ended (DE) commercial system, the PRO Series is a single fixture unit running on standard 230/240V mains, with its ballast built into the fixture body rather than run as a separate remote unit.
The fixture uses a removable Ultra Optics reflector, engineered on the Single Bounce Clear Sight principle so each light beam reflects only once before reaching the canopy, giving higher efficiency than a hammered or textured reflector. The ballast is closed and mounted vertically to keep moisture out and minimise the amount of light the fixture body blocks, and it's fully compatible with the Dimlux Maxi Controller for WiFi dimming, Boost mode and automated climate control.
- Complete fixture with integrated closed, vertical ballast — no separate remote ballast needed.
- Removable Ultra Optics reflector for easy cleaning or replacement at height.
- 4-digit display with dim switch and Boost function (up to 1150W).
- WiFi-compatible via the Dimlux Maxi Controller.
- Low-profile design to maximise usable canopy height in greenhouse installations.
- Input power @ 100%: 1035W | Input current: 4.5A
- Input power @ Boost: 1242W | Input current: 5.4A
- Power factor: >0.95 | Input frequency: 50/60Hz
- System PPF @ 1000W: 2016 μmol/s | System PPE @ 1000W: 1.95 µmol/J
- System PPF @ 1150W (Boost): 2339 μmol/s
- Dimensions: 21.18" x 9.76" x 4.52" | Weight: 9 lbs
- Controller: Dimlux Maxi Controller (WiFi)
