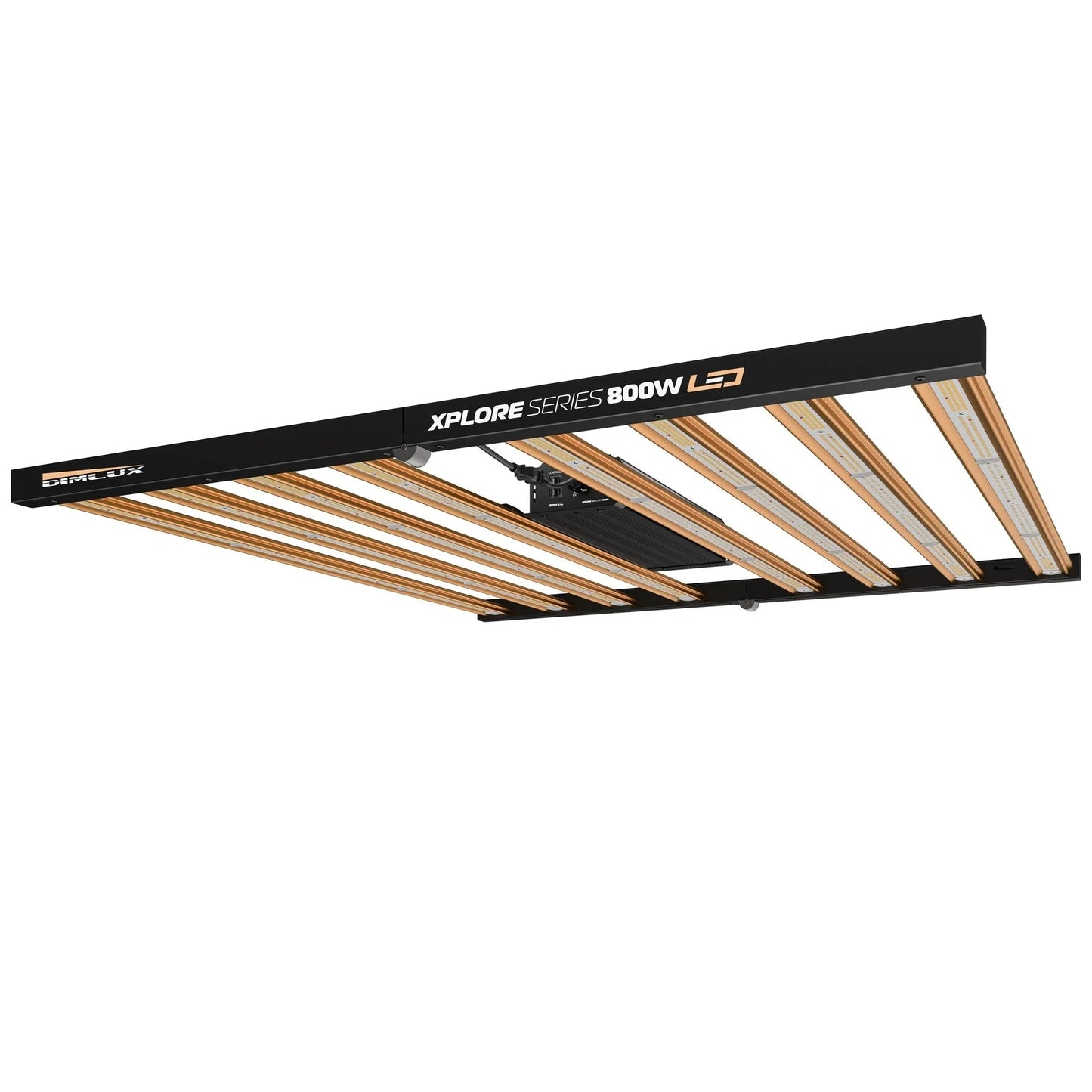

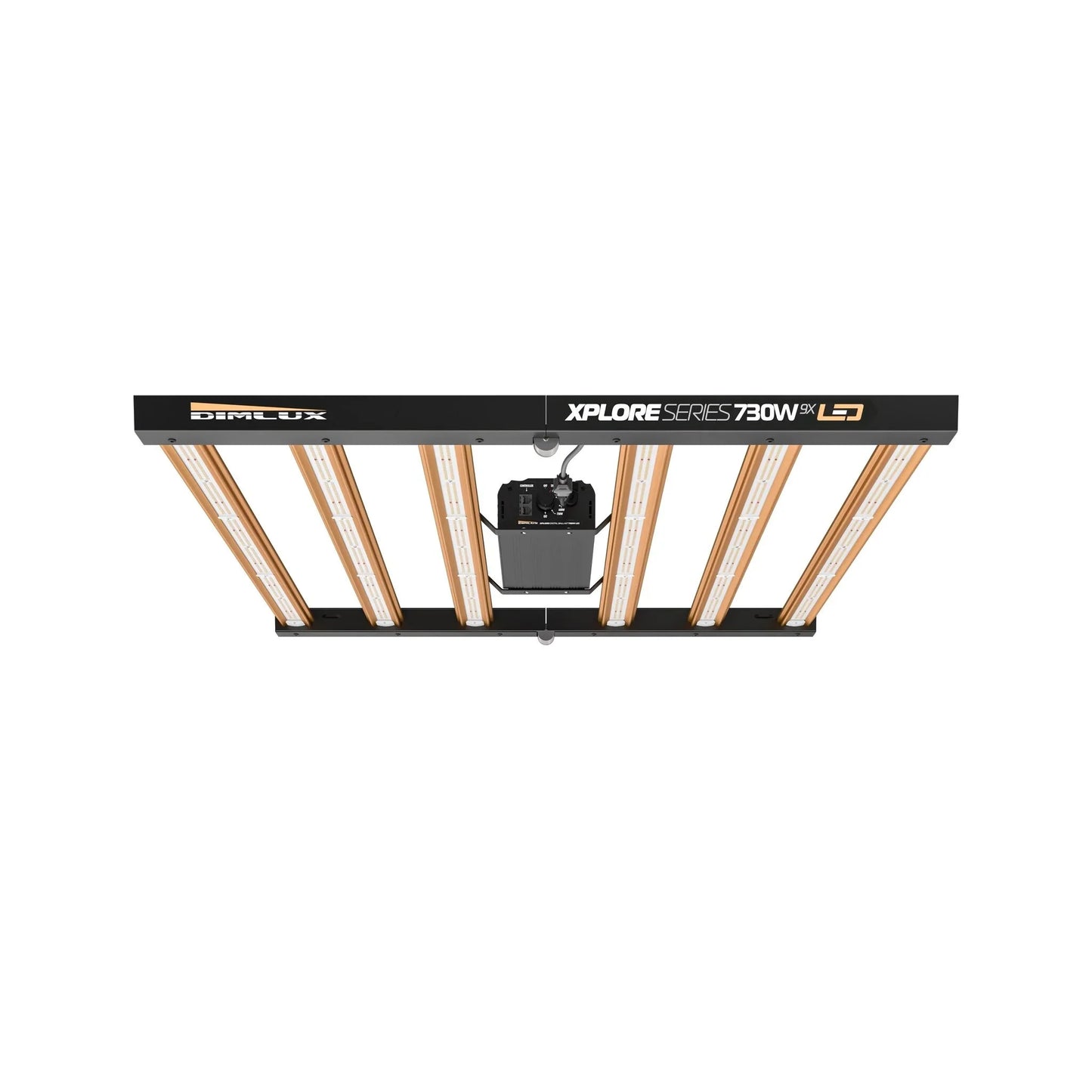

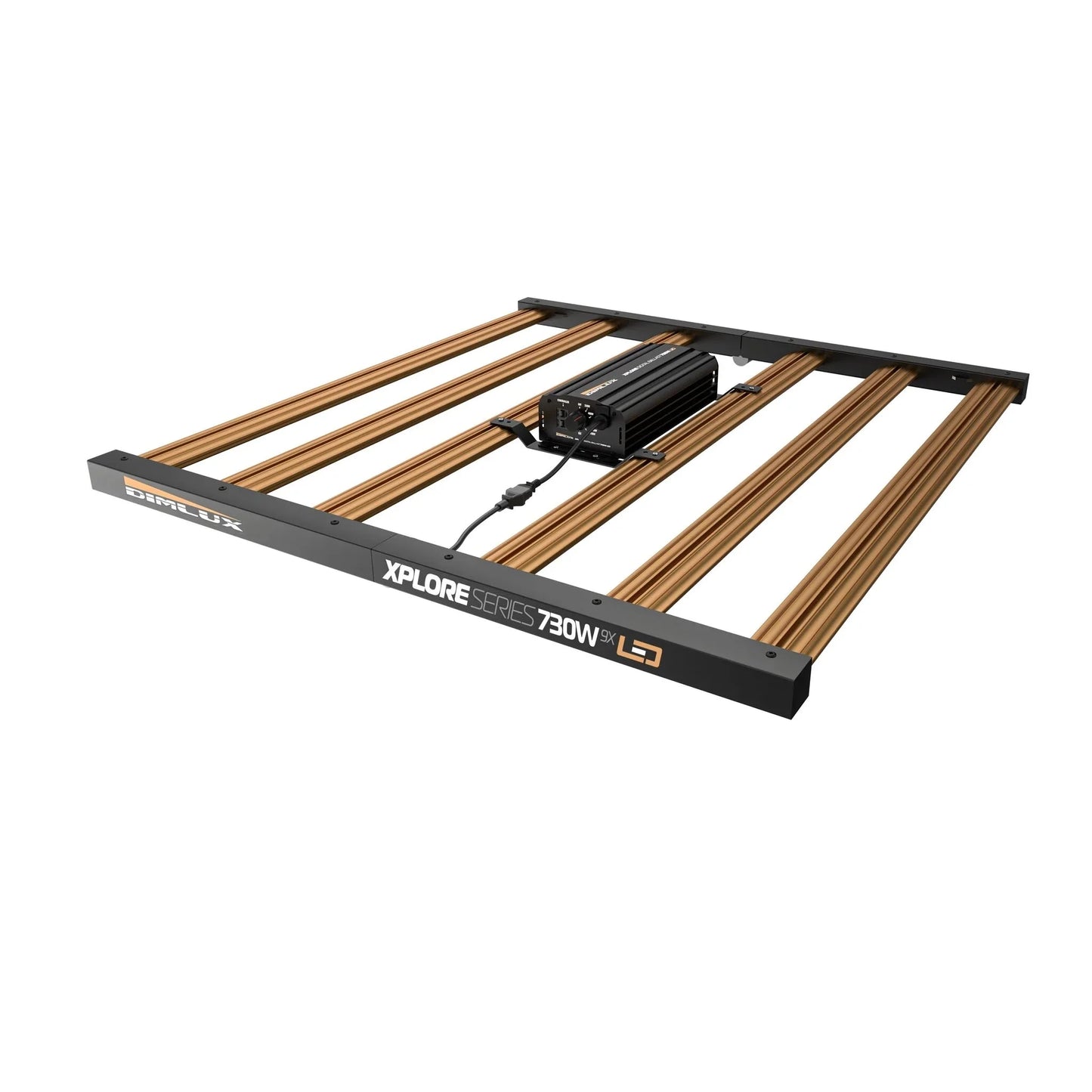

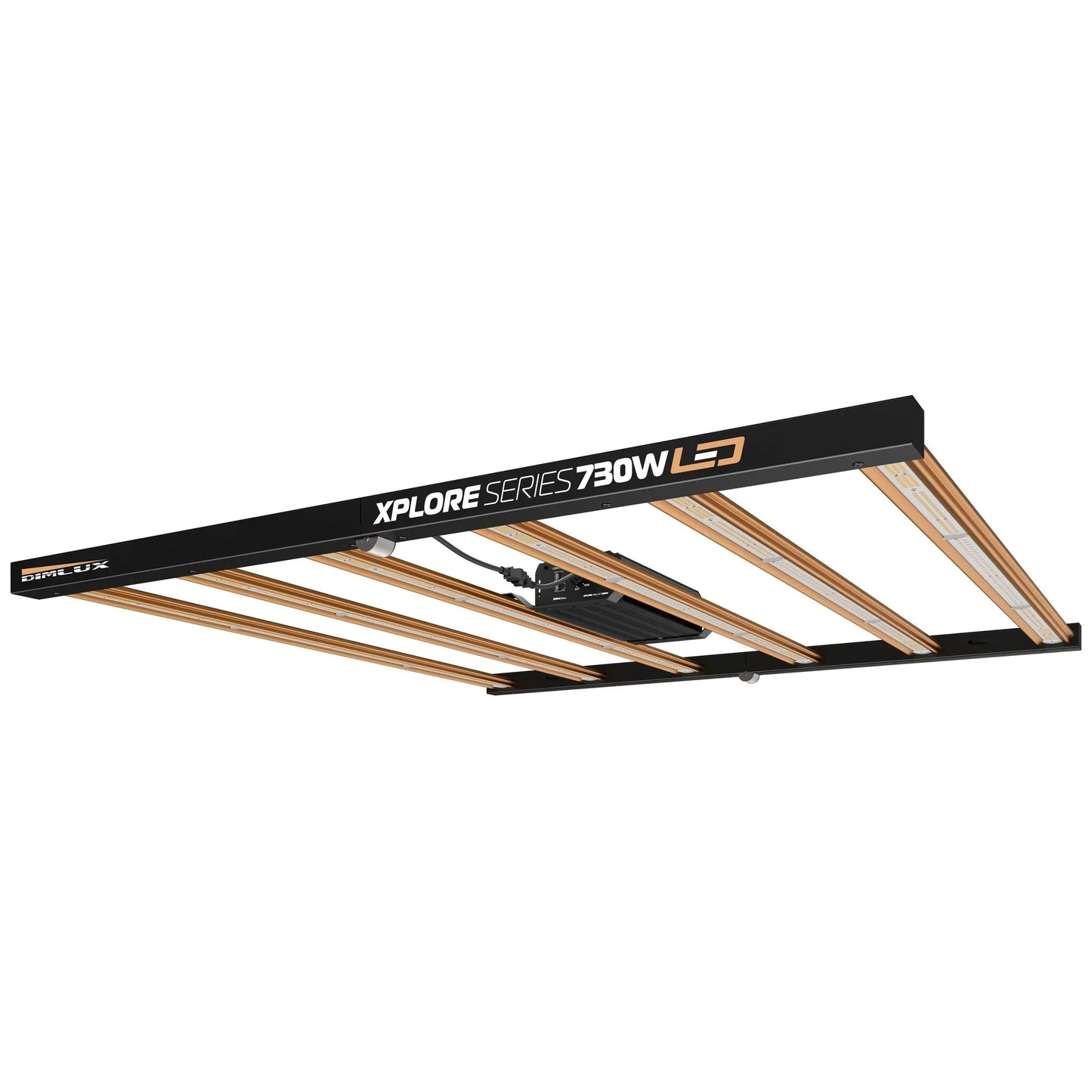

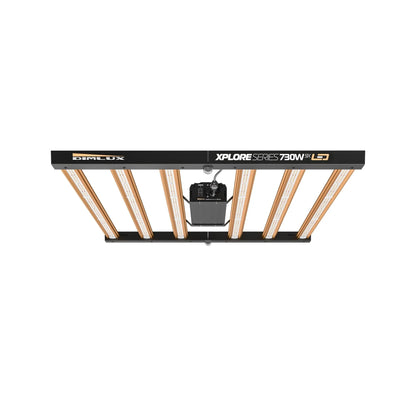

DimLux Xplore Series LED Full Spectrum Grow Light

White and Red Full Spectrum With a Price/Performance Ratio Few LEDs Match

The DimLux Xplore Series LED mixes full-spectrum white LEDs with red LEDs for one spectrum that works through every growth phase. The high proportion of blue light keeps plants tight and compact in veg and drives proper morphogenesis, while the red content does the work in flower. Available at 730W and 800W and at 2.7, 2.85 or 3.0 µmol/J, with a 9X Compact option for tighter rooms. All use asymmetric bars and LED placement for uniformity over 150 x 150 cm.

Key Benefits

• One spectrum for every phase – blue-rich for compact vegetative growth, red-rich for heavy flowering, no lamp change
• Four-step digital dimming – 320W, 480W, 640W or 800W on the 800W driver, 290W, 430W, 580W or 730W on the 3.0 µmol/J 730W
• 3.0 µmol/J versions deliver 2,197 µmol/s, with the 800W at 2,283 µmol/s and 2.85 µmol/J
• Maxi Controller compatible, so output varies automatically rather than by hand
• Ballast on the luminaire or remote, and light enough for rope ratchets at 8.6kg to 10.6kg
• Matching UV-A and Far-red add-ons available

Stretch in Veg and Airy Tops in Flower

A spectrum weighted too far to the red runs plants tall and leggy in veg; one short of red leaves flowering lagging and tops airy. The Xplore blends white and red in fixed proportion, giving compact structure early and bulk later – and the dim steps let you back intensity off for freshly transplanted plants rather than pushing them into transplant shock.

How to Use

• Hang on rope ratchets over 150 x 150 cm, keeping a minimum height of around 40cm
• Choose the driver position – on the luminaire, or remote to keep heat away
• Dim in steps from the ballast knob, starting low over young plants and stepping up into flower
• Connect a Maxi Controller for variable dimming that tracks room conditions
• Raise the fixture as the canopy grows to hold intensity steady
