Dual-output digital control for humidity and temperature in one unit

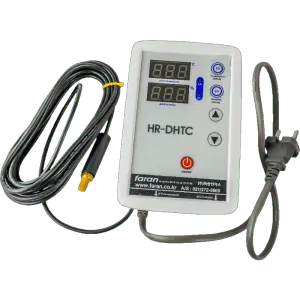

The HR-DHTC is a digital humidistat and thermostat combined into a single controller with two independent relay outputs. The first output drives a Faran HR-15 or HR-50 humidifier, or a dehumidifier; the second drives a heater or air-conditioning unit, so one head unit covers both sides of the room's climate rather than running two separate controllers.
Because it reads and switches both humidity and temperature, it suits growers trying to hold a specific VPD target through propagation, veg and flower rather than just chasing a single RH number. Digital readout and on/off relay control make it straightforward to reset targets as the crop moves between stages, and pairing humidity and temperature control on one unit cuts down on the wiring and bench space two separate controllers would need.
It solves the common problem of a grow room needing coordinated humidity and temperature management - a humidifier running unchecked while a heater fights it (or vice versa) wastes energy and makes VPD control much harder to hold steady.
- Two independent relay outputs for humidity and temperature devices
- Controls a humidifier or dehumidifier on one output
- Controls a heater or AC unit on the second output
- Wide temperature range for accurate readings in most grow spaces
- Pairs directly with the Faran HR-15 and HR-50 humidifiers
- Humidity sensor: HM, ±2%
- Output: relay, 220 V AC
- Power supply: 220 V AC, 50/60 Hz
- Humidity range: 0–100% RH
- Temperature range: -50 to 99.9°C
- Controls: Humidity and temperature, on/off relay
- Temperature sensor: NTC, 5 kΩ at 25°C
- Compatible with: Faran HR-15 and HR-50 humidifiers
