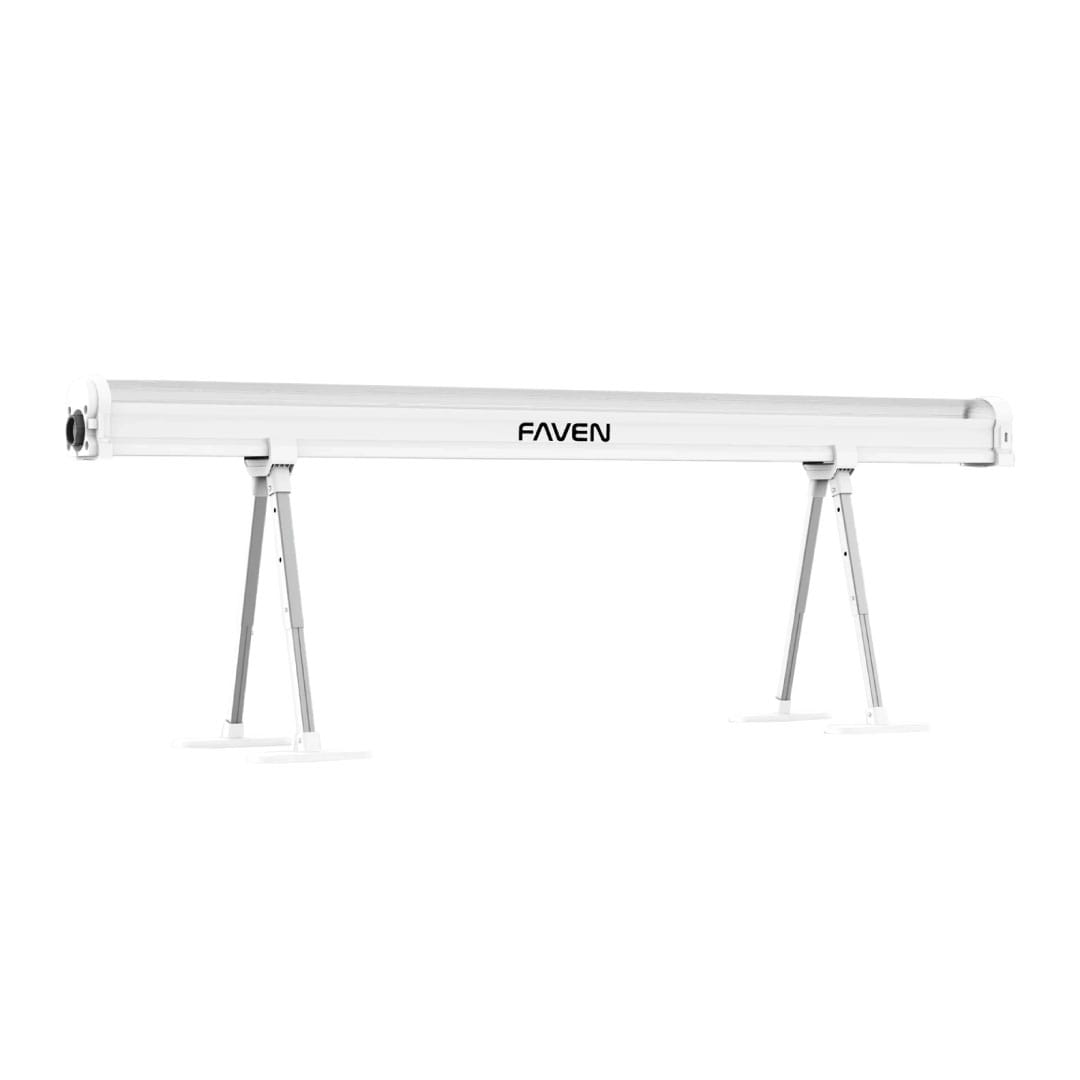

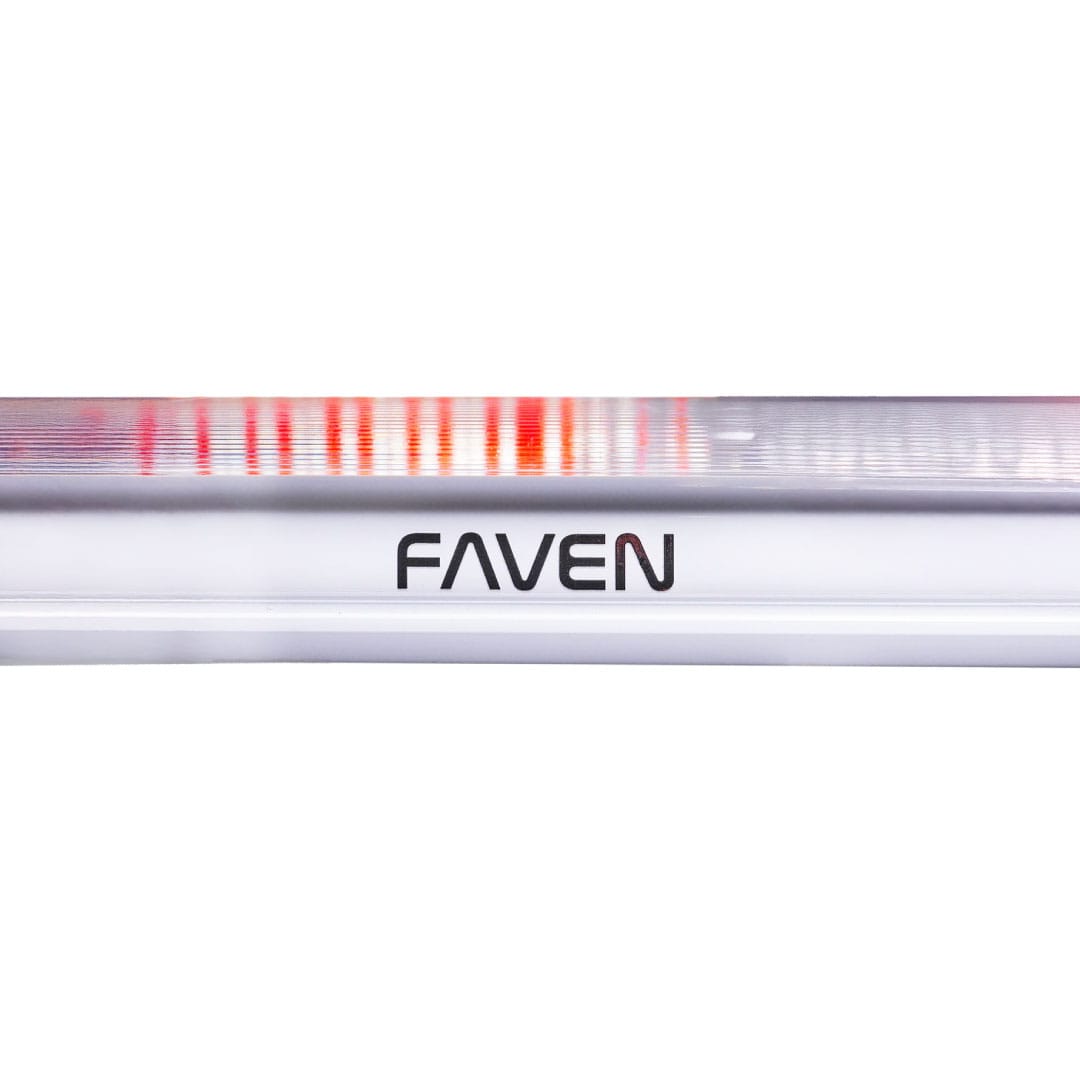

Faven R8 Under Canopy LED Light – 120W Fixed Spectrum Bar

Fixed-spectrum under-canopy light built for LED and mixed-light rooms

Faven R8 is a fixed-spectrum under-canopy LED bar designed to sit beneath the main canopy and light the lower bud sites that overhead fixtures miss. Unlike the adjustable Chroma, R8 runs a set spectrum with a deeper red percentage, tuned specifically for LED top-light rooms, mixed-light rooms and greenhouses — Faven's sister model, the R6, carries a different balanced spectrum aimed at HPS rooms instead.

The bar outputs 120W from a compact 1157 x 75 x 85mm housing, delivering 399 µmol/s of PPF at 3.28 µmol/J efficacy, and draws a modest 0.43-1.0A input current. Like the rest of the range, it uses Faven's sealed IP66 housing and is rated to handle ambient temperatures up to 35C/95F, with fixtures daisy-chaining up to 20 per run.

R8 is powered and controlled via the dedicated R Series power cable, and pairs with the Mini Controller for 0-10V dimming, or with compatible third-party 0-10V systems such as Growflux or Trolmaster Hydro-X. It is not compatible with the Chroma-only CX2 controller. Every R8 fixture carries a 5-year manufacturer warranty as standard.

• Purpose-built spectrum – deeper red percentage tuned for LED top-light rooms, mixed-light setups and greenhouses.
• 120W high-output bar – 399 µmol/s PPF at 3.28 µmol/J efficacy from a compact fixture.

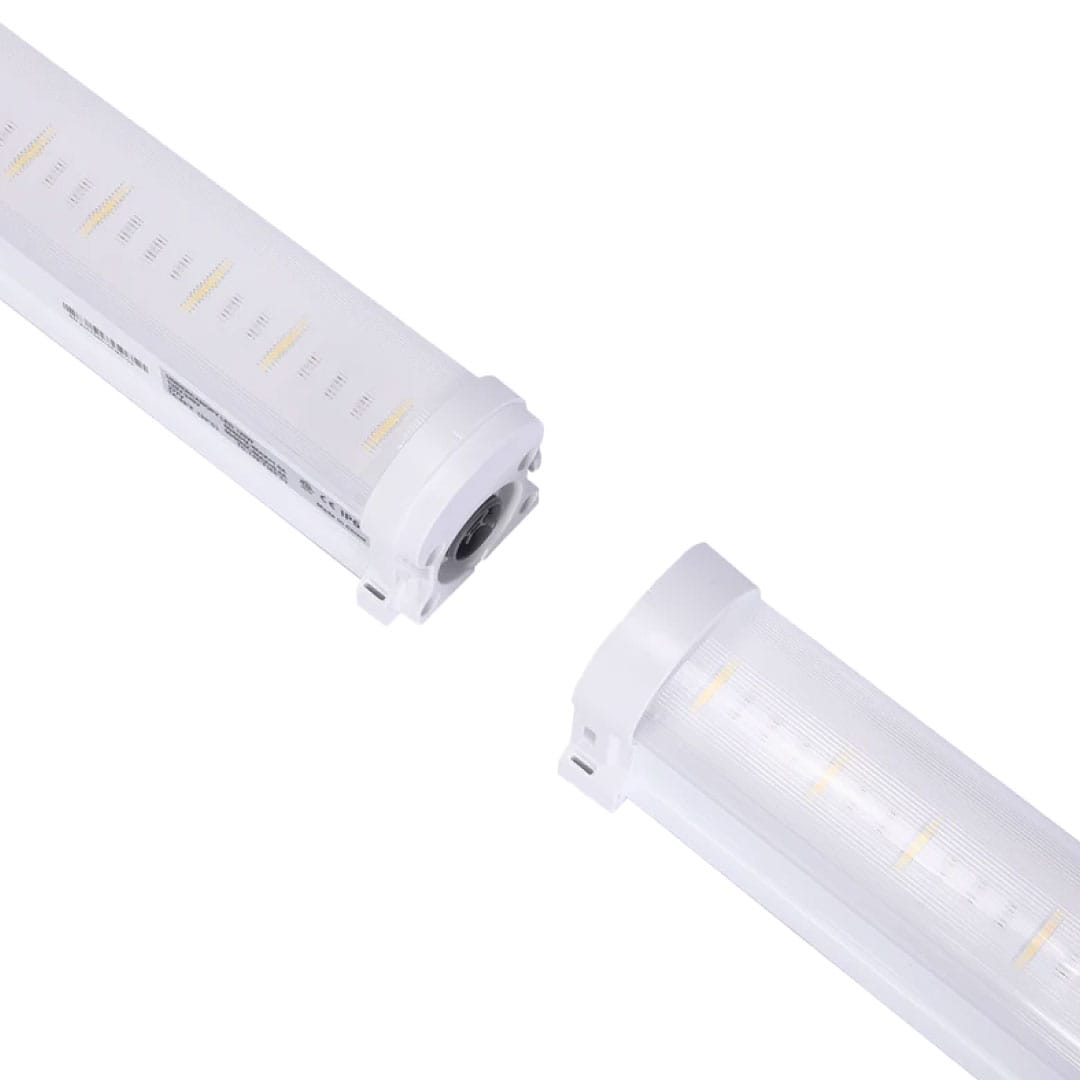

• Daisy-chains up to 20 fixtures – power a full row from a single run using jumper cables.
• IP66 sealed housing – single-piece body rated for IPM sprays and washdown.
• Low running current – draws just 0.43-1.0A, easy to plan into existing circuits.
• 5-year manufacturer warranty – standard across the Faven range.
