Description
Pump, stones and airline, matched and ready to run
A small reservoir does not need a pump built for a whole room. These kits pair a Hailea ACO air pump with 50mm golf ball airstones and 2 metres of 4mm airline per stone, with the outlet count matched to the number of stones so air is shared evenly instead of favouring whichever stone sits nearest the pump.
What's Included

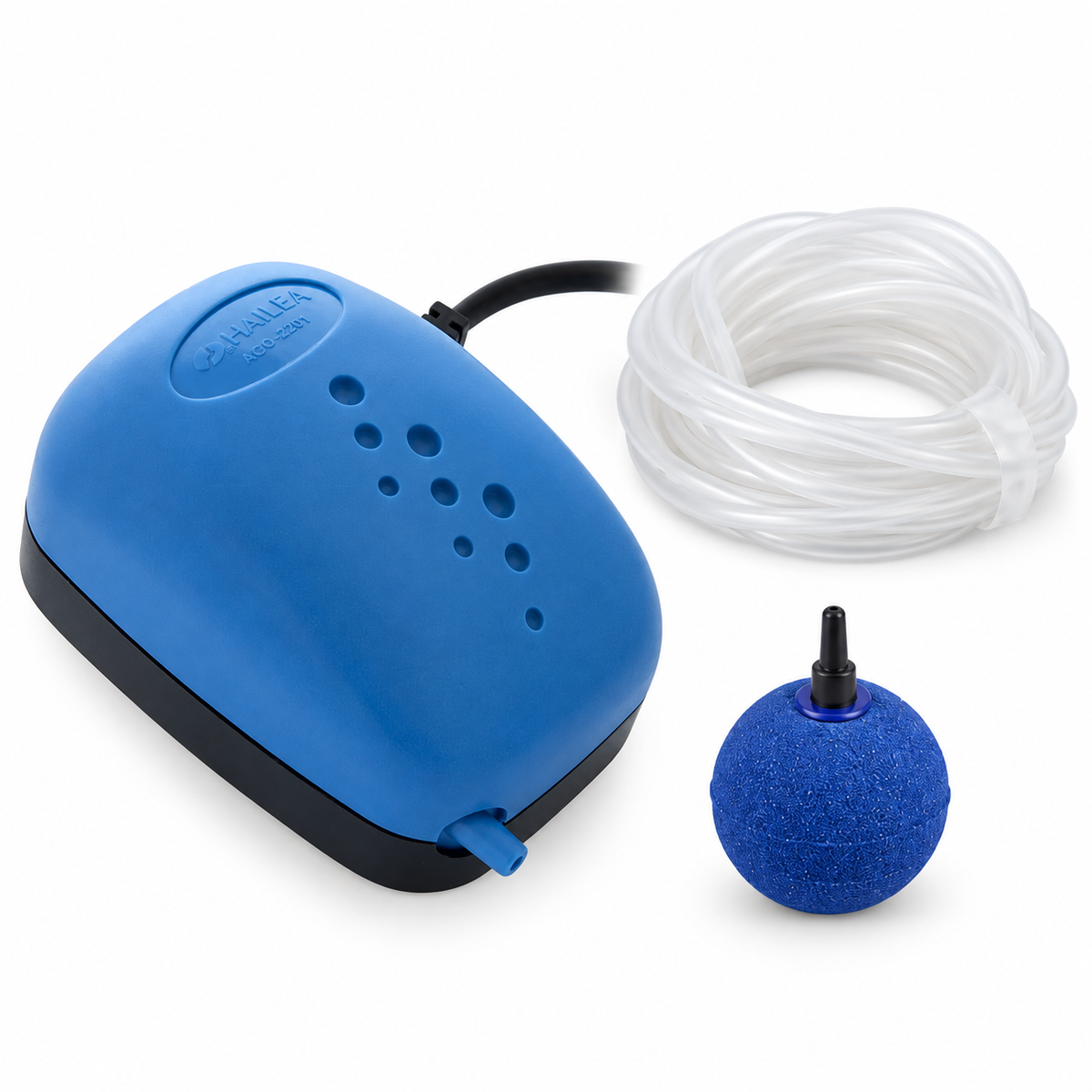

- 1 Airstone. Hailea ACO2202 single outlet pump, 1.61 L/min, one 50mm golf ball airstone, 2m of 4mm airline

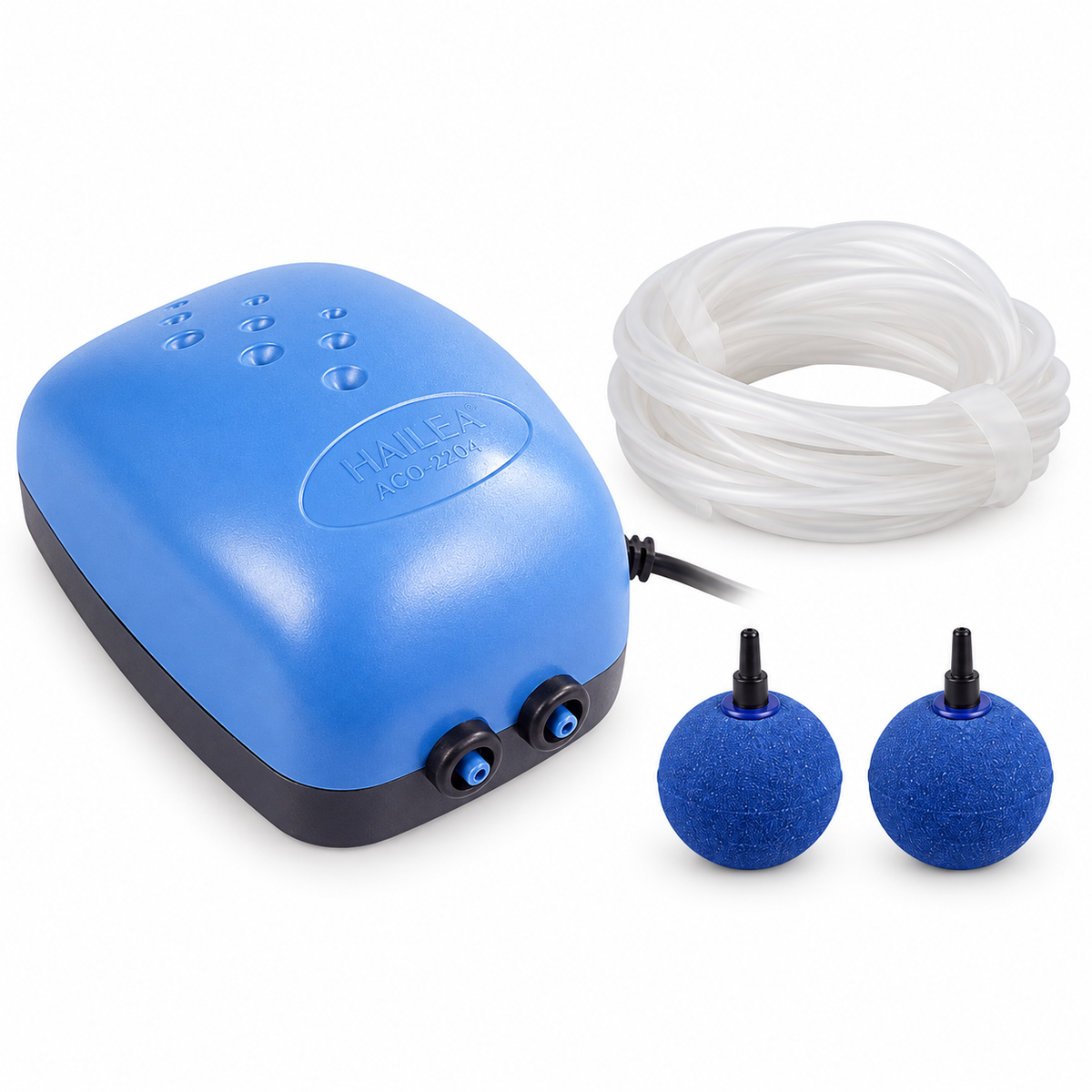

- 2 Airstone. Hailea ACO2204 two outlet pump, 3.3 L/min, two 50mm golf ball airstones, 4m of 4mm airline

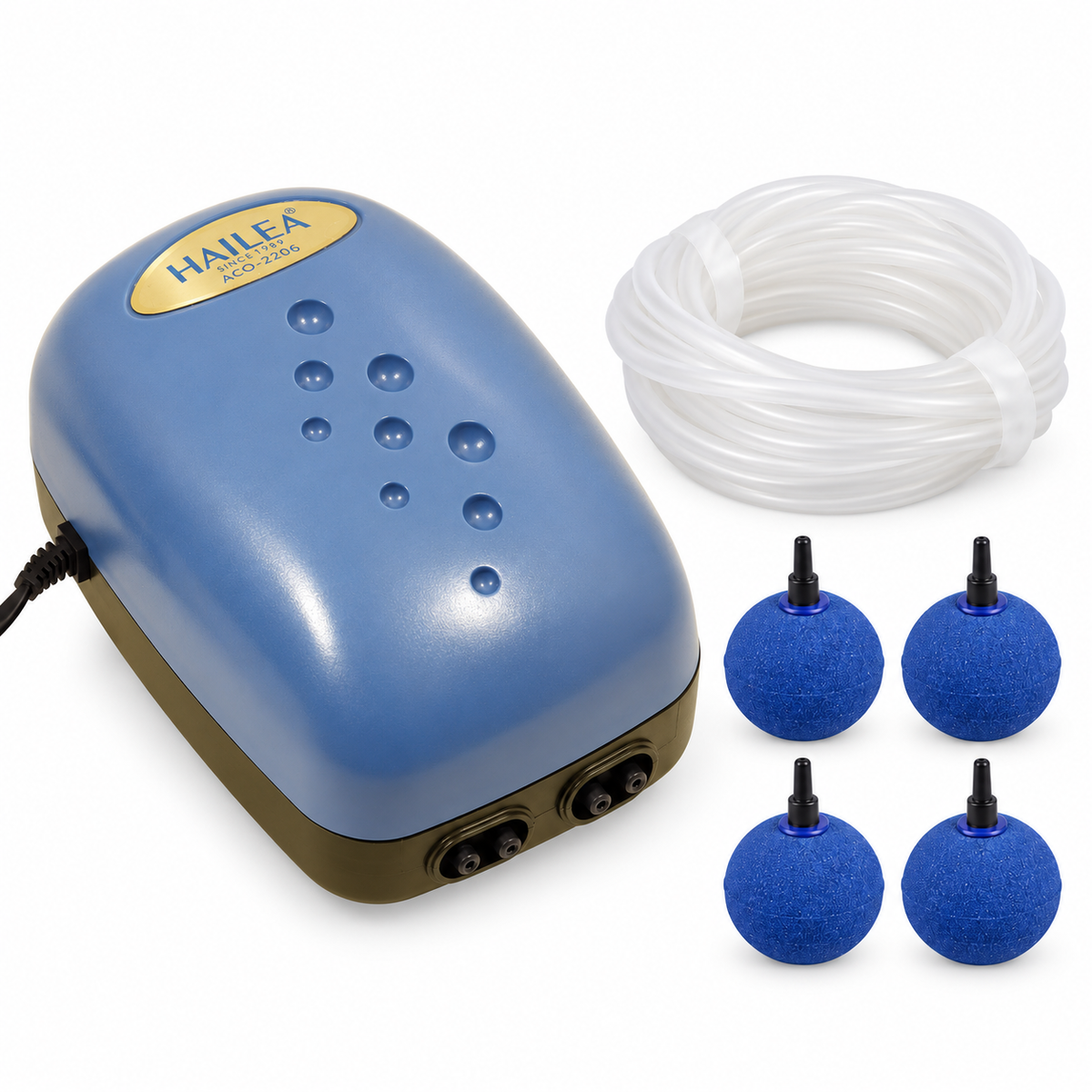

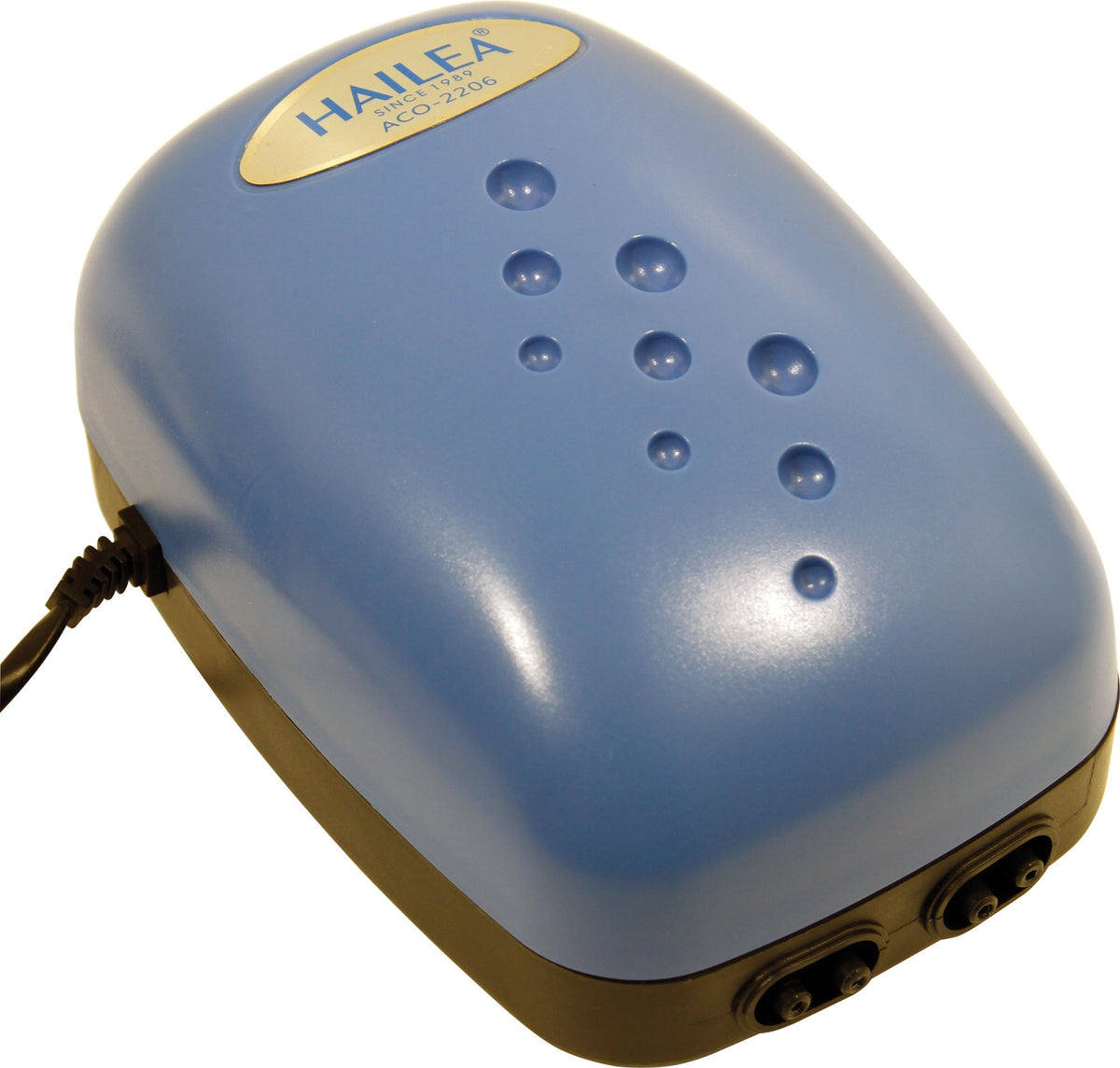

- 4 Airstone. Hailea ACO2206 four outlet pump, 10 L/min, four 50mm golf ball airstones, 8m of 4mm airline
Key Benefits
- One outlet per stone, so every stone gets the same air rather than sharing a split feed
- 2 metres of airline per stone — enough to site the pump above the water line and reach the pot
- 50mm golf ball airstones give fine bubbles that dissolve rather than rushing to the surface
- Adjustable output on the multi-outlet pumps, so each line can be balanced by hand
- Suits any medium, from a single DWC bucket to a reservoir feeding coco or soil
Which one do I need?
Count the vessels you want aerated, not the litres. One stone per pot or reservoir is the rule, so a single bucket takes the 1 Airstone kit and a four-bucket run takes the 4 Airstone. Larger runs, from four pots upward, are better served by the 9810 and 9820 pot kits, which carry more airline and more outlets.
How to Use
- Stand the pump above the water line so solution cannot siphon back into it.
- Cut the airline as short as is practical — long runs cost pressure.
- Sit each stone flat on the base of the pot or reservoir, below the solution line.
- Leave aeration running 24 hours a day, never on a timer.
- Soak the stones periodically to clear them, and replace them when the bubbles coarsen.
Specifications
- Pumps: Hailea ACO2202, ACO2204 and ACO2206
- Output: 1.61, 3.3 and 10 L/min
- Outlets: one, two and four
- Airstones: 50mm golf ball, one per outlet
- Airline: 4mm, 2 metres per airstone
Technical Specifications
- Kit: Hailea ACO air pump, 50mm golf ball airstones and 4mm airline
- Airline: 4mm, 2 m per airstone
- Supply: 220-240 V, 50 Hz
| By size | 1 Airstone | 2 Airstone | 4 Airstone |
|---|---|---|---|
| Air output | 1.6 L/min | 4 L/min | 10 L/min |
| Outlets | 1 | 2 | 4 |
| Max pressure | >0.015 MPa | >0.02 MPa | >0.02 MPa |
| Power | 2W | 4W | 8W |
| Noise | under 40 dB | under 40 dB | under 40 dB |
| Weight | 0.27kg | 0.64kg | 1.25kg |
| Dimensions | 11 x 6.8 x 6.3cm | 15.6 x 9.5 x 7.5cm | 18.8 x 12 x 10cm |
| Pump | Hailea ACO-2202 | Hailea ACO-2204 | Hailea ACO-2206 |
| Airline | 2 m | 4 m | 8 m |
