Description

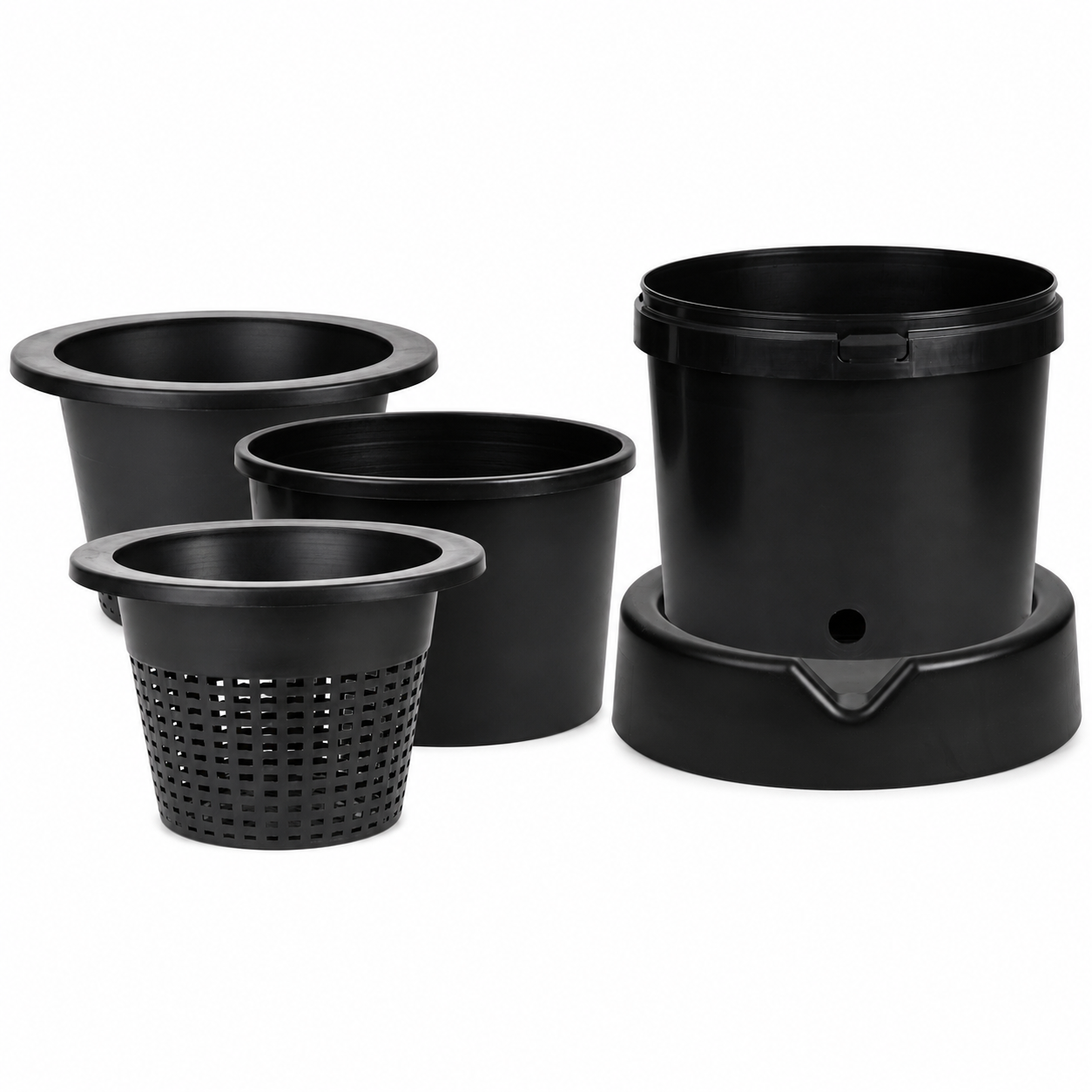

The Core Pot Components Behind Every IWS Flood & Drain Room
These are the genuine IWS components that make a flood and drain system work: the pot stand that sets your flood height, the outer pot that holds the solution, and the inner pot that carries your substrate. The combination matters more than growers expect. Pair a free-draining inner with a fine medium and fragments wash into the pipework and block the system; get the stand height wrong and the flood never reaches the root zone properly, leaving weak roots and poor nutrient uptake despite a perfectly good feed.
Key Benefits

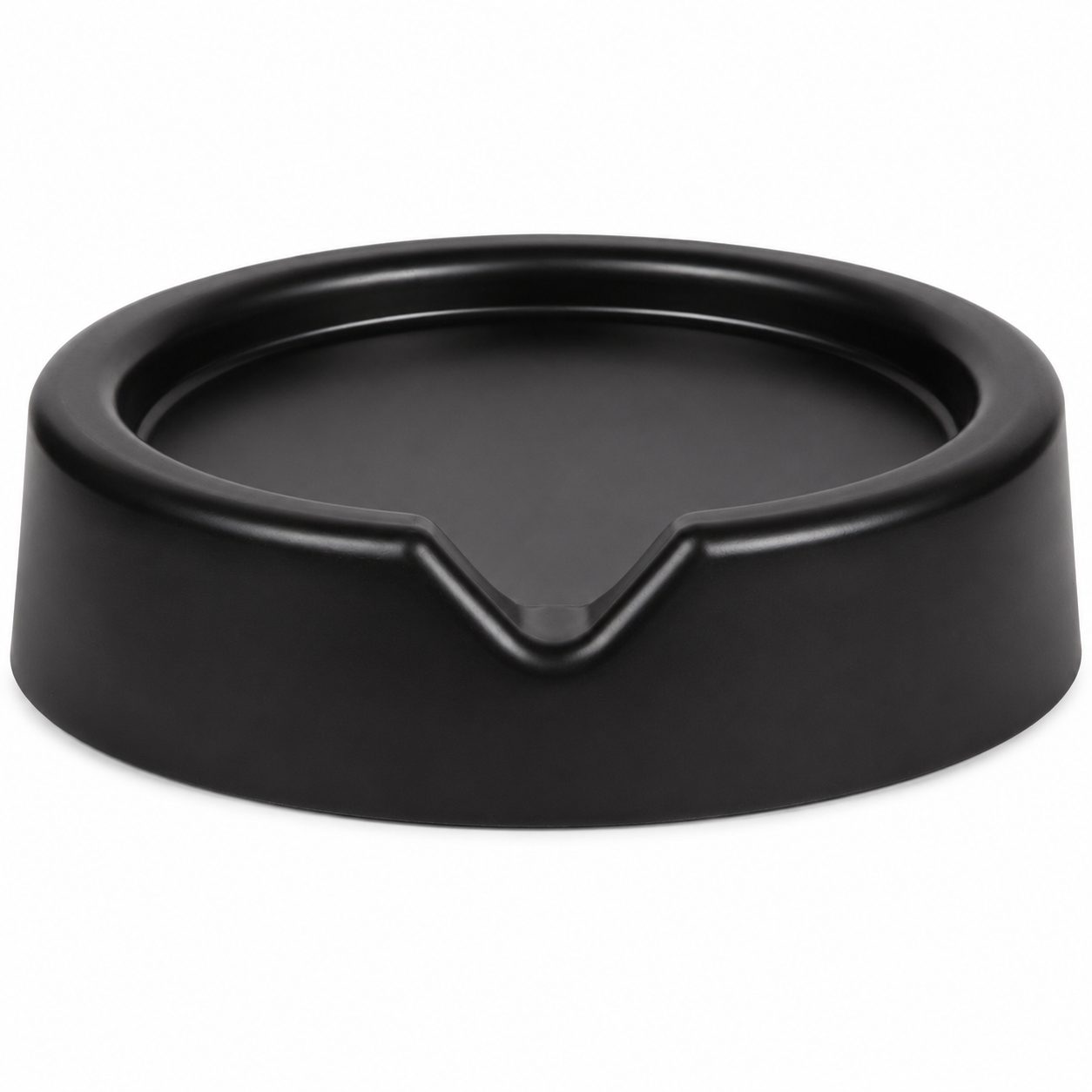

- Universal Pot Stand - raises containers so solution floods to exactly the right level, with a sloped drain surface and V-shaped gland indent. 320mm (d) x 85mm (h)

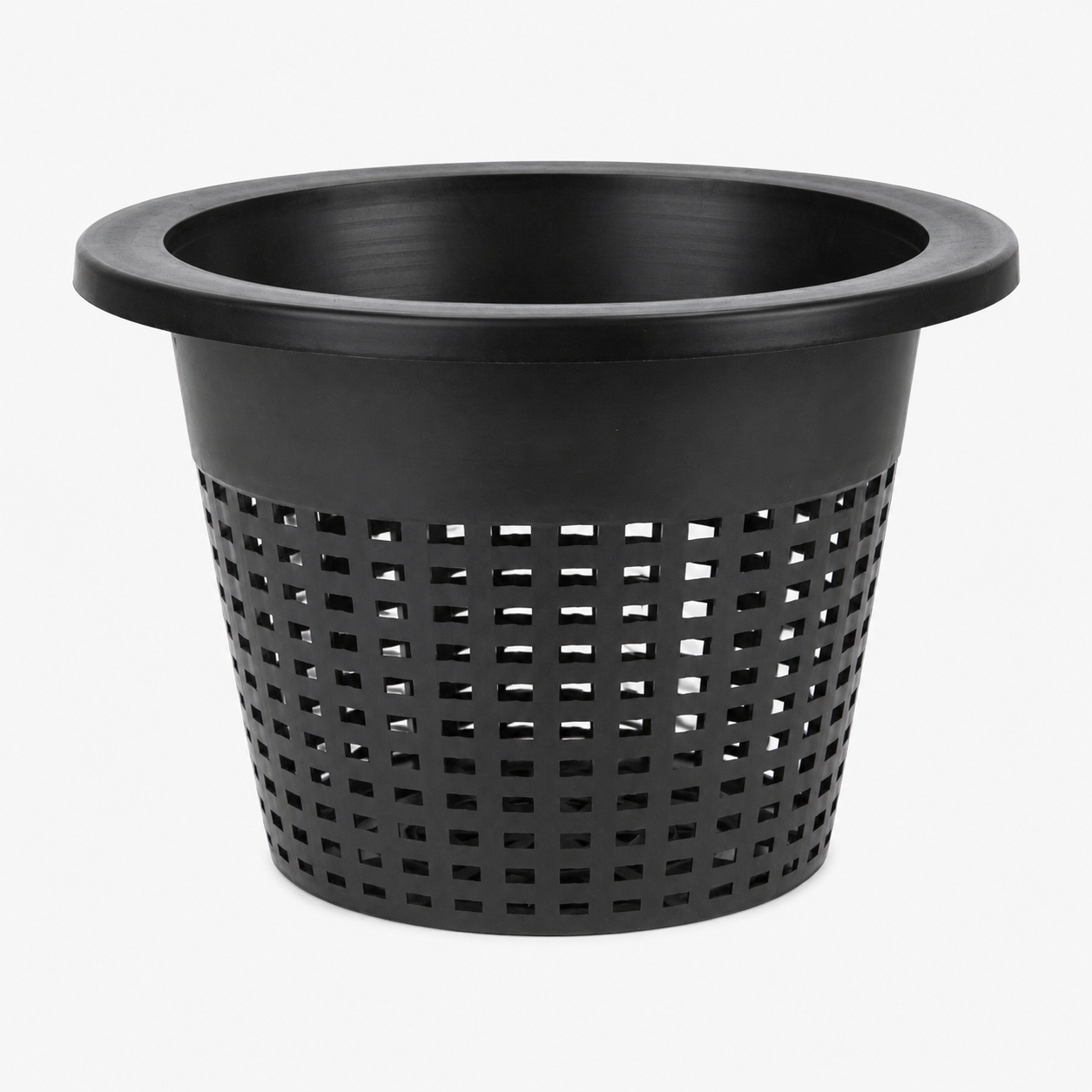

- Aqua Inner - effectively a net pot, best with free-draining, low-retention media such as clay pebbles. Holds 6.5 litres, 185mm (h) x 285mm (d)

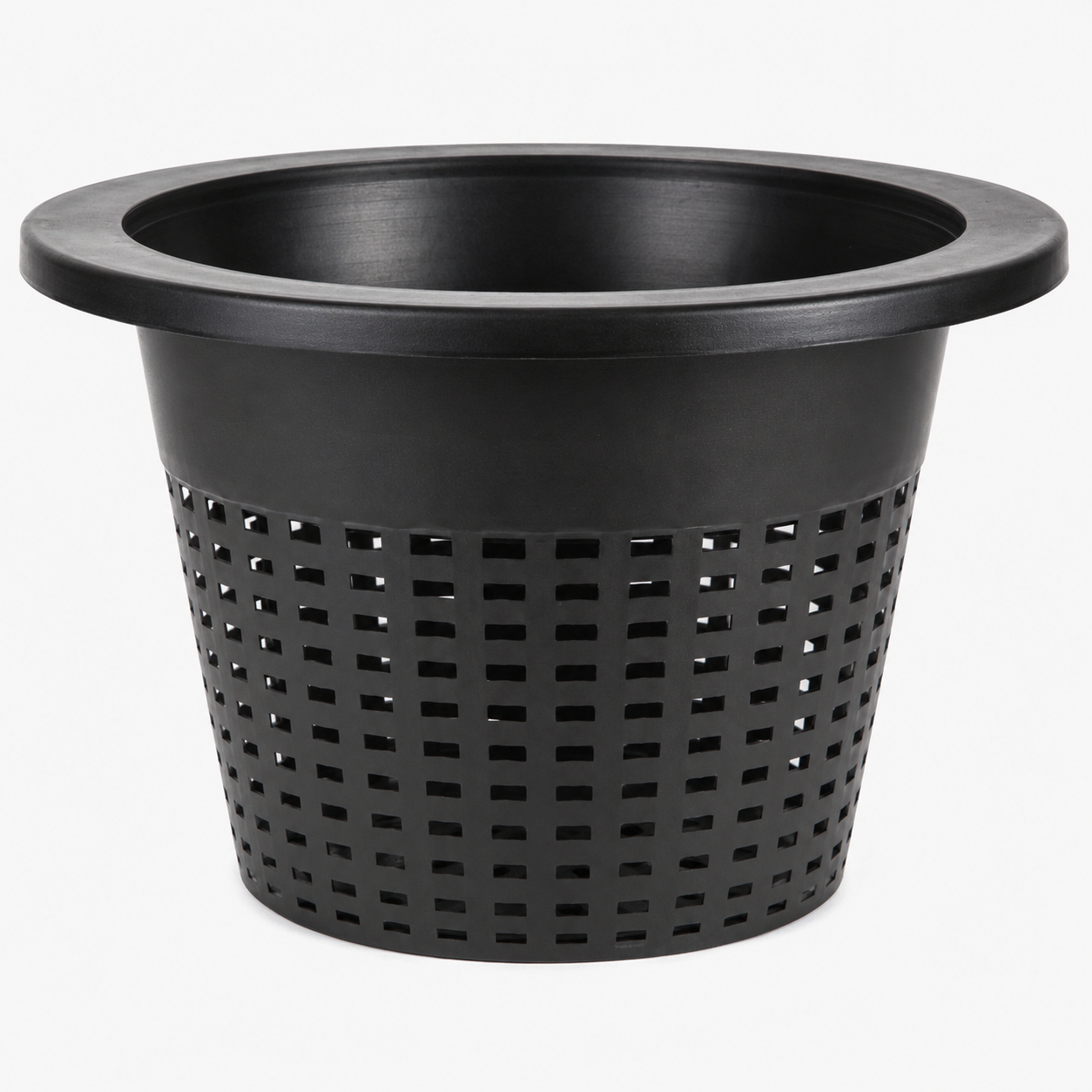

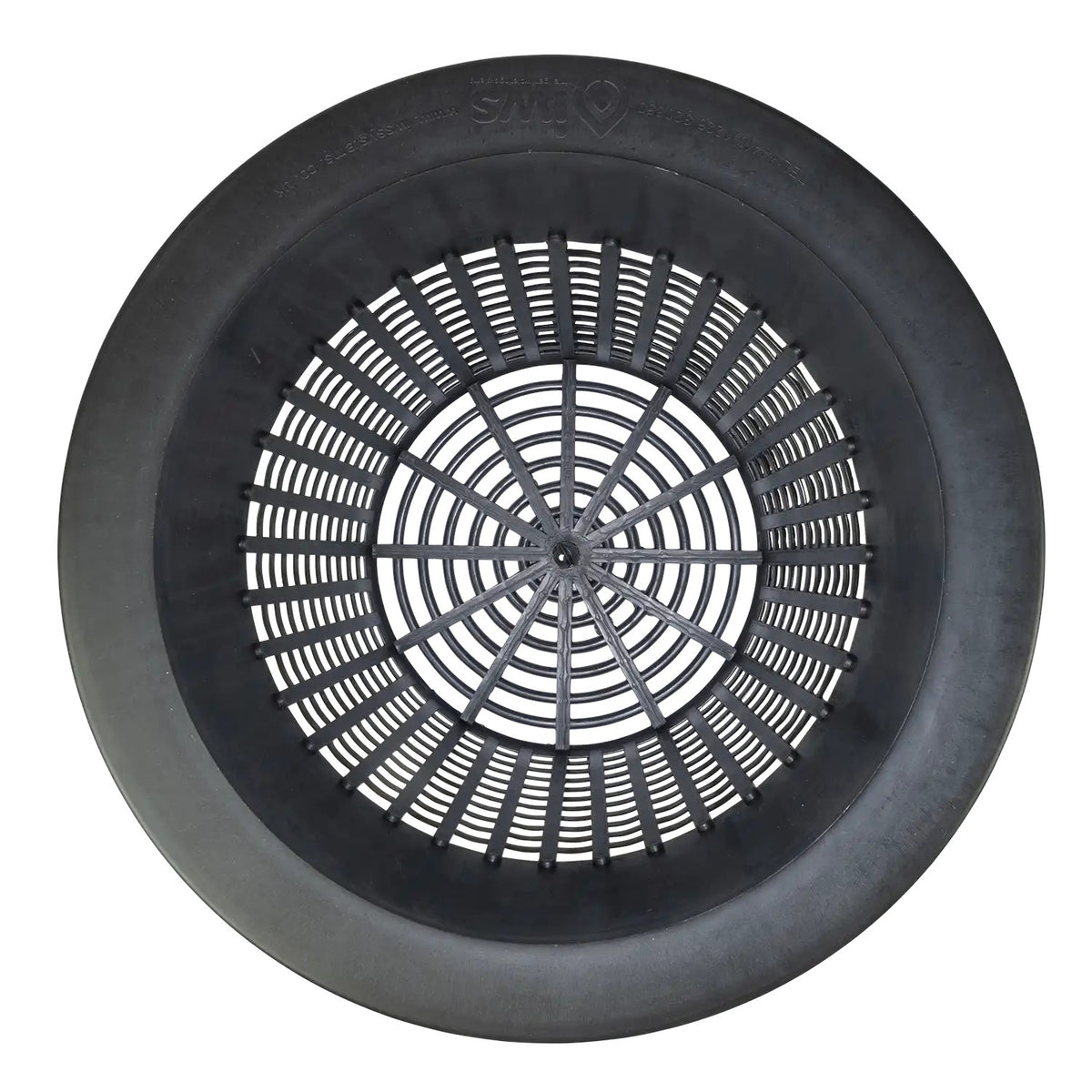

- Culture Inner - sealed sides for finer substrates like coco coir, stopping fragments blocking the system. Holds 6.5 litres, 185mm (h) x 285mm (d)

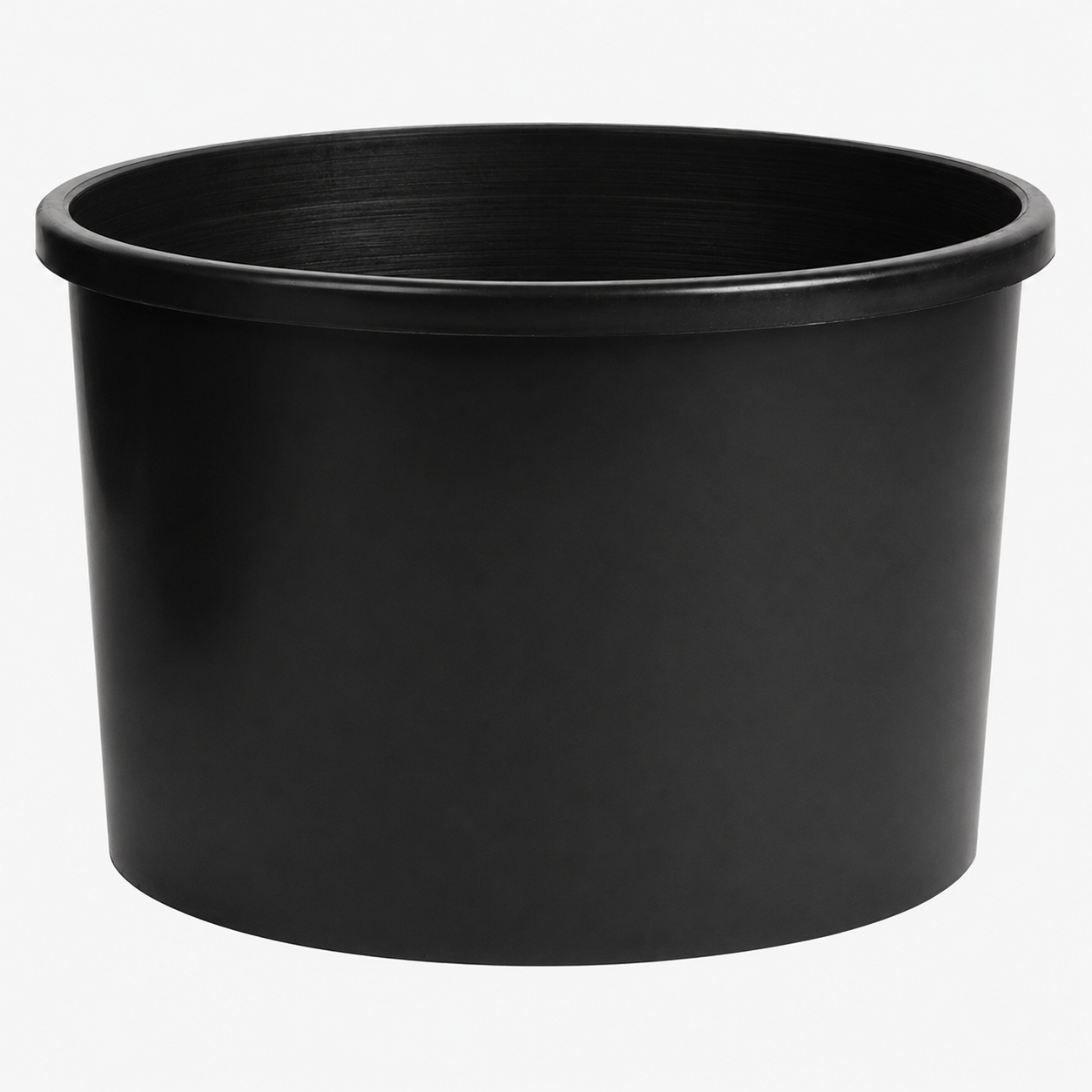

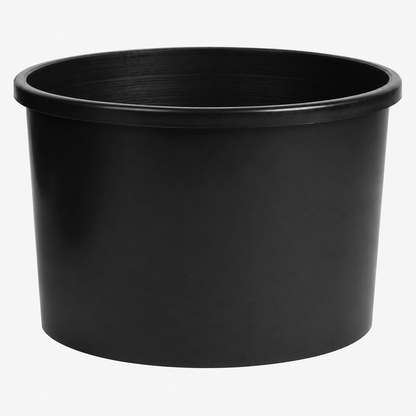

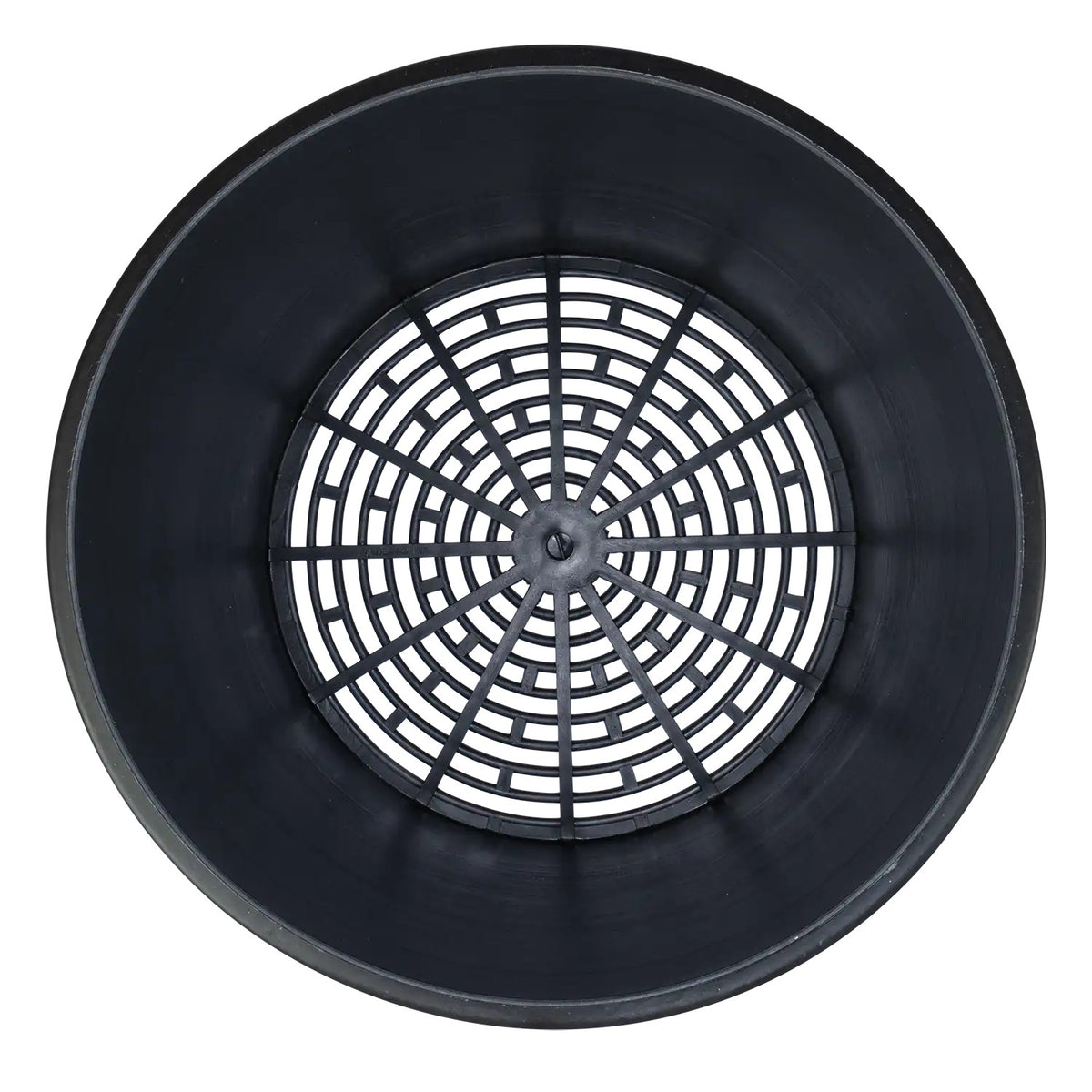

- Punch Pot - straight sides make full use of the outer and suit any medium. Holds 9.5 litres, 185mm (h) x 285mm (d)

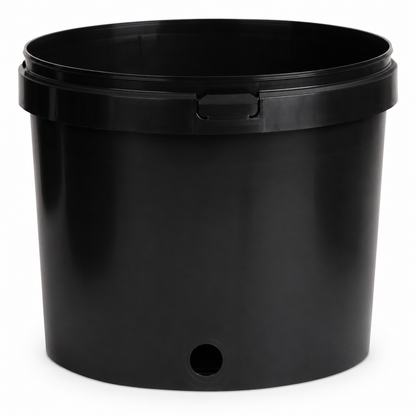

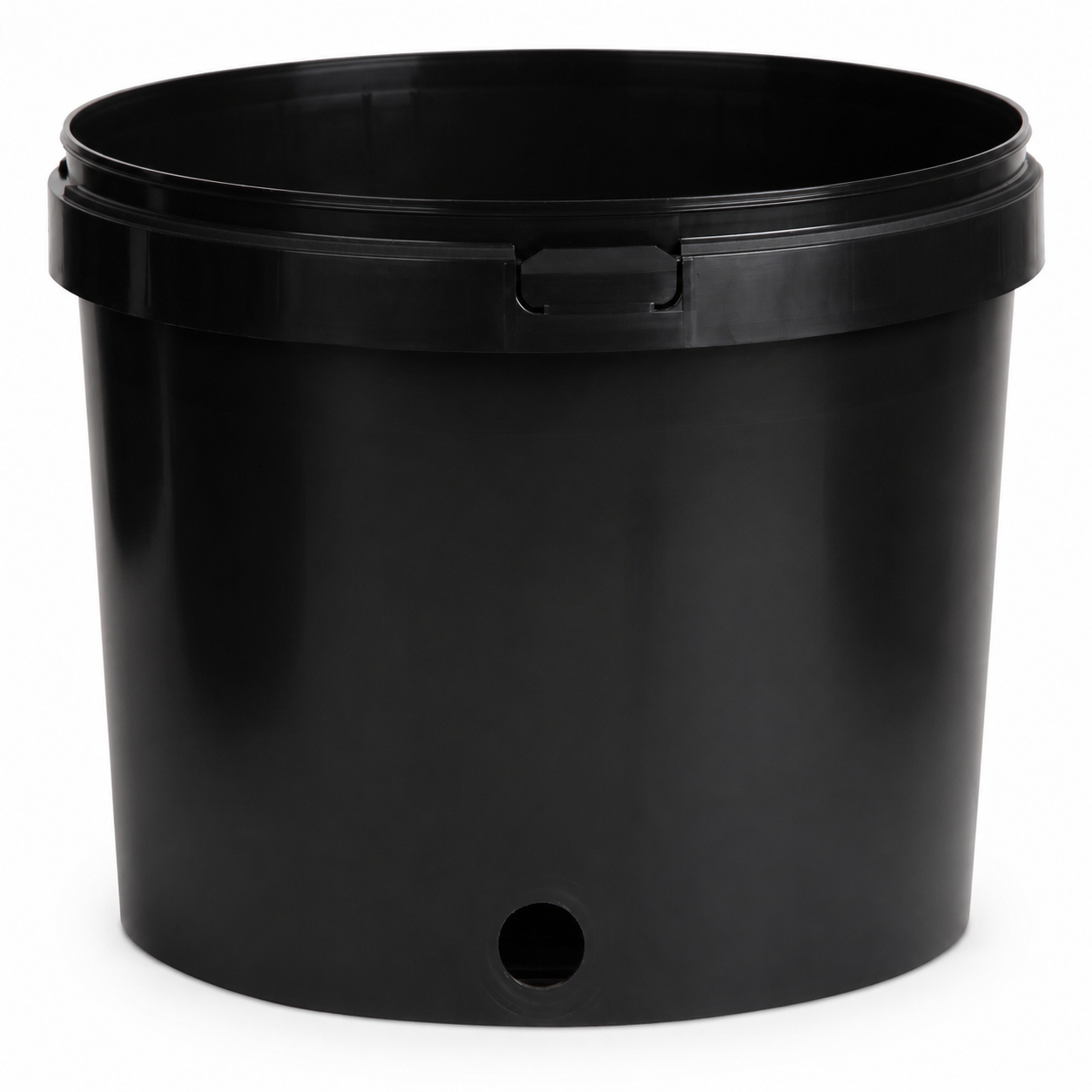

- IWS Outer Pot - drilled, sits on the stand and houses any inner, flooding the medium from underneath. 230mm (h) x 290mm (d)
- Strong, resistant plastic for long-lasting, high-performance service
How to Use
- Build order: pot stand first, then the outer pot, then your chosen inner inside it
- Gland clearance: line the V-shaped indent up with the IWS gland so the drain run is clear
- Match inner to medium: Aqua for pebbles, Culture for coco, Punch for maximum volume with any medium
- Fill: add substrate to the inner, settle it and plant - do not overfill above the rim
- Commission: run a cycle empty and confirm solution reaches the root zone and drains fully back
Technical Specifications
- Brand: IWS (Global Air Supplies)
- Product type: flood and drain pots, pot stand and outer pot
- Material: black plastic
- Fits: IWS Flood & Drain Standard, Standard Remote and Pro Remote (10 L) systems
| By size | Culture Inner 6.5L Coco | Aqua Inner 6.5L Clay Pebbles | IWS Pot Stand |
|---|---|---|---|
| Capacity | 6.5 L | 6.5 L | – |
| Media | any media | clay pebbles | – |
| Copper disc | 170 mm | 170 mm | – |
| Fits | IWS 10 L outer pot | IWS 10 L outer pot | 10 L outer; lifts it 2 in |
| By size | IWS Outer | Punch Pot 10.5L Any Medium |
|---|---|---|
| Capacity | 10 L | 9.5 L |
| Media | – | any media |
| Copper disc | – | 250 mm |
| Fits | any IWS inner pot | IWS 10 L outer pot |
Questions & answers
Which inner pot should I choose?
The Aqua Inner for clay pebbles, the Culture Inner for coco and other fine media, and the Punch Pot for maximum volume with any medium.
How much do the inner pots hold?
The Aqua and Culture Inners hold 6.5 litres each and the Punch Pot holds 10.5 litres. All three are 185mm high and 285mm across.
What order do the parts go together?
Pot stand first, then the outer pot, then your chosen inner inside it. Line up the stand's V-shaped indent with the IWS gland so the drain run is clear.
What size are the stand and outer pot?
The stand is 320mm across and 85mm high. The drilled outer pot is 230mm high and 290mm across.
Can I use them in a dripper system?
Yes, they're also suitable for dripper systems.
