Description
Schedule, dim and ramp up to 25 LED fixtures from one controller
The LUMii XLED Controller is a single-channel 0-10V lighting controller for LED grow lights. Designed for the LUMii XLEDv6 680W fixture, it works with any LED fixture that accepts a 0-10V control signal, connecting by an RJ lead or wired push-in terminals. It sets the daily photoperiod, dims output anywhere from 0% to 100% and adds sunrise and sunset ramping at each end of the day, across a linked array of up to 25 fixtures.
Key Benefits
- Infinitely variable dimming, 0-100% - not just the few fixed steps on a fixture's own dial.
- Built-in scheduling - one on time and one off time each day.
- Sunrise and sunset ramps ease plants in and out of the light period to avoid shock.
- Up to 25 linked fixtures run from a single channel.

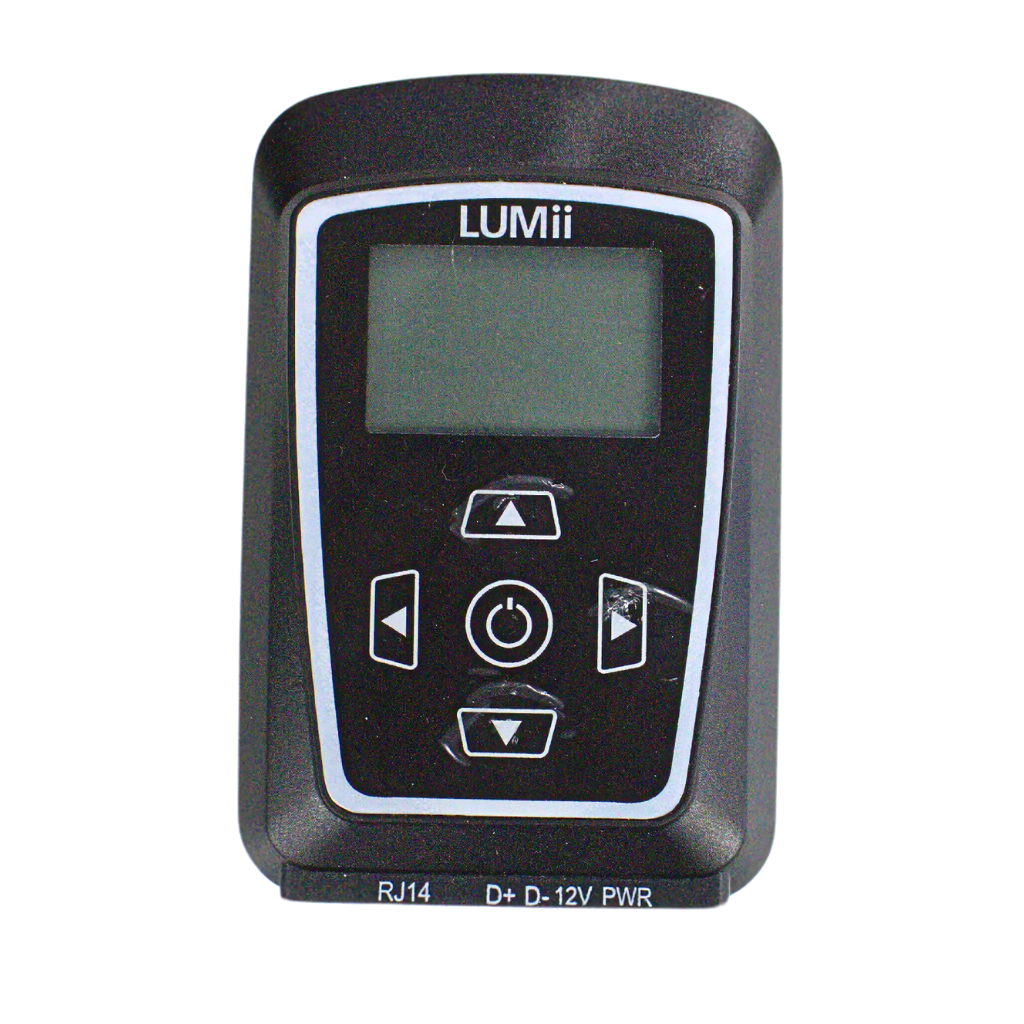

- Simple five-button interface with LED display and an integral wall-mounting / hanging tab.
- Mains adaptor supplied.
Light Stress From Full Power?
Running LEDs flat out from day one can bleach seedlings and stress young plants, and opening the tent to turn dimmer dials disturbs temperature and humidity. With one controller you can run lower intensity early on, raise it as plants develop, and change every light in the room at once from outside the grow space.
How to Use
- Connect the controller to the first fixture's control port (or the push-in terminals) and link further fixtures in series.
- Power it from the supplied mains adaptor and mount it by its tab, away from damp and spray.
- Set the photoperiod - one on time and one off time.
- Set the intensity and ramp length, then adjust as the crop develops.
Technical Specifications
- Brand: LUMii
- Channels: 1
- Signal: 0-10V (output 0-10V ±0.1V)
- Maximum fixtures controlled: 25

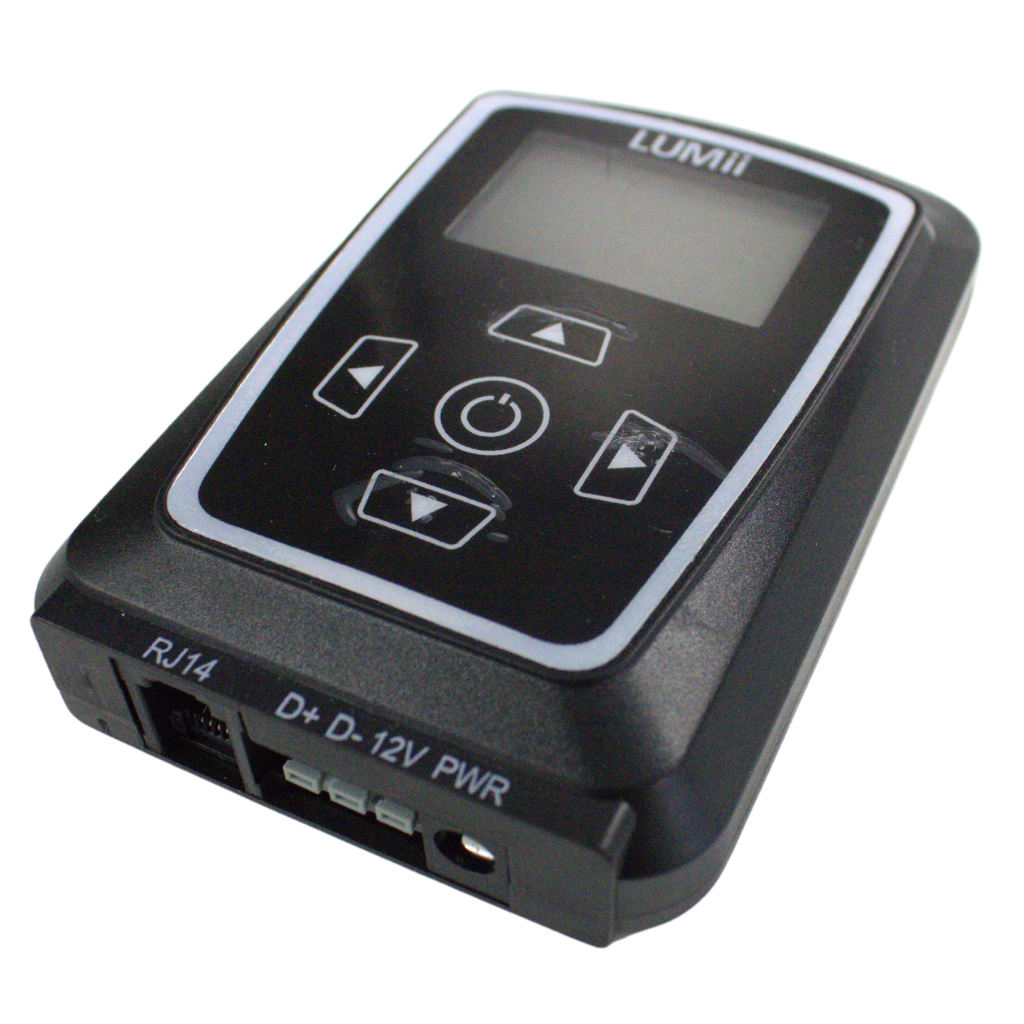

- Connection: RJ12 port or push-in terminals
- Functions: photoperiod, 0-100% dimming, sunrise and sunset ramping
- Adaptor input: 120-240V AC
- Controller input: 12V DC, 1.0A
- Operating temperature: 0-35°C
- Operating humidity: 80% RH maximum, non-condensing
- IP rating: IP20
