Description
Fan, filter and ducting matched in one box
The Mammoth TT Twin Speed Extraction Kit pairs the twin-speed Mammoth TT inline fan with a matched Mammoth carbon filter, five metres of black combi ducting and three duct clips — everything needed to set up grow room extraction without sizing components against each other. It arrives plug and play with a power lead fitted, so there is no wiring to do.

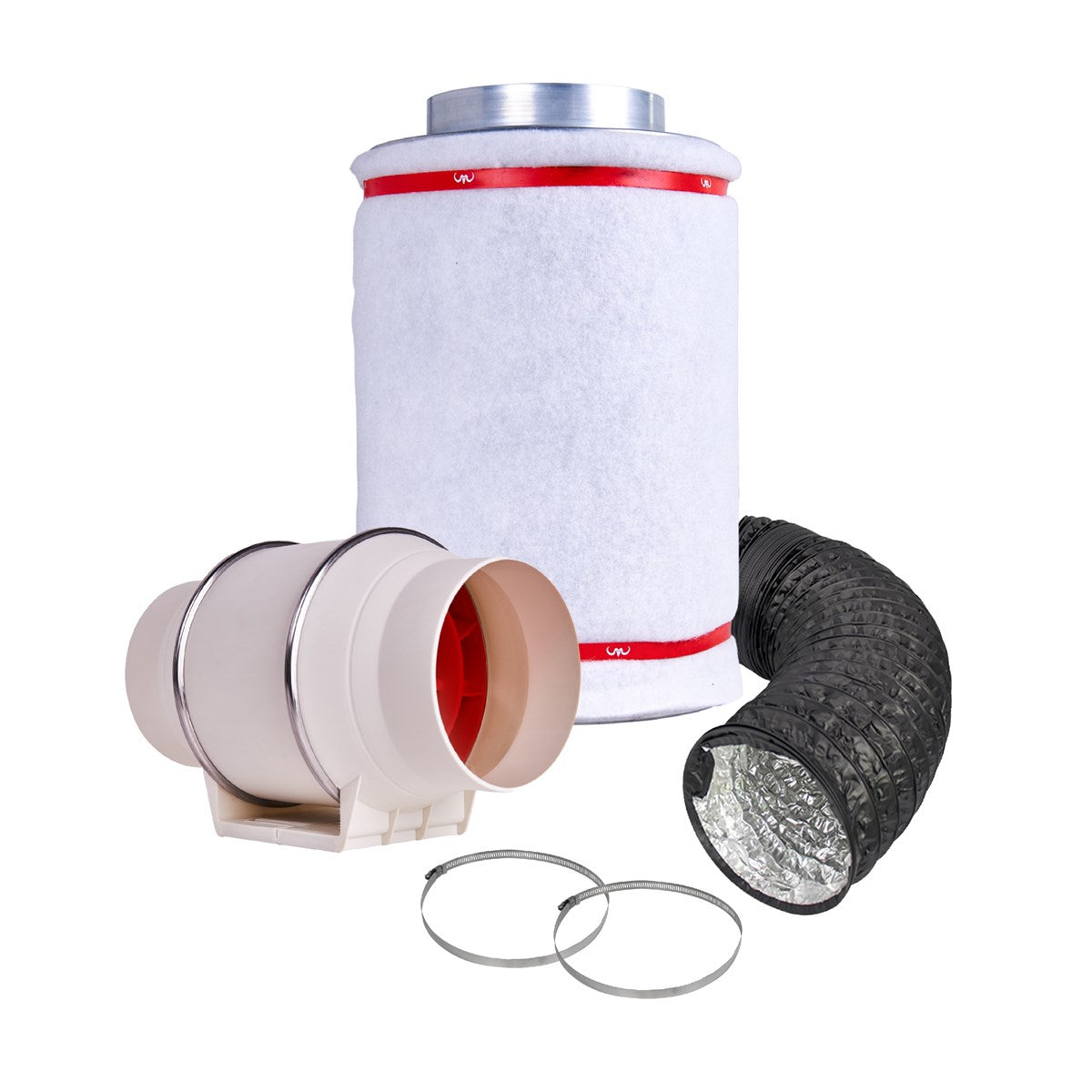

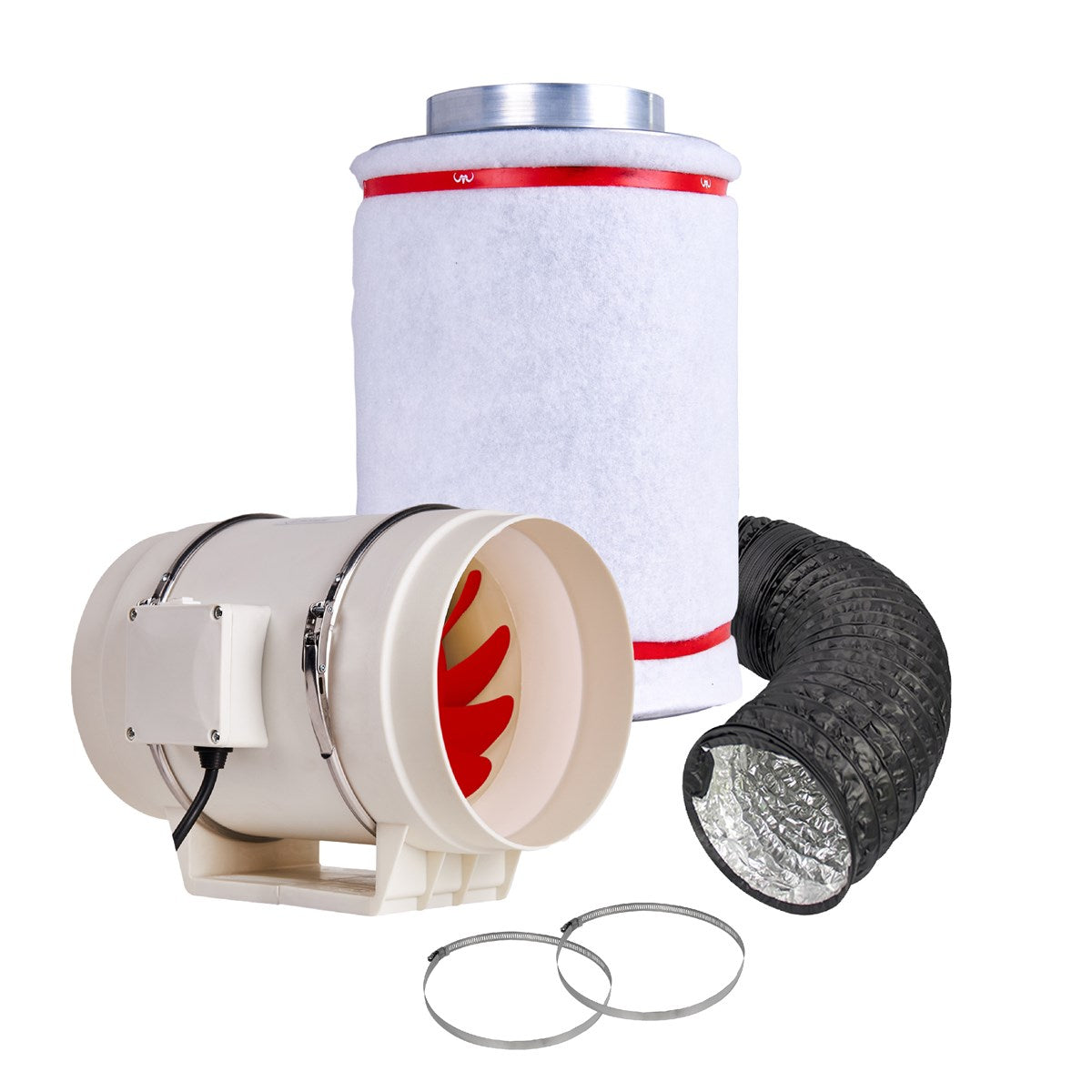

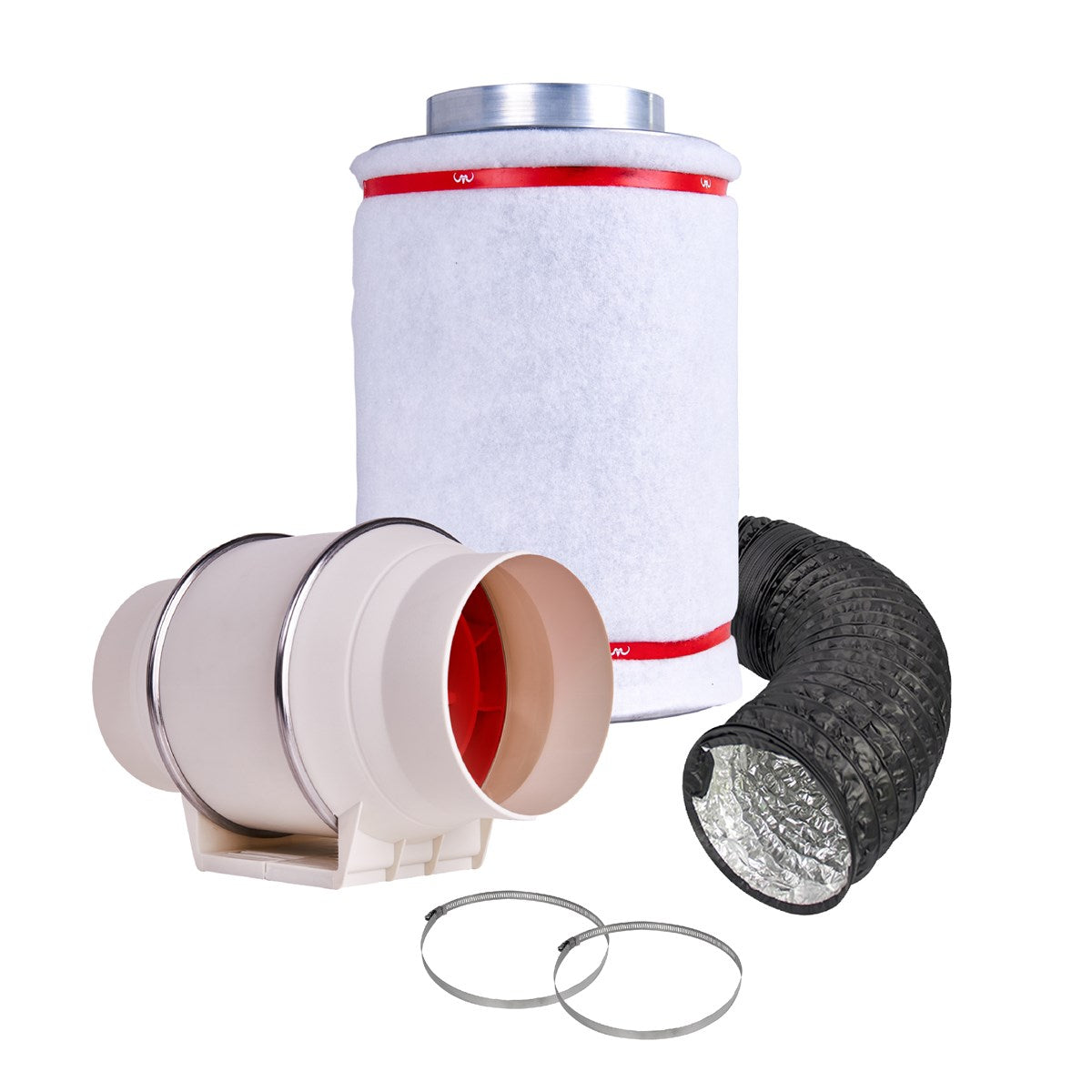

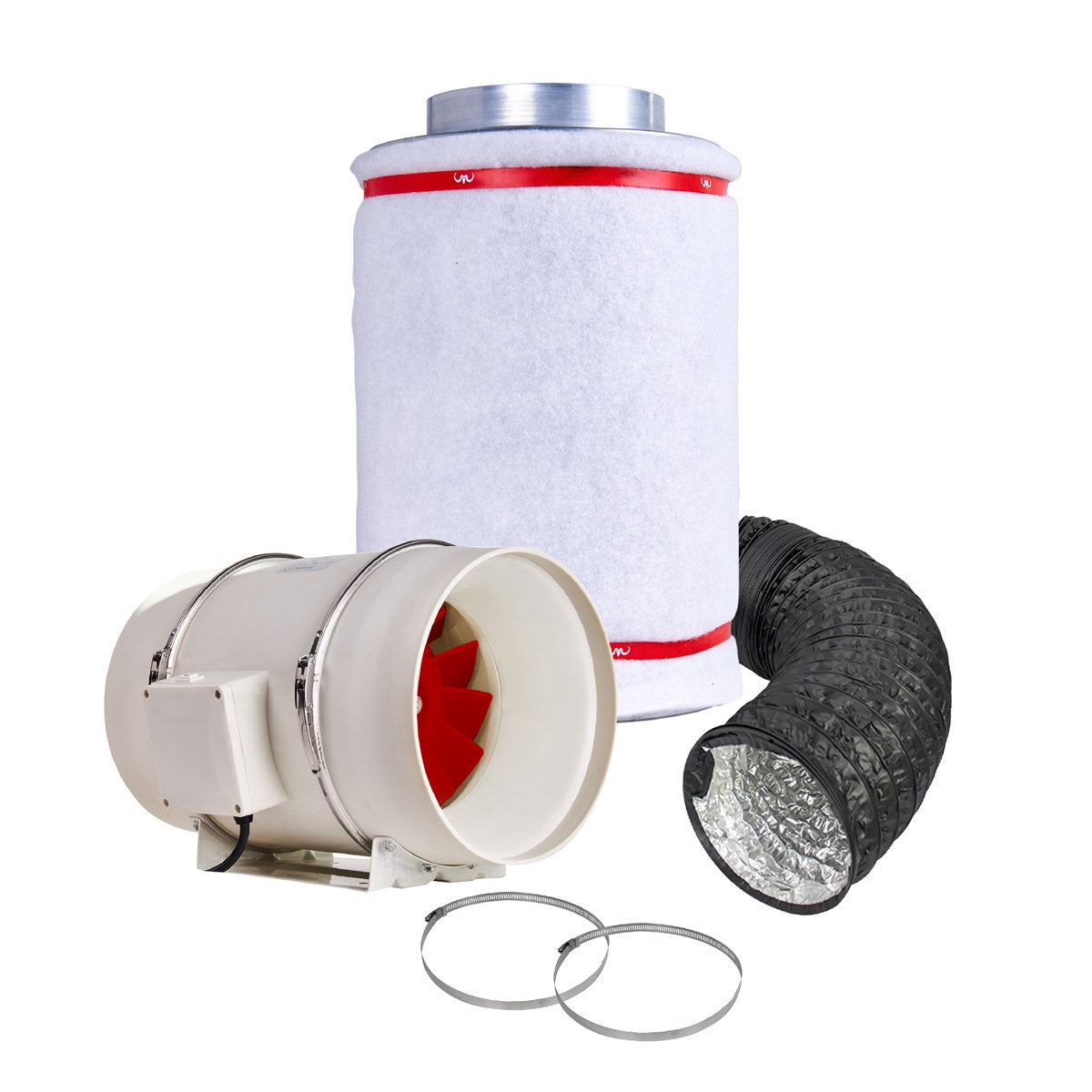

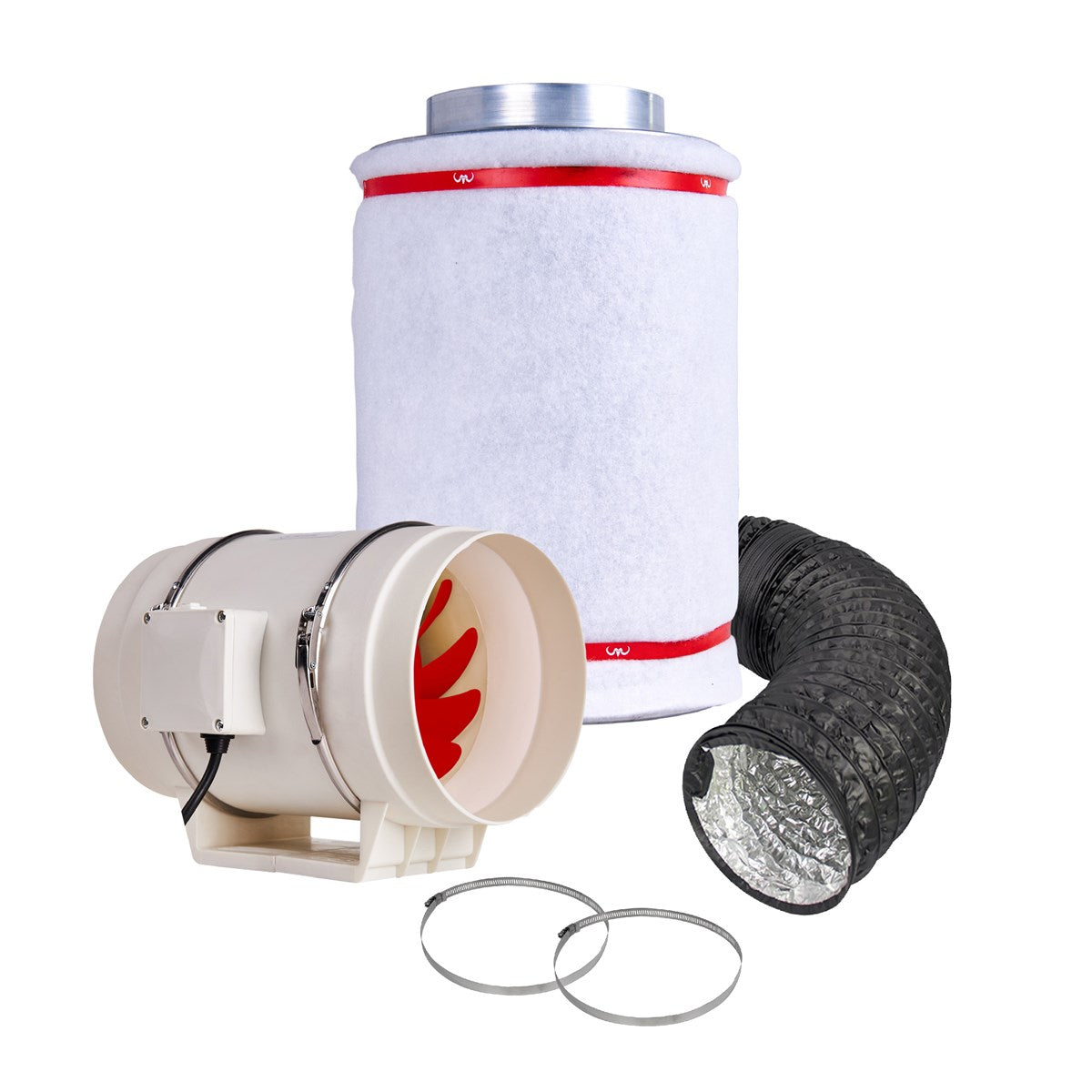

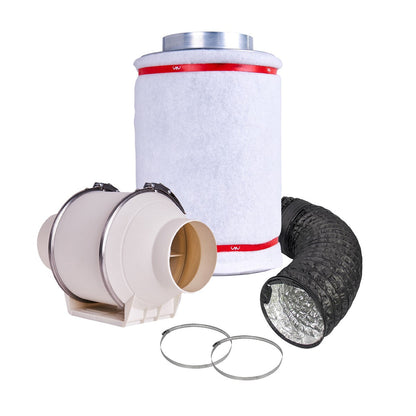

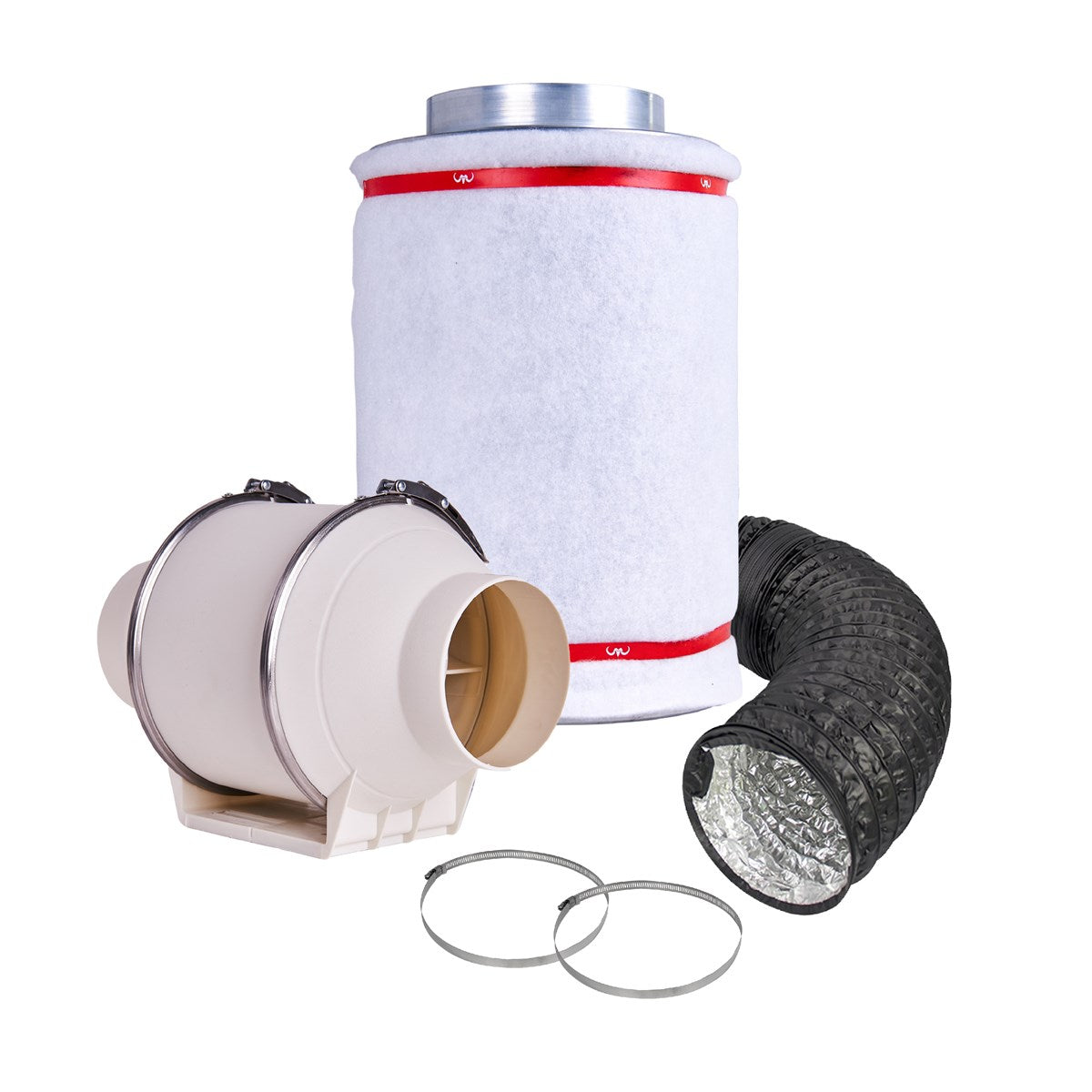

What's Included
- Mammoth TT twin speed inline fan — high-pressure, two switchable speeds
- Mammoth carbon filter with a 50mm carbon bed of RC 48 Australian activated carbon and a washable pre-filter sleeve — the full Mammoth filter, not the 38mm Mammoth Lite
- 5 m of black combi ducting
- 3 duct clips
- Power lead fitted — no wiring required
Key Benefits
- Twin speed control — run high through summer and back it off through winter from one switch
- The full 50mm Mammoth filter, not the 38mm Lite — a deeper carbon bed gives longer contact time and a longer service life
- High pressure design holds airflow through filter and ducting instead of stalling
- IP65 rated fan, dustproof and waterproof for humid rooms
- Thermal protection and a 2 year warranty on the fan
- Plug and play — assembled in minutes with the clips supplied
Heat, humidity and stale air
Air that is not moved turns hot, damp and short of carbon dioxide, and growth slows long before anything looks wrong. Extraction pulls that air out and draws fresh air in, holding temperature and humidity where plants keep working. A filter on the intake side of the fan scrubs odour on the way through, so the air leaving the room is clean.
How to Use
- Filter first: mount the carbon filter inside the room and connect it to the fan inlet with ducting.
- Fan next: hang the fan so its outlet runs to the vent, keeping ducting as short and straight as possible.
- Seal the joints with the three clips supplied.
- Speed: high through the warmer months, low when the room runs cold.
- Direction: the fan must pull through the filter, never push into it.
Technical Specifications
- Fan: Mammoth TT twin-speed inline
- Speeds: 2, switch-selected
- Fan rating: IP65
- Protection: thermal overheat cut-out
- Power lead: 1.8 m UK mains, fitted
- Mounting: integrated bracket
- Fan warranty: 2 years
- Filter: Mammoth carbon filter
- Carbon: RC 48 Australian, 50 mm bed
- Pre-filter: sleeve included
- Filter life: up to 2 years
- Ducting: 5 m black combi
- Duct clips: 3 included
| By size | 4" | 5" | 6" |
|---|---|---|---|
| Duct size | 100 mm | 125 mm | 150 mm |
| Airflow low / high | 165 / 198 m³/h | 248 / 284 m³/h | 410 / 530 m³/h |
| Fan power | 40 W | 75 W | 150 W |
| Fan pressure | 500 Pa | 520 Pa | 510 Pa |
| Fan speed | 5,000 rpm | 3,800 rpm | 3,200 rpm |
| By size | 8" | 10" | 12" |
|---|---|---|---|
| Duct size | 200 mm | 250 mm | 315 mm |
| Airflow low / high | 530 / 690 m³/h | 1,064 / 1,405 m³/h | 1,750 / 2,206 m³/h |
| Fan power | 320 W | – | – |
| Fan pressure | 677 Pa | – | – |
| Fan speed | 3,000 rpm | – | – |
