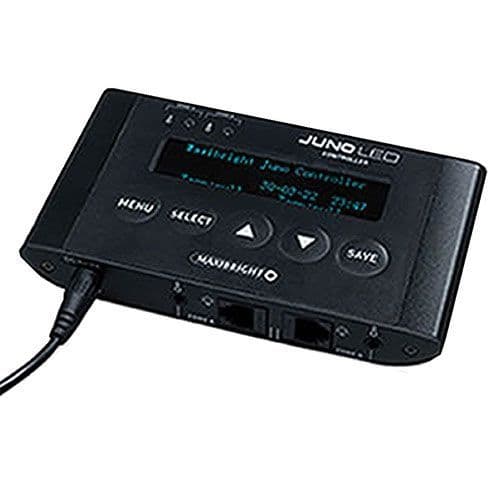

Maxibright Juno Pro LED Controller – 0-10V Dimming Driver

Independent, scheduled control for up to 200 Juno Pro fixtures across two zones

The Maxibright Juno Pro LED Controller takes a bank of Juno Pro fixtures beyond their built-in remote and gives proper scheduling: a 24-hour on/off timer, 1% dimming from 20-100%, and sunrise/sunset ramping over 0-130 minutes so lights ease on and off rather than switching abruptly. Two independently controlled zones let one controller run two different areas — each on its own schedule — from a single unit.

Key Benefits

• Two independent zones — separate on/off times, dimming and ramp settings for two different areas from one controller
• Up to 200 fixtures — 100 Juno Pro LEDs per zone, enough for a serious multi-room setup
• 1% dimming resolution from 20% to 100%, far finer than the fixture's own 25/50/75/100% remote steps
• Sunrise and sunset ramping (0-130 minutes) — a gradual transition rather than an abrupt on/off
• Thermostatically controlled dimming — pulls light output back automatically if room temperature climbs
• 24-hour on/off timer — set-and-forget scheduling for consistent day length

Why a fixture's built-in remote isn't enough at scale

A Juno Pro's own remote gives four fixed power steps and no scheduling — fine for one light, awkward across a room of them, and impossible to split into separate zones running different schedules. The controller replaces that with programmable timing, fine dimming and temperature-aware output across every linked fixture at once.

How to Use

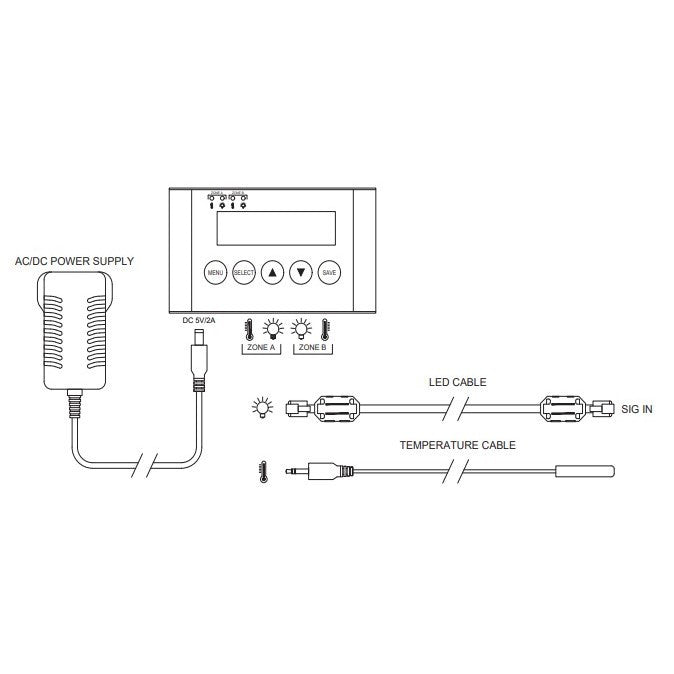

• Wiring: connect the controller to each Juno Pro fixture's signal input using link cables, assigning fixtures to Zone A or Zone B as required
• Timer: set the 24-hour on/off schedule per zone for consistent day length
• Dimming: set output in 1% steps between 20% and 100% per zone
• Ramping: configure sunrise/sunset fade over 0-130 minutes to avoid an abrupt light change
• Temperature control: connect the supplied temperature probe to let the controller dim automatically if the room runs hot
