Description
Read Your Feed at a Glance, No Buttons to Press

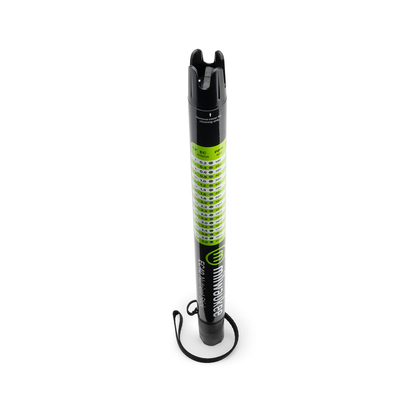

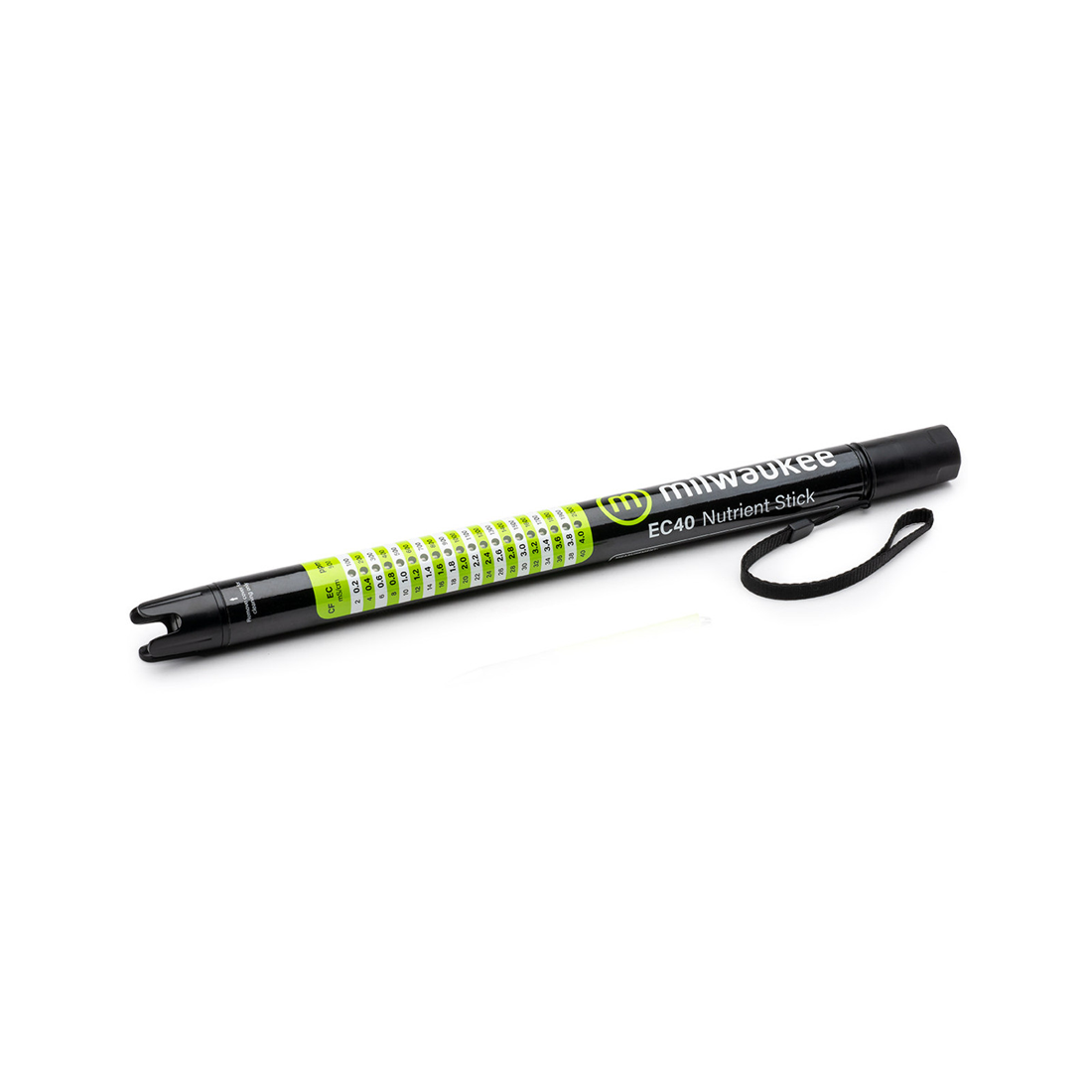

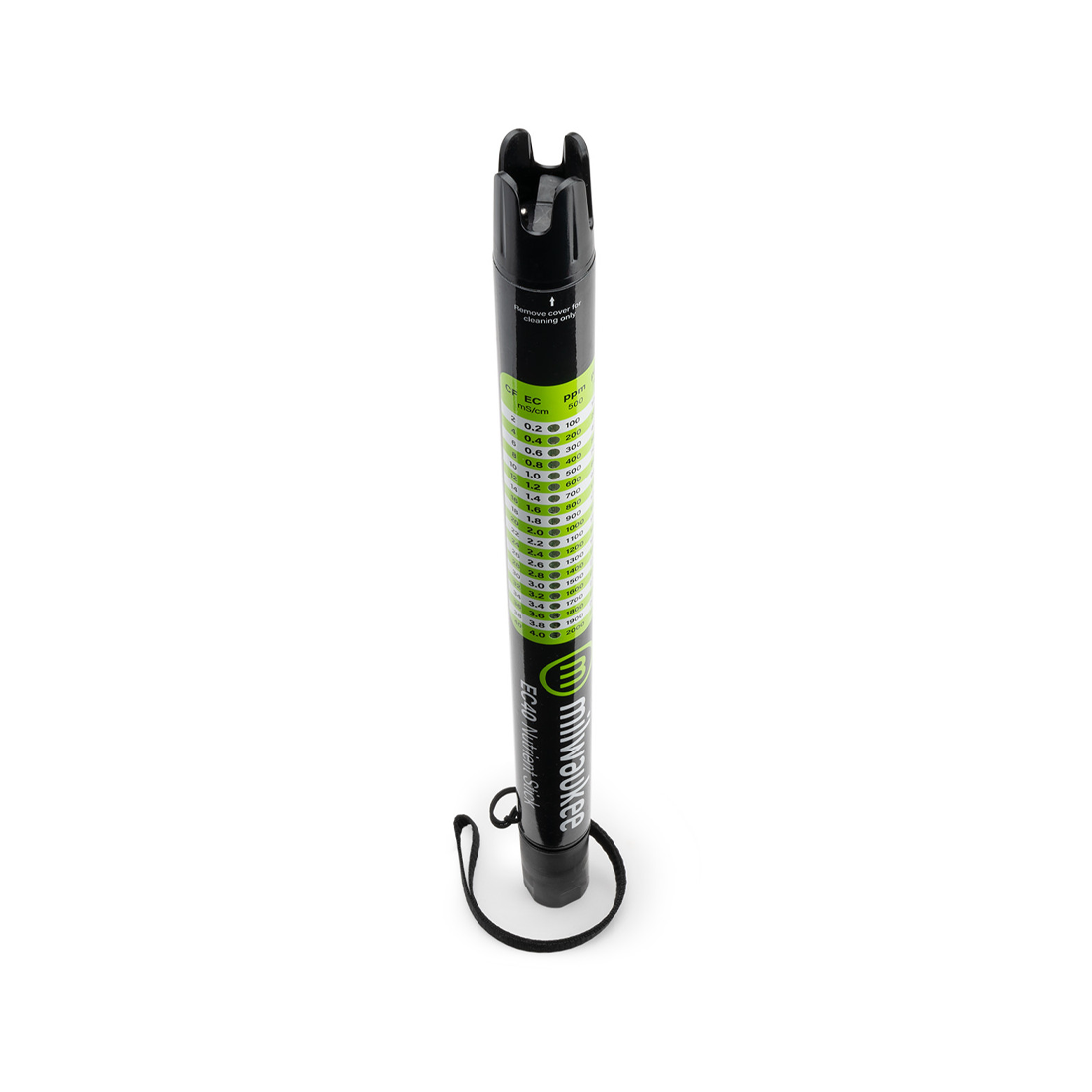

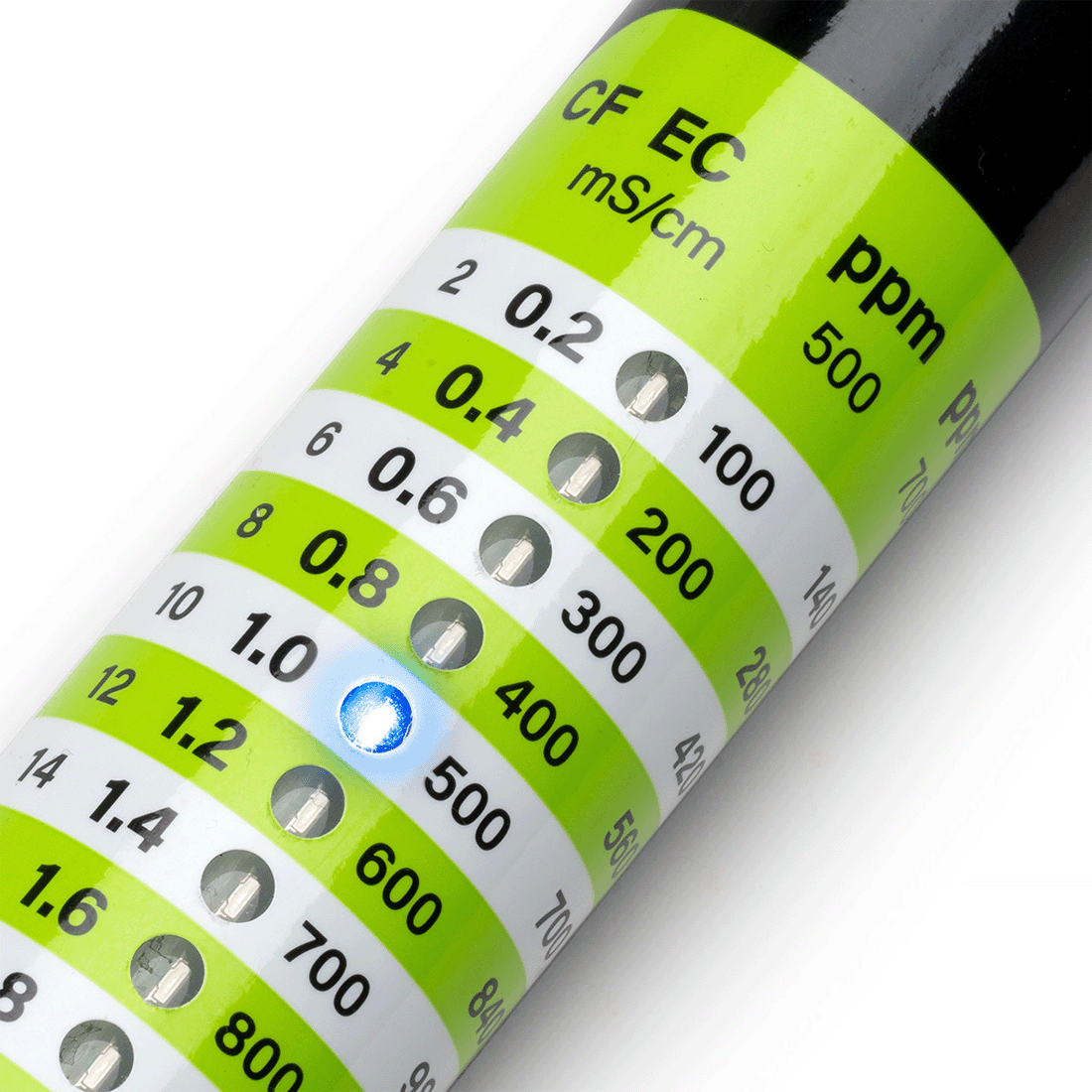

The Milwaukee EC40 Nutrient Truncheon is a dip-and-read EC/TDS meter for hydroponic, coco and soil growers who want a quick, dependable check on feed strength. Drop the head into the nutrient solution and a 20-LED blue bar lights against printed CF, EC, PPM500 and PPM700 scales, so whichever feed chart you follow you can read it directly with no conversions. It arrives factory calibrated, with automatic temperature compensation and a sealed IP67 floating body.
Key Benefits
- Four scales at once - read 0.2-4.0 mS/cm, 2-40 CF or ppm on the 500 or 700 scale.
- Factory calibrated - no routine calibration, just rinse the probe after use.
- Automatic temperature compensation from 5-50 °C via a sensor built into the probe.
- Adjustable alarm - set a limit and the LEDs flash when the feed goes over it.
- Waterproof and floats - IP67, so it can stay in the tank while you mix.
- Long battery life - up to 3 years at around 10 readings a day, with three AA batteries included.
Guessing at Feed Strength?
Tap water hardness, evaporation and uptake all shift the EC of a tank. A feed that drifts too strong brings nutrient burn and lockout; one that runs weak shows as pale leaves and slow growth. A quick reading at every mix or top-up keeps you on your feed chart.
How to Use
- Read: twist off the protective cap, dip the head into the solution and wait for the LED to settle - the meter switches on and off by itself.
- Interpret: two lit LEDs mean the value sits between them.
- Alarm: hold the SETUP button to raise the LED bar to your limit, then release to save.
- Clean: rinse the probe in tap or distilled water after every use to stop nutrient building up on the graphite sensors.
Technical Specifications
- Model: Milwaukee EC40 EC/TDS Nutrient Meter
- Range: 0.2 to 4.0 mS/cm | 2 to 40 CF | 100 to 2000 ppm (500 scale) | 140 to 2800 ppm (700 scale)
- Resolution: 0.1 mS/cm (70 ppm on the 700 scale, 50 ppm on the 500 scale)
- Accuracy: ±4% of reading ±1 resolution point
- Calibration: factory calibrated
- Temperature compensation: automatic, 5 to 50 °C
- Display: 20 blue LED bar
- Probe: graphite EC sensor with built-in temperature sensor
- Protection: IP67 waterproof, floating
- Power: 3 x 1.5V AA alkaline (included); auto on/off; battery level indicator
- Dimensions: 420mm long x 30mm diameter; 255g with batteries
- Supplied with: wrist strap
