Description
Hold Temperature and Humidity Steady, Whatever the Weather Outside

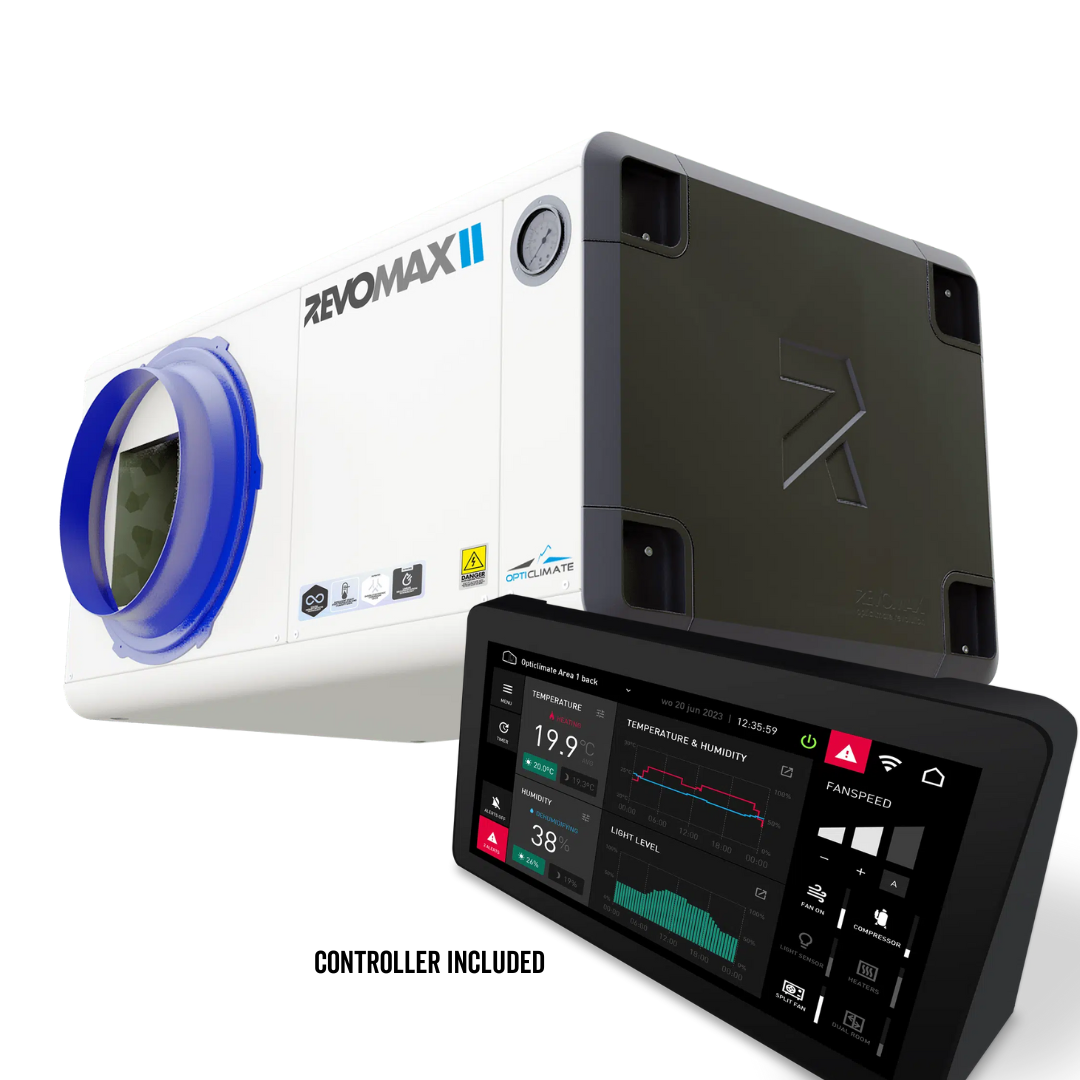

The OptiClimate Revomax II is the world’s first all-in-one steady-state temperature and humidity air conditioner for indoor growing, and it needs no external outdoor unit. Rooms that swing from stifling under the lights to cold overnight leave you chasing VPD all cycle. The Revomax II handles heating, cooling, dehumidification, circulation and filtration from a single fireproof cabinet, with infinity DC inverter technology that keeps output matched to what the room is actually doing.
Key Benefits
- Turns down to 20-30% cooling capacity against an industry standard of around 60%, so the room stays stable even when heat output is modest
- 30-100% cooling range from the digital inverter, giving smooth modulation instead of hard on-off cycling
- Five modes in one unit – heating, cooling, dehumidifying, circulating and filtering
- Built-in carbon and dust filters absorb unwanted smells and stop the musty odours that come with mould formation
- Optimised for modern LED systems, where sensible heat load and humidity behave differently to HPS rooms
- Full safety package – built-in temperature protection, water leak safeguard, fireproof housing and email and mobile alerts
- Separate day and night modes plus near-silent operation
Runaway Humidity and Temperature Swings

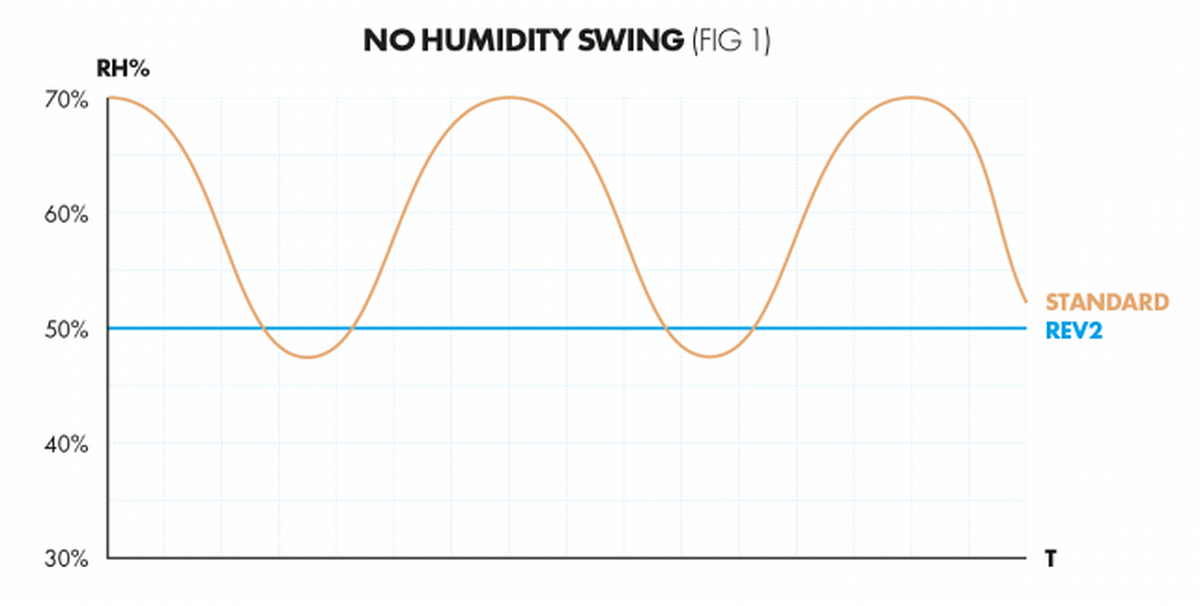

When room temperature drifts, transpiration stalls and you get poor nutrient uptake, slow growth and airy flowers in late flower. Overnight humidity spikes are worse again, feeding mould in the densest tops. Steady-state control keeps leaf temperature and humidity in the band your plants actually want, so airflow and feeding do their job.
How to Use
- Water-cooled: connect to mains water or a closed-loop water cooler
- Set day and night targets separately so the room follows the lighting cycle rather than fighting it
- Add the Revomax Smart Remote Controller to manage the unit from anywhere in the world over a secure internet connection
- Set up the email and mobile alerts so faults, leaks and temperature excursions reach you before the crop suffers
Technical Specifications
- Type: water-cooled all-in-one grow room climate unit
- Functions: cooling, heating, dehumidifying, circulating, filtering
- Outdoor unit: not required
- Compressor: Infinity DC inverter
- Capacity modulation: down to 30% of maximum
- Heating: ceramic elements plus heat-pump mode
- Refrigerant: R410A (GWP 2,088)
- Cooling water: mains (open tap) or closed loop with water cooler
- Cooling water inlet: 25 °C max
- Condensate drain: 3/4" male
- Filtration: washable dust filter
- Control: Revomax Smart Remote Controller (included)
- Remote access: Wi-Fi (2.4 GHz) or LAN, up to 8 units per controller
- Alerts: email and mobile alarms
- Sensors supplied: humidity/light sensor, air temperature sensor
- Safety: temperature protection, fireproof housing
- Water-leak safeguard: optional
- Clearance: 15 cm on all sides except the base
- Optimised for: LED grow lighting
- Manufacturer: OptiClimate by Airlux Technologies, Netherlands
| By size | Opticlimate 6000 Revomax2 | Opticlimate 10000 Revomax2 | Opticlimate 15000S Revomax2 |
|---|---|---|---|
| Cooling capacity | 6 kW / 20,500 BTU | 10 kW / 34,100 BTU | 15 kW / 51,200 BTU |
| Max cooling | 7 kW | 12 kW | 19 kW |
| Heating | 3 x 1,300 W (3.9 kW) | 3 x 1,600 W (4.8 kW) | 3 x 2,700 W (8.1 kW) |
| Dehumidification | 85 L/24h | 142 L/24h | 213 L/24h |
| Power (nominal) | 1,300 W | 2,100 W | 5,000 W |
| Power (max cooling) | 1,900 W | 3,500 W | 6,500 W |
| Supply | 230-400 V, 1 or 3 phase | ||
| MCB (1-ph / 3-ph) | C32 / C20 | C40 / C25 | C63 / C40 |
| Airflow (free) | 1,300 m³/h | 1,900 m³/h | 2,200 m³/h |
| Airflow (ducted) | 1,100 m³/h at 100 Pa | 1,600 m³/h at 100 Pa | 2,450 m³/h at 100 Pa |
| Cooling water flow | 2-4 L/min | 3-6 L/min | 3-10 L/min |
| Closed-loop flow | 1.2 m³/h | 2 m³/h | 3 m³/h |
| Refrigerant charge | 2.3 kg R410A | 2.7 kg R410A | 3.45 kg R410A |
| COP | 4.6 | 4.6 | 3.2 |
| Water connections | 3/4" F | ||
| Duct flange | Ø250 mm | Ø315 mm | Ø315 mm |
| Dimensions | 91 x 57 x 44cm | 99 x 67 x 49cm | 114 x 70 x 54cm |
| Weight | 79kg | 94kg | 124kg |
| By size | Opticlimate 15000T Revomax2 | Opticlimate 21000T Revomax2 | Opticlimate 30000T Revomax2 |
|---|---|---|---|
| Cooling capacity | 15 kW / 51,200 BTU | 21 kW / 71,700 BTU | 30 kW / 102,400 BTU |
| Max cooling | 19 kW | 23 kW | 35 kW |
| Heating | 3 x 2,700 W (8.1 kW) | 3 x 2,700 W (8.1 kW) | 3 x 3,700 W (11.1 kW) |
| Dehumidification | 213 L/24h | 298 L/24h | 425 L/24h |
| Power (nominal) | 5,000 W | 6,000 W | 9,000 W |
| Power (max cooling) | 6,500 W | 9,000 W | 15,000 W |
| Supply | 400 V, 3 phase | ||
| MCB (1-ph / 3-ph) | C25 (3-ph + N) | C32 (3-ph + N) | C50 (3-ph + N) |
| Airflow (free) | 2,200 m³/h | 3,900 m³/h | 6,500 m³/h |
| Airflow (ducted) | 2,450 m³/h at 100 Pa | 3,100 m³/h at 200 Pa | 5,000 m³/h at 200 Pa |
| Cooling water flow | 3-10 L/min | 3-12 L/min | 3-20 L/min |
| Closed-loop flow | 3 m³/h | 4.5 m³/h | 6 m³/h |
| Refrigerant charge | 3.85 kg R410A | 4.4 kg R410A | 6 kg R410A |
| COP | 3.5 | 3.5 | 3.3 |
| Water connections | 3/4" F | 3/4" F | 1" F |
| Duct flange | Ø315 mm | Ø398 mm (separate) | Ø448 mm (separate) |
| Dimensions | 114 x 70 x 54cm | 122 x 82 x 59cm | 148 x 86 x 74.9cm |
| Weight | 124kg | 181kg | 232kg |
