Description
More pressure, less noise and a grow room that finally holds its numbers

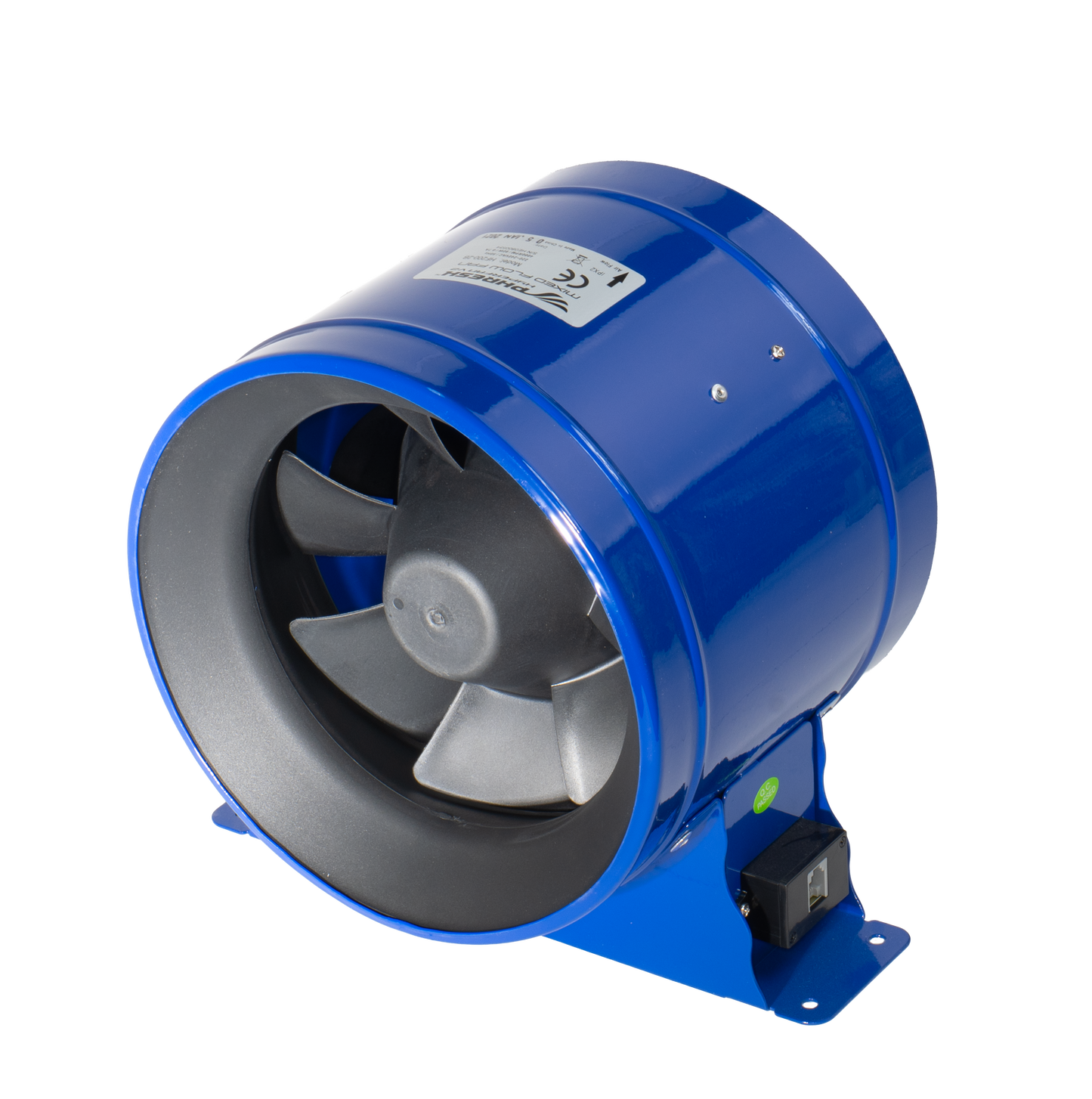

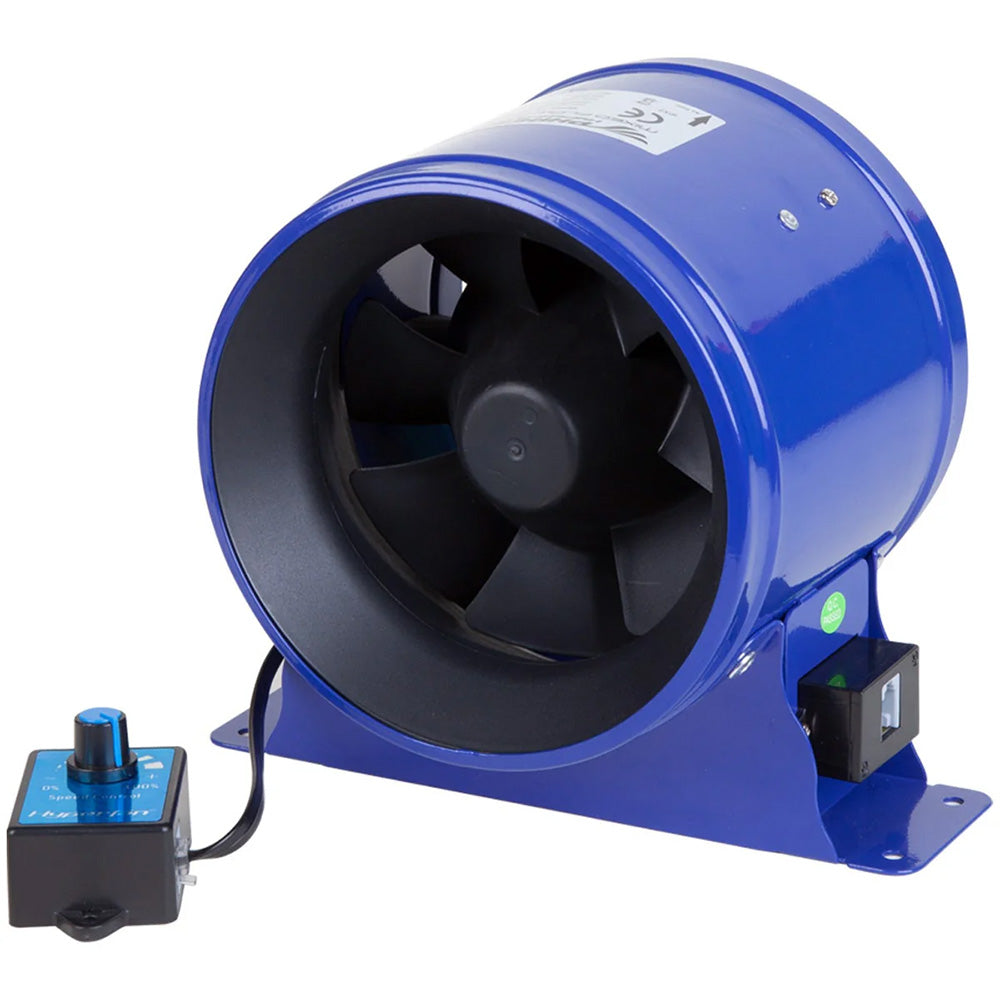

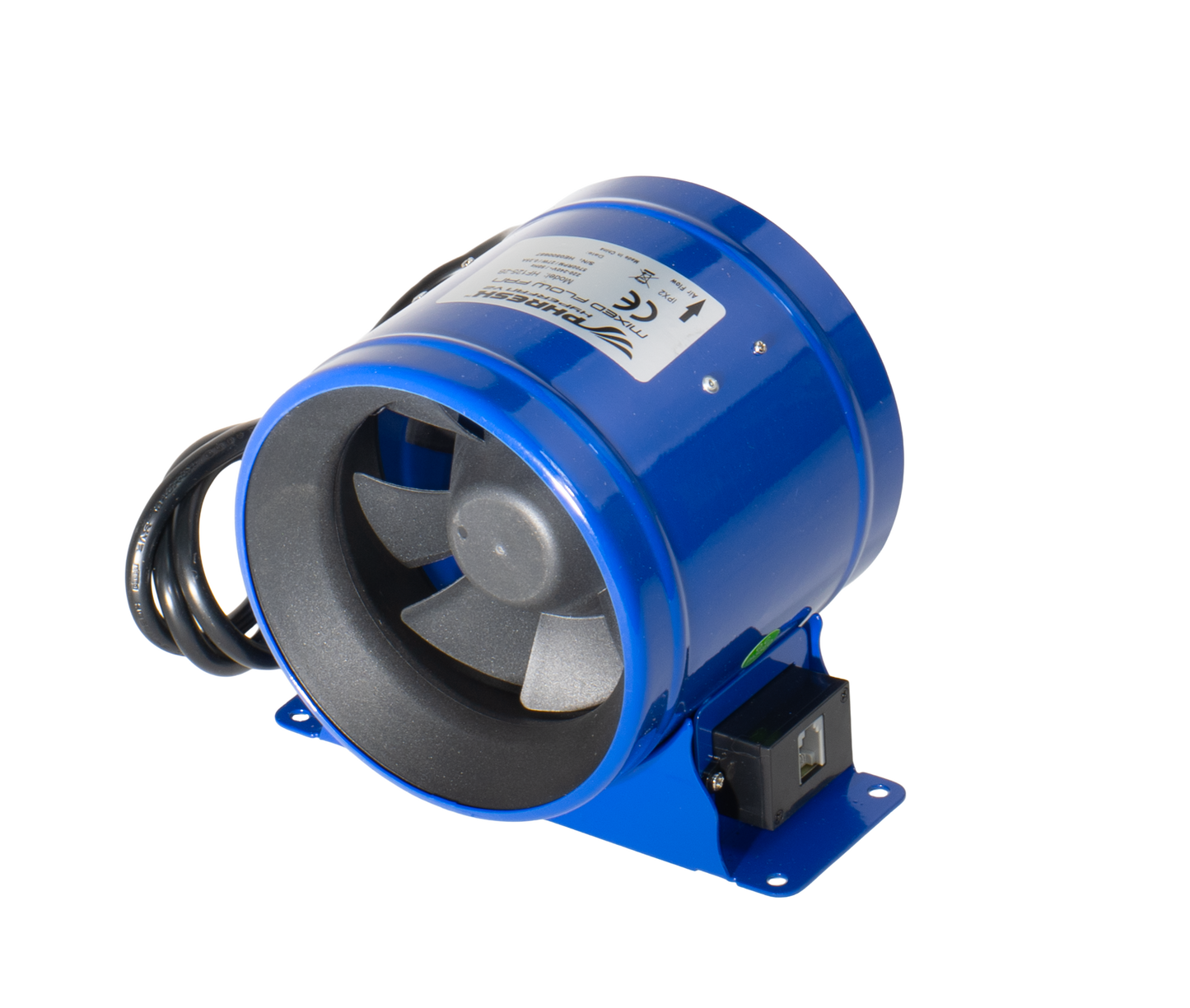

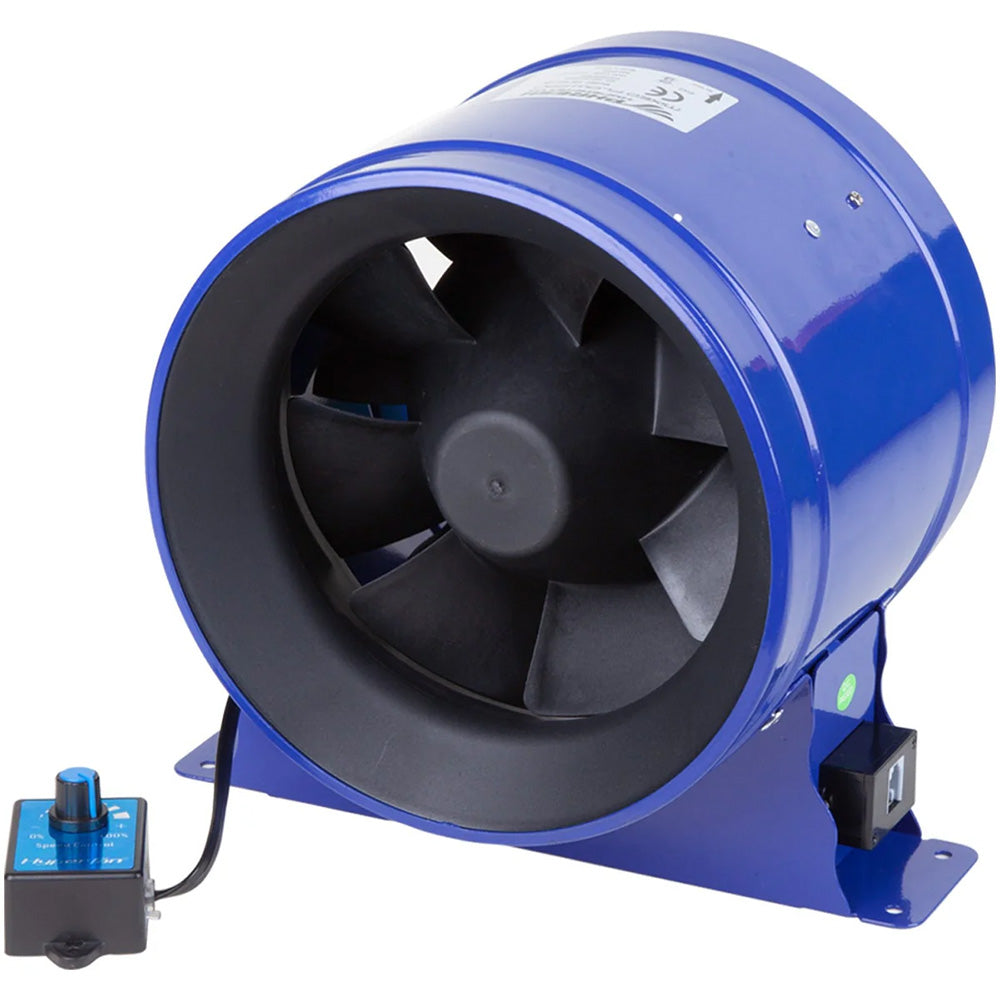

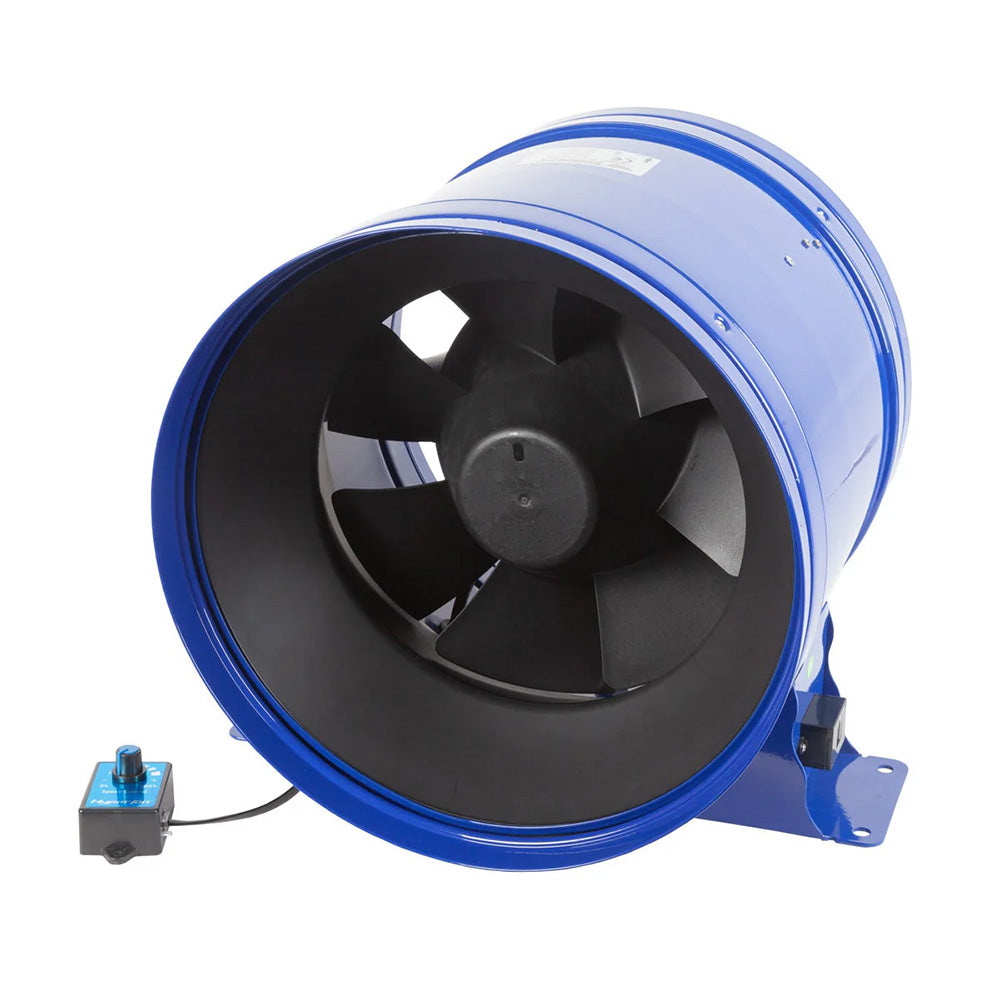

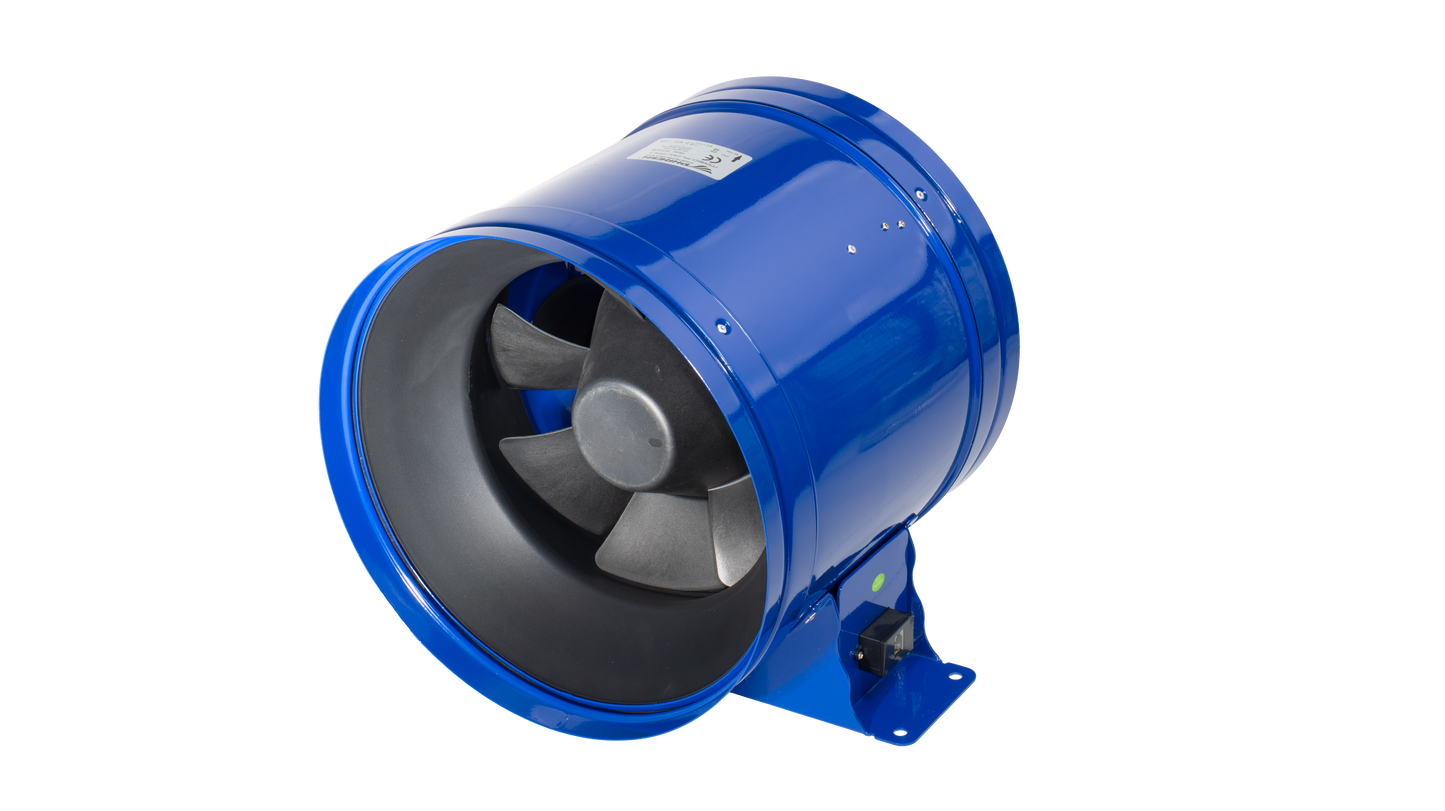

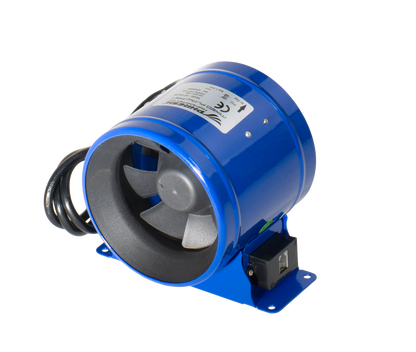

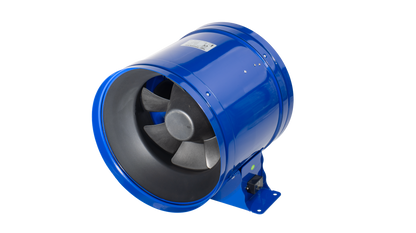

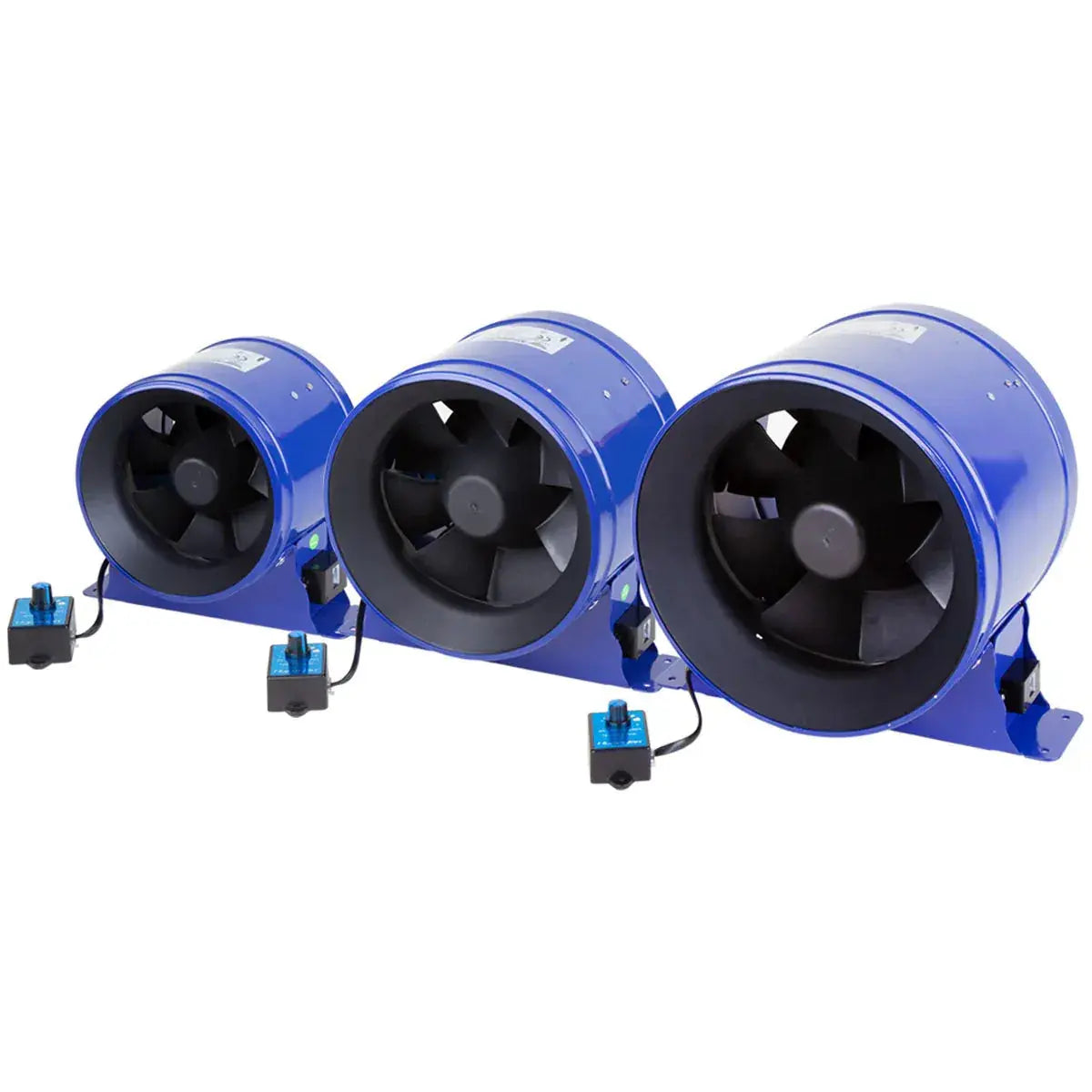

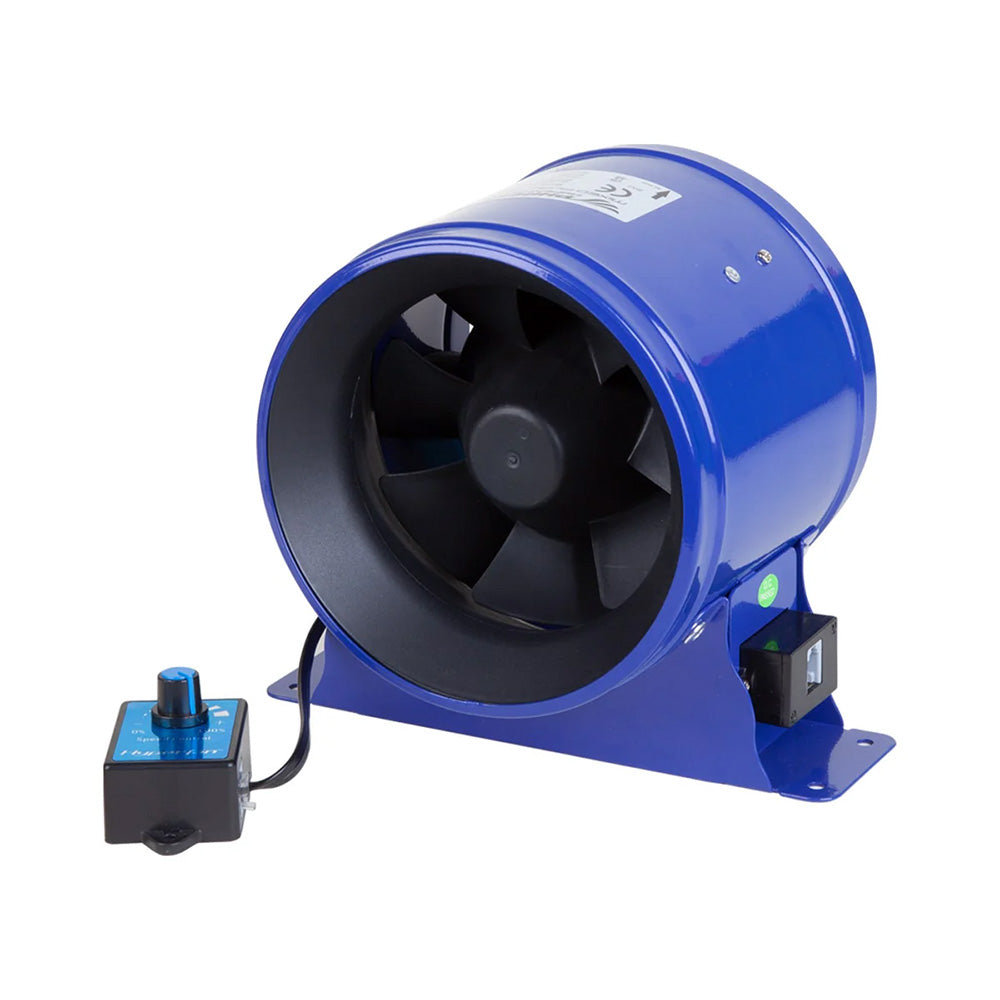

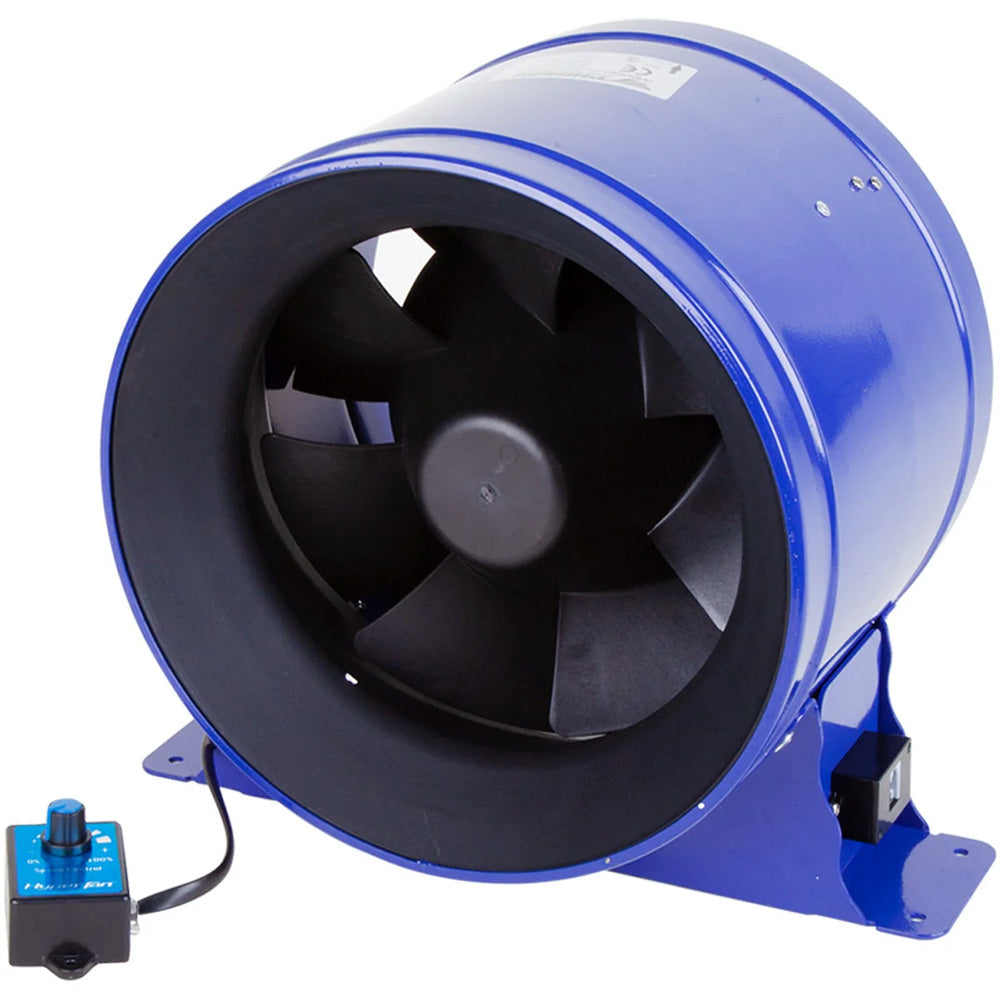

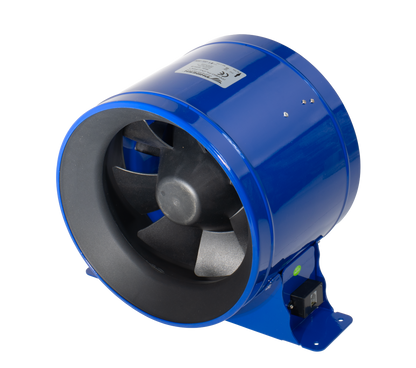

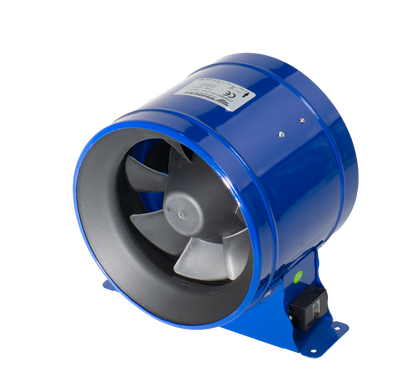

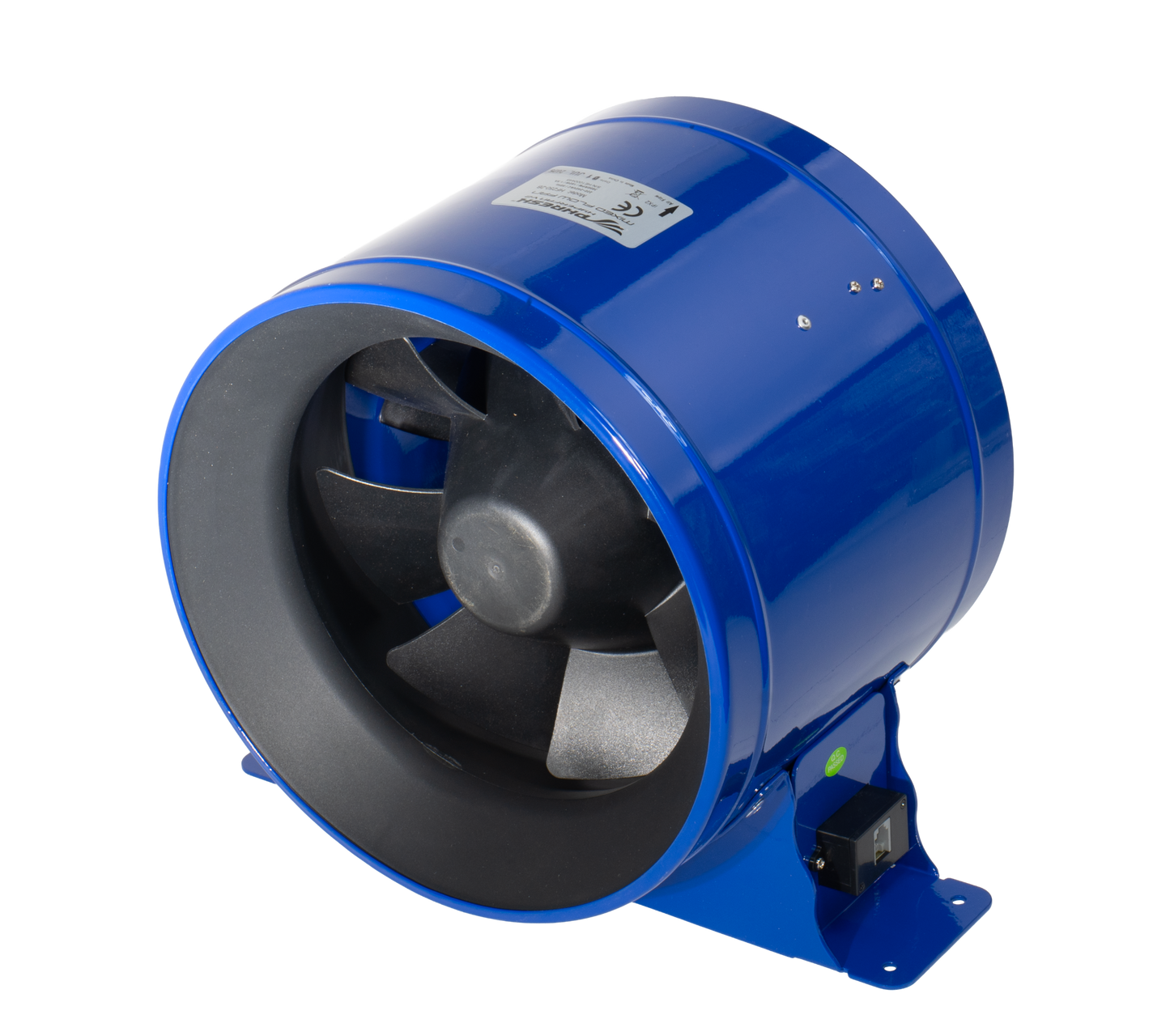

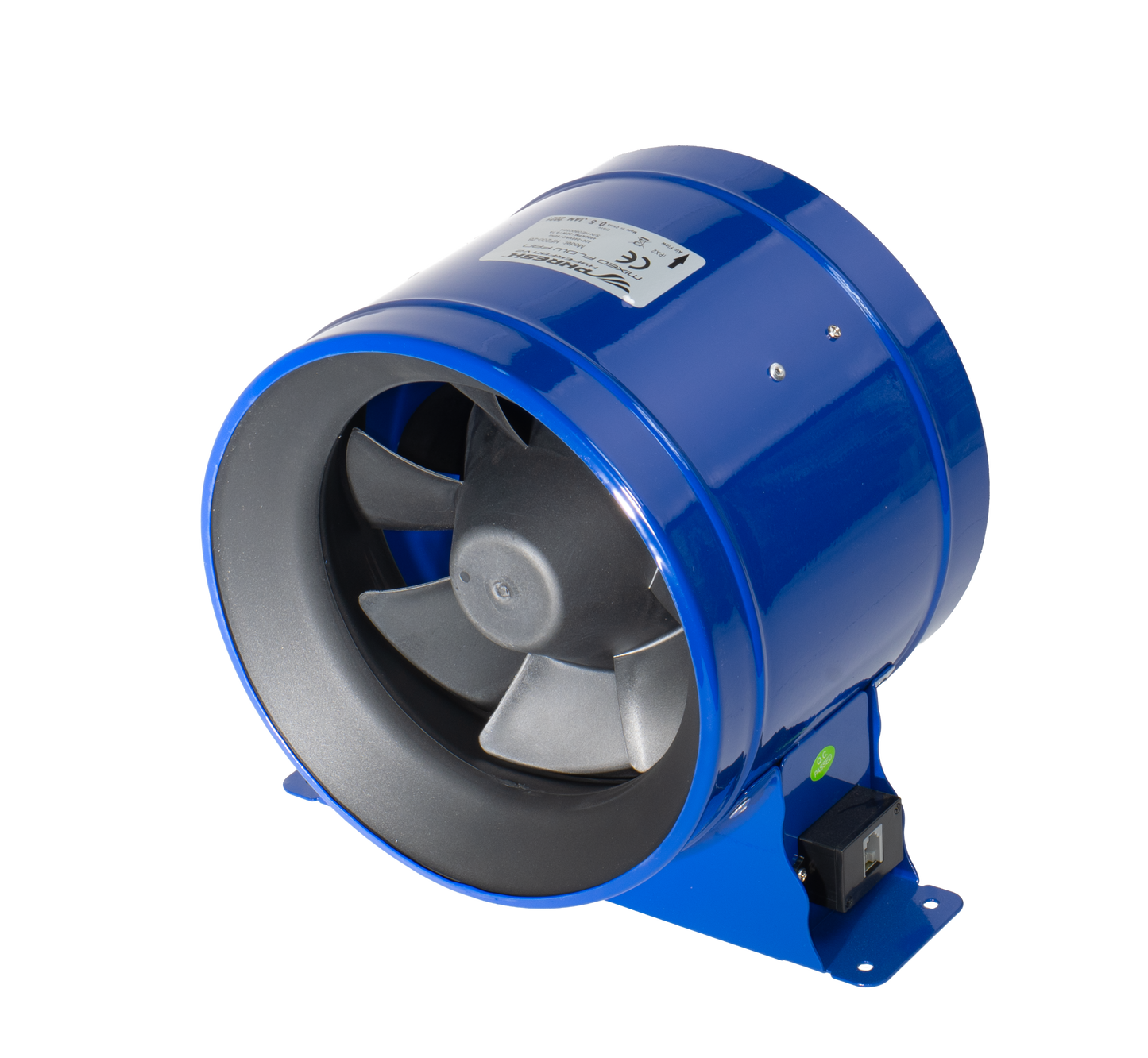

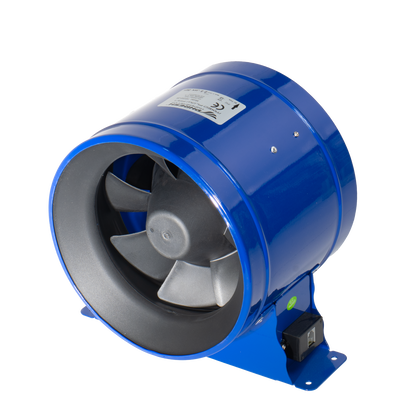

The Phresh HyperFan V2 is the non-silenced HyperFan, running an upgraded 9-pole EC motor (the V1 used a 7-pole) that lifts both airflow and static pressure once a carbon filter and a few metres of ducting are hanging off it – exactly where lesser fans give up. Five sizes cover 125mm (5") to 315mm (12") and 350 to 3,100 m³/h. Every unit ships with a manual speed controller (35–100%), soft-start and a steel casing on long-life bearings, backed by a 2-year manufacturer warranty.
Key Benefits
- Airflow from 350 to 3,100 m³/h across five sizes, so the fan matches the room
- Improved static pressure holds airflow through filters, bends and long duct runs
- Whisper-quiet next to a traditional AC fan, which counts when extraction runs 24/7
- More airflow per watt – the 125mm pulls just 20W and the 315mm 320W at full tilt
- Soft-start ramps the motor up gently rather than slamming it to full speed
- Works with EC1 and EC5 controllers when fitted with the correct adaptor
Heat, humidity and stale air under load
A fan that reads well on paper but stalls behind a filter leaves you with rising temperatures, humidity that will not shift overnight and the weak airflow behind airy flowers and slow growth. The V2's extra static pressure keeps air moving when the system is fully loaded, so the room clears heat and moisture on schedule.
How to Use
- Size it properly: as a rule the fan should replace all the air in your grow space at least once per minute, plus extra for lighting heat and filter resistance
- Hang it in-line after your carbon filter, using the supplied controller to trim the speed back once the room is stable
- Run reduced speeds to save money – EC motors draw less power as you dial them down
- Note the exception: V2 Hyper Fans are not compatible with the Hyper Fan Multi-Phase Controller
Technical Specifications
- Motor: 9-pole EC, soft-start
- Housing: steel casing, long-life bearings
- Warranty: 2 years
- Motor type: EC, mixed-flow laminar blade
| By size | 5" | 6" | 8" |
|---|---|---|---|
| Airflow | 350 m³/h | 560 m³/h | 1230 m³/h |
| Power | 20W | 40W | 75W |
| Noise | 65 dB | 66 dB | 69 dB |
| Control | Variable 35–100% + controller compatible | ||
| Max speed | 5000 rpm | 5000 rpm | 3800 rpm |
| Static pressure | 475 Pa | 545 Pa | 560 Pa |
| Weight | 1.1kg | 1.6kg | 2.5kg |
| Dimensions | 11 x 16.2cm | 16.5 x 18.6cm | 22 x 22.2cm |
| By size | 10" | 12" |
|---|---|---|
| Airflow | 1840 m³/h | 3100 m³/h |
| Power | 150W | 320W |
| Noise | 72 dB | 73 dB |
| Control | Variable 35–100% + controller compatible | |
| Max speed | 3200 rpm | 3000 rpm |
| Static pressure | 610 Pa | 730 Pa |
| Weight | 3kg | 8.5kg |
| Dimensions | 20.8 x 30.5cm | 29 x 37cm |
