Description
A Matched RAM Fan, Carbon Filter and Ducting in One Box

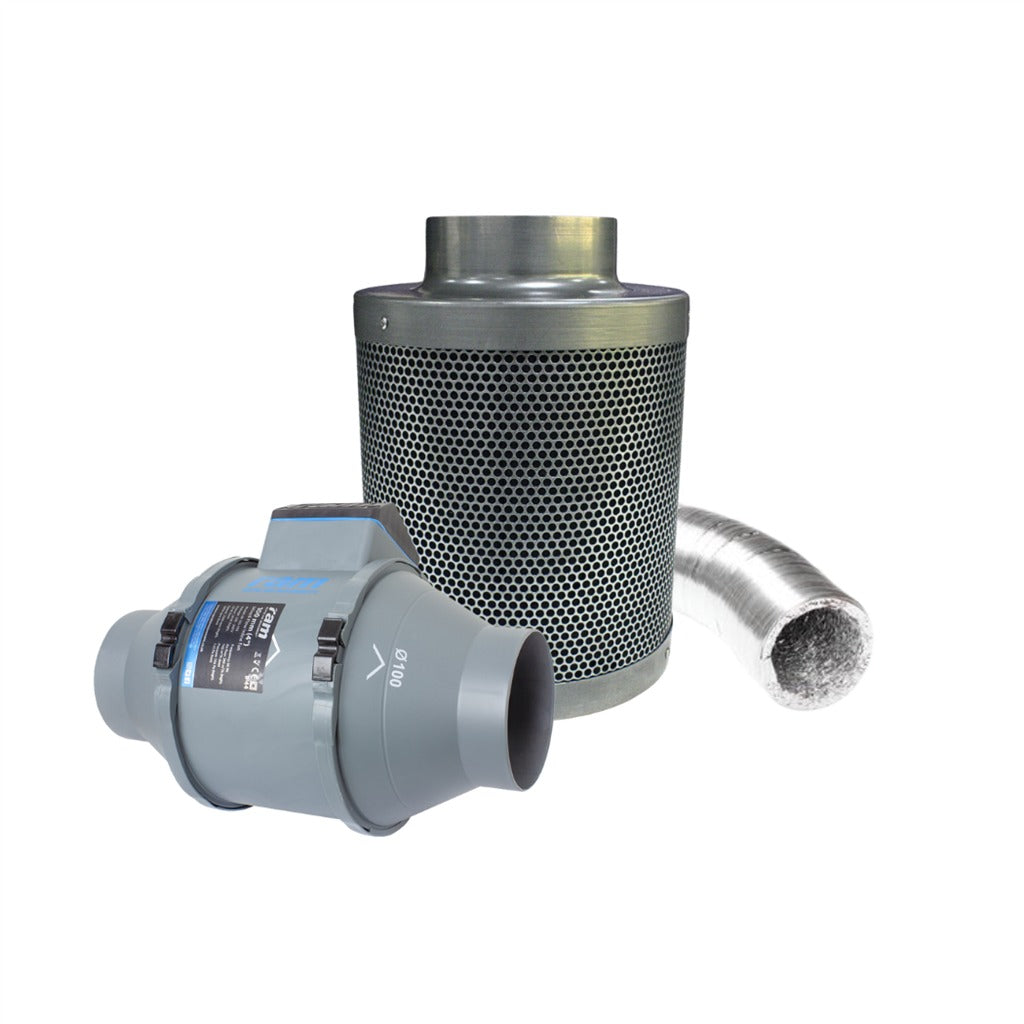

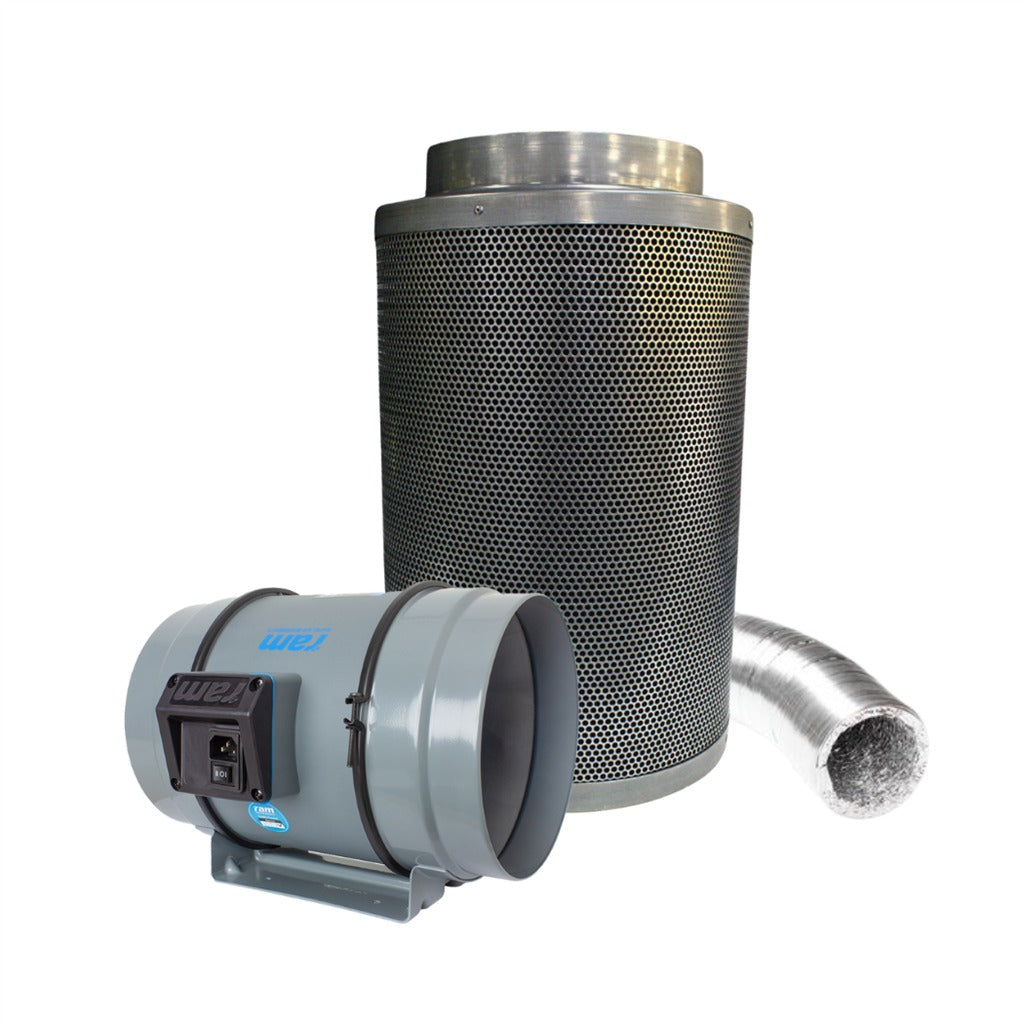

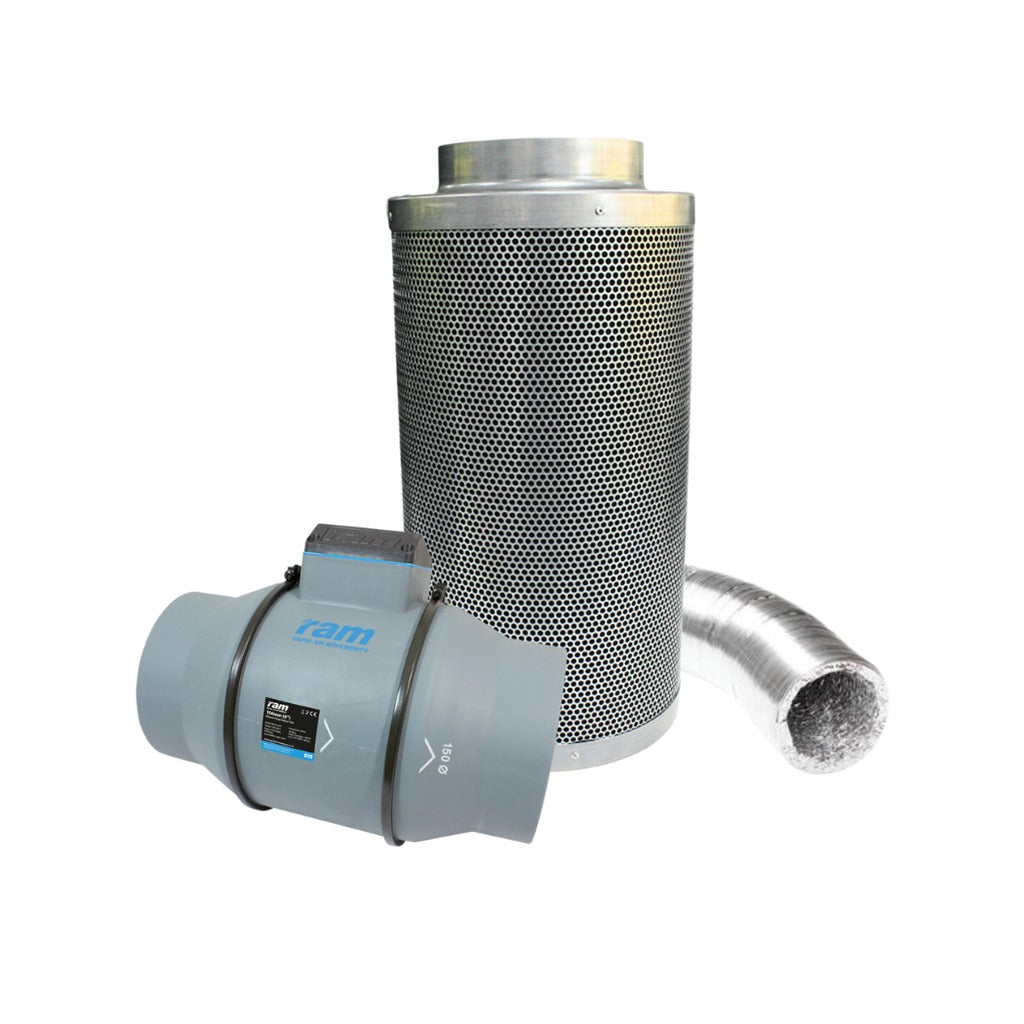

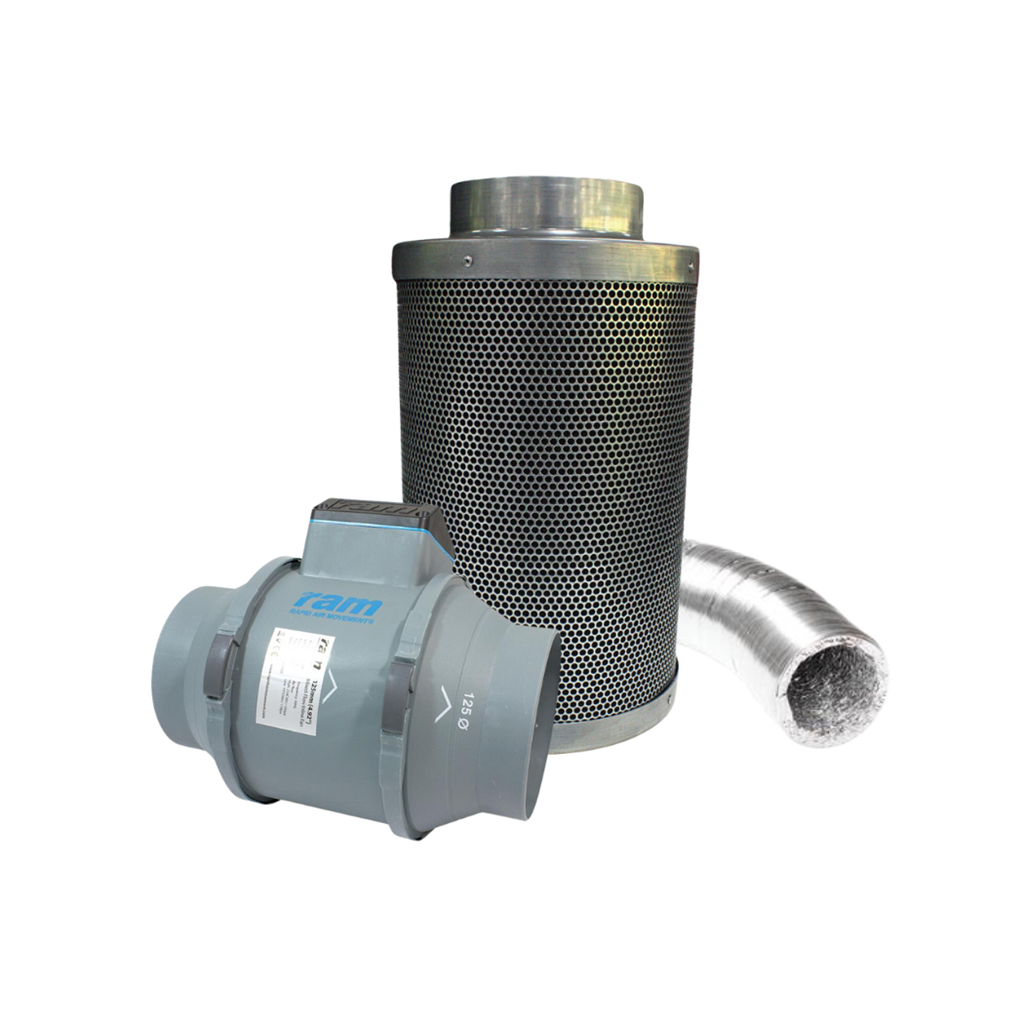

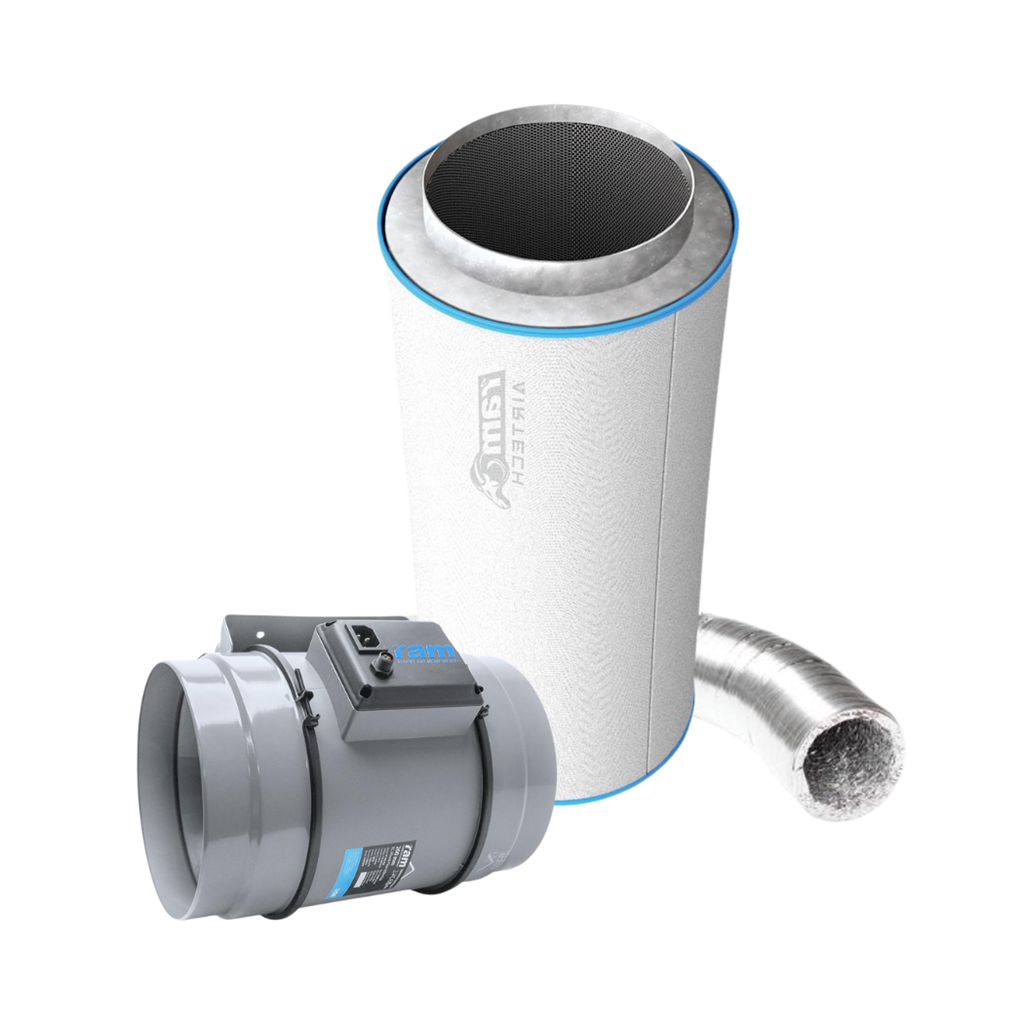

The RAM Air Kit brings together a RAM inline extractor fan, a RAM AirTECH carbon filter rated above the fan's airflow, 5m of RAM ALUDUCT low-noise ducting, a quick-release clamp and a UK mains lead, so extraction and odour control for a grow tent or grow room arrive as one order. The 100mm, 125mm, 150mm and 200mm kits pair the two-speed RAM Mixed-Flow fan (199, 284, 530 and 840m³/h) with an AirTECH LITE filter; the 250mm kit steps up to the RAM EC Mixed-Flow fan (1652m³/h) with an AirTECH HEAVY filter for larger rooms.
What's Included
- RAM Mixed-Flow Inline Fan 100mm, 199m³/h (100mm kit); 125mm, 284m³/h (125mm kit); 150mm, 530m³/h (150mm kit); 200mm, 840m³/h (200mm kit) or RAM EC Mixed-Flow Inline Fan 250mm, 1652m³/h (250mm kit)
- RAM AirTECH carbon filter - LITE 100/200, 250m³/h (100mm kit); LITE 125/300, 350m³/h (125mm kit); LITE 150/400, 600m³/h (150mm kit); LITE 200/400, 900m³/h (200mm kit) or HEAVY 250/660, 2000m³/h (250mm kit)
- RAM ALUDUCT low-noise ducting, 5m
- Quick-release clamp
- UK plug to IEC lead, 2m
Key Benefits
- Filter rated above the fan (250 vs 199m³/h; 350 vs 284m³/h; 600 vs 530m³/h; 900 vs 840m³/h; 2000 vs 1652m³/h), so the carbon is never overrun
- Sizes already matched - fan, filter and ducting share one diameter, no reducers needed
- Low-noise ALUDUCT ducting to cut the rush of air along the run
- Mixed-flow fan design that holds its airflow against the resistance of a carbon filter
- Ready to plug in with the UK lead supplied
Heat, Humidity and Odour Building Up?
A closed tent under lights soon runs hot and humid, and stale air slows growth and invites mould. Extraction pulls that air out and draws fresh air in, while the carbon filter strips out odour before it leaves the room. Buying the parts as a matched kit means the fan is not starved by an undersized filter or duct.
How to Use
- Hang the filter at the top of the tent, where the warmest air collects
- Connect the filter to the fan inlet with ducting, following the airflow arrow so the fan pulls air through the carbon
- Duct the fan outlet out of the tent and secure each joint with the clamp or tape
- Size to your space: aim to change the tent's air every one to three minutes
Technical Specifications
- Type: inline fan, carbon filter and ducting kit
- Fan: RAM mixed-flow inline fan
- Fan IP rating: IP44
- Fan max. air temperature: 60°C
- Fan connection: IEC socket, mounting bracket
- Power lead: UK plug to female IEC, 2 m
- Carbon filter: RAM AirTECH
- Ducting: RAM ALUDUCT Low Noise, 5 m
- Brand: RAM
| By size | 100mm 199m³/h | 125mm 284m³/h | 150mm 530m³/h |
|---|---|---|---|
| Fan | RAM Mixed-Flow 100 mm | RAM Mixed-Flow 125 mm | RAM Mixed-Flow 150 mm |
| Fan airflow | 199 m³/h | 284 m³/h | 530 m³/h |
| Fan power | 26 W | 33 W | 54 W |
| Fan noise | 31 dB(A) | 31 dB(A) | 33 dB(A) |
| Speed control | 2-speed, switched | ||
| Fan supply | 220–240 V, 50 Hz | ||
| Carbon filter | AirTECH LITE 100/200 | AirTECH LITE 125/300 | AirTECH LITE 150/400 |
| Filter airflow | 250 m³/h | 350 m³/h | 600 m³/h |
| Ducting | ALUDUCT 102 mm x 5 m | ALUDUCT 127 mm x 5 m | ALUDUCT 152 mm x 5 m |
| Clamp | 60–135 mm quick-release | 60–135 mm quick-release | 60–215 mm quick-release |
| By size | 200mm 840m³/h | 250mm EC 1652m³/h |
|---|---|---|
| Fan | RAM Mixed-Flow 200 mm | RAM EC Mixed-Flow 250 mm |
| Fan airflow | 840 m³/h | 1,652 m³/h |
| Fan power | 128 W | 255 W |
| Fan noise | 63 dB(A) | 65 dB(A) |
| Speed control | 2-speed, switched | EC, variable (dial) |
| Fan supply | 220–240 V, 50 Hz | 110–240 V, 50 Hz |
| Carbon filter | AirTECH LITE 200/400 | AirTECH HEAVY 250/660 |
| Filter airflow | 900 m³/h | 2,000 m³/h |
| Ducting | ALUDUCT 203 mm x 5 m | ALUDUCT 254 mm x 5 m |
| Clamp | 60–215 mm quick-release | 60–325 mm quick-release |
