Description
See Your CO2 Level and Hold It Where Plants Use It Best

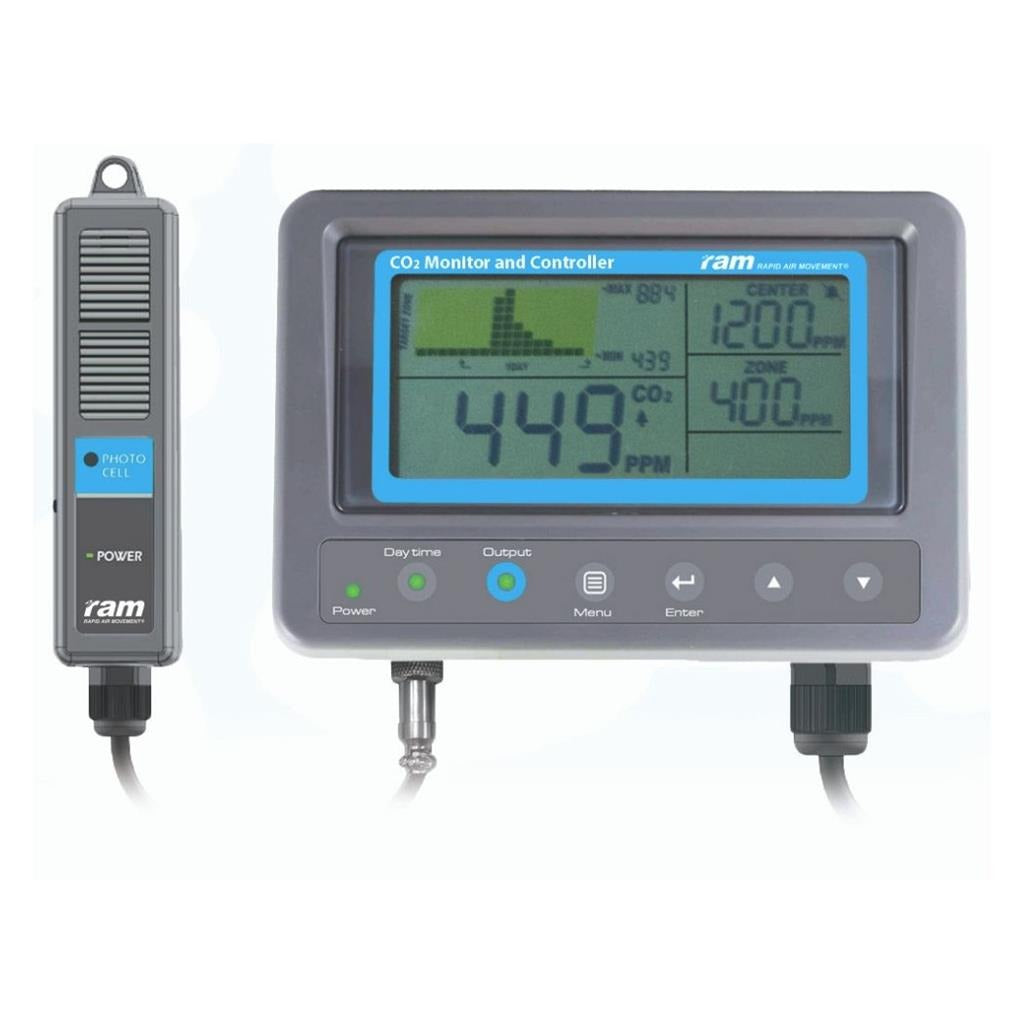

The RAM CO2 Monitor and Controller is a 2-in-1 unit that reads the CO2 level in a grow room or sealed grow tent, shows it live on a large LCD screen and switches a CO2 source on and off to keep the room inside the band you set. You choose a target ppm and a zone either side of it, and the controller holds the room within that range. A day/night photocell on the remote sensor stops it releasing CO2 when the lights are off, a human mode runs your extraction to bring CO2 down when people need to be in the room, and a one-week log on screen shows how the room has behaved over the last seven days. Buy the controller on its own to run an existing CO2 set-up, or as a kit with the GasArc CO2 Release Kit, ready to connect to a bottled CO2 supply.
What's Included

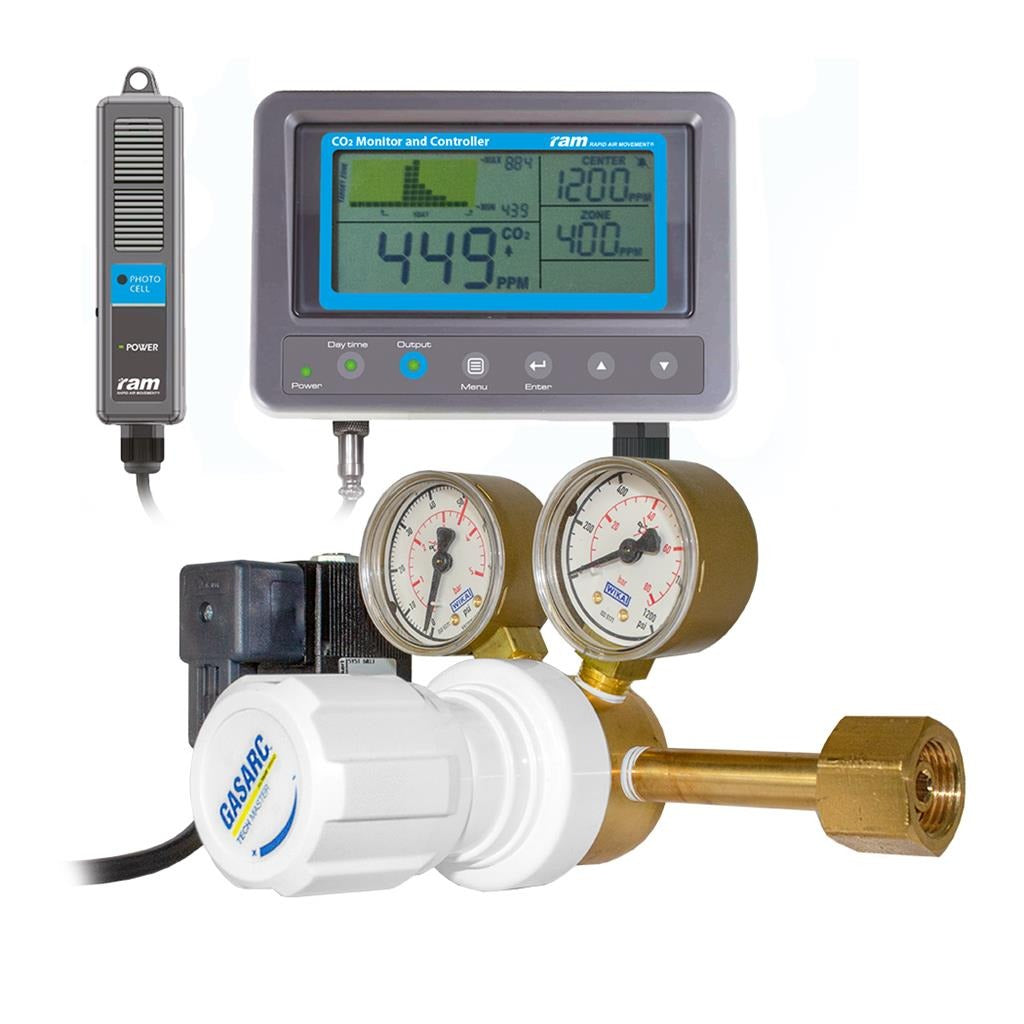

- RAM CO2 Monitor and Controller – with remote CO2 sensor on a 4.5m cable and instruction manual (both options)
- GasArc CO2 Release Kit – CO2 cylinder regulator with contents and outlet pressure gauges, CO2 solenoid valve fitted and wired, and 10m of CO2 release tube (With CO2 Release Kit option only)
Key Benefits
- Monitor and controller in one – live CO2 readings and automatic control from a single wall-mounted unit
- Target and zone setting – keeps CO2 within your chosen ppm limit either side of the target
- Day/night sensor – no CO2 released in the dark period, when plants cannot use it, so a cylinder goes further
- Human mode – switches extraction to lower CO2 for safe working in the room
- One-week visual log – see the week's highs, lows and trends at a glance
- Plug and play – add it to an existing room without changing your other equipment; switches up to 5A at 240V
CO2 Depletion Under Strong Lighting
Outdoor air holds around 400ppm of CO2. In a sealed or tightly controlled room, plants under strong lighting draw that down within hours of lights-on, and once it falls, photosynthesis and growth slow however well the plants are fed and watered. Topping the room back up, commonly to around 1,000–1,200ppm during the lights-on period, lets plants make full use of the light and copes better with warm conditions. Too much CO2, though, is wasted gas and a hazard to anyone working in the room. A controller that measures the air and releases CO2 only when the level falls below target keeps enrichment accurate, economical and safe.
How to Use
- Mount the controller on a wall where the screen is easy to read, out of direct spray and drips
- Place the sensor at canopy height on its 4.5m cable, away from the CO2 outlet and the extraction inlet, where the photocell can see the lights
- Connect your CO2 source – such as the solenoid of a CO2 release kit – to the controller output (maximum 5A at 240V)
- Set the target and zone in plant mode, for example a 1,200ppm target; the controller releases CO2 whenever the room drops below the zone
- Bottled CO2: use a vapour-release cylinder, check every joint with soapy water and run the release tube above the canopy – CO2 is heavier than air and sinks onto the plants
- Pause extraction while enriching, or the CO2 goes straight out of the room; switch to human mode before working inside
Technical Specifications
- Function: 2-in-1 CO2 monitor and controller
- Display: large LCD – live CO2 ppm, target (centre) and zone settings, one-week CO2 log
- Modes: plant mode (raises CO2 by switching a CO2 source); human mode (lowers CO2 by switching extraction)
- Day/night control: photocell on the sensor – no CO2 release in the dark period
- Sensor: remote, on a 4.5m cable
- Input: 100–240V AC, 50–60Hz
- Maximum load: 5A at 240V / 10A at 120V
- Mounting: wall mountable
- Release kit (kit option): GasArc CO2 cylinder regulator with twin gauges, wired CO2 solenoid valve, 10m release tube
- Gas supply (kit option): bottled CO2, vapour-release cylinders only – cylinder not included
Frequently Asked Questions
Is a CO2 cylinder included?
No. The kit option includes the GasArc regulator, solenoid valve and 10m release tube; it fits a vapour-release CO2 cylinder (not a liquid-withdrawal, dip-tube cylinder), which you buy or rent separately.
Will it release CO2 at night?
No. The photocell on the sensor tells the controller when the lights are off, and it holds CO2 release until the lights come back on.
What does human mode do?
Instead of adding CO2, it switches the output to run your extraction and bring the level down, so the room is safer to work in.
Can I use it with the CO2 equipment I already have?
Yes. It is plug and play: the CO2 source you plug into it is switched on and off to hold your target, up to 5A at 240V.
