Description
RAM Fan Power with a Mountain Air Carbon Filter

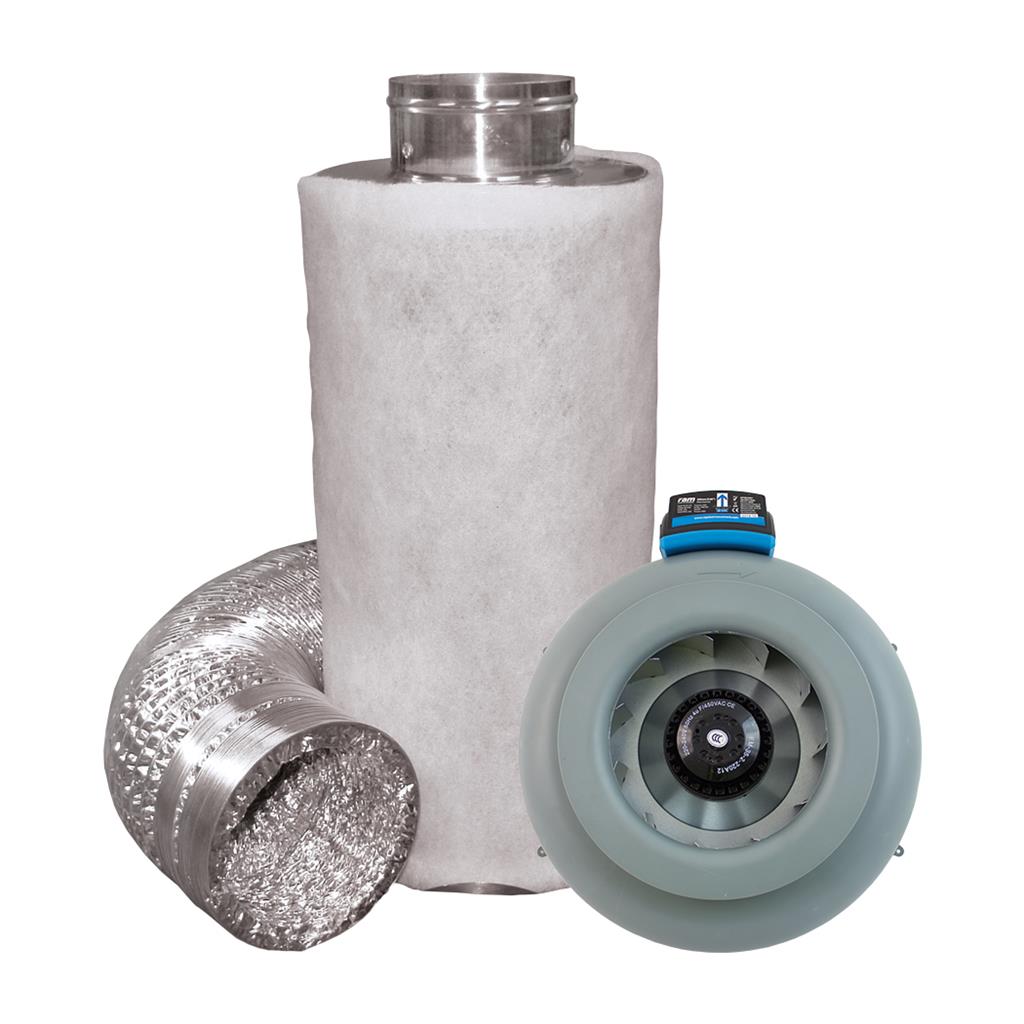

The RAM & Mountain Air Kit pairs a RAM Inline Duct Fan with a compatible Mountain Air carbon filter, in five sizes from 100mm (277m³/h) through 125mm (378m³/h), 150mm (580m³/h) and 200mm (998m³/h) to 250mm (1088m³/h), plus 5m of two-ply aluminium flexible ducting and two filter clamps. It is a straightforward extraction and odour control set-up for a grow tent or grow room, with the ducting in each kit sized to its fan.
What's Included
- RAM Inline Duct Fan – 100mm 277m³/h, 125mm 378m³/h, 150mm 580m³/h, 200mm 998m³/h or 250mm 1088m³/h, to suit the kit
- Mountain Air carbon filter, matched to the fan – 250mm in the 250mm kit
- Aluminium flexible ducting, two-ply, 5m
- Filter clamps x2
Key Benefits
- 277 to 1088m³/h of extraction across five sizes, from small tents to bigger grow rooms
- Mountain Air carbon to scrub odour before air leaves the room
- Matched parts - fan, filter, ducting and clamps chosen to work together, with no reducers or adaptors to buy
- Tough two-ply ducting that holds its shape along the run
Is Your Room Running Hot, Humid and Smelly?
Lights, plants and people all add heat and moisture to a closed space. Without enough airflow the room climbs in temperature and humidity, growth slows and mould gets a foothold. A fan pulling through a carbon filter removes that air, replaces it with fresh, and keeps odour inside the filter.
How to Use
- Hang the filter high in the room, where warm air gathers
- Duct the filter to the fan inlet, following the fan's airflow arrow, and clamp both joints
- Run the fan outlet out of the room through the ducting
- Add a fan speed controller if you want to trim airflow and noise
Technical Specifications
- Type: inline fan, carbon filter and ducting kit

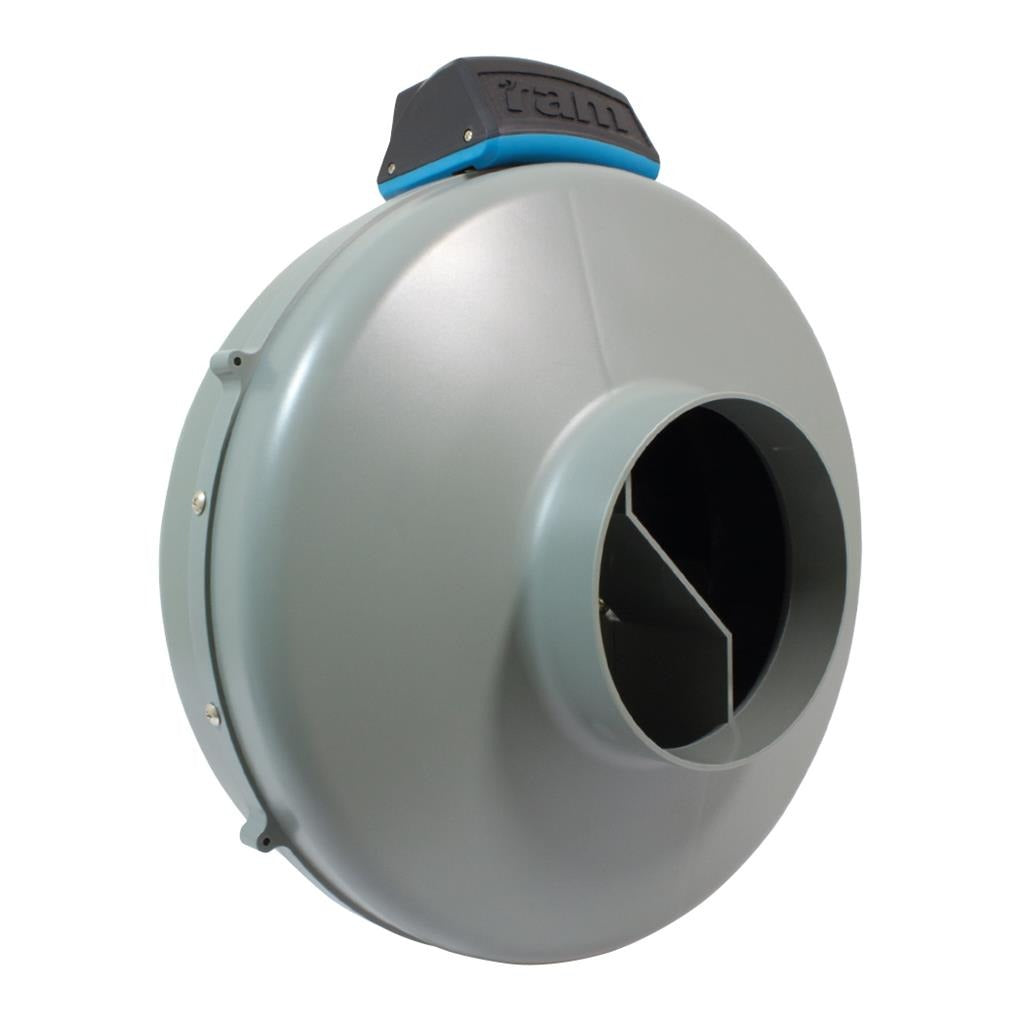

- Fan: RAM Inline Duct Fan, backward-curved centrifugal
- Airflow fin: Fast-Flow
- Fan supply: 220–240 V, 50 Hz
- Fan IP rating: IP44 (with ducting)
- Fan max. air temperature: 50°C
- Fan connection: IEC socket

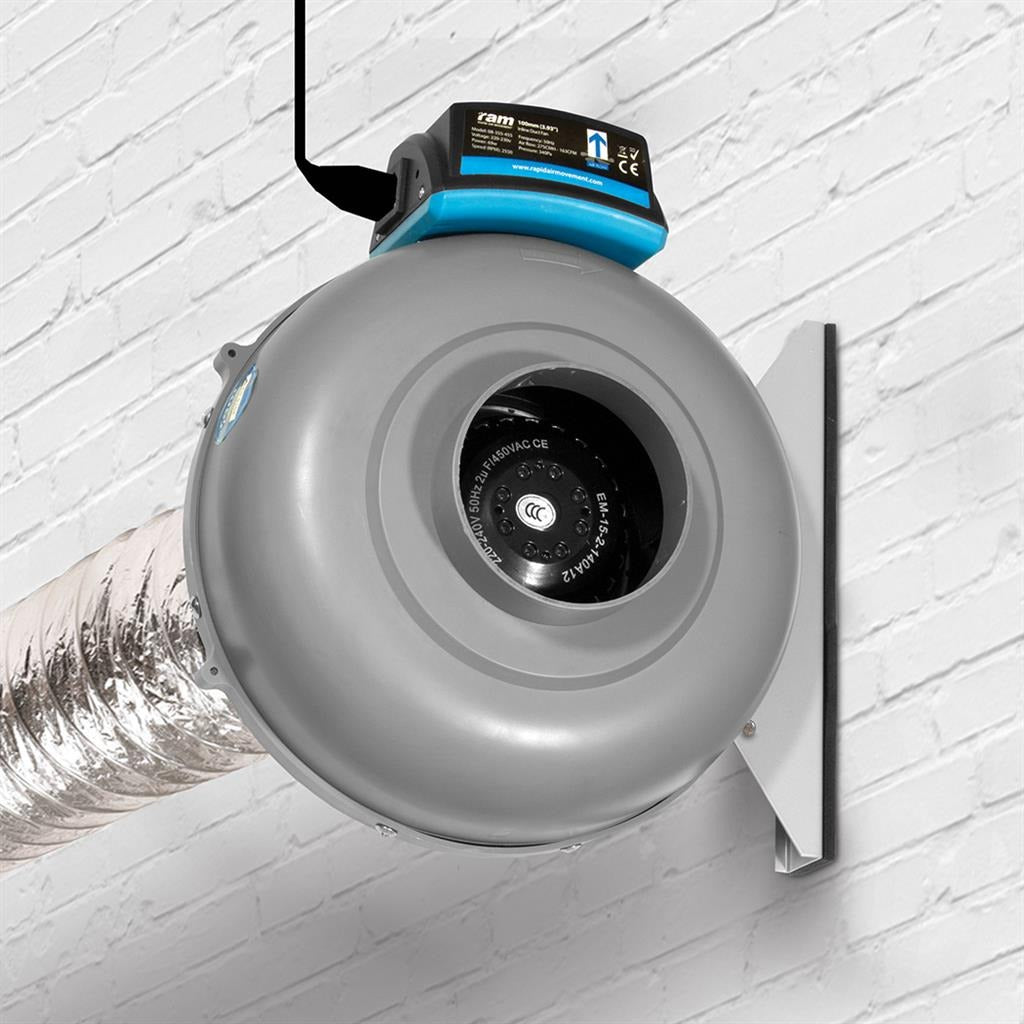

- Fan mounting: noise-insulated bracket
- Carbon filter: Mountain Air
- Ducting: 2-ply aluminium flexible, 5 m
- Clamps: 2 filter clamps
| By size | 100mm 277m³/h | 125mm 378m³/h | 150mm 580m³/h |
|---|---|---|---|
| Fan airflow | 277 m³/h | 378 m³/h | 580 m³/h |
| Fan power | 69 W | 74 W | 96 W |
| Static pressure | 340 Pa | 325 Pa | 400 Pa |
| Fan noise | 63 dB(A) | 62 dB(A) | 65 dB(A) |
| Fan current | 0.32 A | 0.34 A | 0.44 A |
| By size | 200mm 998m³/h | 250mm 1088m³/h |
|---|---|---|
| Fan airflow | 998 m³/h | 1,088 m³/h |
| Fan power | 166 W | 174 W |
| Static pressure | 575 Pa | 580 Pa |
| Fan noise | 66 dB(A) | 67 dB(A) |
| Fan current | 0.77 A | 0.80 A |
