Silenced extraction and odour control in one matched kit

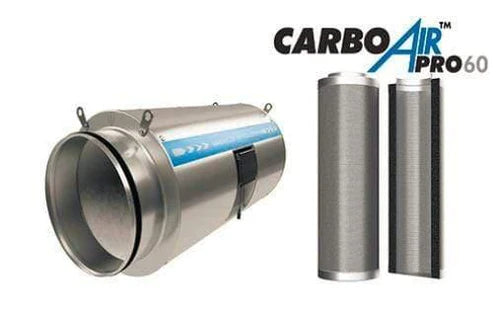

The Revolution Stratos AC Silenced + CarboAir 60 Kit pairs a Systemair Revolution Stratos AC silenced extractor fan with a matched CarboAir carbon filter and acoustic ducting, so extraction, odour control and noise are all handled together. Indoor rooms build heat, humidity and strong flowering odours fast, and poor airflow slows veg, hurts nutrient uptake and invites mould. The Stratos fan uses a sealed housing and aerodynamically optimised blades to move strong airflow with less noise, while the CarboAir filter's 60mm activated carbon bed gives the long contact time needed to scrub odours without choking that airflow.
What's Included

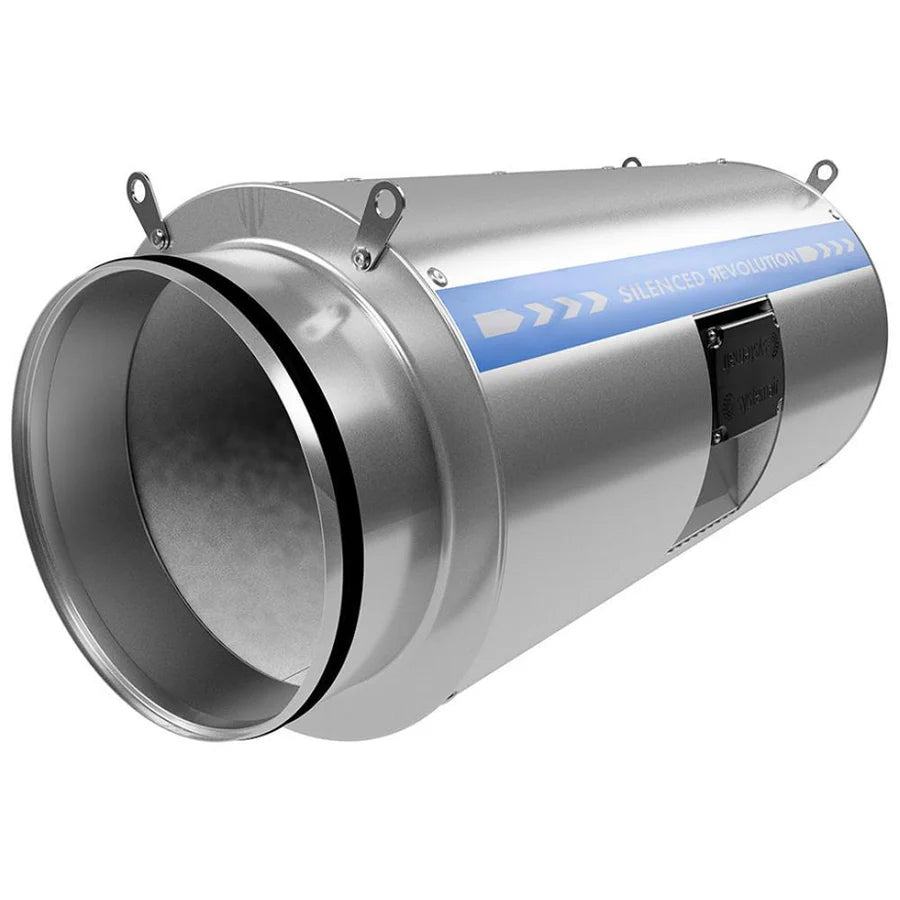

- Revolution Stratos AC Silenced Inline Fan
- CarboAir Carbon Filter (60mm bed depth)
- Acoustic Ducting
- Duct Clamps
Key Benefits
- Complete extraction and odour control kit for grow tents and grow rooms
- Silenced Revolution Stratos AC fan with sealed housing and low-friction blades for high airflow with less noise
- 60mm deep activated carbon bed for effective odour removal during flowering
- Acoustic ducting included to further cut system noise
- Strong airflow even with the filter fitted, thanks to the optimised impeller and guide vanes
- AC fan speed controller compatible for adjustable ventilation
How to Use
- Mount the carbon filter inside the grow tent or room.
- Connect the filter to the Stratos fan with the acoustic ducting and secure with duct clamps.
- Run ducting from the fan outlet to vent air outside the grow space.
- Check every connection is sealed to prevent air leaks.
- Plug the fan into a mains supply or AC fan speed controller.
- Adjust fan speed to hold stable temperature and humidity.
Technical Specifications
- Type: silenced AC inline fan, carbon filter and acoustic ducting kit
- Fan: Revolution Silenced V2 AC Stratos, engineered by Systemair
- Fan housing: sealed moulded silencer casing, metal flanges
- Fan supply: 230 V, single phase, 50 Hz
- Speed control: 5-step or stepless AC fan speed controller
- Motor protection: built-in thermal protection
- Fan IP rating: IP44
- Power lead: IEC cable attached
- Fan made in: Germany
- Fan warranty: 2 years
- Carbon filter: CarboAir Pro 60 activated carbon, 60 mm bed
- Ducting: acoustic ducting
- Clamps: duct clamps included
| By size | 150 6" 420 m³/h | 200 8" 956 m³/h |
|---|---|---|
| Fan model | Stratos 150 AC V2 | Stratos 200 AC V2 |
| Fan airflow | 420 m³/h | 956 m³/h |
| Airflow with filter | 305 m³/h | 710 m³/h |
| Fan power | 28 W | 80 W |
| Fan noise at 1 m | 30 dB(A) | 36 dB(A) |
| Fan speed | 2,364 rpm | 2,552 rpm |
| Fan size | 72 x Ø23 cm | 72 x Ø27 cm |
| Fan weight | 3.5 kg | 5.6 kg |
| Carbon filter | CarboAir 60, 150 x 660 mm | CarboAir 60, 200 x 660 mm |
| Filter rating | 1,350 m³/h | 1,700 m³/h |
| By size | 250 10" 2039 m³/h | 315 12" 2111 m³/h |
|---|---|---|
| Fan model | Stratos 250 AC V2 | Stratos 315 AC V2 |
| Fan airflow | 2,039 m³/h | 2,111 m³/h |
| Airflow with filter | 1,625 m³/h | 1,550 m³/h |
| Fan power | 236 W | 232 W |
| Fan noise at 1 m | 43 dB(A) | |
| Fan speed | 2,594 rpm | 2,602 rpm |
| Fan size | 76 x Ø32 cm | 84.8 x Ø32 cm |
| Fan weight | 8.5 kg | 8.7 kg |
| Carbon filter | CarboAir 60, 250 x 1,000 mm | CarboAir 60, 315 x 660 mm |
| Filter rating | 3,100 m³/h | 2,450 m³/h |
