Strong airflow with electronically commutated efficiency

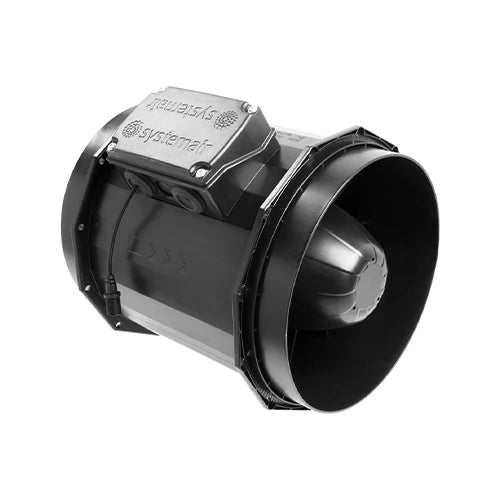

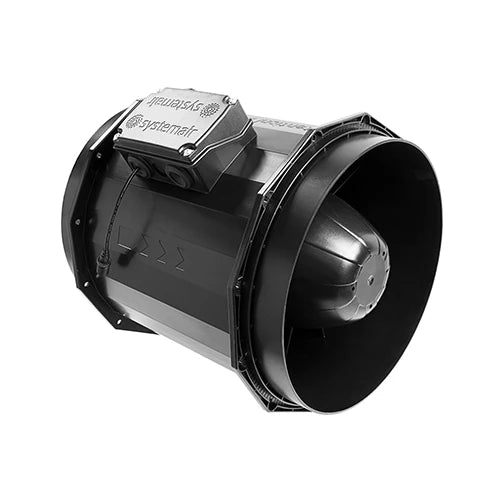

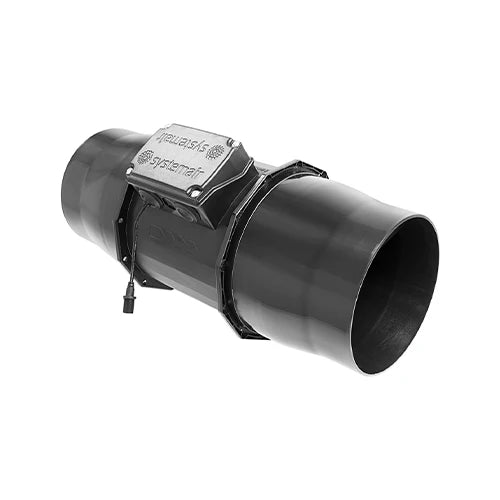

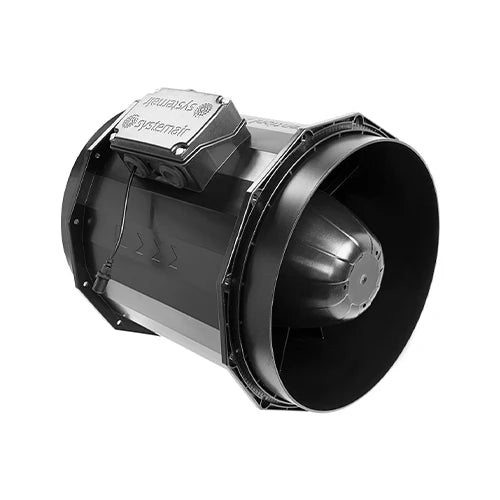

The Revolution EC Vector by Systemair is the non-silenced, high-performance inline duct fan in the Revolution range. It moves large volumes of air while drawing roughly half the power of a traditional AC fan, thanks to its frictionless EC (electronically commutated) motor. Speed is adjustable from 1% to 100% for precise control in grow tents and grow rooms. Four sizes span 150mm to 250mm and 796 to 2,077 m³/h, and it is backed by a 2-year manufacturer warranty.
Key Benefits
- Digital EC motor delivering efficient, high-volume airflow
- 1% to 100% speed control for precise ventilation tuning
- High static pressure to pull air through carbon filters and long ducting runs
- Around half the energy of a comparable AC duct fan
- Quiet running with minimal vibration and a sealed composite housing
- Two 250mm options — the standard 250 EC and the higher-output 250L EC
- Controller-ready, compatible with G.A.S EC fan controllers such as the EC5
- 2-year manufacturer warranty
Fighting heat build-up and mould risk in flower?
Lighting and plant transpiration push heat and humidity up fast, and without strong extraction temperatures climb and moisture lingers through flowering, inviting mould and cutting yield. The Revolution Vector's airflow and high static pressure move air efficiently through filters and ducting, stabilising temperature and humidity to support better transpiration, nutrient uptake and denser flowers.
How to Use
- Install the fan inline within your grow room ventilation system.
- Connect it between the carbon filter and ducting to extract stale air.
- Secure duct joints with clamps or duct tape for an airtight seal.
- Wire it to a compatible G.A.S EC fan controller for full speed control.
- Without a controller, connect via the supplied cable to run at a fixed speed.
- Adjust speed to hold stable temperature and humidity in the space.
Technical Specifications
- Motor: frictionless digital EC, speed-controllable 1% to 100%
- Available sizes: 150mm (6"), 200mm (8"), 250mm (10") and 250L (10" high output) — sold by G.A.S as 150 EC, 200 EC, 250 EC and 250L EC

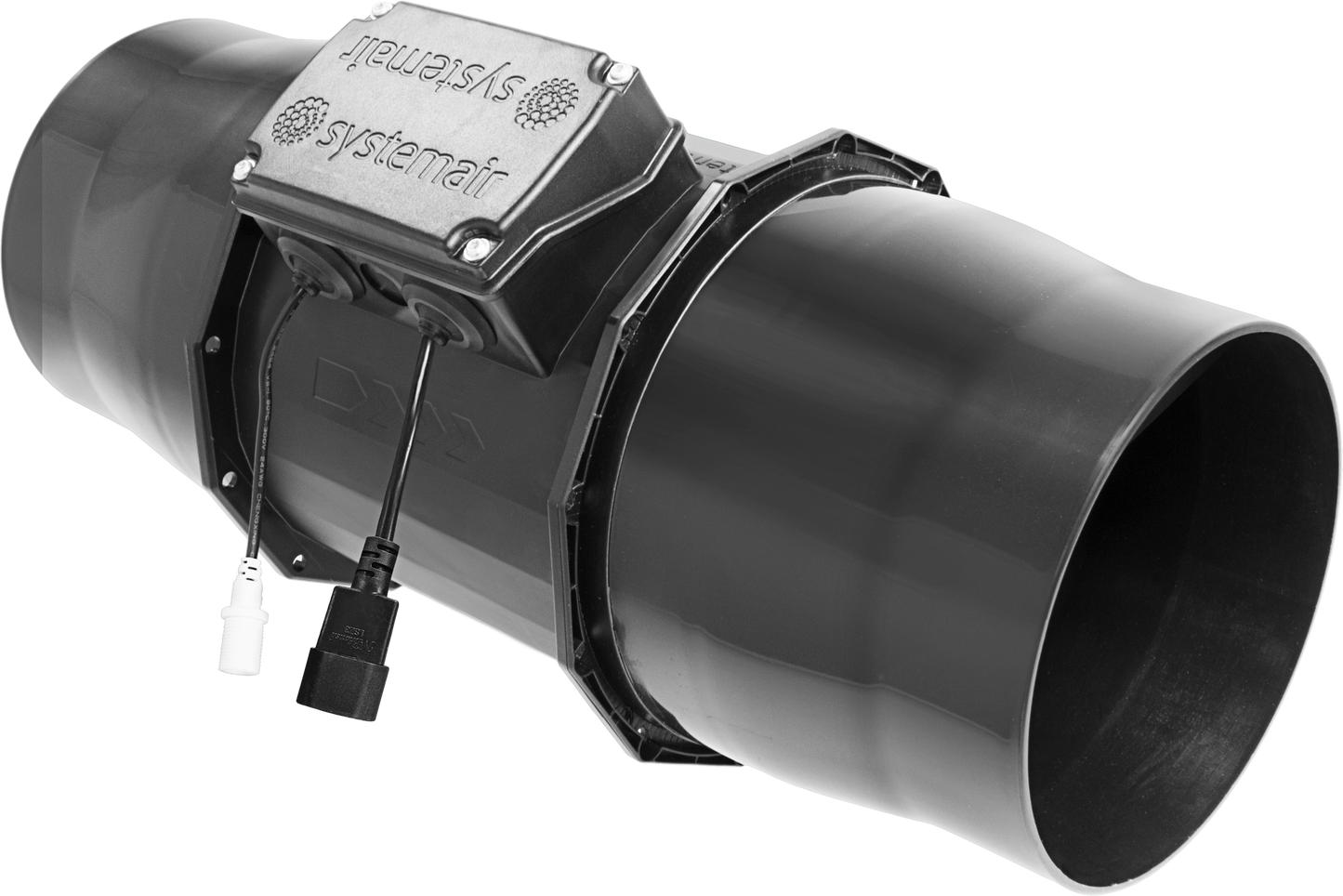

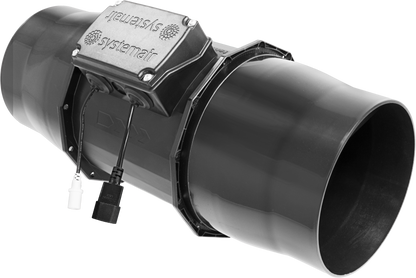

- Airflow, 150mm (6"): 796 m³/h

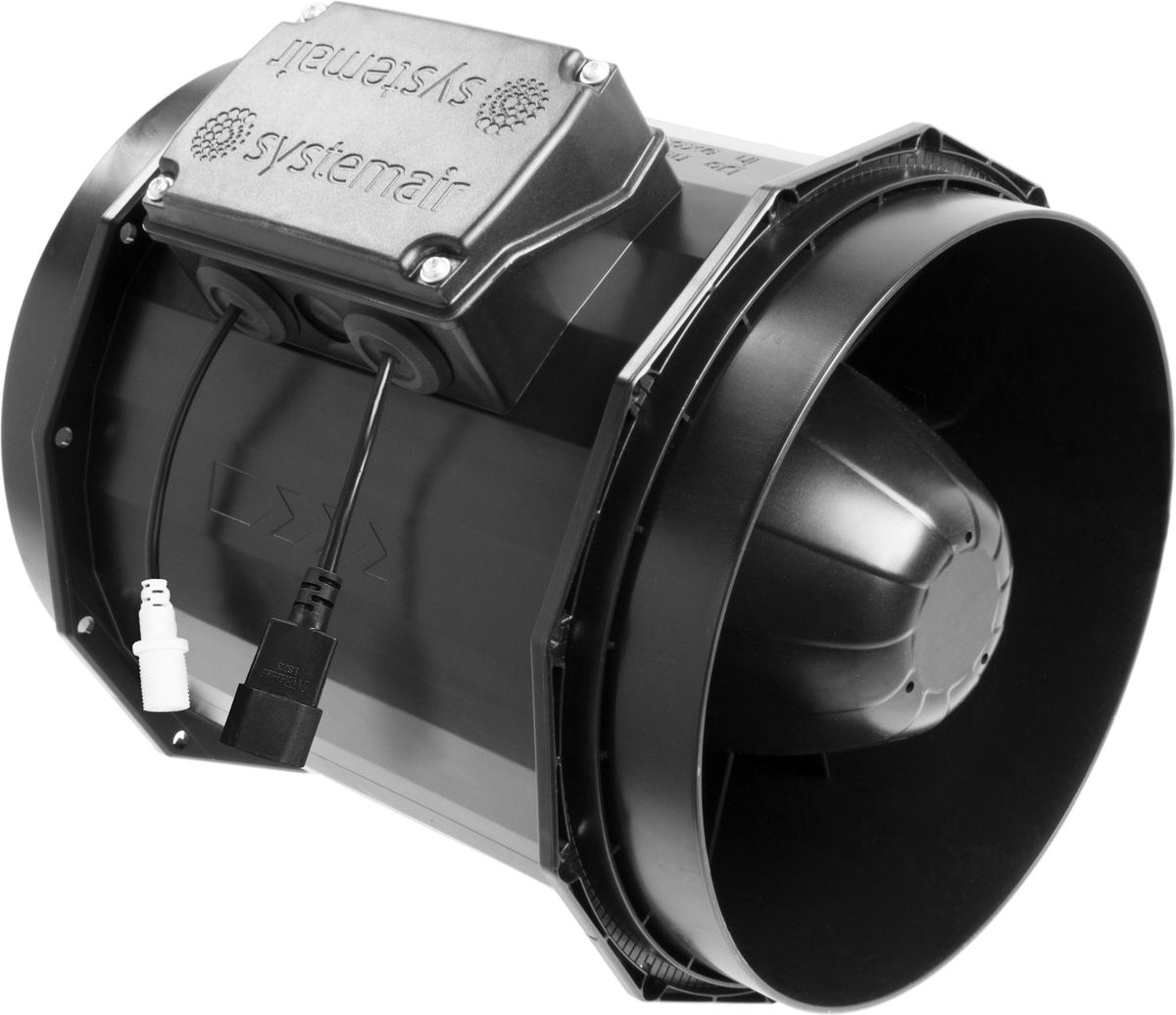

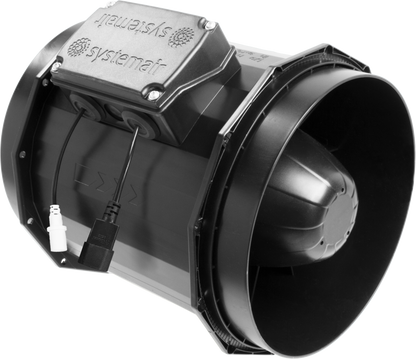

- Airflow, 200mm (8"): 1,332 m³/h

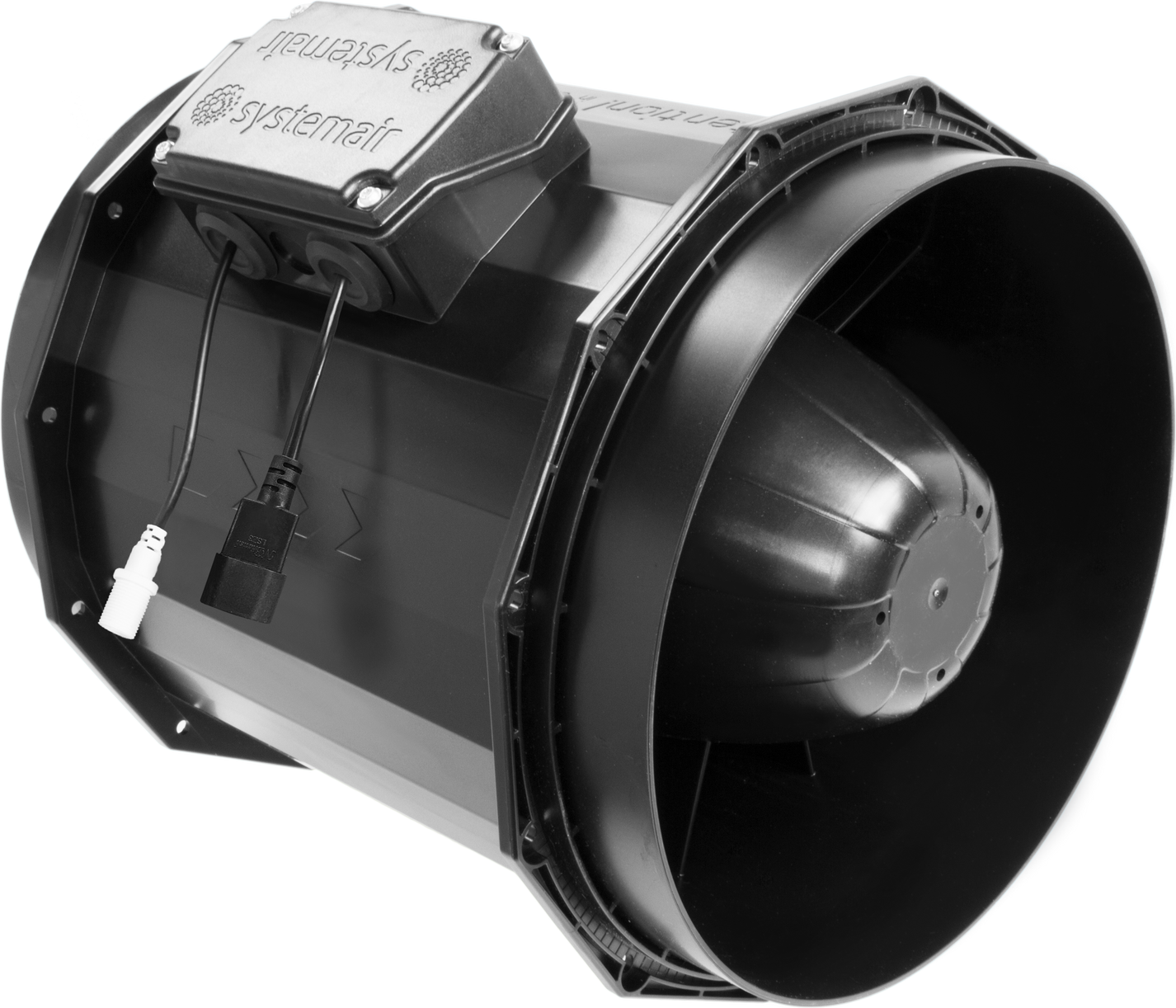

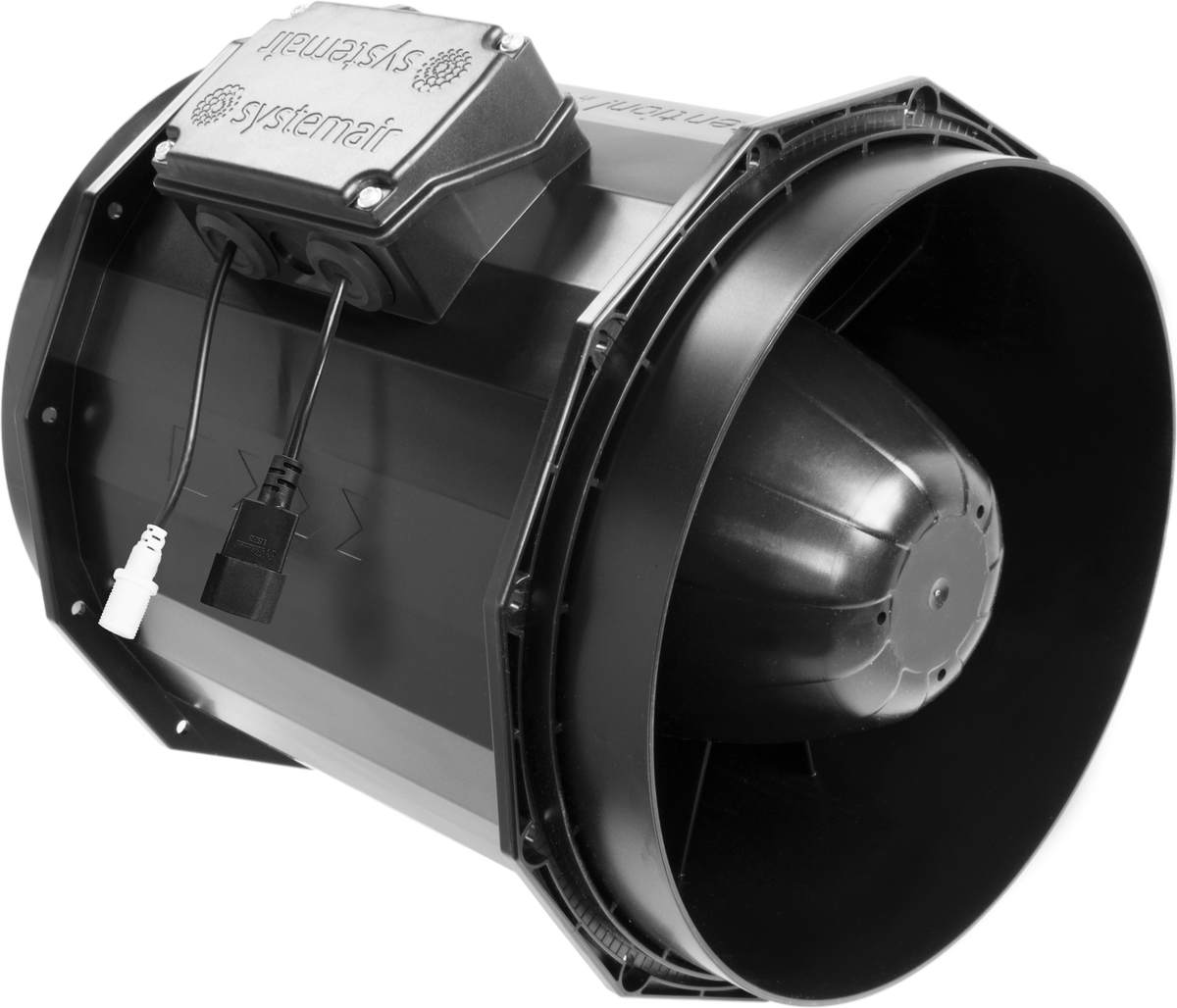

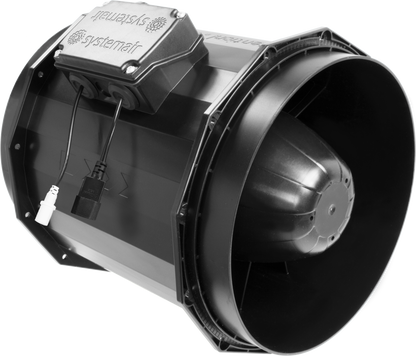

- Airflow, 250mm (10"): 1,822 m³/h

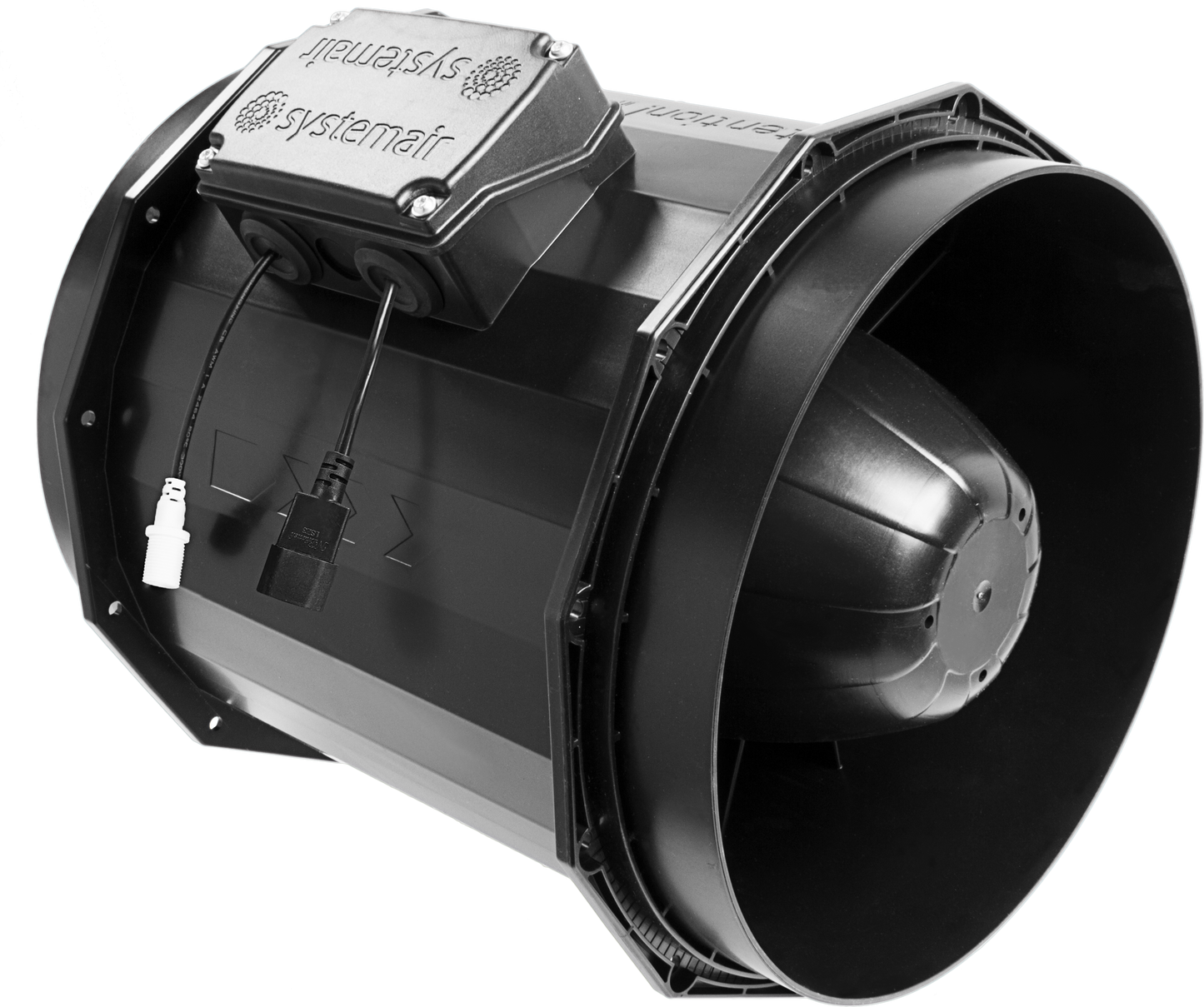

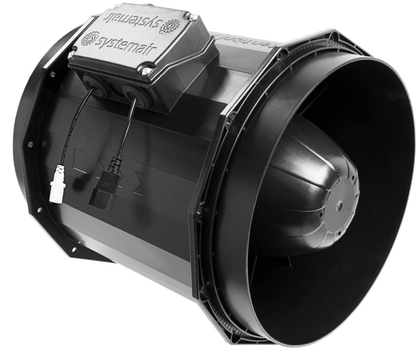

- Airflow, 250L (10" high output): 2,077 m³/h
- Housing: sealed composite
- Compatibility: G.A.S EC fan controllers (e.g. EC5)
- Warranty: 2 years
- Airflow, 250mm (10") 1,822 m³/h: 1,822 m³/h
- Airflow, 250mm (10") 2,077 m³/h: 2,077 m³/h
- Airflow with filter, 150mm (6"): 655 m³/h
- Airflow with filter, 200mm (8"): 1,005 m³/h
- Airflow with filter, 250mm (10") 1,822 m³/h: 1,390 m³/h
- Airflow with filter, 250mm (10") 2,077 m³/h: 1,610 m³/h
- Power, 250mm (10") 1,822 m³/h: 126 W
- Power, 250mm (10") 2,077 m³/h: 165 W
- Pressure drop with filter, 250mm (10") 1,822 m³/h: 138 Pa
- Pressure drop with filter, 250mm (10") 2,077 m³/h: 172 Pa
- Power, 150mm (6"): 76 W
- Power, 200mm (8"): 117 W
- Pressure drop with filter, 150mm (6"): 158 Pa
- Pressure drop with filter, 200mm (8"): 190 Pa
